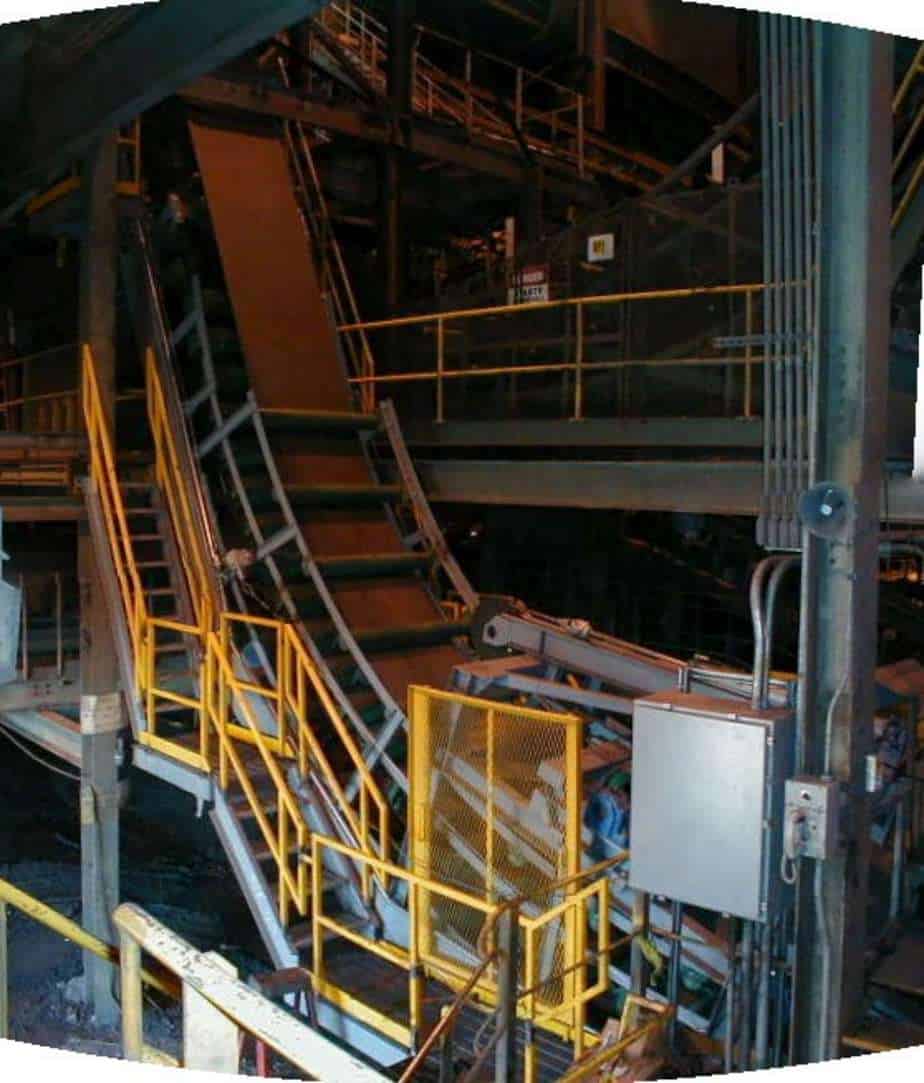

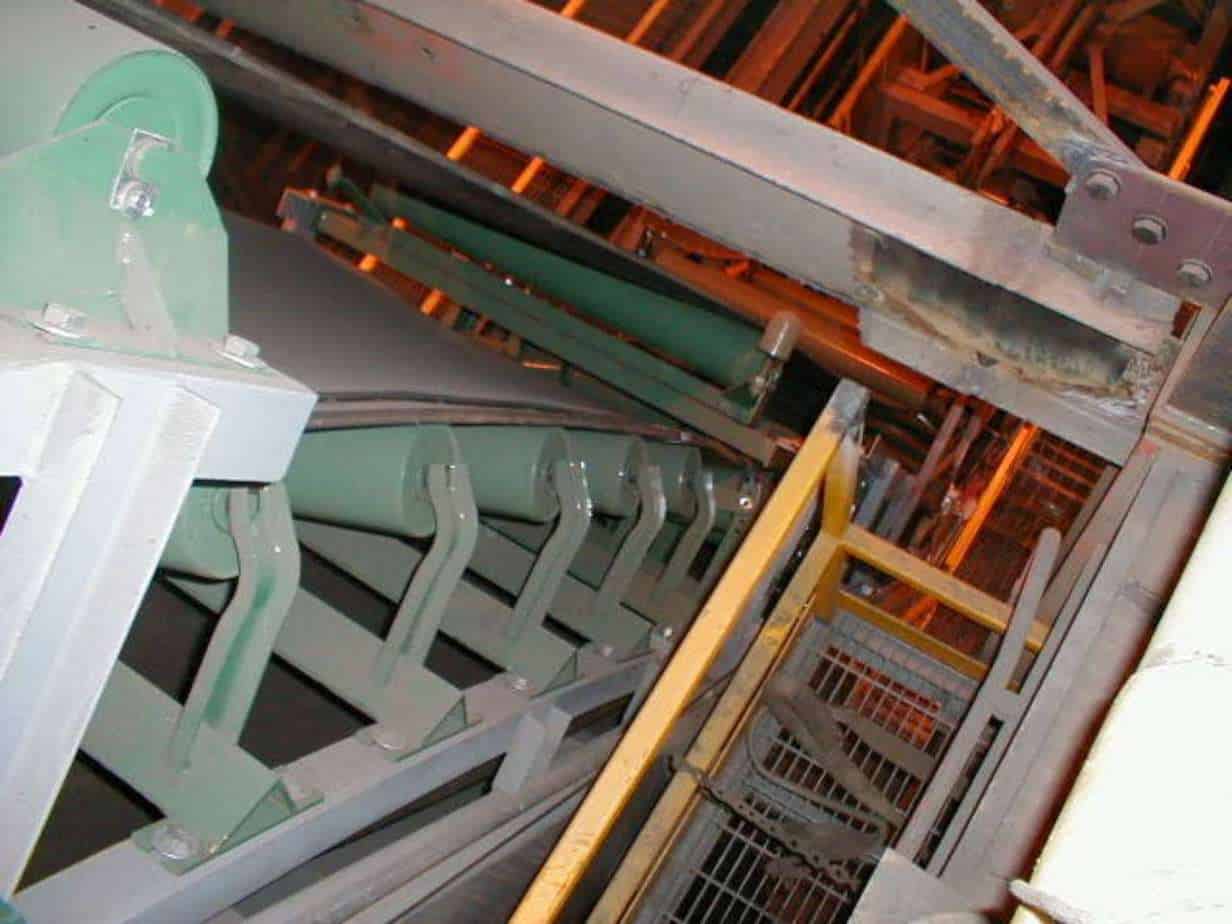

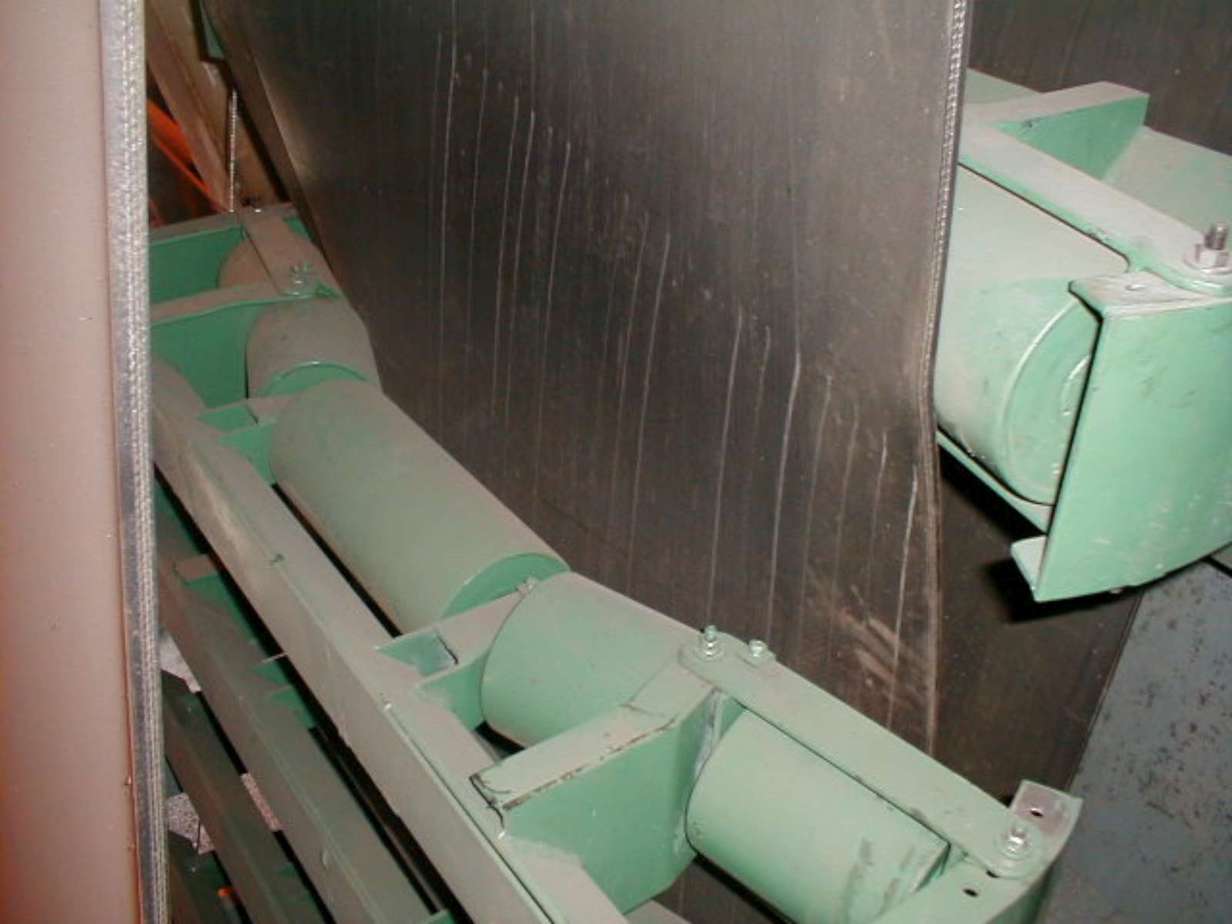

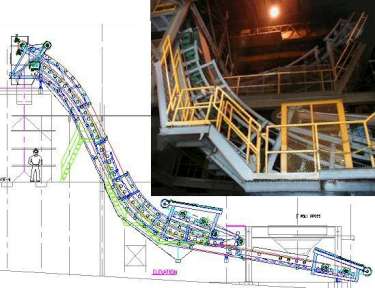

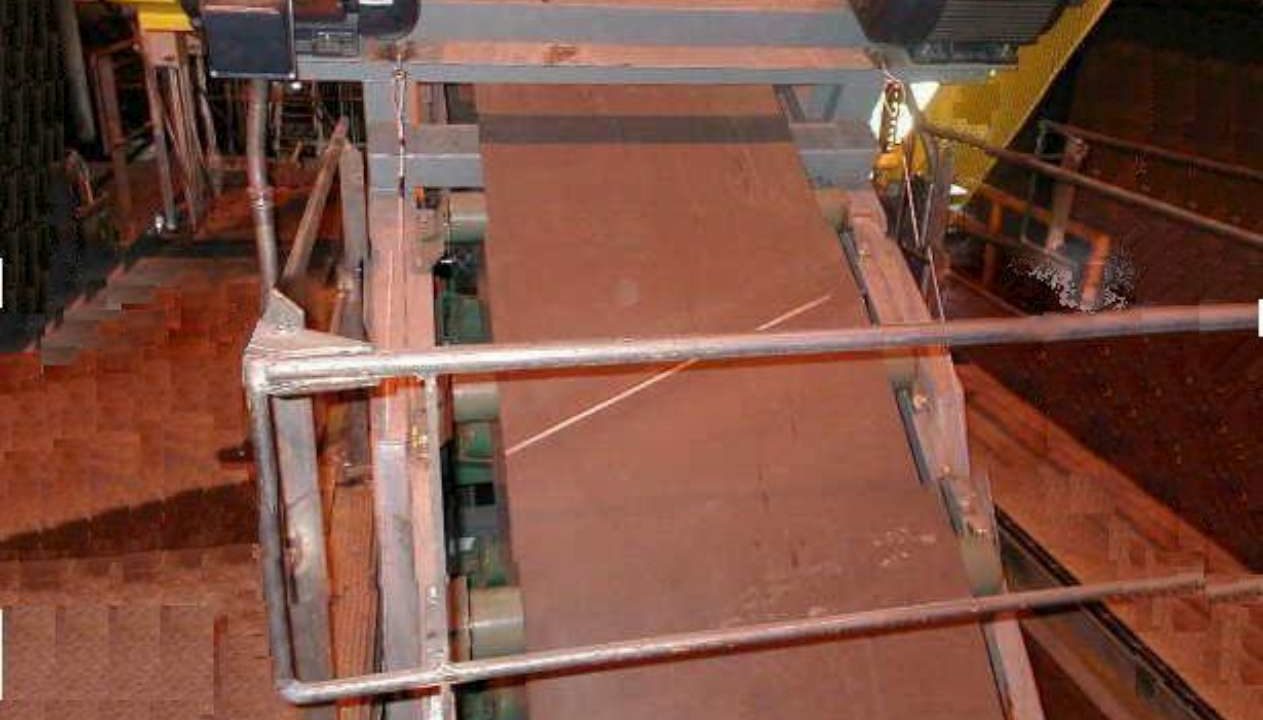

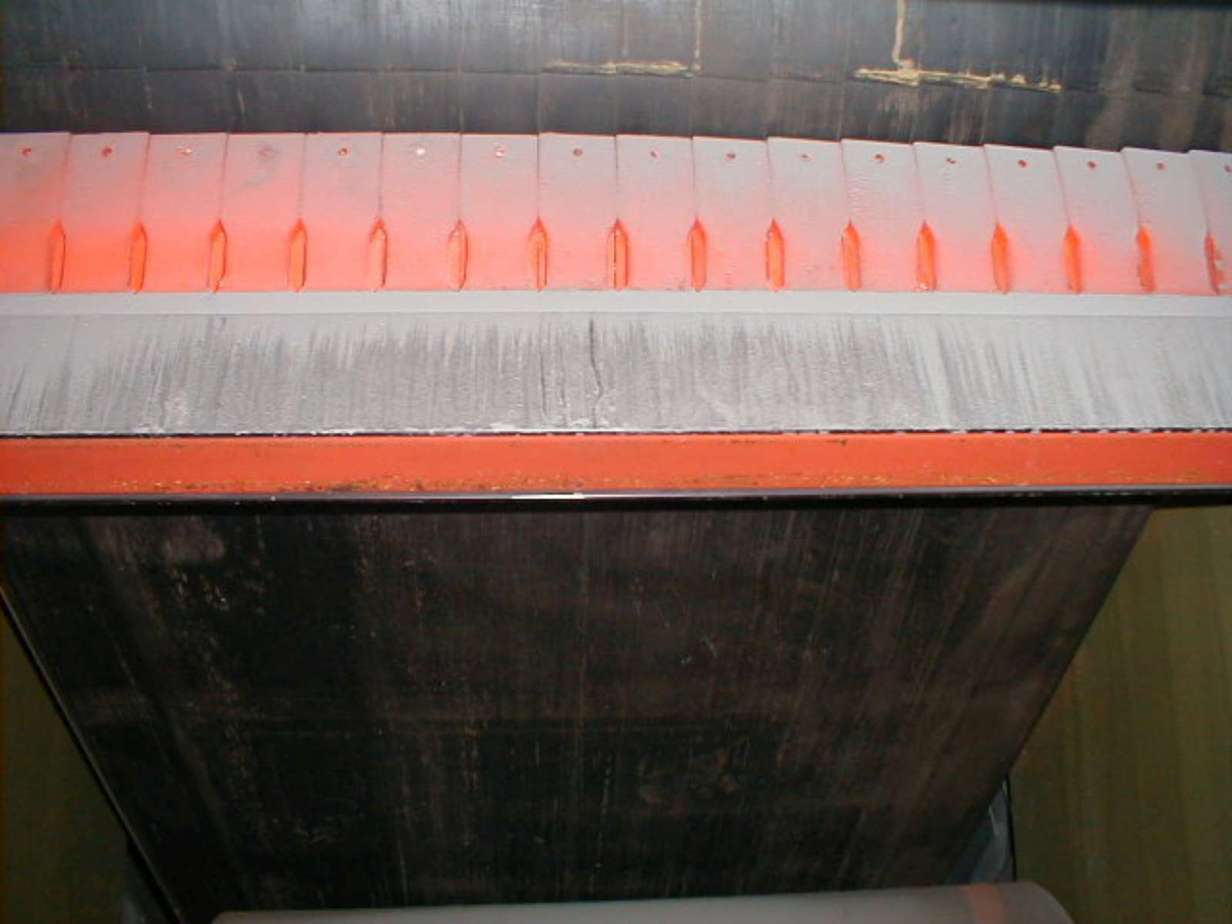

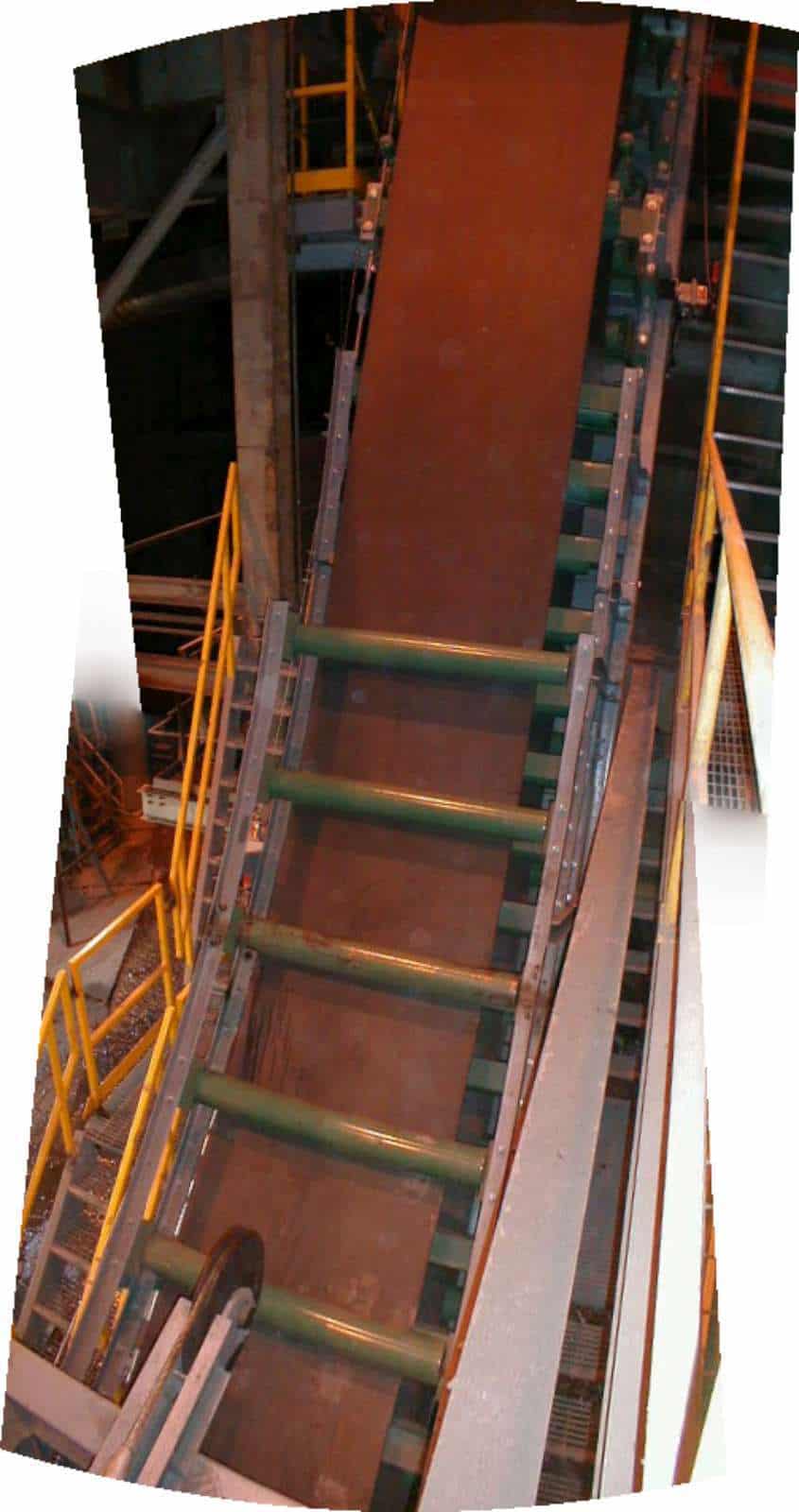

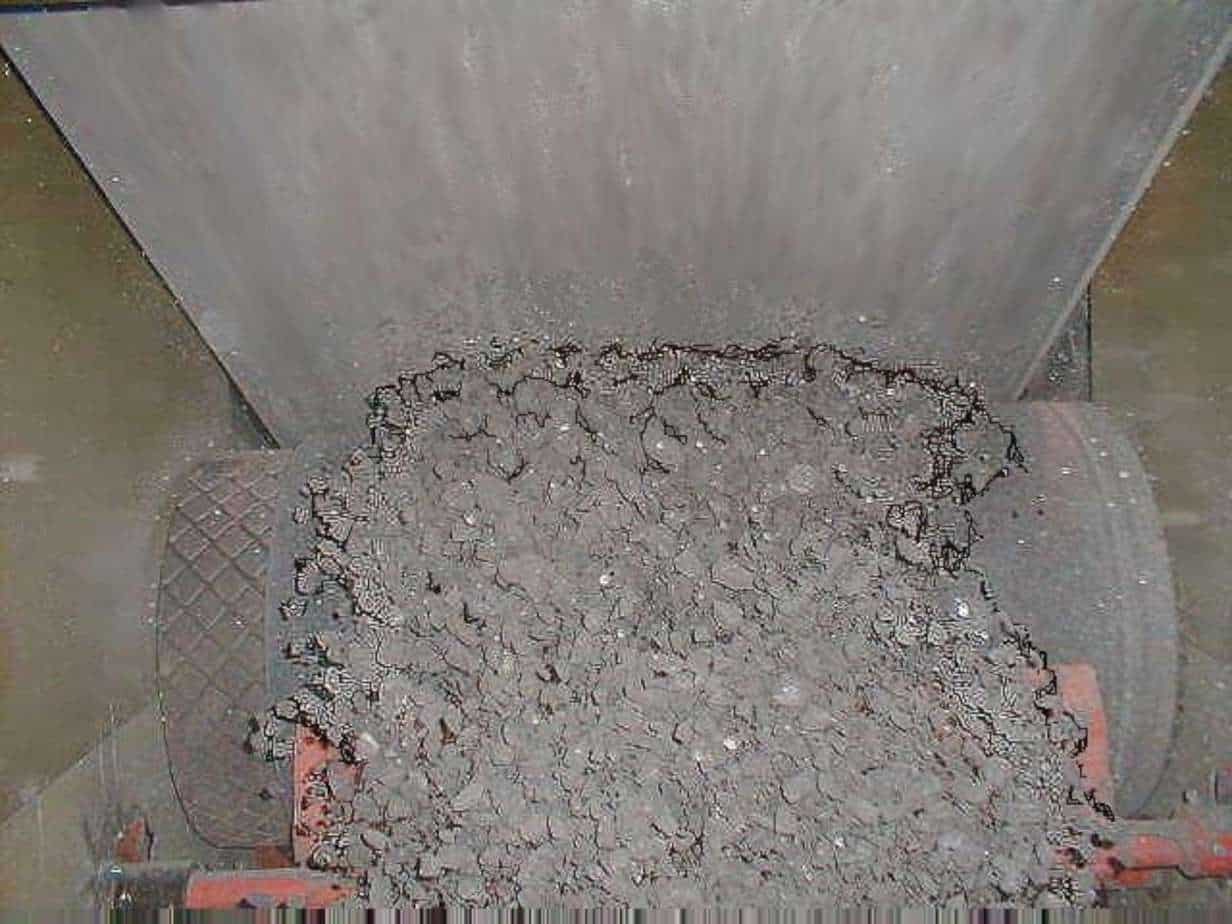

DS086 – Empire Iron Ore Mining Partnership Project

DS086 - Empire Iron Ore Mining Partnership Project - Image 3

DS086 - Empire Iron Ore Mining Partnership Project - Image 4

DS086 - Empire Iron Ore Mining Partnership Project - Image 5

DS086 - Empire Iron Ore Mining Partnership Project - Image 6

DS086 - Empire Iron Ore Mining Partnership Project - Image 7

DS086 - Empire Iron Ore Mining Partnership Project - Image 8

DS086 - Empire Iron Ore Mining Partnership Project - Image 9

DS086 - Empire Iron Ore Mining Partnership Project - Image 10

DS086 - Empire Iron Ore Mining Partnership Project - Image 11

DS086 - Empire Iron Ore Mining Partnership Project - Image 12

DS086 - Empire Iron Ore Mining Partnership Project - Image 13

DS086 - Empire Iron Ore Mining Partnership Project - Image 14

DS086 – Empire Iron Ore Mining Partnership Project

Material:

Iron ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

2 mm |

0.08 in

Conveying rate:

793 t/h |

708 STPH

Conveying angle:

65 deg

Belt width:

1067 mm |

42 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

11522 mm |

37.8 ft

Length:

21489 mm |

70.5 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

37.3 kW |

50 HP

DS102 – Continental Canada at Red Chris Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

55 mm |

2.2 in

Conveying rate:

340 t/h |

375 STPH

Conveying angle:

67 deg

Belt width:

914 mm |

36 in

Belt speed:

2.1 m/s |

413 FPM

Lift:

24215 mm |

79.5 ft

Length:

49817 mm |

160.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS097 – Cortex Resources for Shiploader Project

Material:

Titanium ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

Conveying rate:

1000 t/h |

1102 STPH

Conveying angle:

50 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

21805 mm |

71.5 ft

Length:

56656 mm |

185.9 ft

Bottom drive power:

55 kW |

74 HP

Top drive power:

55 kW |

74 HP

DS094 – Becma Corporation for Victor Diamond Mine Project Unit 10

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

381 t/h |

420 STPH

Conveying angle:

50 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

18508 mm |

60.7 ft

Length:

67581 mm |

221.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DSCo007 – DSI Horizontally Curving Overland Conveyor TB-26 for Los Filos, Goldcorp – 400m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

6.1 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

26440 mm |

86.7 ft

Length:

247800 mm |

813 ft

Bottom drive power:

149 kW |

200 HP

Top drive power:

N/A kW |

N/A HP

DSCo009 – DSI Horizontally Curving Downhill Regenerative Overland Conveyor TB-28 for Los Filos, Goldcorp – 300m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

‘-5.8 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-24600 mm |

‘-81.5 ft

Length:

243000 mm |

802.8 ft

Bottom drive power:

‘-74.6 kW |

‘-100 HP

Top drive power:

N/A kW |

N/A HP

DSCo012 – DSI Downhill Regenerative Overland Conveyor TB-32 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-9800 mm |

‘-32.3 ft

Length:

84500 mm |

277.2 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

Materials Handling Experts and Innovators

DS086 – Empire Iron Ore Mining Partnership Project

DS086 – Empire Iron Ore Mining Partnership Project

Related Products

DS102 – Continental Canada at Red Chris Project

DS097 – Cortex Resources for Shiploader Project

DS094 – Becma Corporation for Victor Diamond Mine Project Unit 10

DSCo007 – DSI Horizontally Curving Overland Conveyor TB-26 for Los Filos, Goldcorp – 400m radius

DSCo009 – DSI Horizontally Curving Downhill Regenerative Overland Conveyor TB-28 for Los Filos, Goldcorp – 300m radius

DSCo012 – DSI Downhill Regenerative Overland Conveyor TB-32 for Los Filos, Goldcorp
