DS117 – LMO Cooper Consolidated

DS117 - LMO Cooper Consolidated - Image 3

DS117 - LMO Cooper Consolidated - Image 4

DS117 - LMO Cooper Consolidated - Image 5

DS117 - LMO Cooper Consolidated - Image 6

DS117 - LMO Cooper Consolidated - Image 7

DS117 - LMO Cooper Consolidated - Image 8

DS117 - LMO Cooper Consolidated - Image 9

DS117 - LMO Cooper Consolidated - Image 10

DS117 - LMO Cooper Consolidated - Image 11

DS117 - LMO Cooper Consolidated - Image 12

DS117 - LMO Cooper Consolidated - Image 13

DS117 - LMO Cooper Consolidated - Image 14

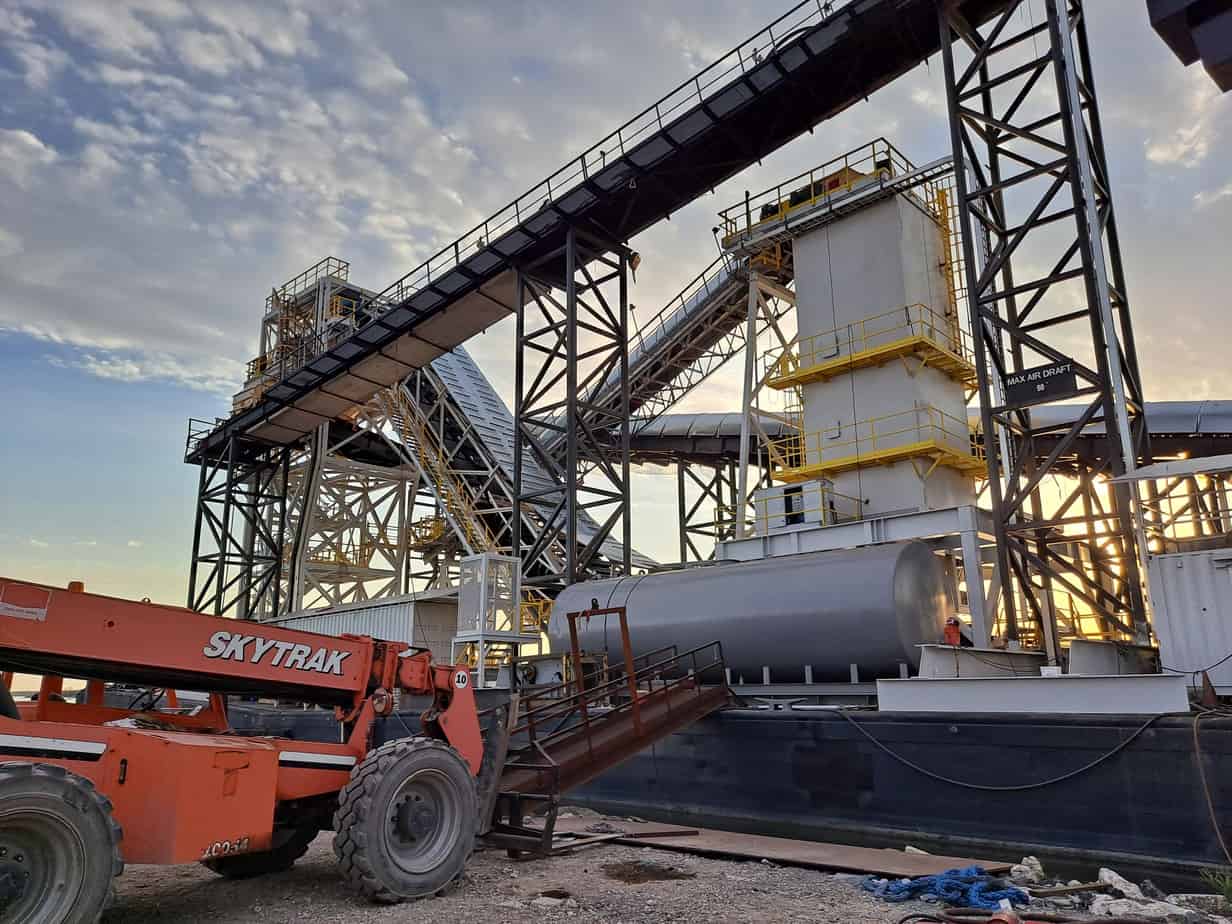

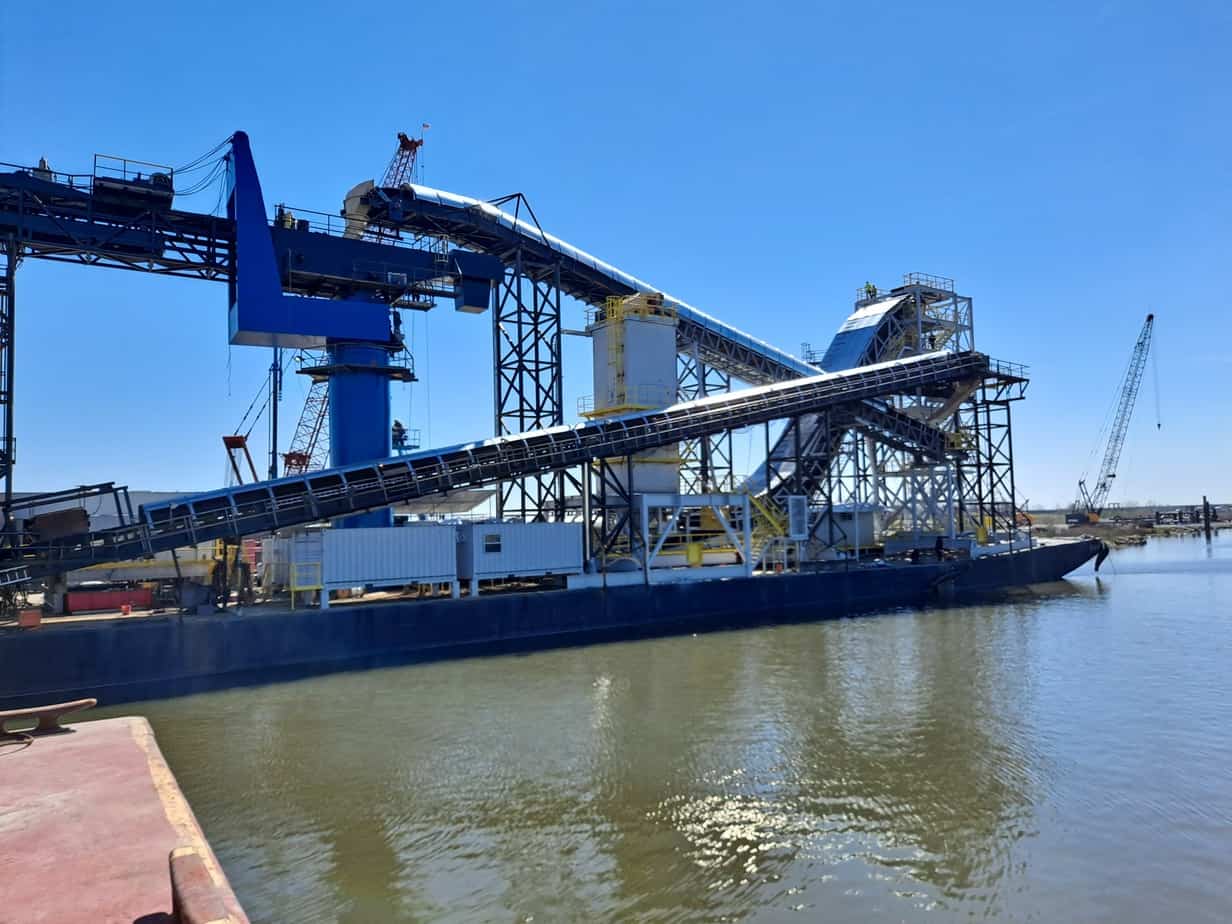

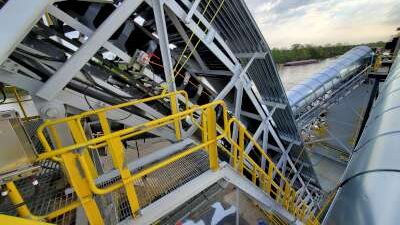

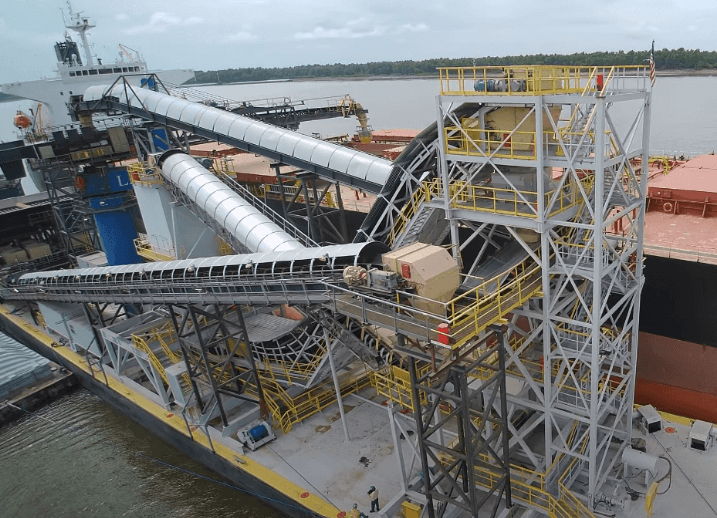

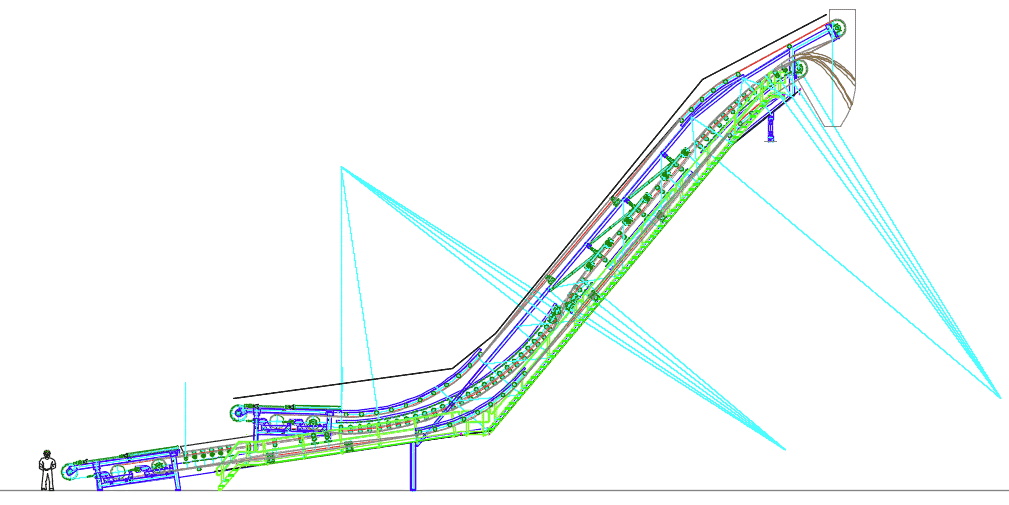

DS117 – LMO Cooper Consolidated

Material:

Grain

Bulk density:

0.77 t/cu-m |

48 PCF

Material size:

101.6 mm |

4 in

Conveying rate:

2268 t/h |

2500 STPH

Conveying angle:

50 deg

Belt width:

2133 mm |

84 in

Belt speed:

4.57 m/s |

900 FPM

Lift:

18474 mm |

60.6 ft

Length:

36538 mm |

119.9 ft

Bottom drive power:

112 kW |

150 HP

Top drive power:

149 kW |

200 HP

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS086 – Empire Iron Ore Mining Partnership Project

Material:

Iron ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

2 mm |

0.08 in

Conveying rate:

793 t/h |

708 STPH

Conveying angle:

65 deg

Belt width:

1067 mm |

42 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

11522 mm |

37.8 ft

Length:

21489 mm |

70.5 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

37.3 kW |

50 HP

DS084 – EleVeyor EL, Blue Plains for WWTP Project 2

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS108 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

24647 mm |

80.9 ft

Length:

33521 mm |

110 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS120 – EleVeyor EL, Blue Plains for WWTP Project 2

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP
