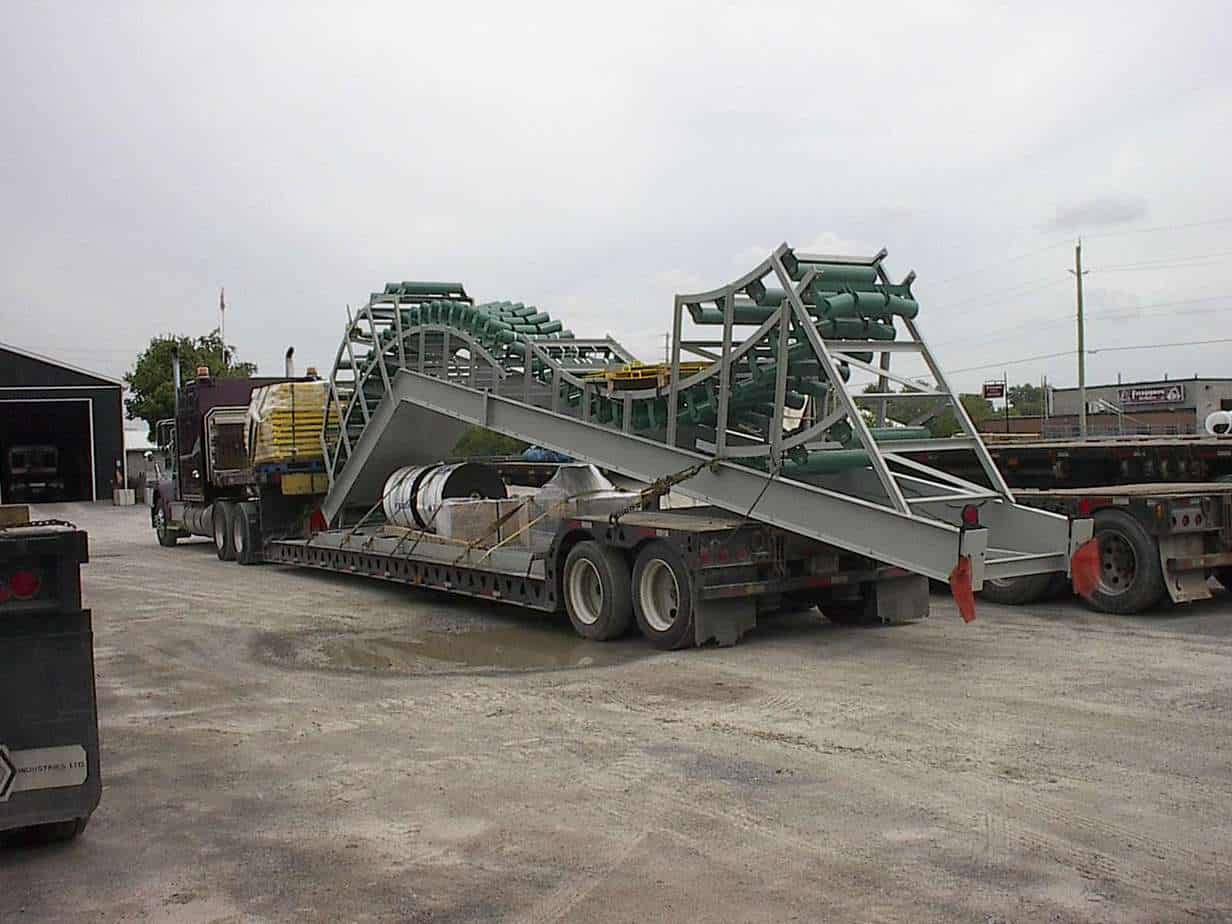

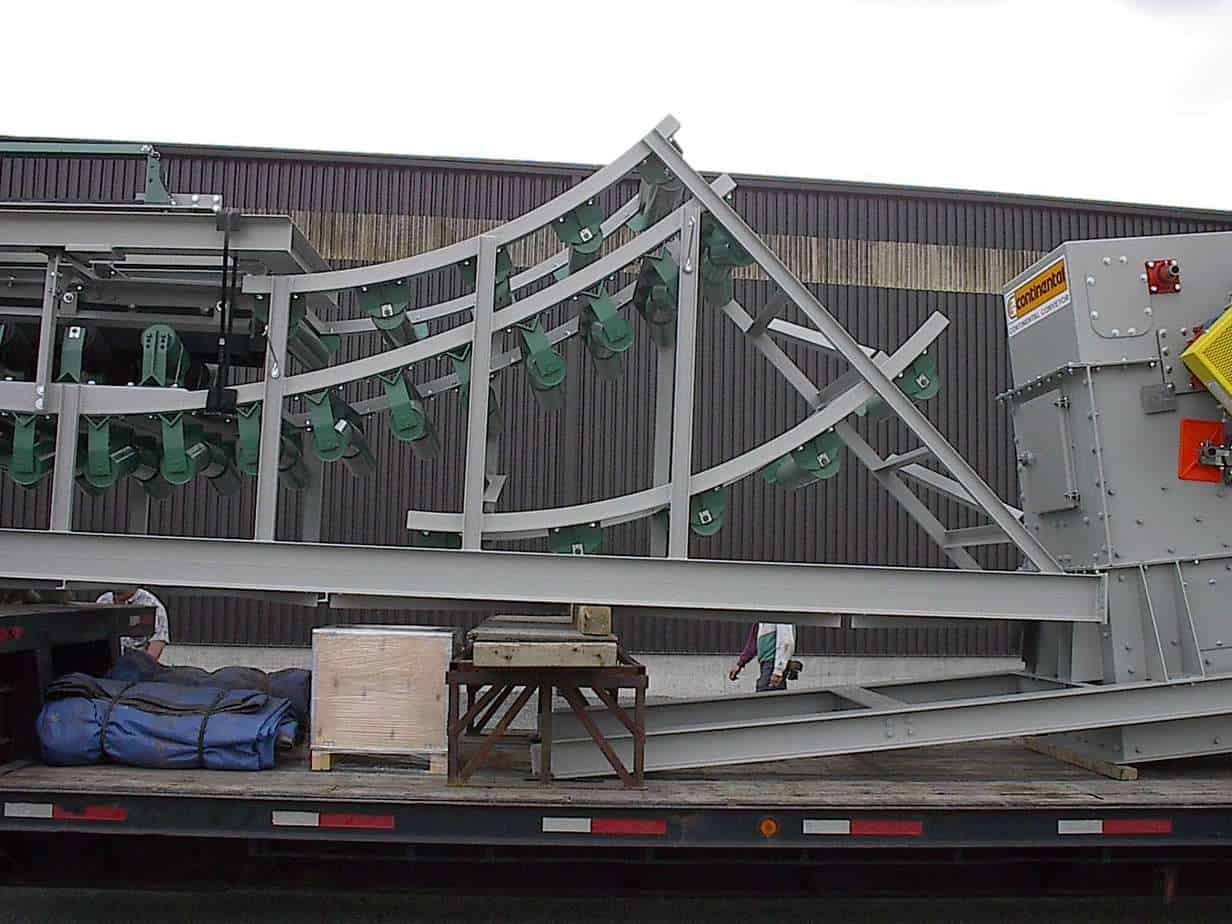

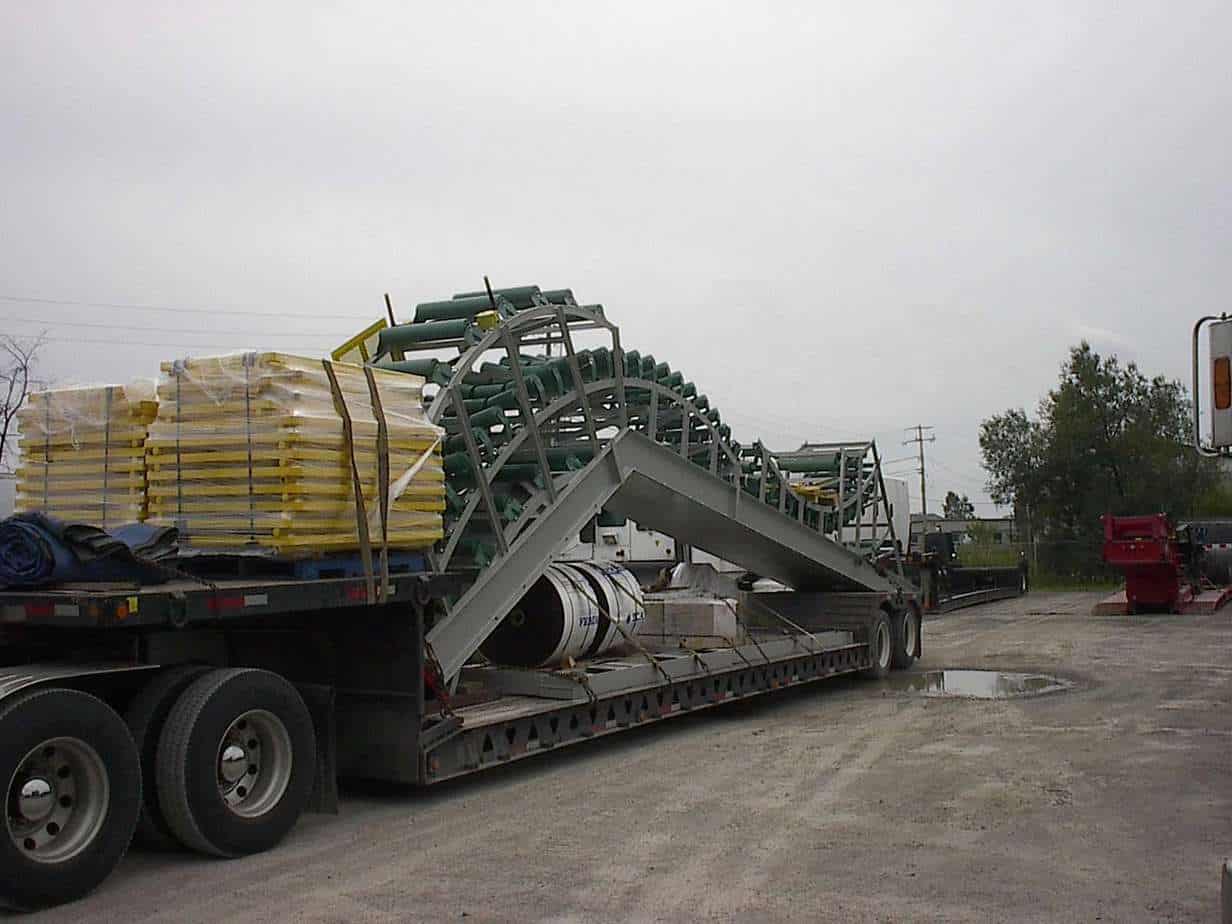

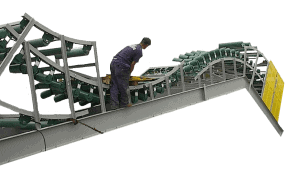

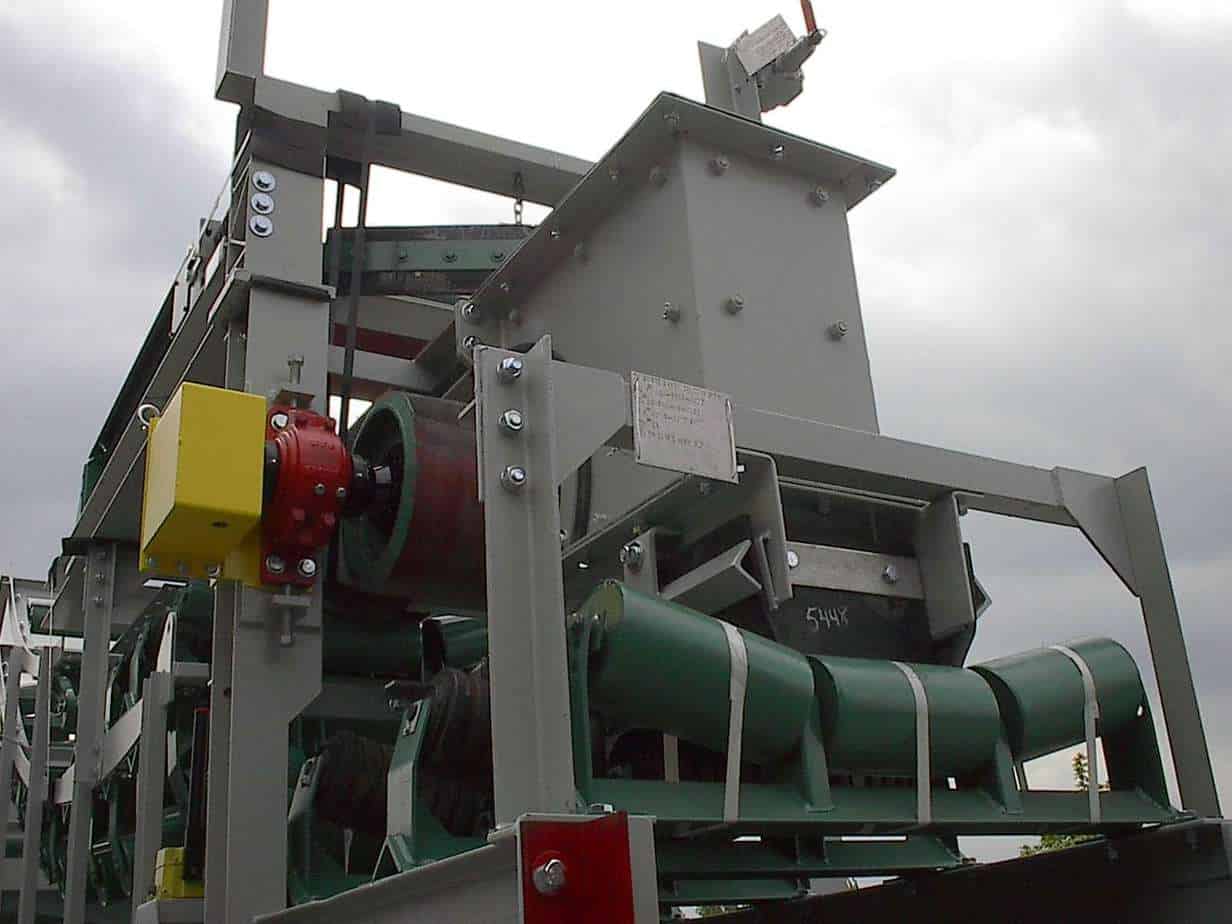

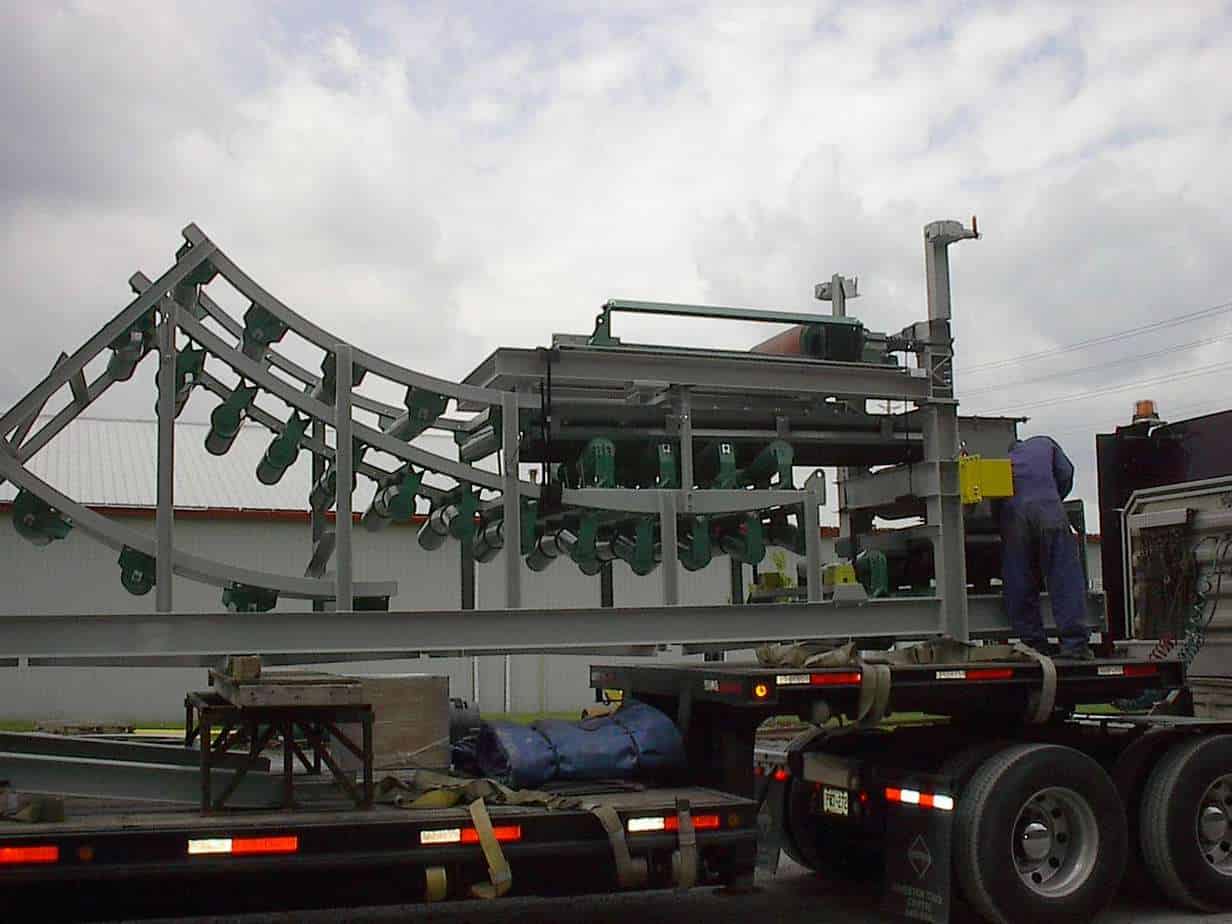

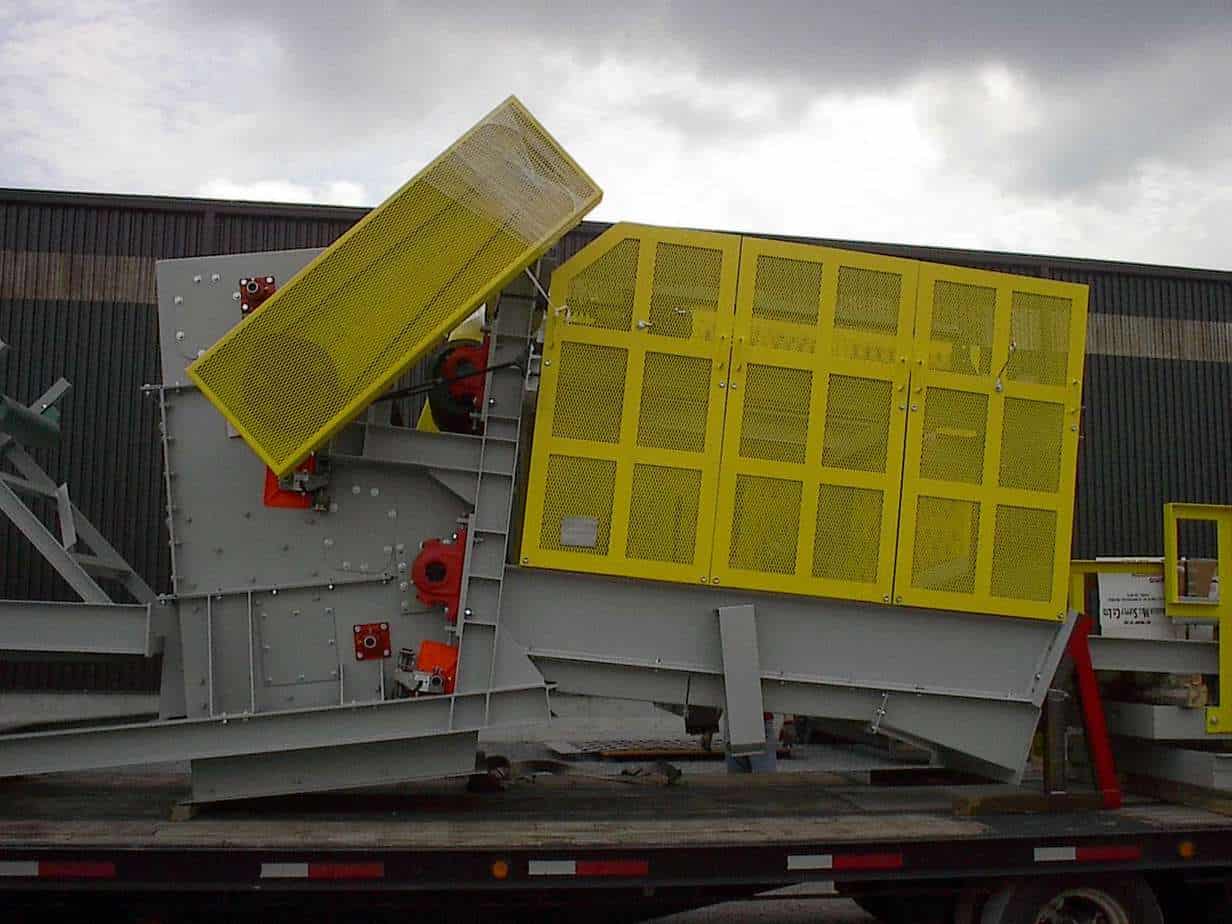

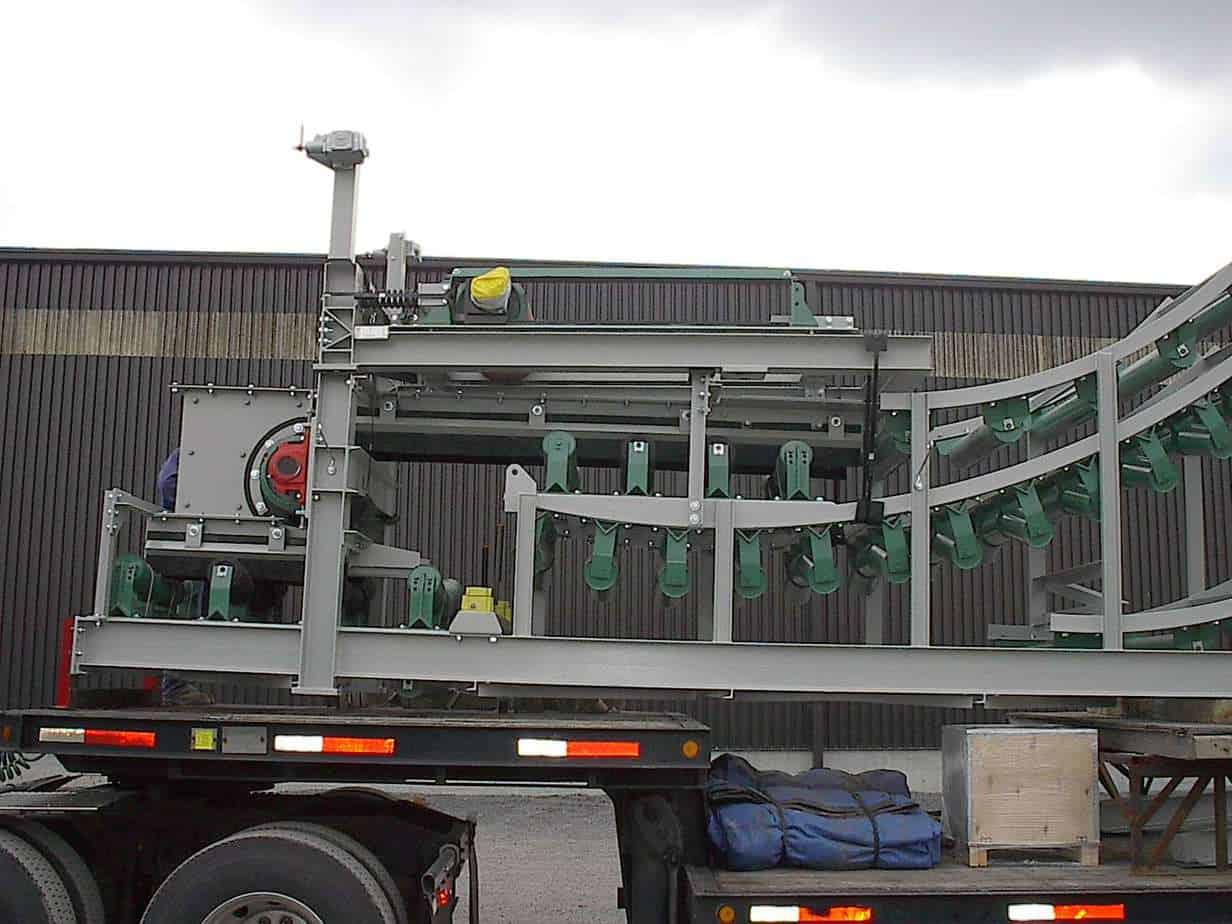

DS089 – Continental Canada Inco Voisey’s Bay Project

DS089 - Continental Canada Inco Voisey's Bay Project - Image 3

DS089 - Continental Canada Inco Voisey's Bay Project - Image 4

DS089 - Continental Canada Inco Voisey's Bay Project - Image 5

DS089 - Continental Canada Inco Voisey's Bay Project - Image 6

DS089 - Continental Canada Inco Voisey's Bay Project - Image 7

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS096 – Becma Corporation for Victor Diamond Mine Project Unit 12

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

422 t/h |

465 STPH

Conveying angle:

60 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

11886 mm |

39 ft

Length:

33282 mm |

109.2 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS094 – Becma Corporation for Victor Diamond Mine Project Unit 10

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

381 t/h |

420 STPH

Conveying angle:

50 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

18508 mm |

60.7 ft

Length:

67581 mm |

221.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS091 – Continental Canada for Snap Lake Diamond Mine Project 1

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

32 mm |

1.3 in

Conveying rate:

550 t/h |

606 STPH

Conveying angle:

50 deg

Belt width:

914 mm |

36 in

Belt speed:

2.2 m/s |

433 FPM

Lift:

18310 mm |

60.1 ft

Length:

39015 mm |

128 ft

Bottom drive power:

44.8 kW |

60 HP

Top drive power:

44.8 kW |

60 HP

DS111 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

6750 mm |

22.2 ft

Length:

17500 mm |

57.3 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
