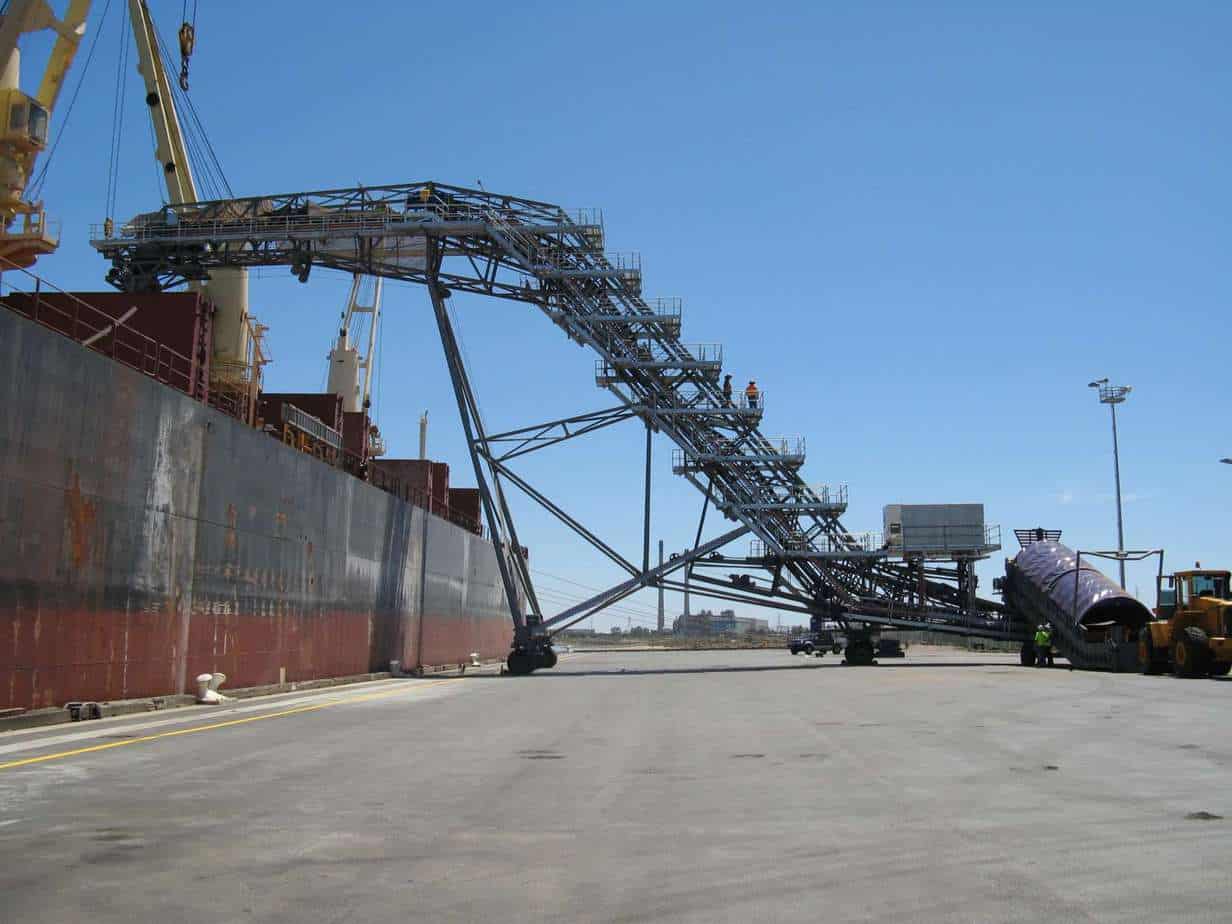

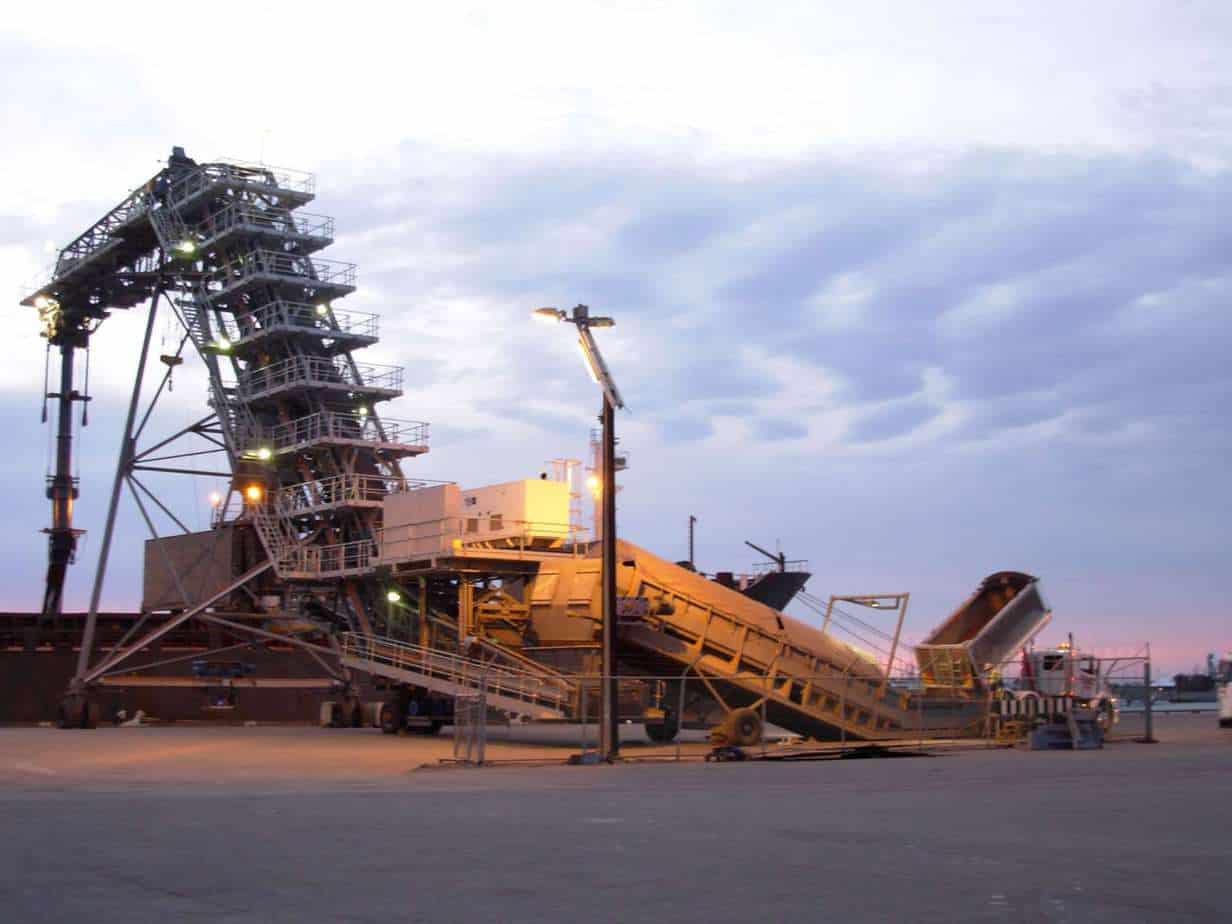

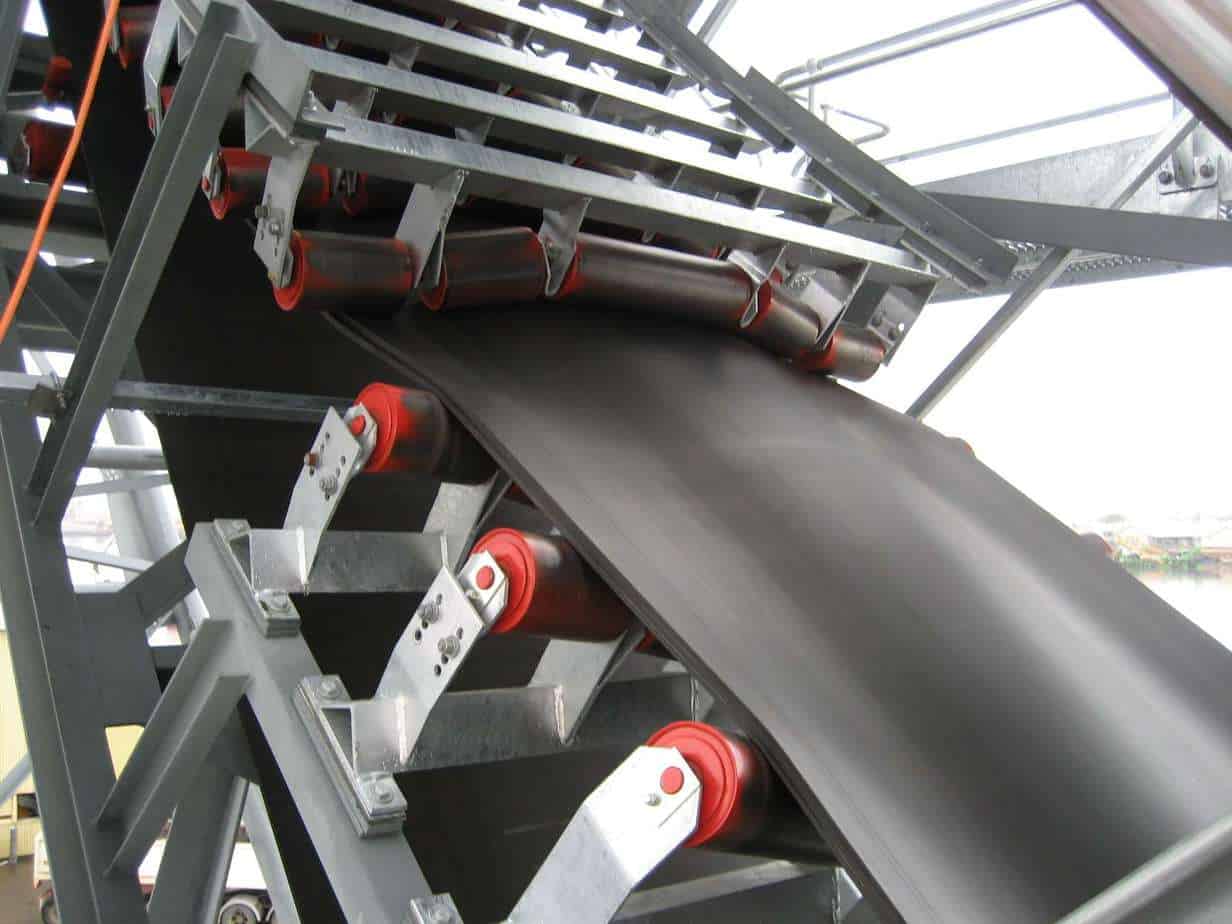

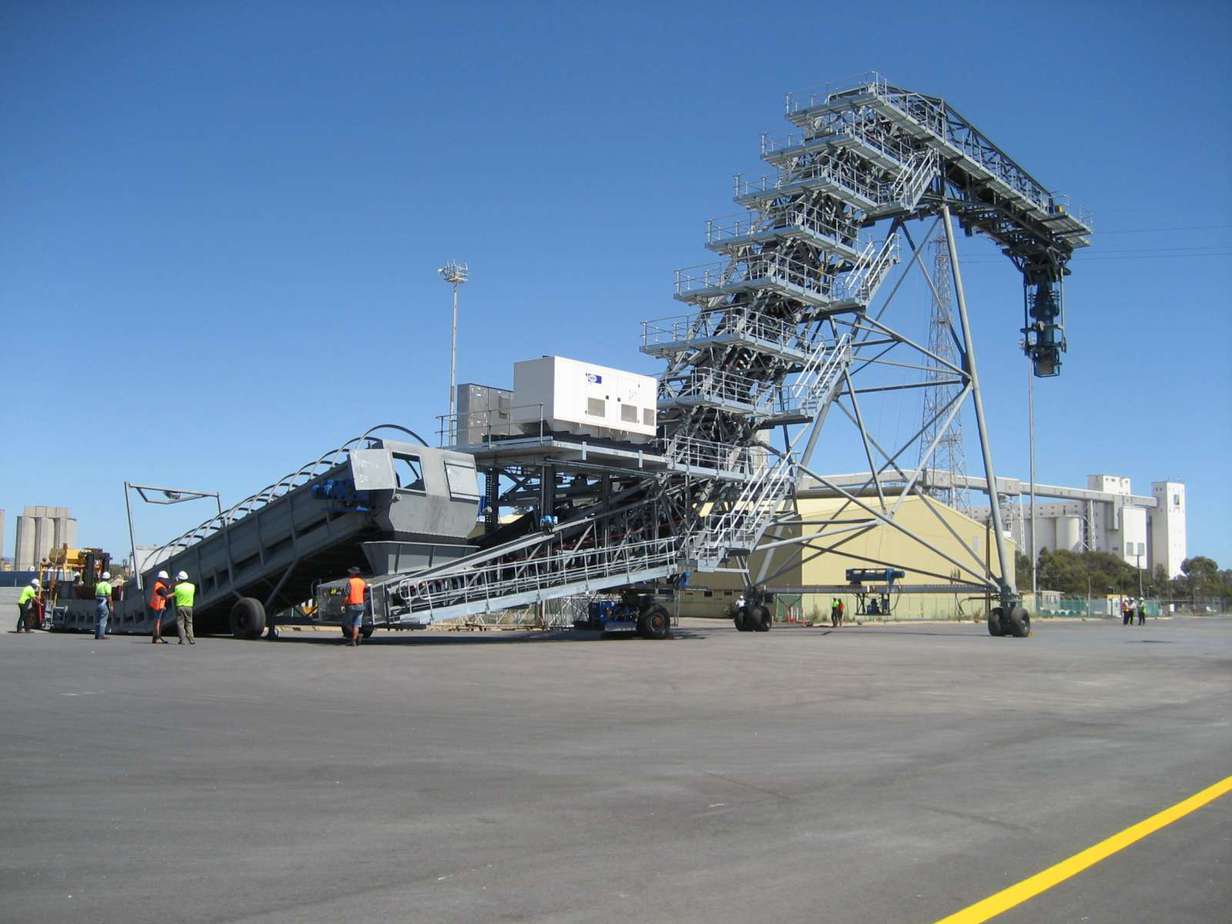

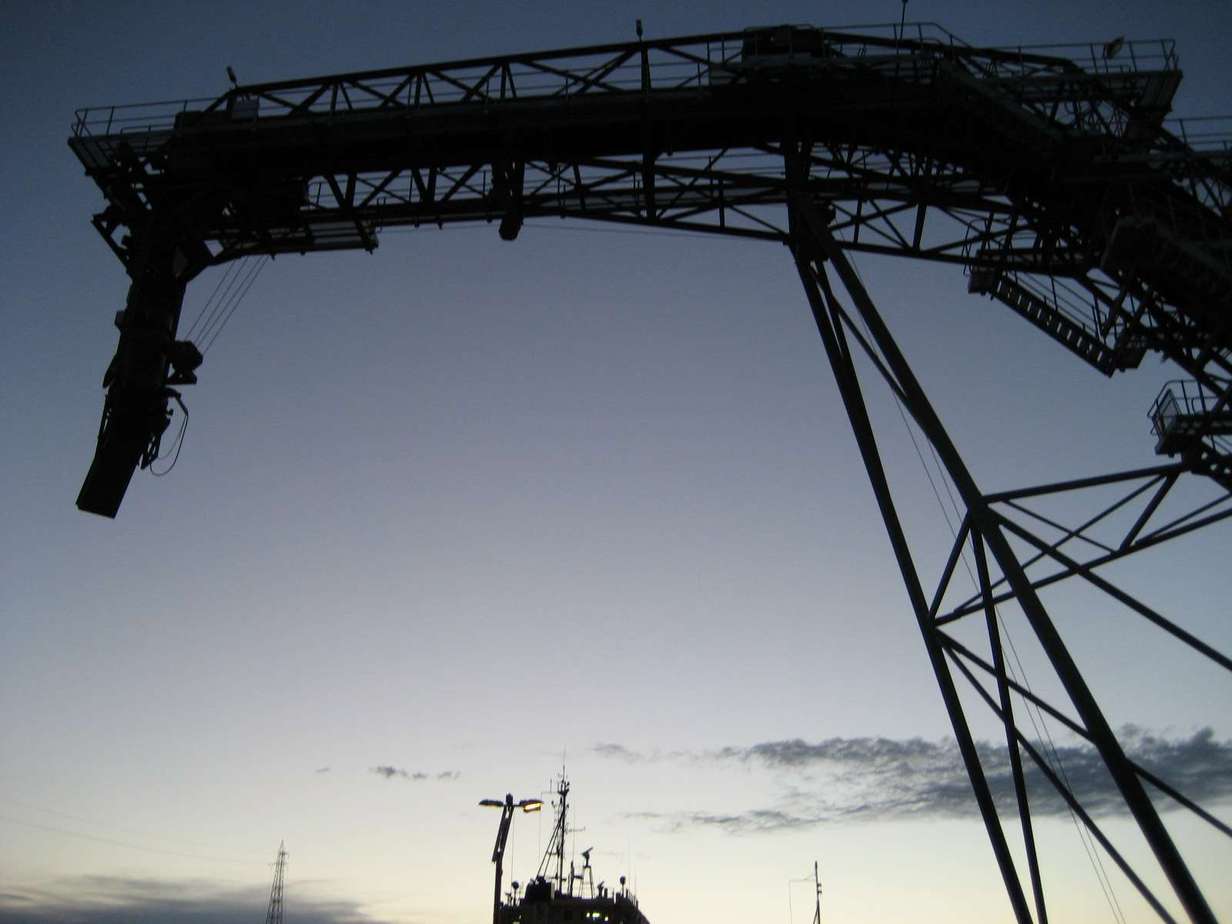

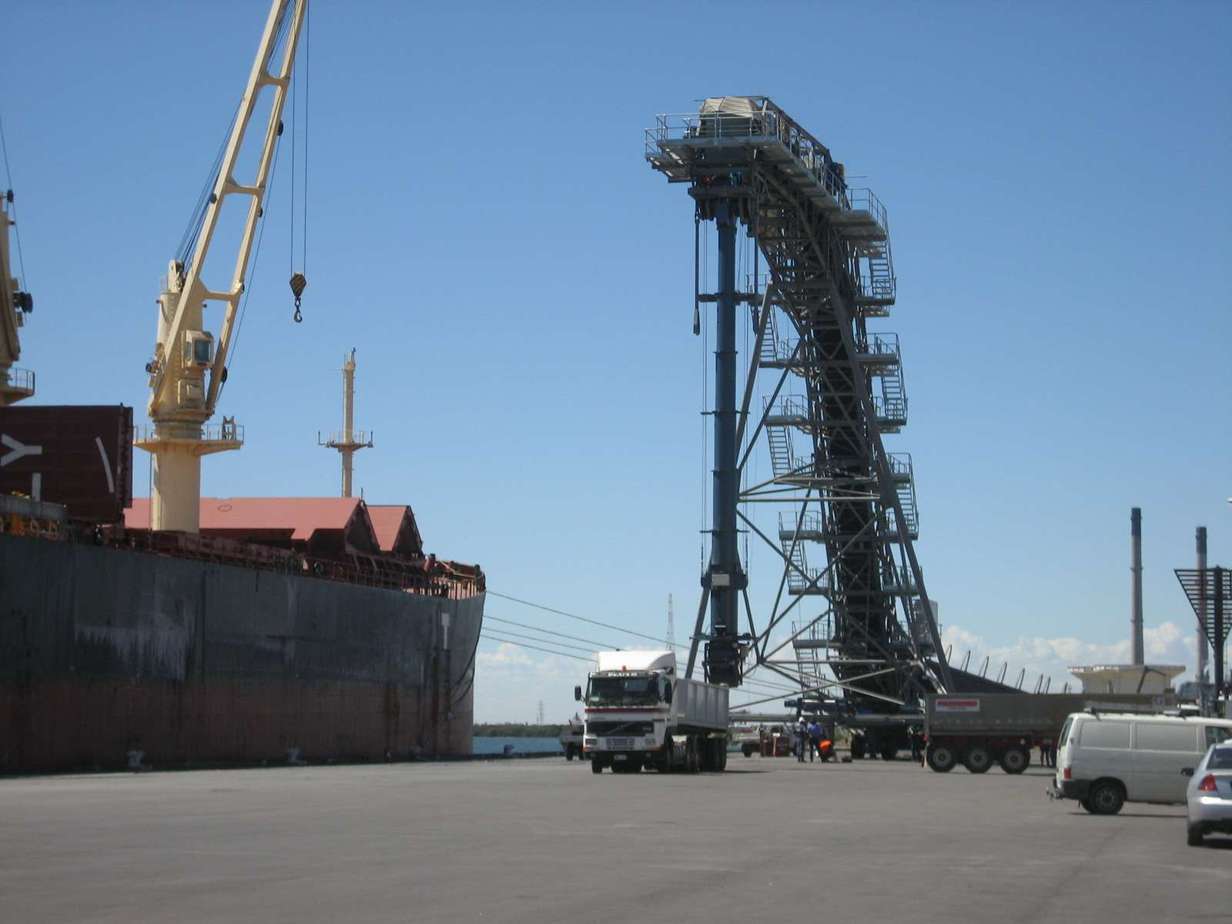

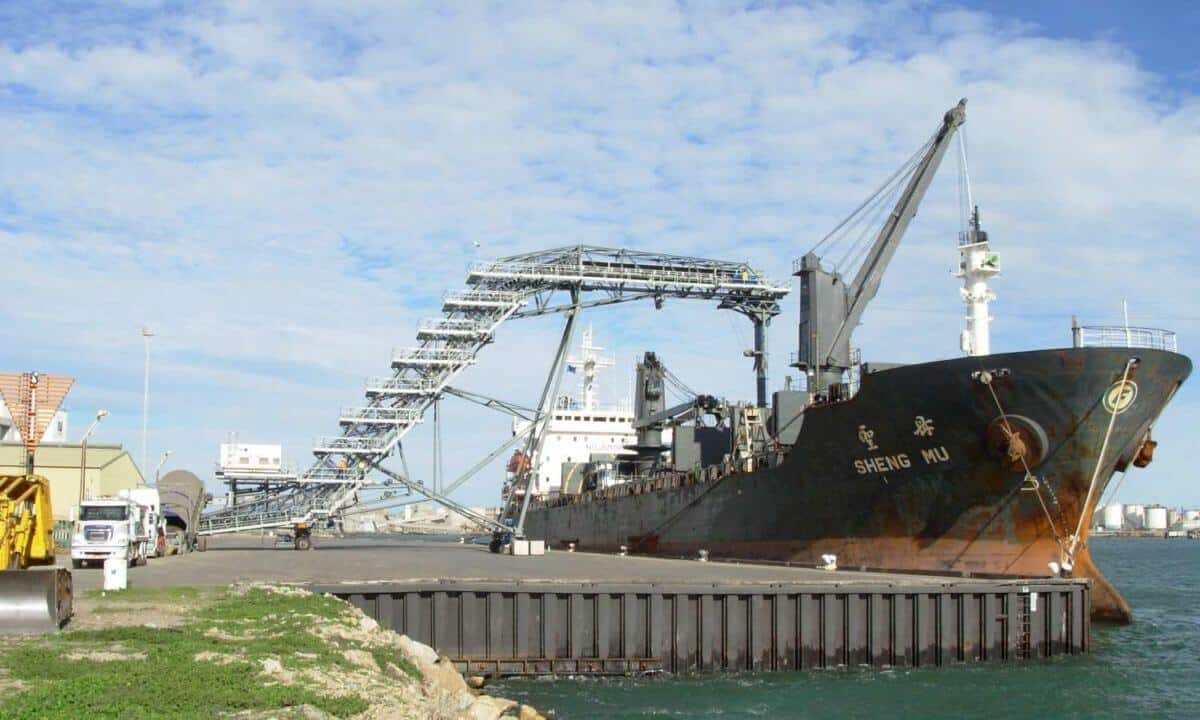

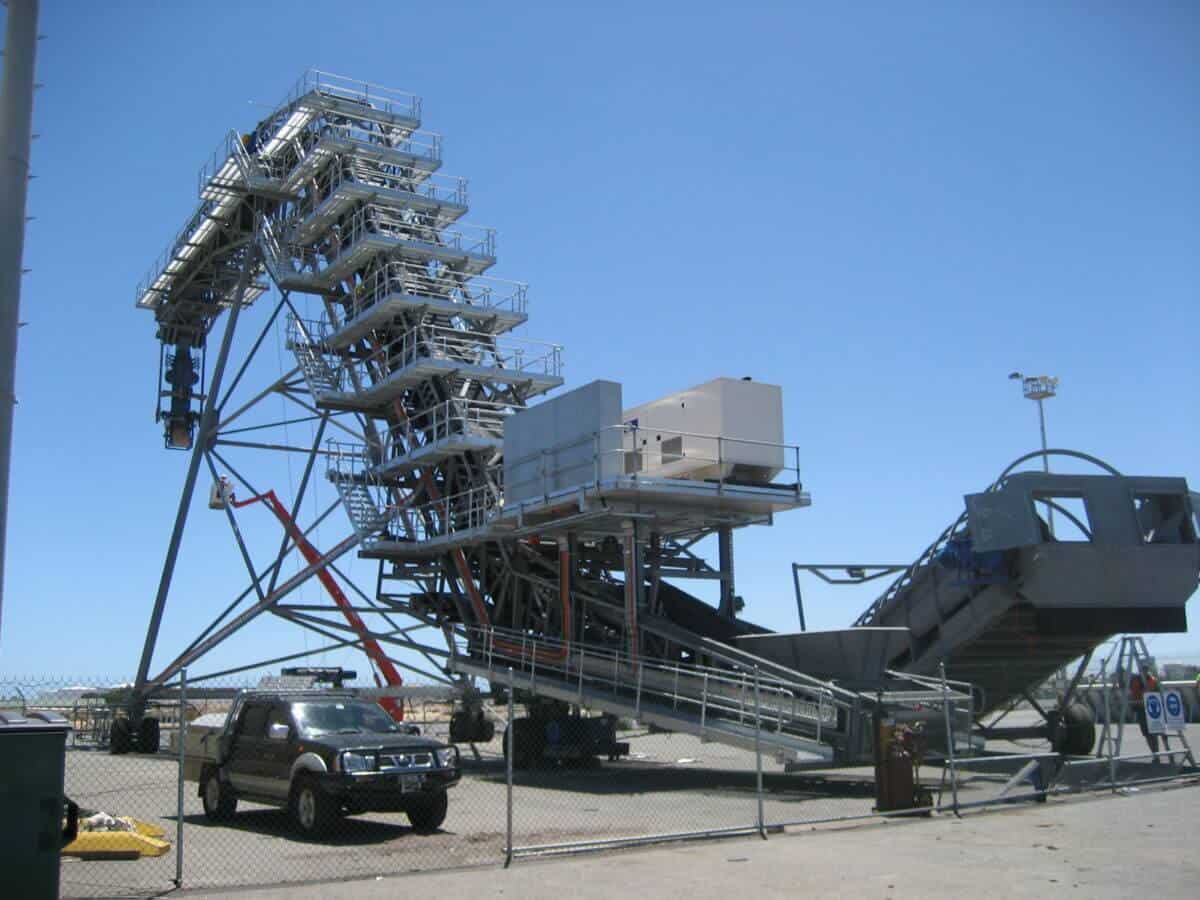

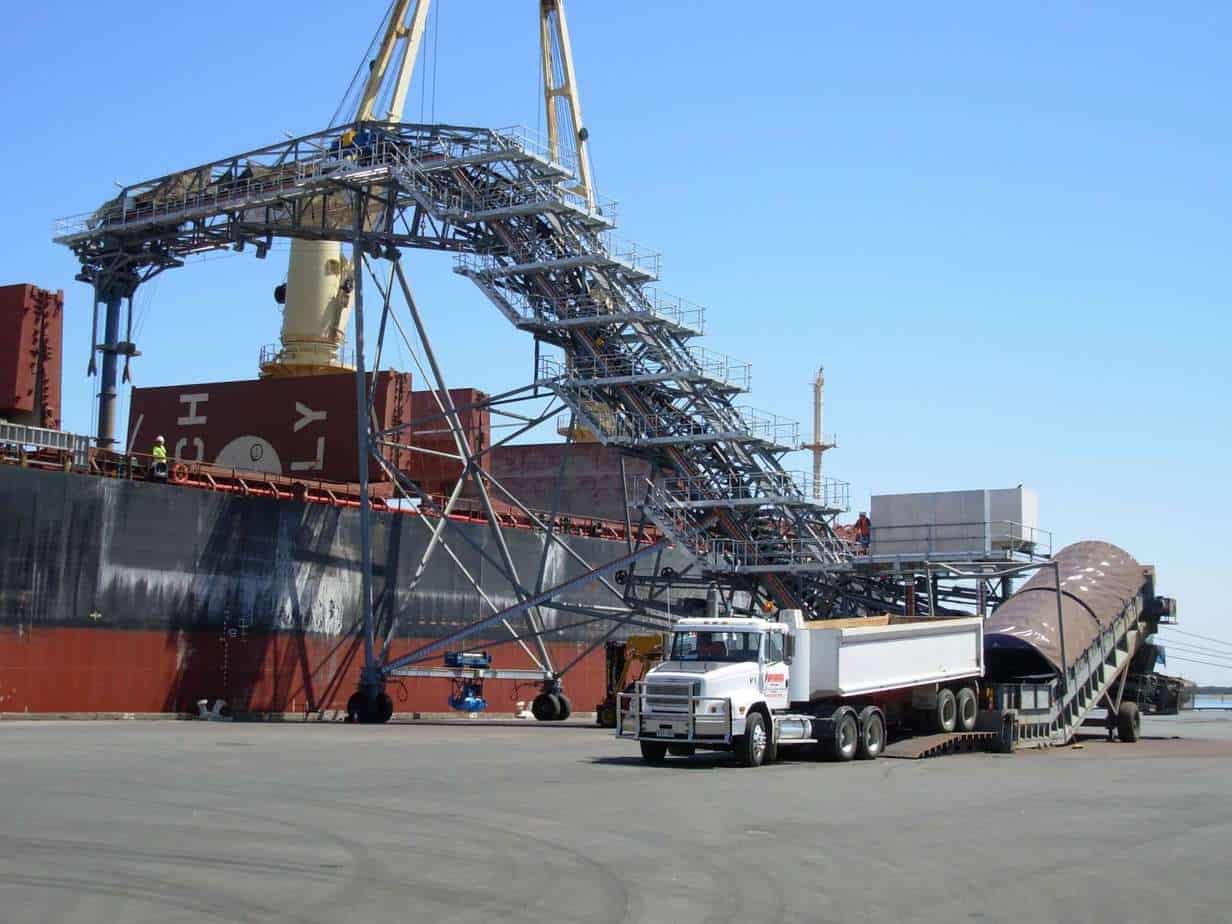

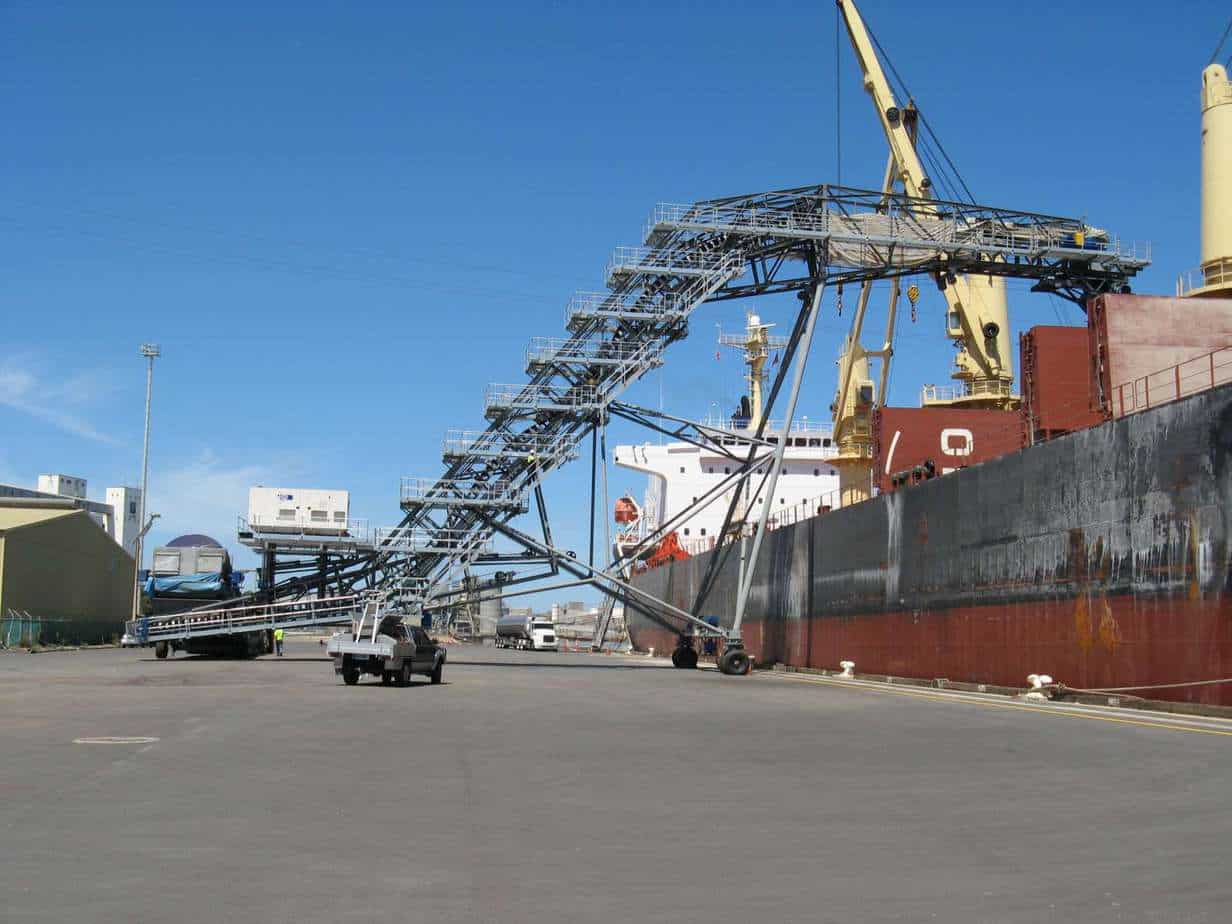

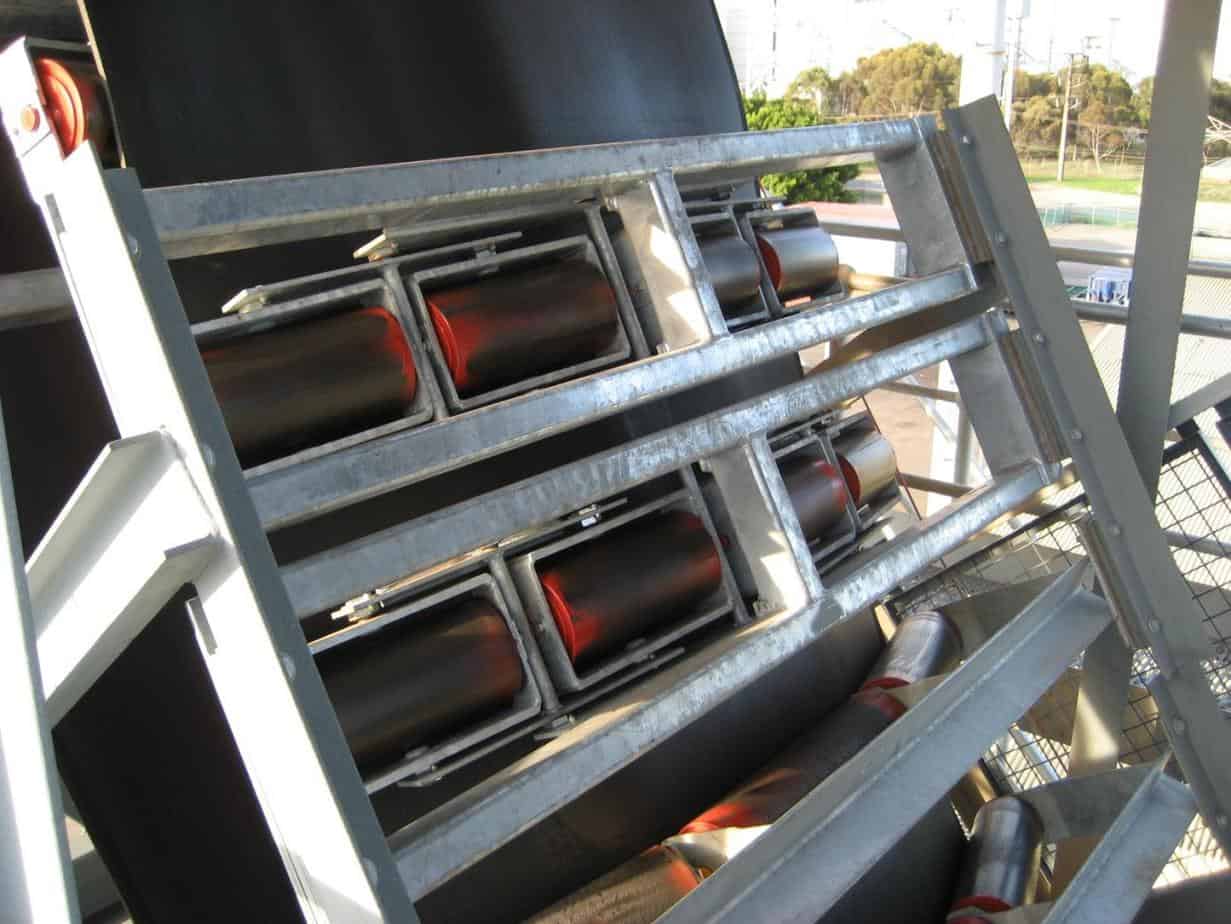

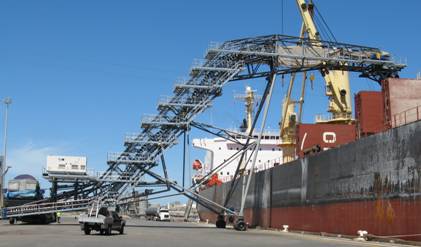

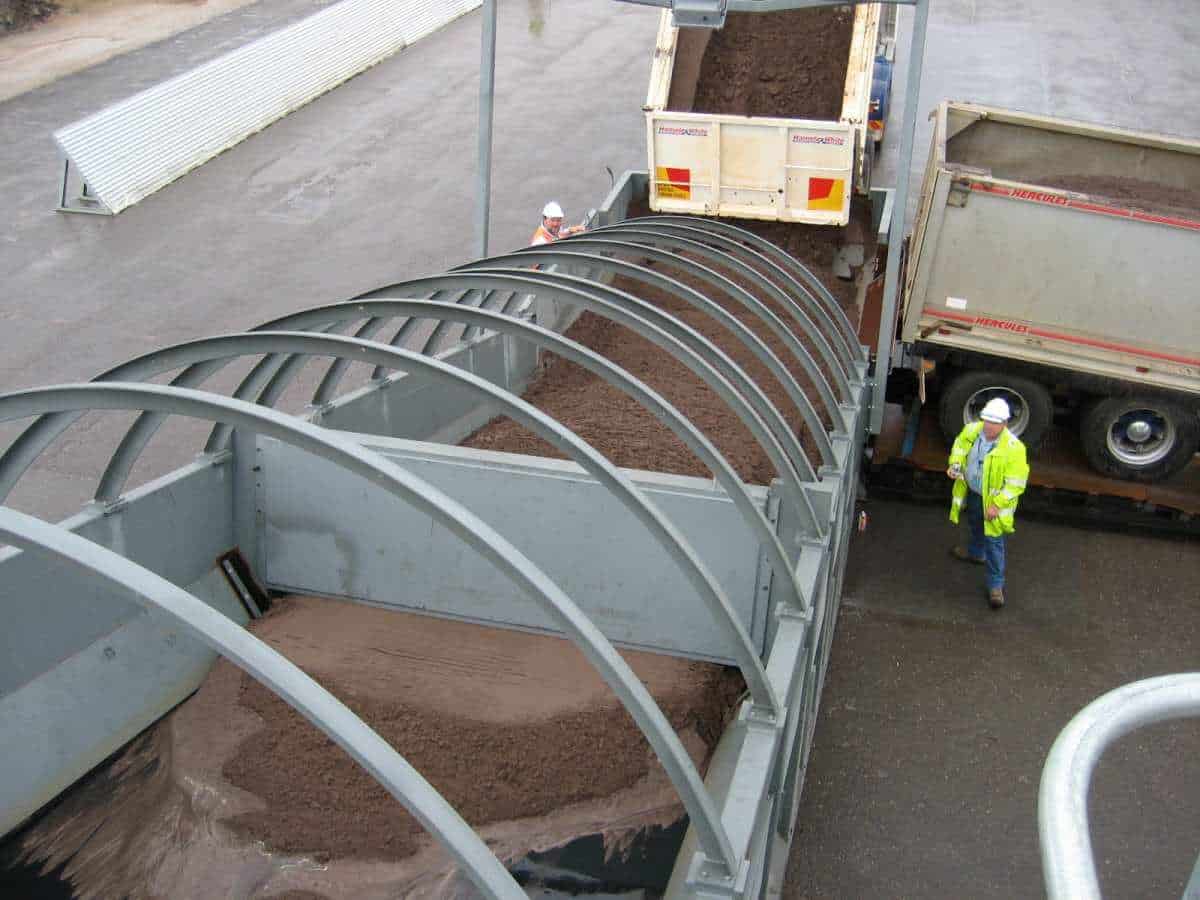

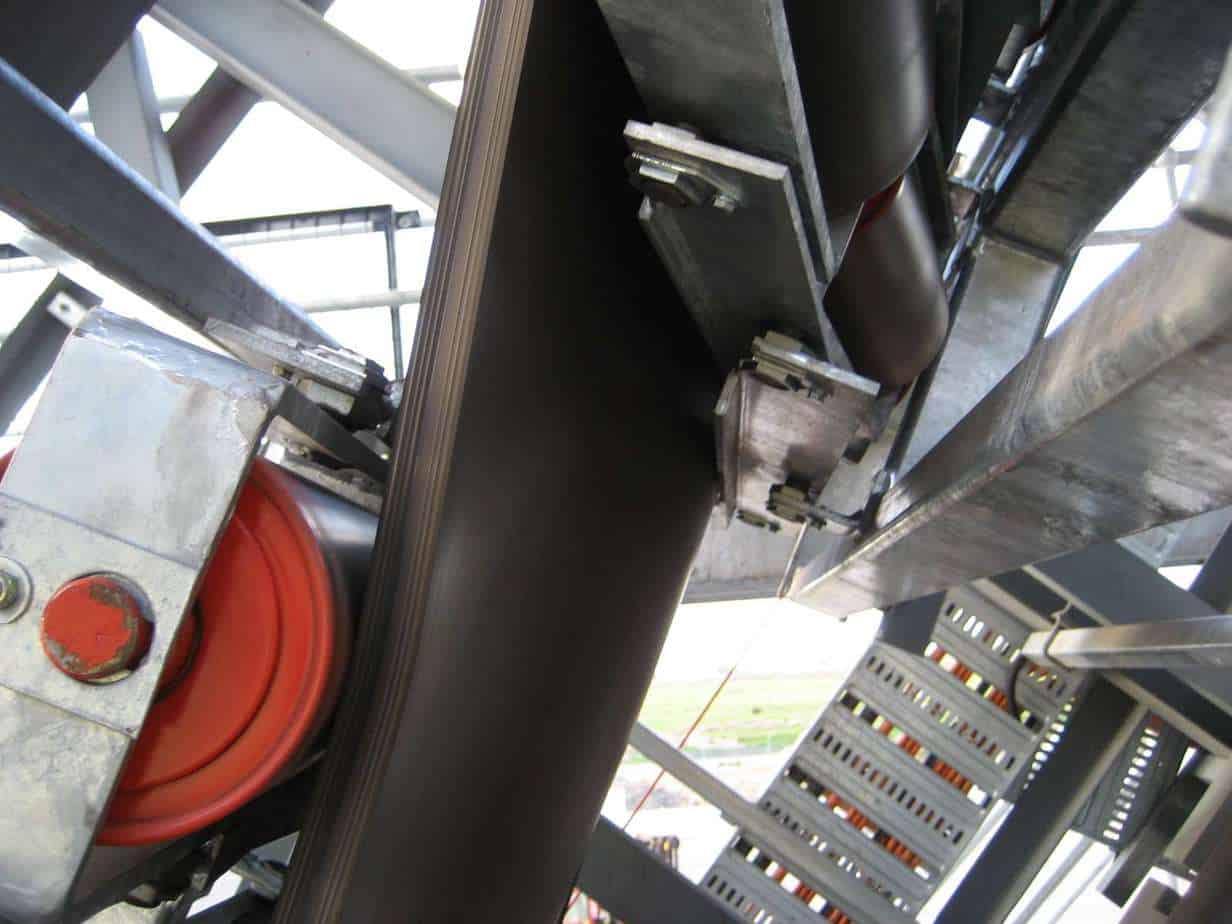

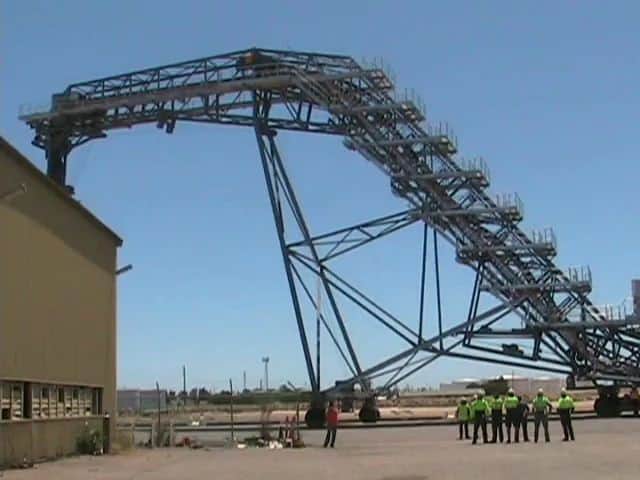

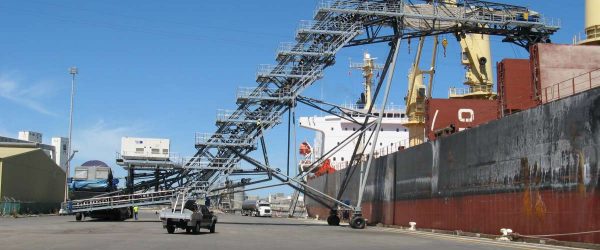

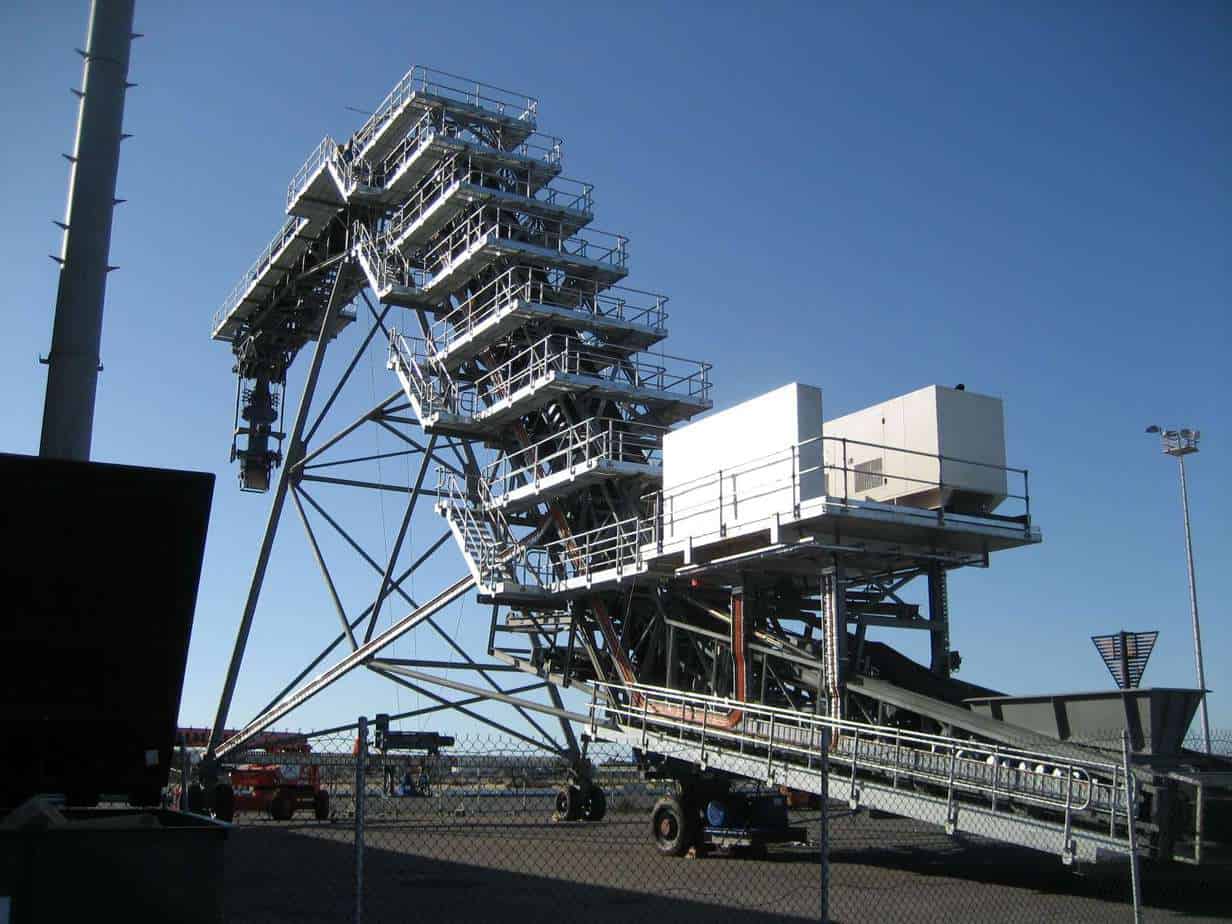

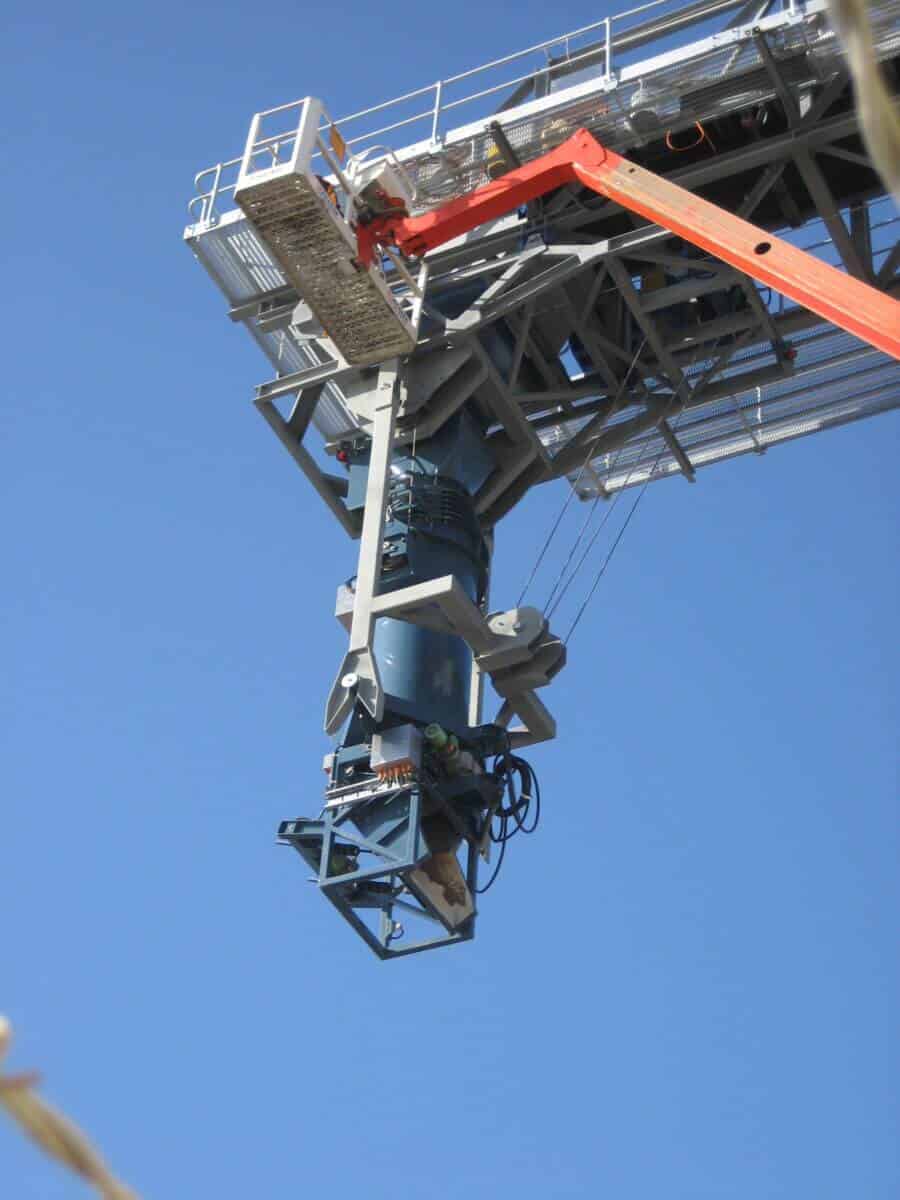

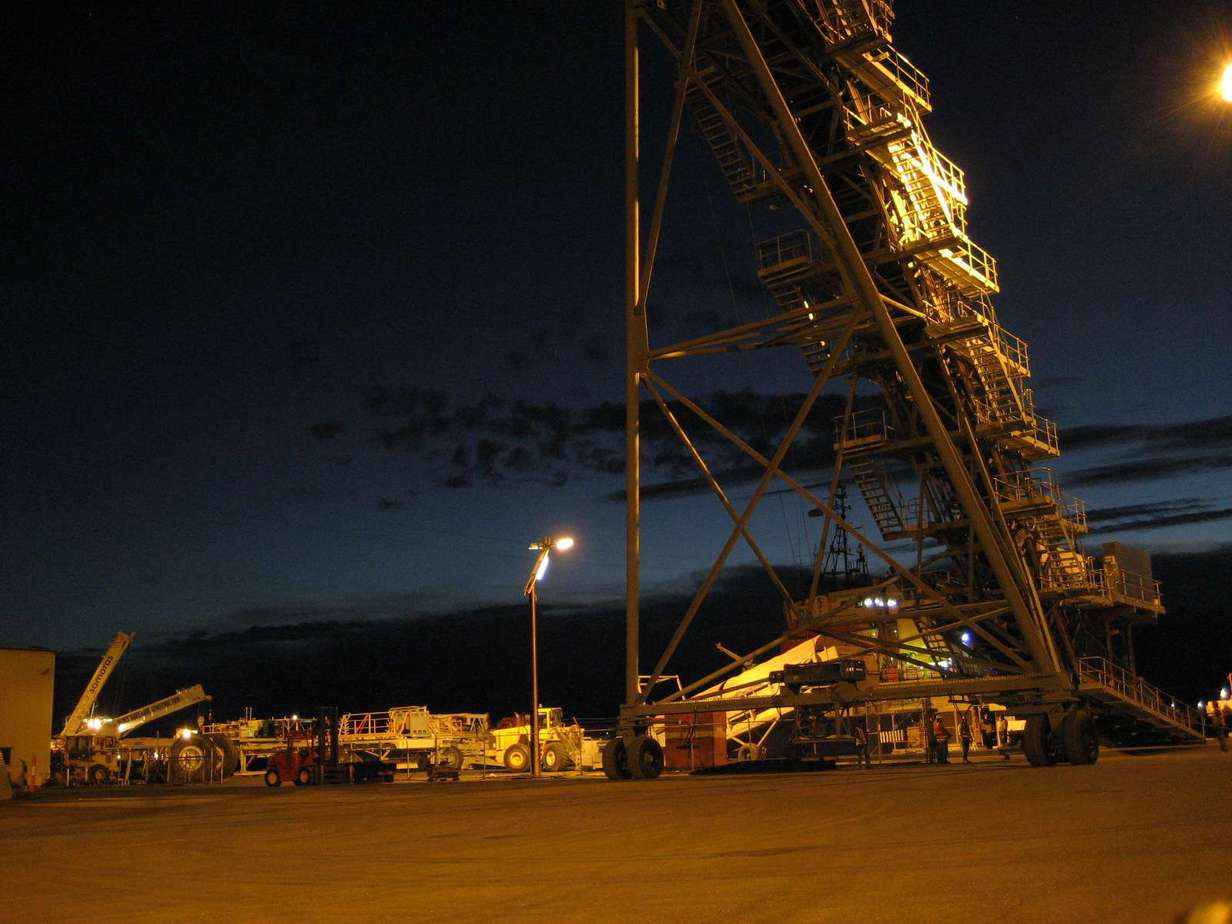

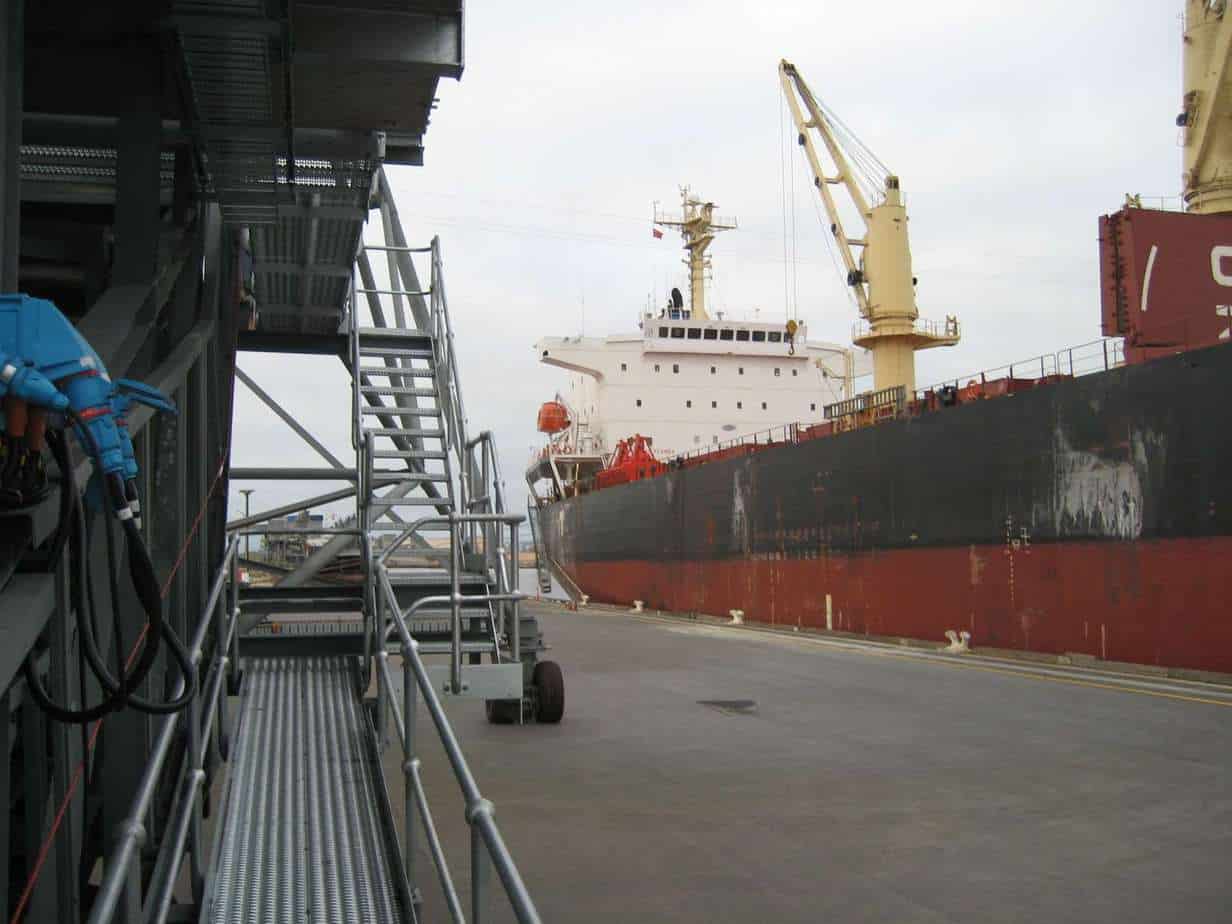

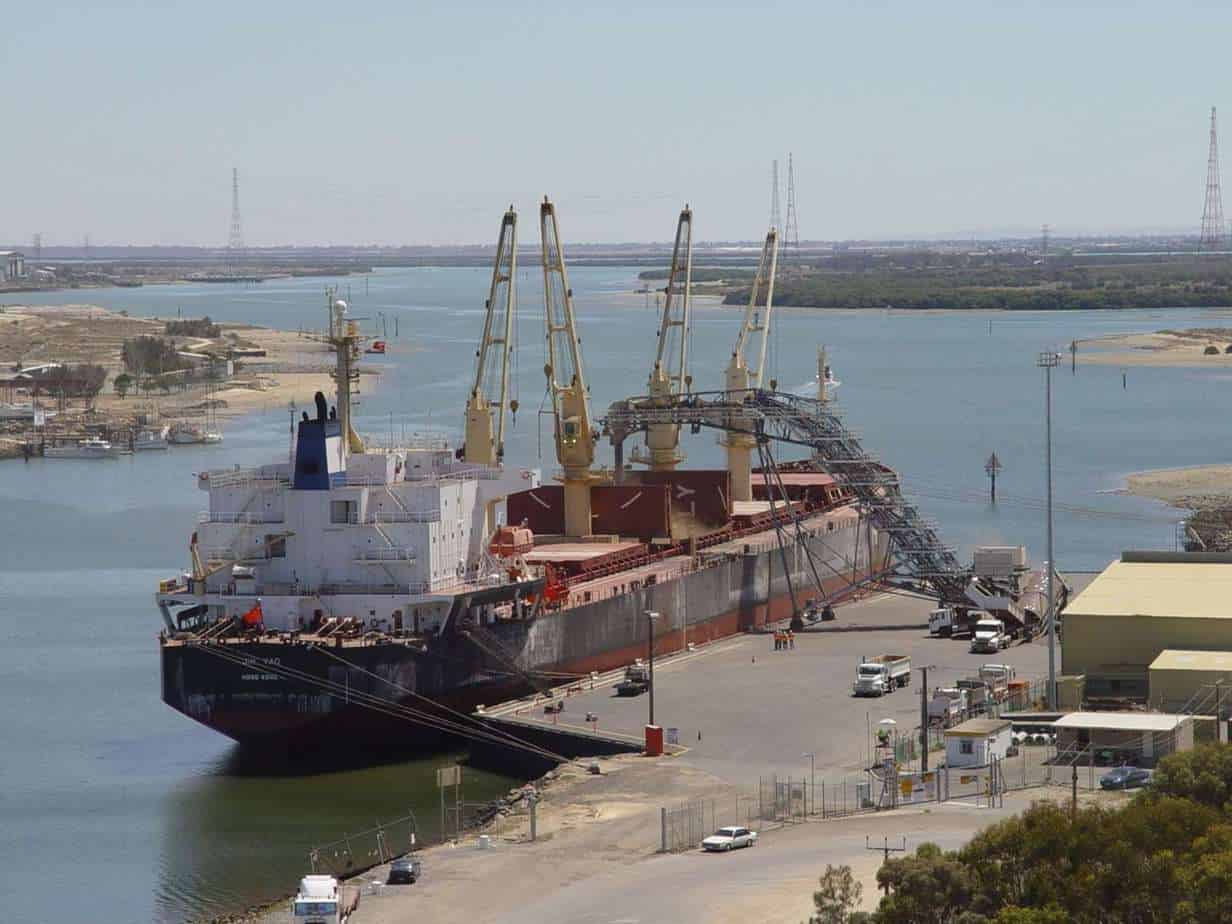

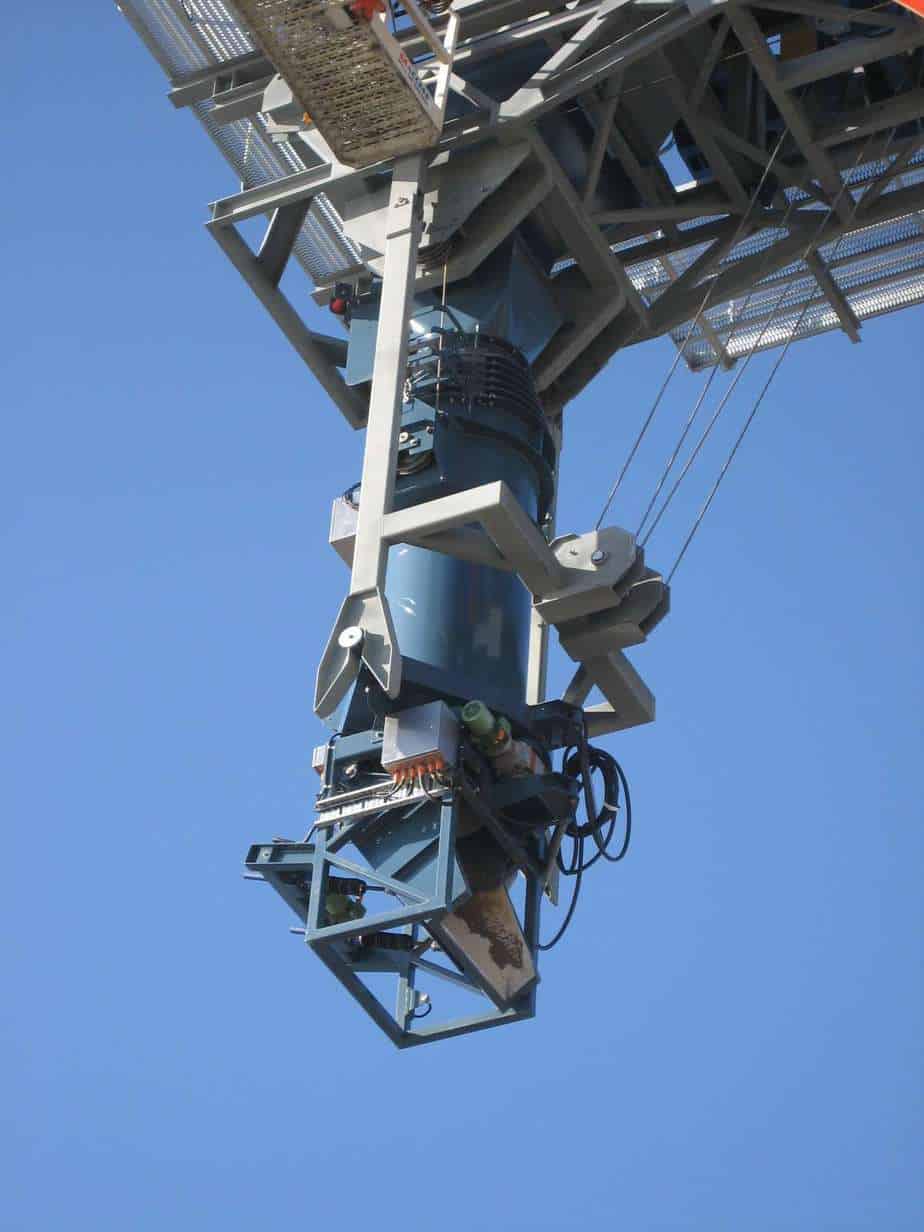

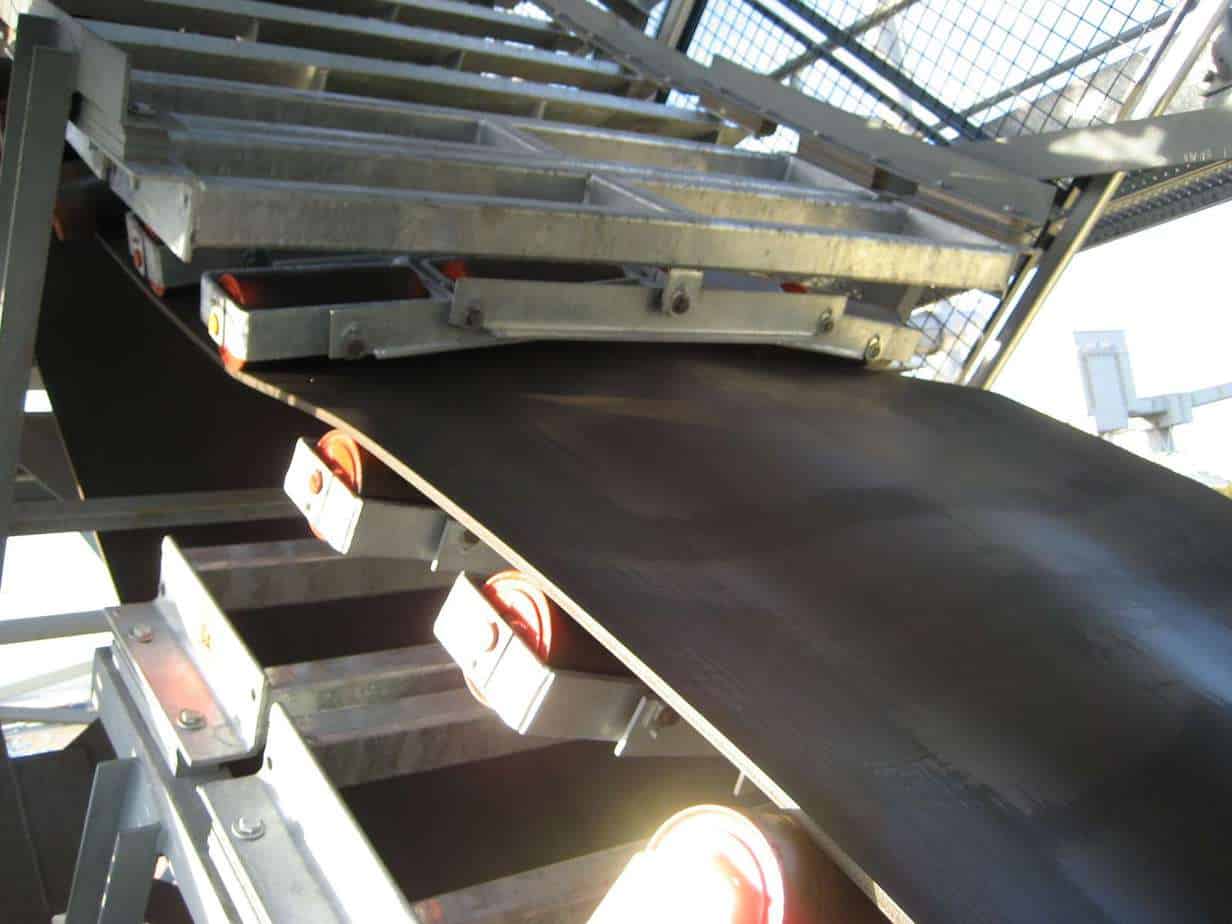

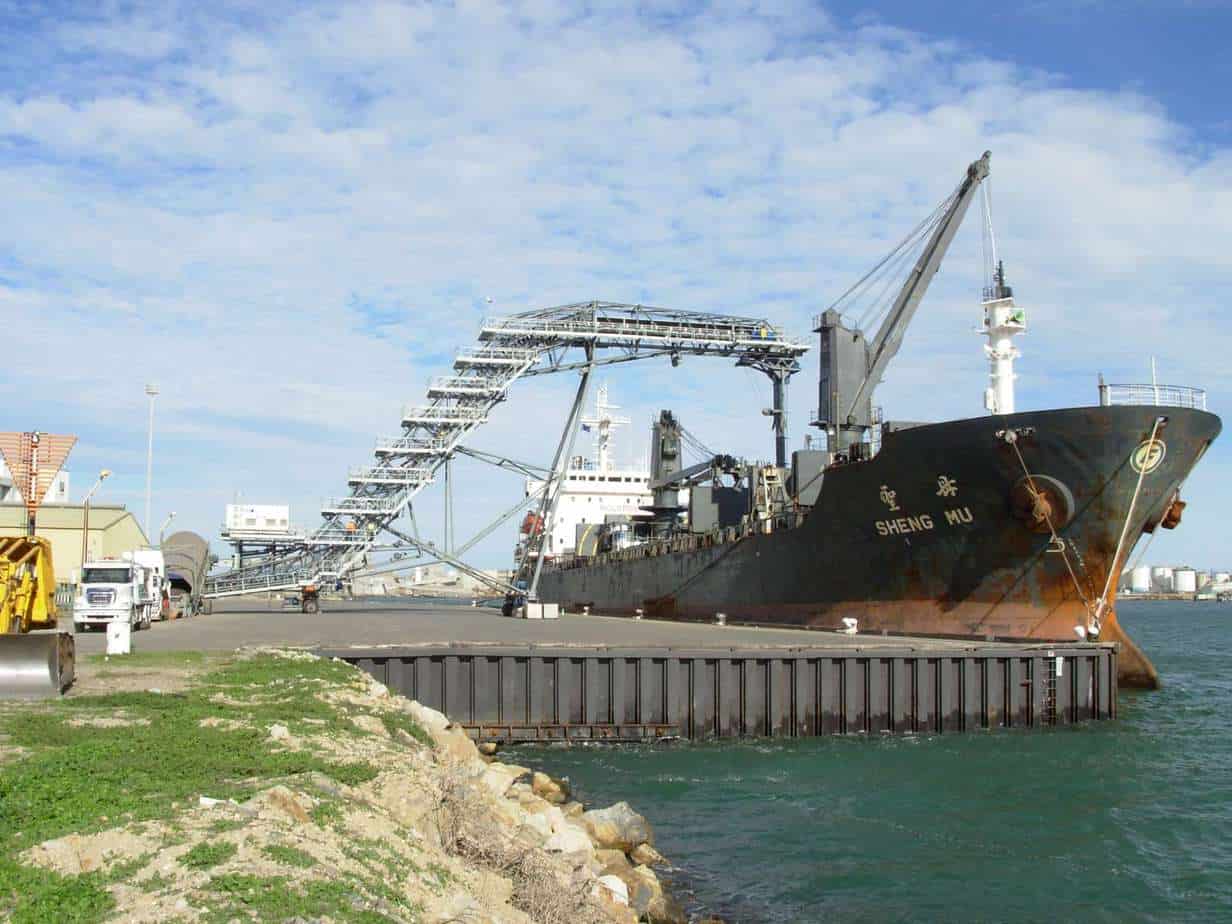

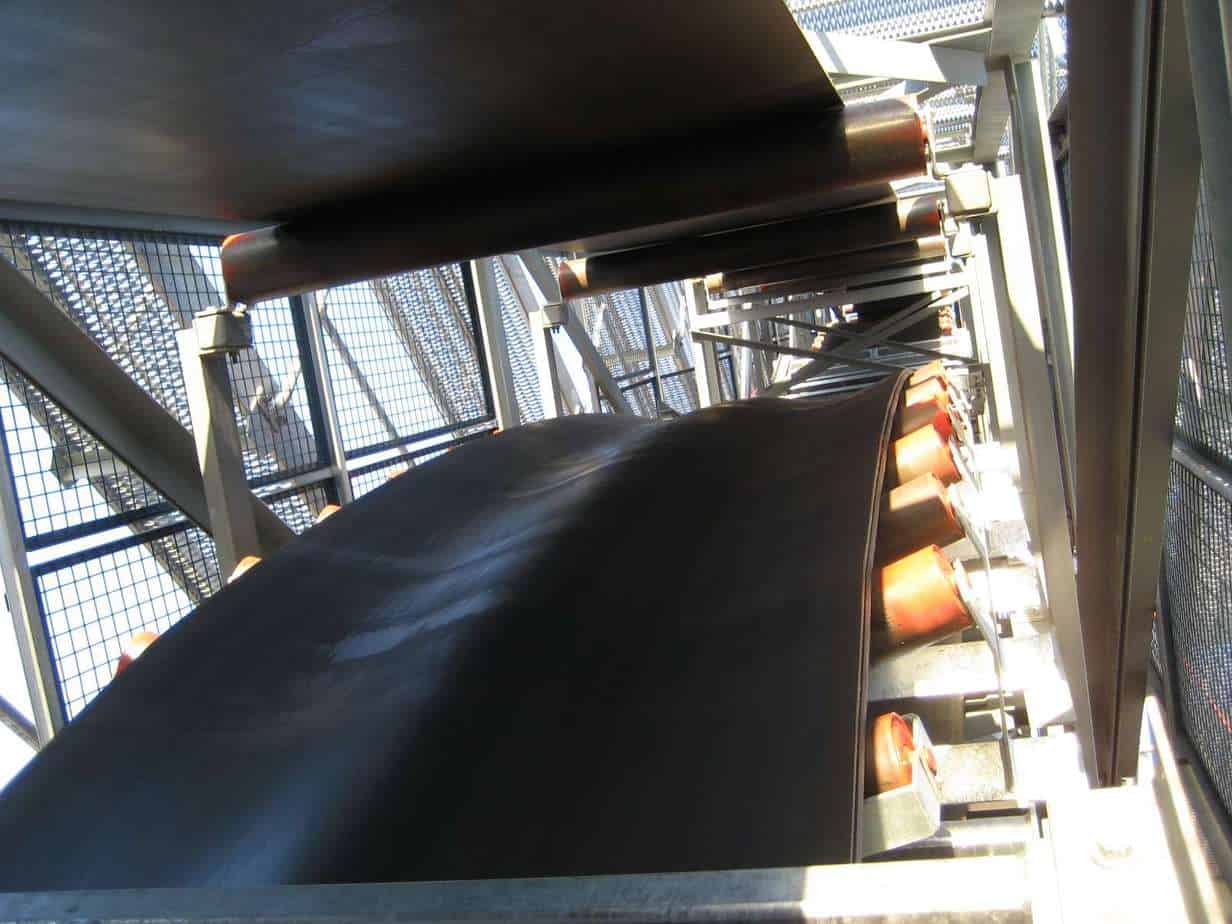

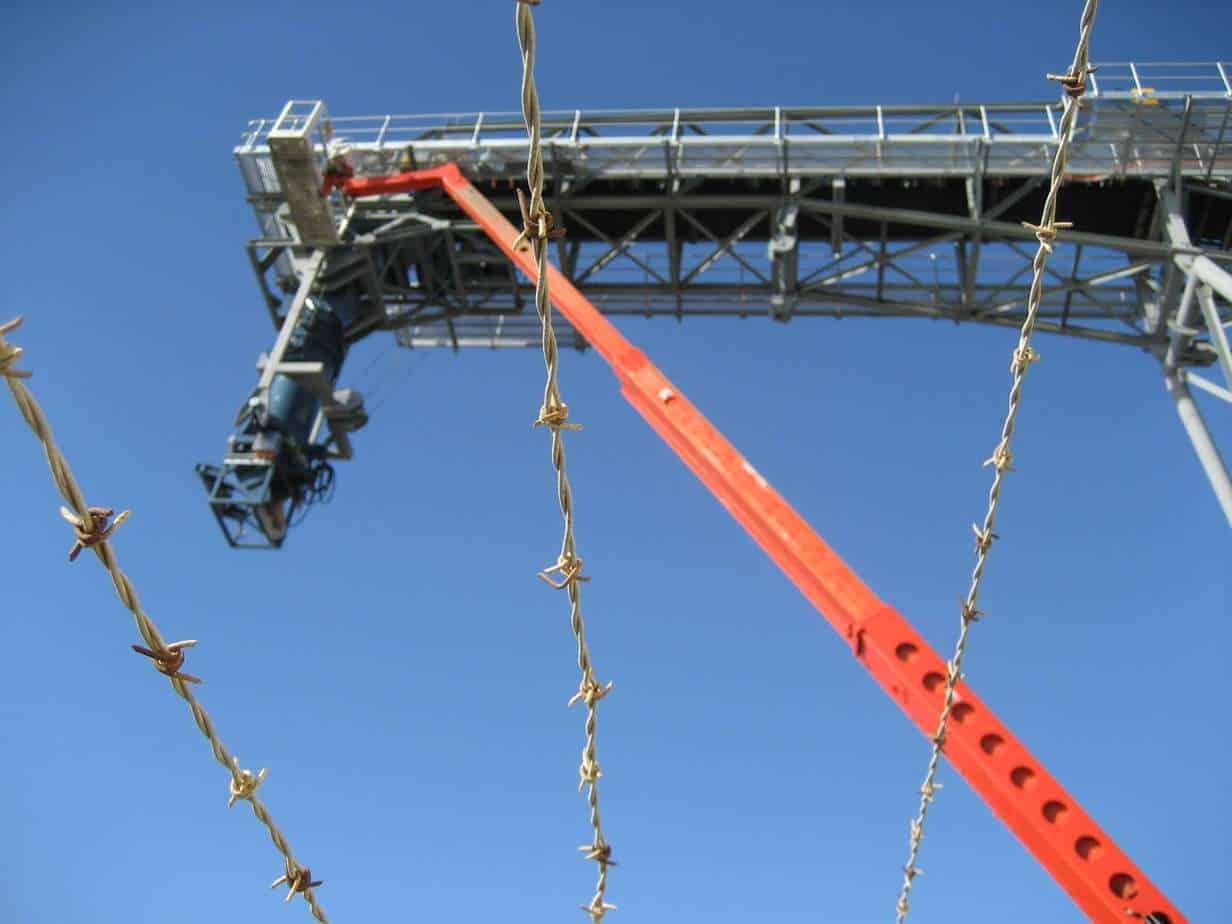

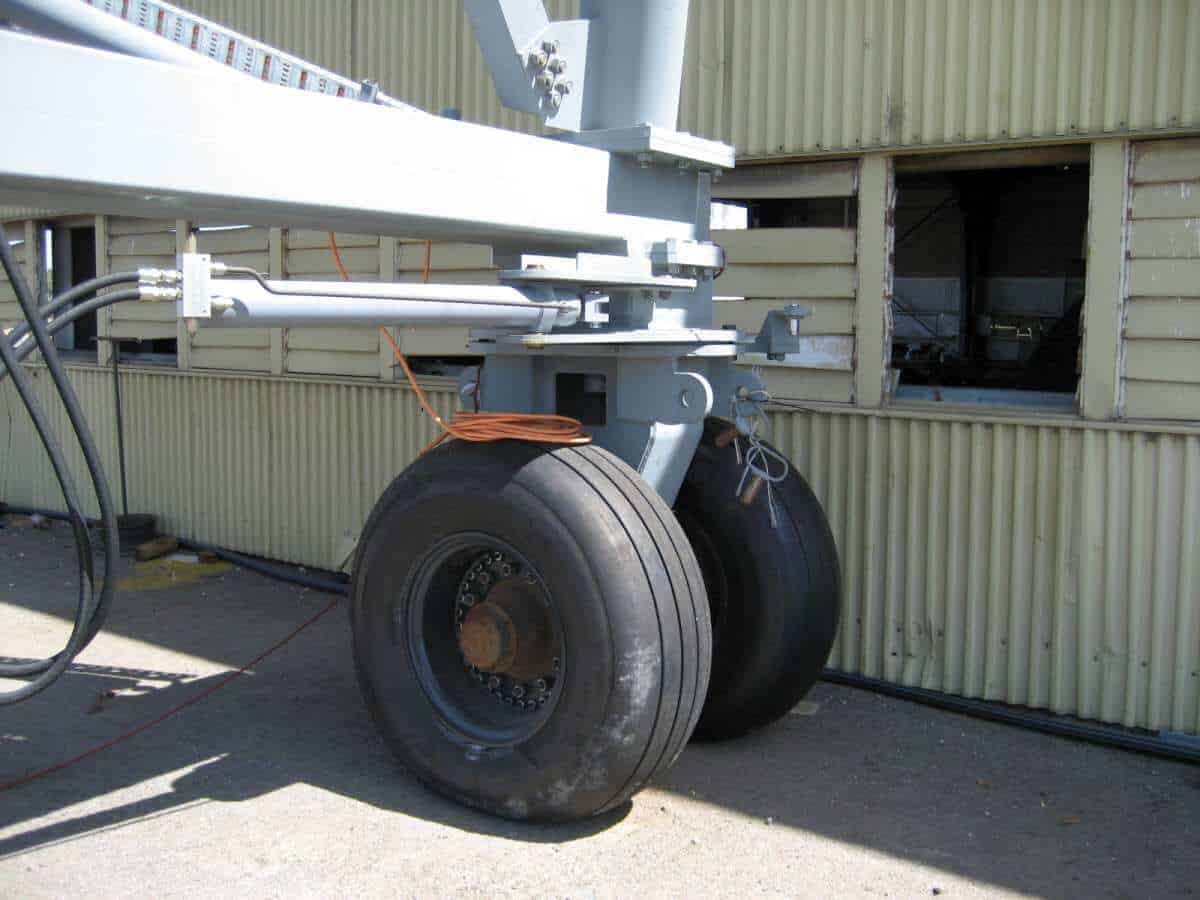

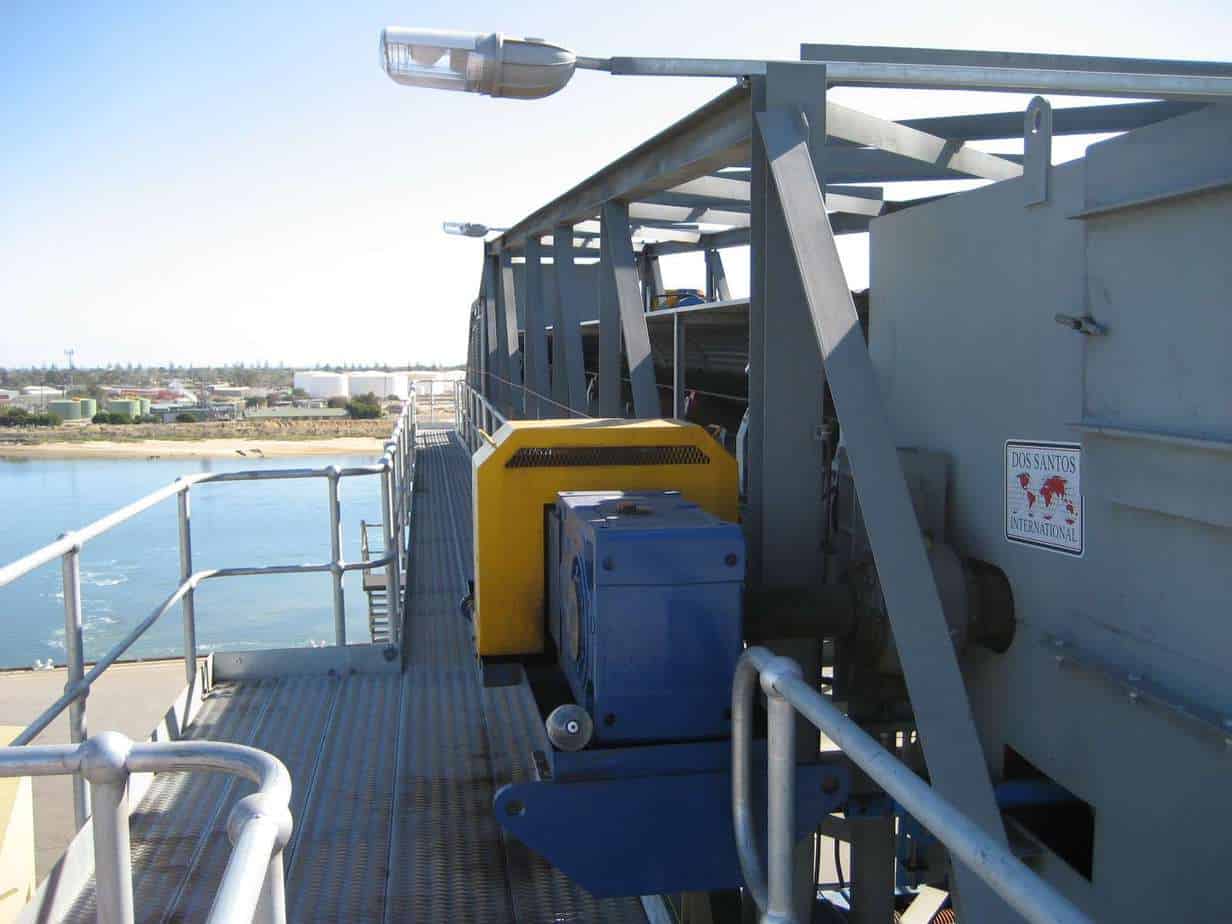

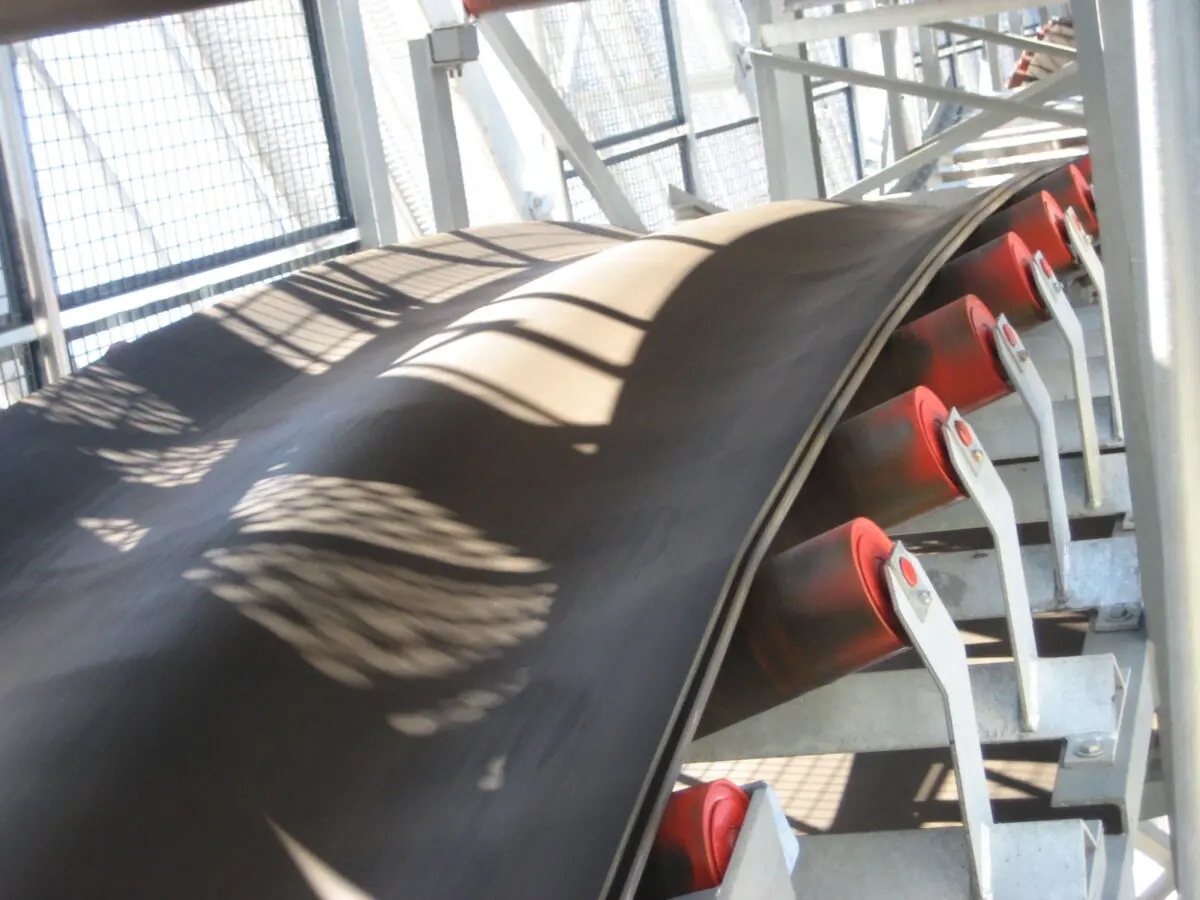

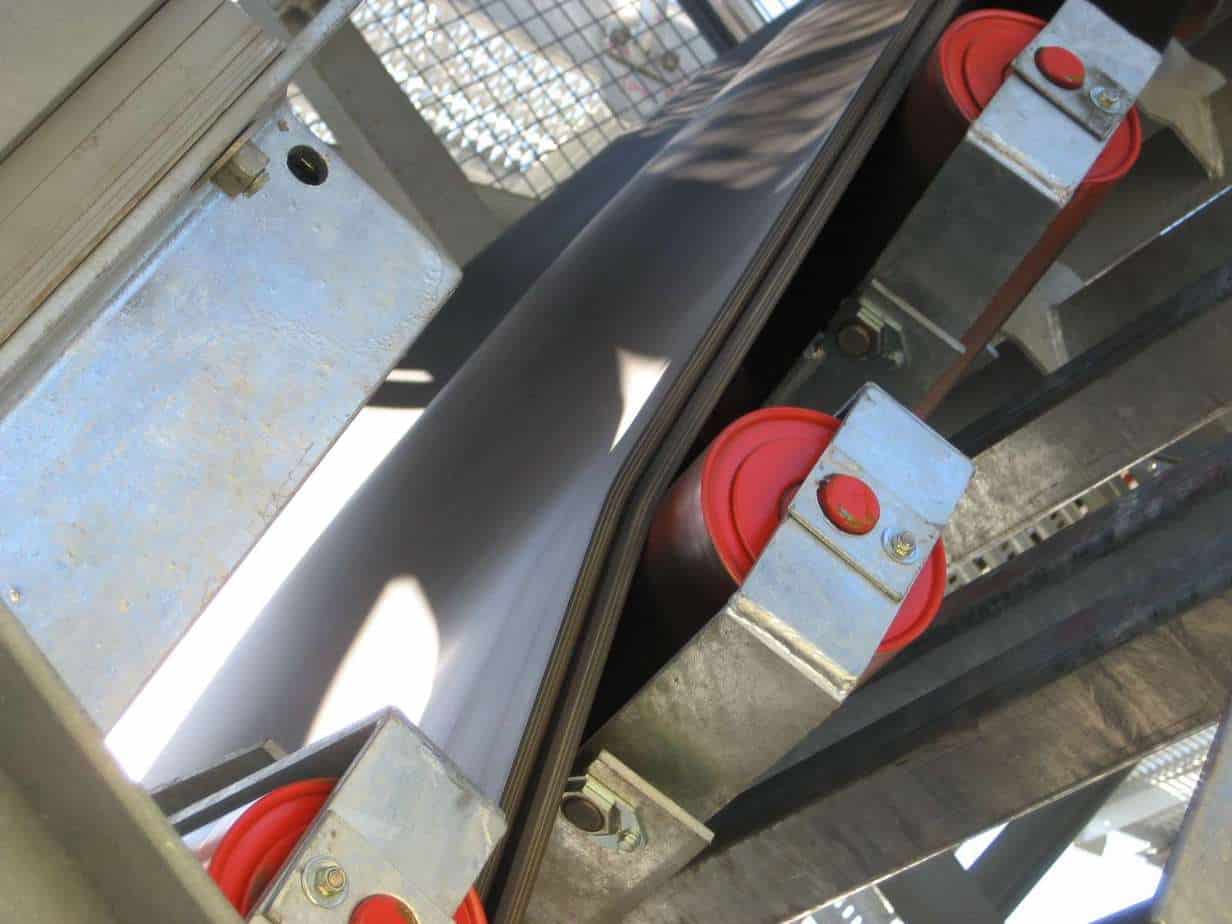

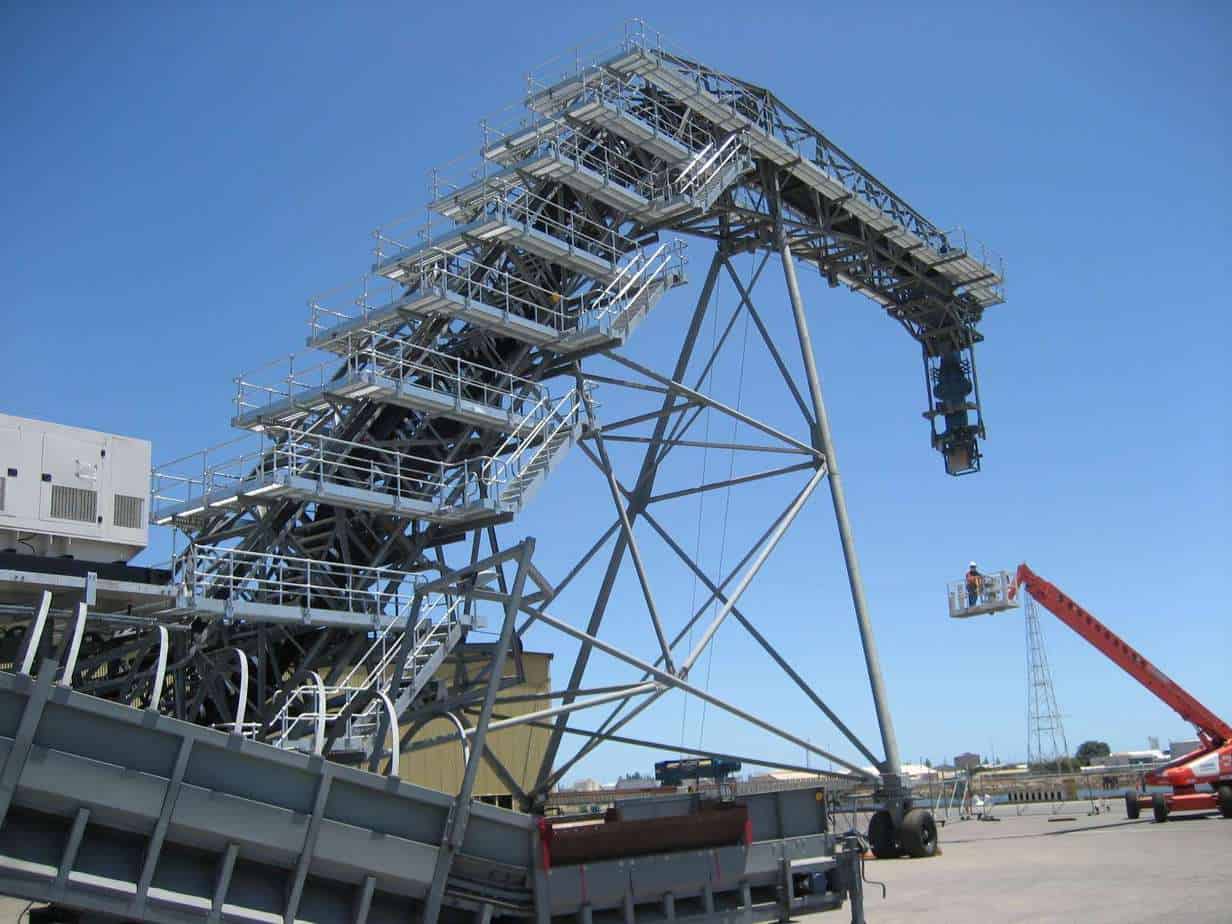

DS097 – Cortex Resources for Shiploader Project

Material:

Titanium ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

Conveying rate:

1000 t/h |

1102 STPH

Conveying angle:

50 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

21805 mm |

71.5 ft

Length:

56656 mm |

185.9 ft

Bottom drive power:

55 kW |

74 HP

Top drive power:

55 kW |

74 HP

DSCo006 – DSI Conveyor TB-25 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

11 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

5500 mm |

17.9 ft

Length:

41200 mm |

133.4 ft

Bottom drive power:

44.7 kW |

60 HP

Top drive power:

N/A kW |

N/A HP

DSCo007 – DSI Horizontally Curving Overland Conveyor TB-26 for Los Filos, Goldcorp – 400m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

6.1 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

26440 mm |

86.7 ft

Length:

247800 mm |

813 ft

Bottom drive power:

149 kW |

200 HP

Top drive power:

N/A kW |

N/A HP

DS107 – DSI Adder Snake at Fertilizer Project

Material:

Fertilizer prills

Bulk density:

0.8 t/cu-m |

47 PCF

Material size:

4 mm |

0.14 in

Conveying rate:

600 t/h |

661 STPH

Conveying angle:

40 deg

Belt width:

1600 mm |

63 in

Belt speed:

2 m/s |

394 FPM

Lift:

10476 mm |

34 ft

Length:

32713 mm |

107 ft

Bottom drive power:

37 kW |

50 HP

Top drive power:

37 kW |

50 HP

DS112 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

67056 mm |

220 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
