DS105 – UBT at Transfer Terminal Project – Dos Santos Universal, LLC

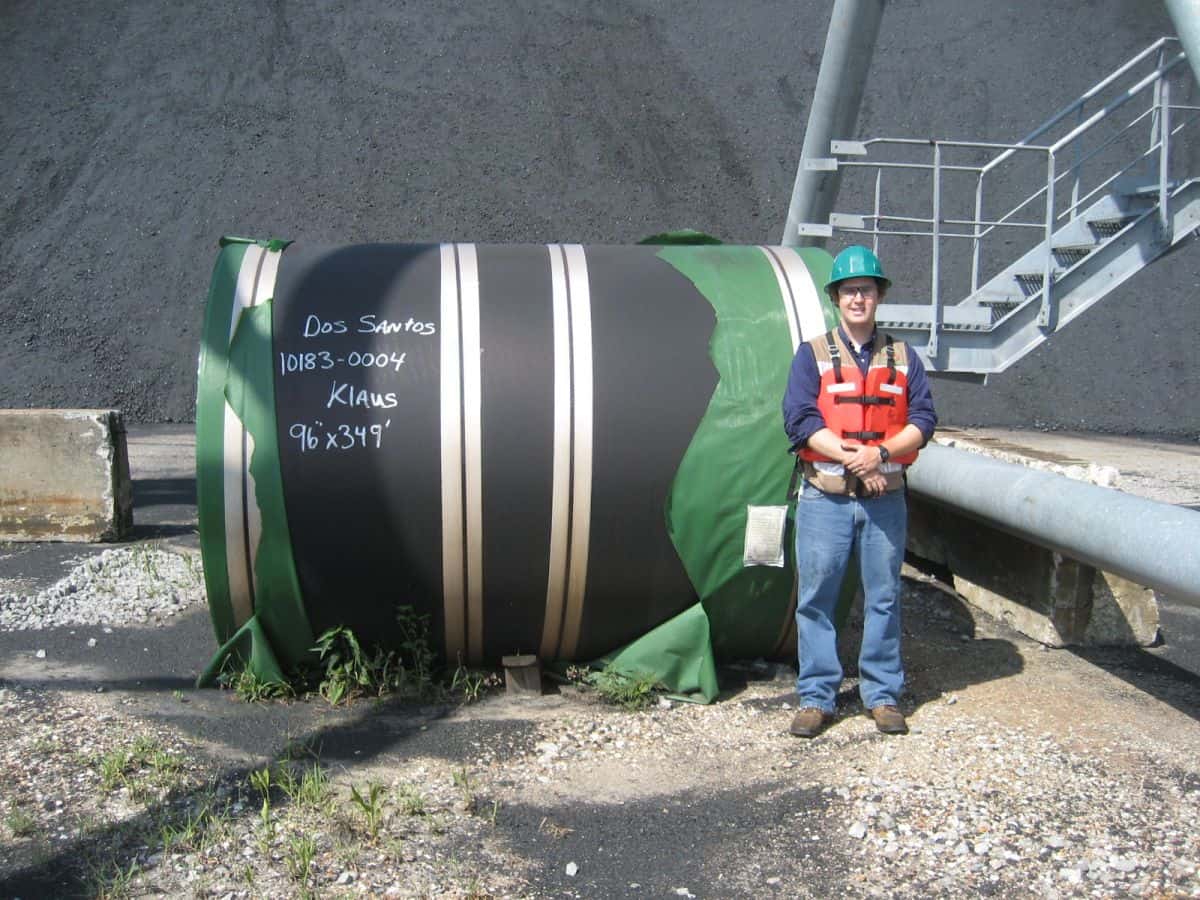

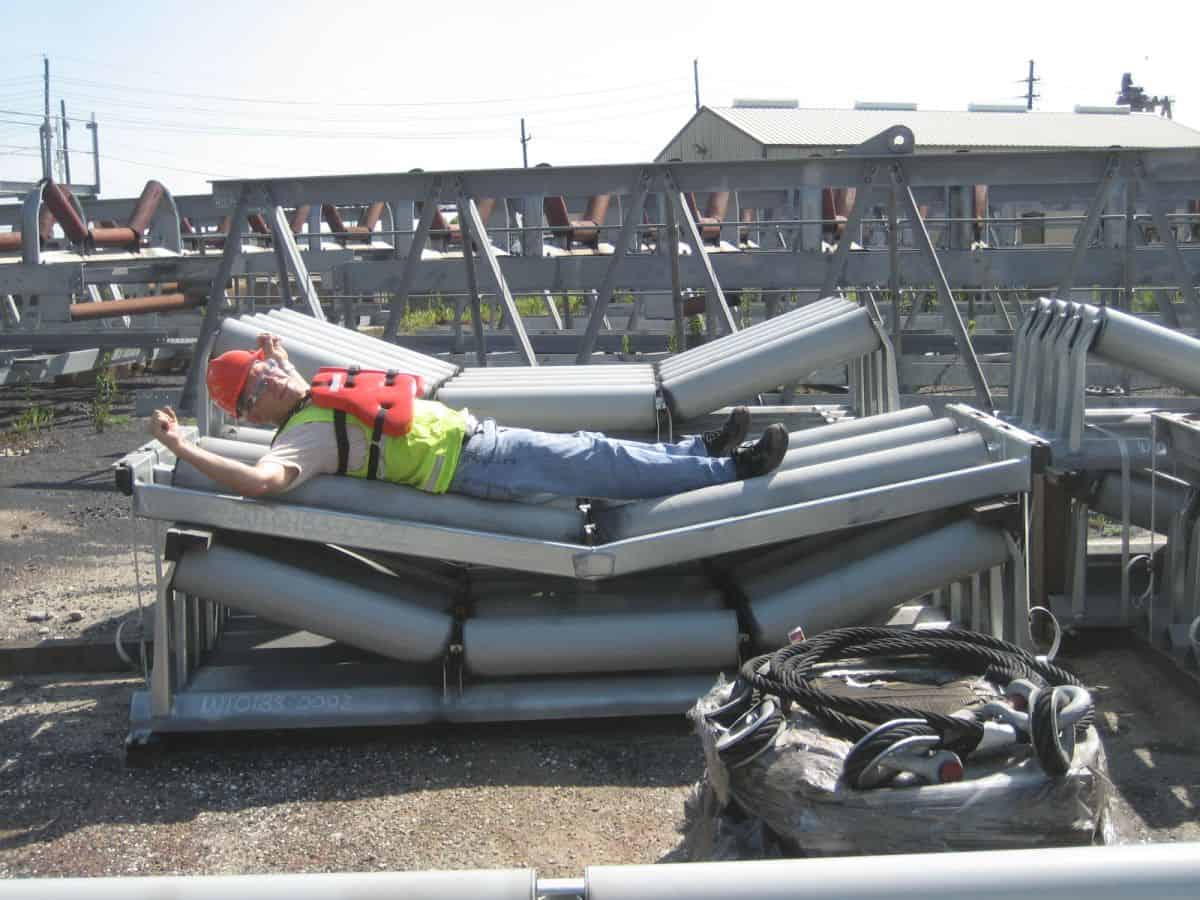

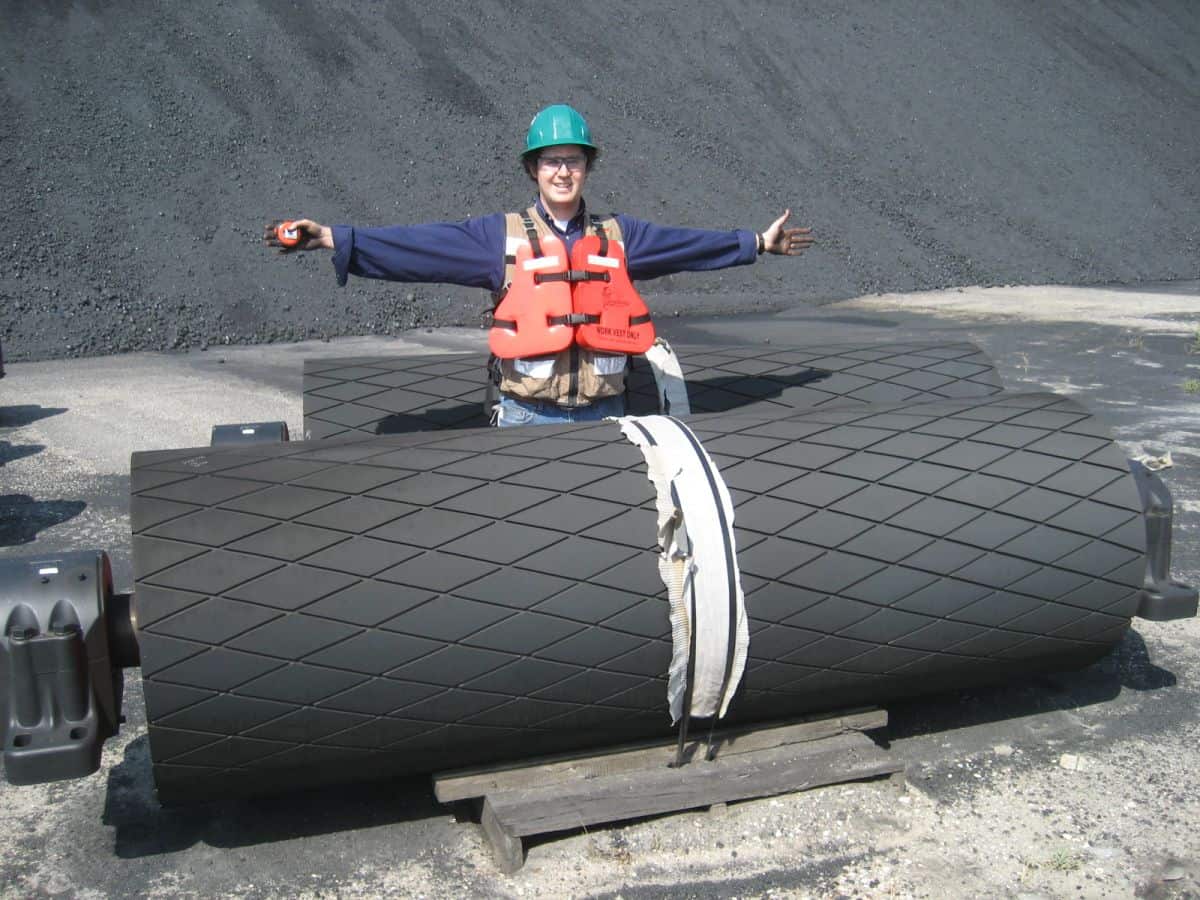

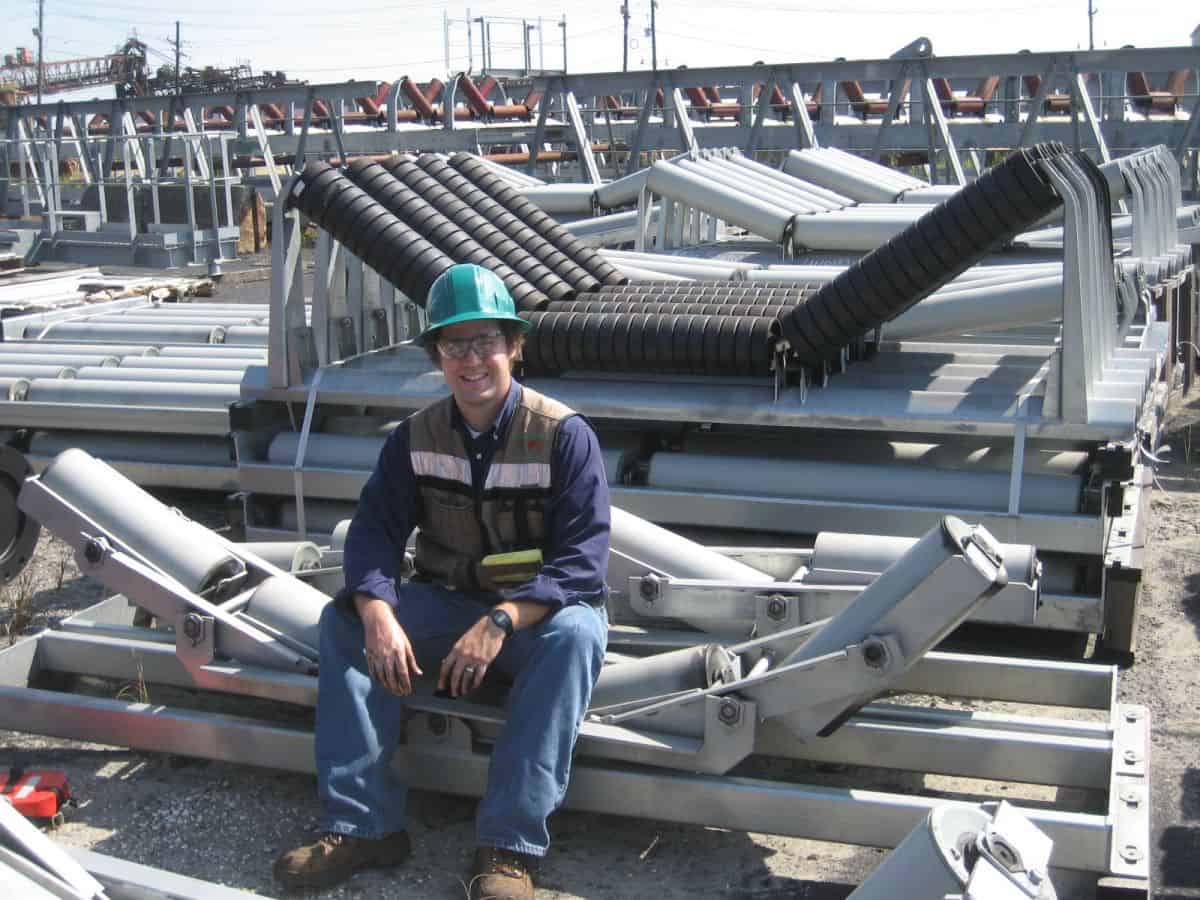

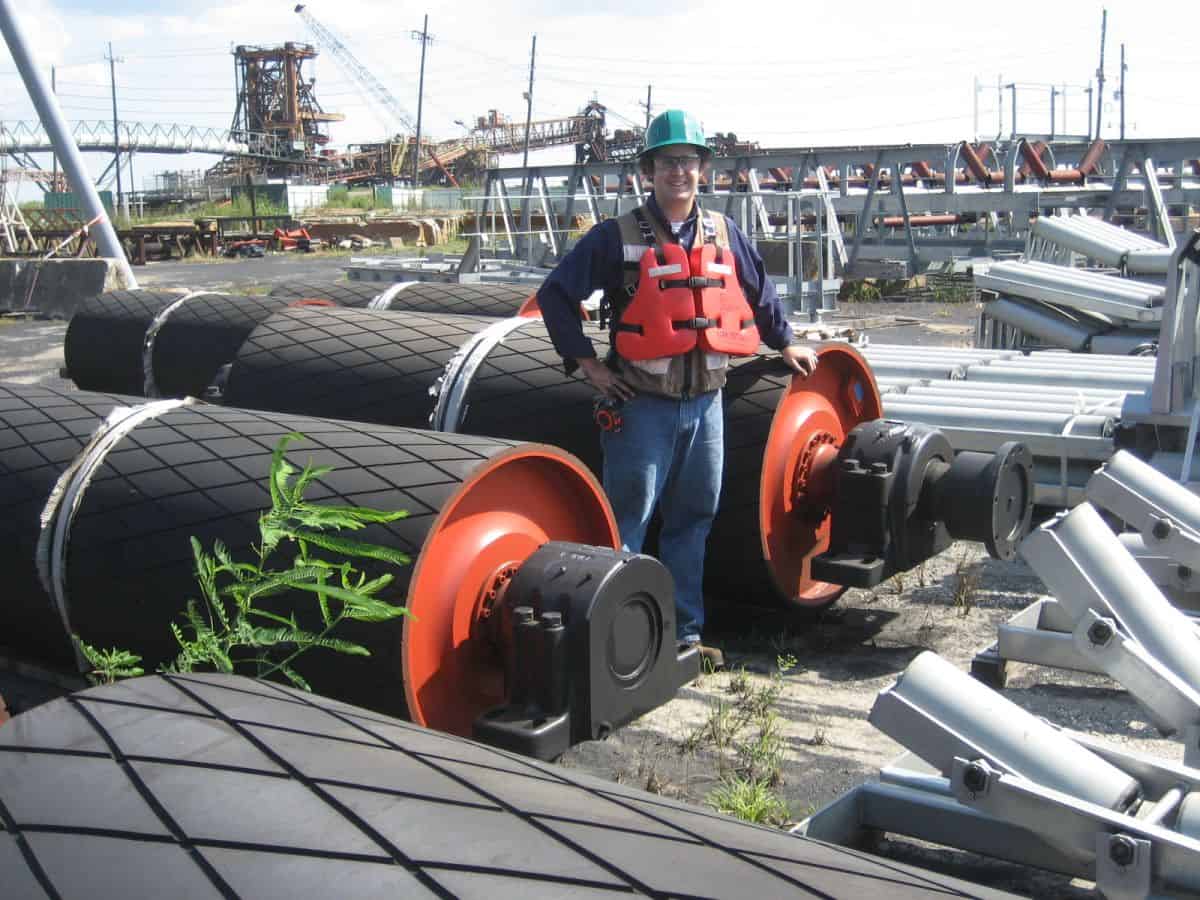

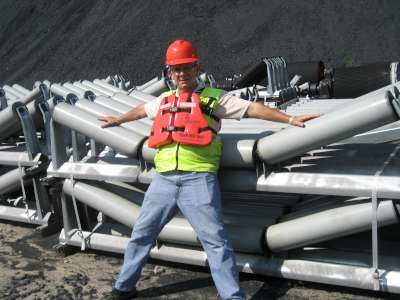

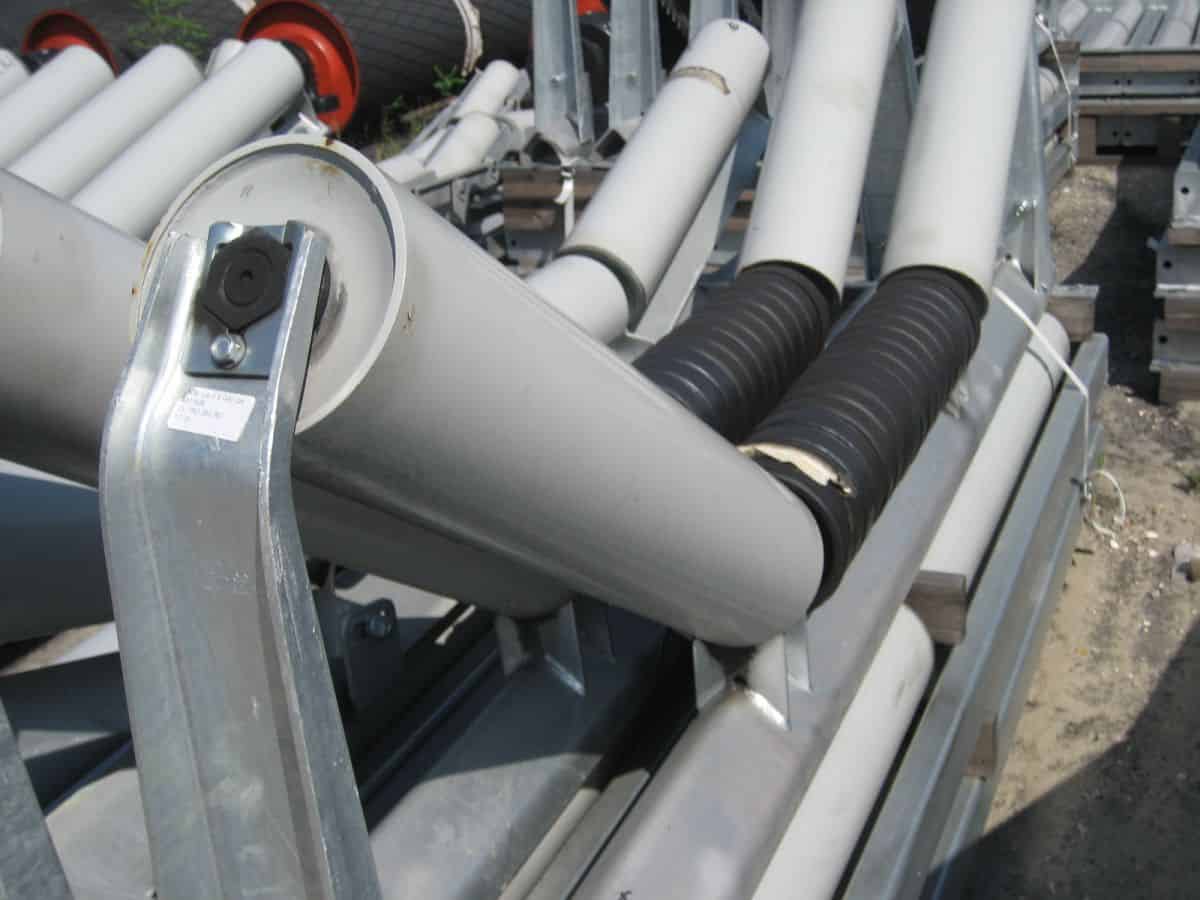

DS105 – UBT at Transfer Terminal Project

DS105 - UBT at Transfer Terminal Project - Image 3

DS105 - UBT at Transfer Terminal Project - Image 4

DS105 - UBT at Transfer Terminal Project - Image 5

DS105 - UBT at Transfer Terminal Project - Image 6

DS105 - UBT at Transfer Terminal Project - Image 7

DS105 – UBT at Transfer Terminal Project

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

76 mm |

3 in

Conveying rate:

3629 t/h |

4000 STPH

Conveying angle:

52 deg

Belt width:

2438 mm |

96 in

Belt speed:

4.48 m/s |

882 FPM

Lift:

19820 mm |

65 ft

Length:

48600 mm |

159.6 ft

Bottom drive power:

224 kW |

300 HP

Top drive power:

224 kW |

300 HP

DS083 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DSCo007 – DSI Horizontally Curving Overland Conveyor TB-26 for Los Filos, Goldcorp – 400m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

6.1 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

26440 mm |

86.7 ft

Length:

247800 mm |

813 ft

Bottom drive power:

149 kW |

200 HP

Top drive power:

N/A kW |

N/A HP

DSCo011 – DSI Downhill Regenerative Overland Conveyor TB-30 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

‘-4.1 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-14300 mm |

‘-47.8 ft

Length:

201000 mm |

665.5 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

DSCo012 – DSI Downhill Regenerative Overland Conveyor TB-32 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-9800 mm |

‘-32.3 ft

Length:

84500 mm |

277.2 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS111 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

6750 mm |

22.2 ft

Length:

17500 mm |

57.3 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP
