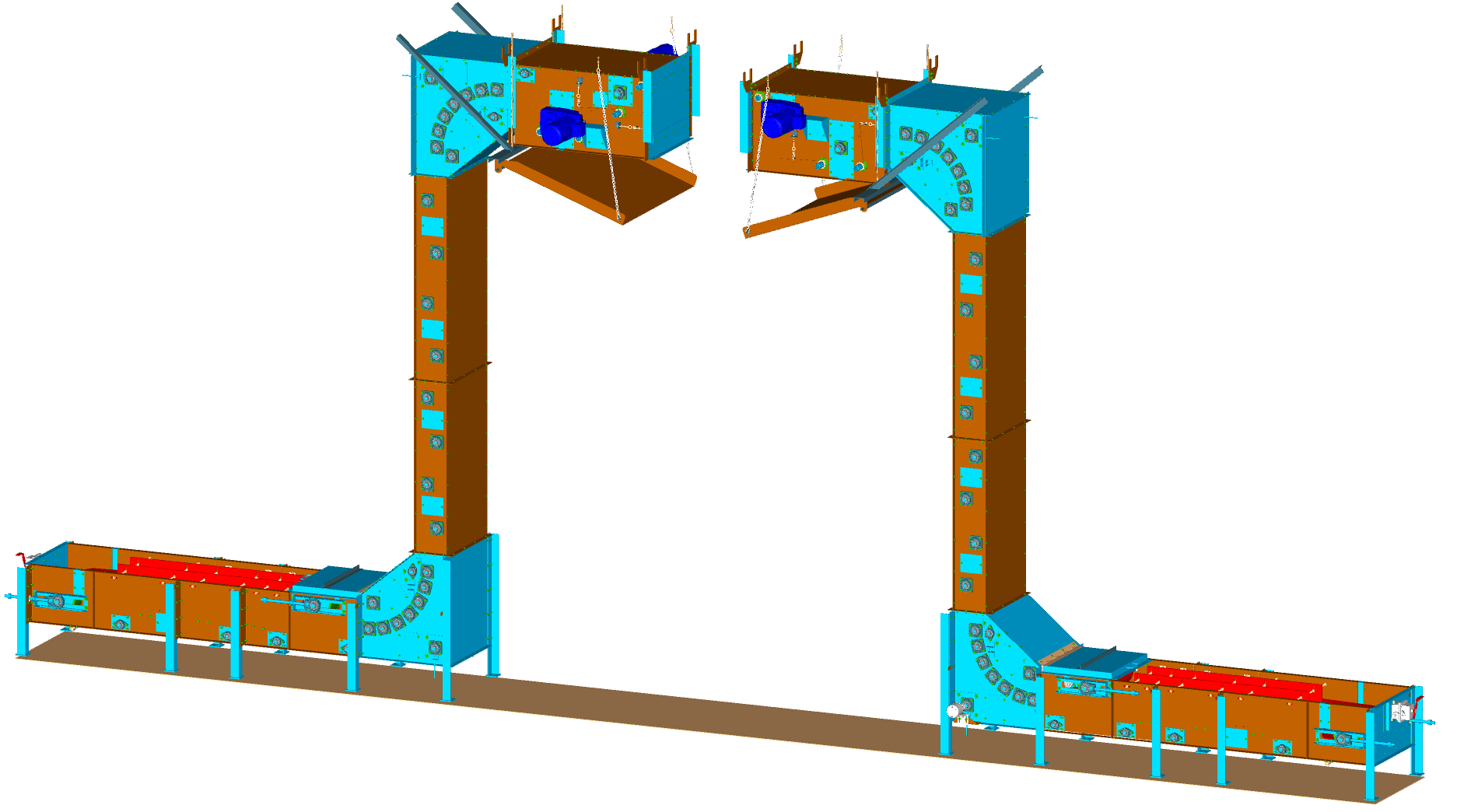

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS092 – Continental Canada for Snap Lake Diamond Mine Project 2

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

50 mm |

2 in

Conveying rate:

600 t/h |

552 STPH

Conveying angle:

50 deg

Belt width:

914 mm |

36 in

Belt speed:

2.2 m/s |

433 FPM

Lift:

18310 mm |

60.1 ft

Length:

70562 mm |

231.5 ft

Bottom drive power:

44.8 kW |

60 HP

Top drive power:

44.8 kW |

60 HP

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS110 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

14250 mm |

46.8 ft

Length:

34100 mm |

111.9 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
