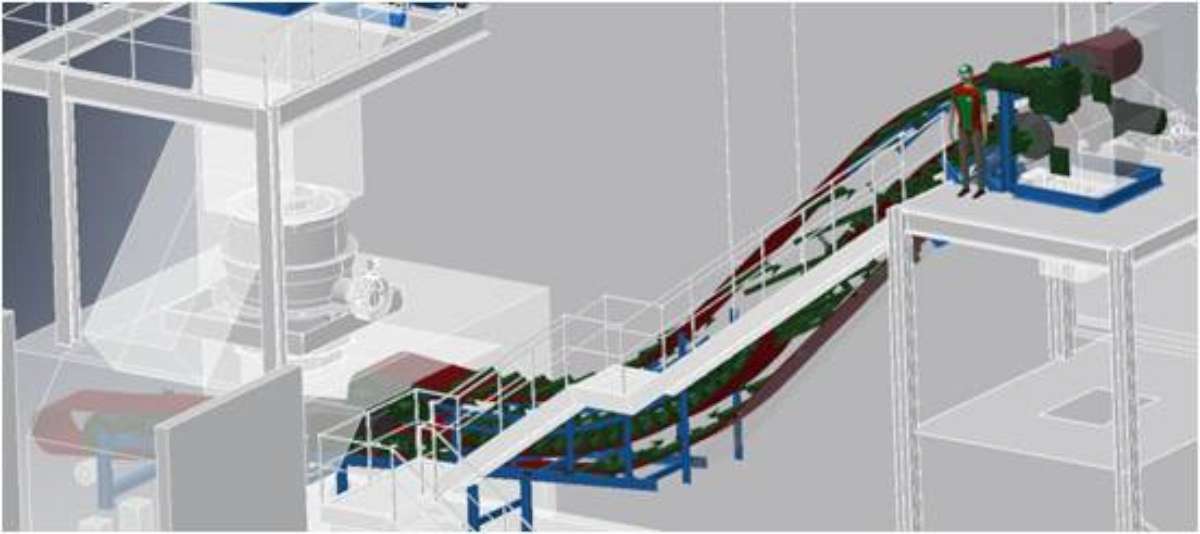

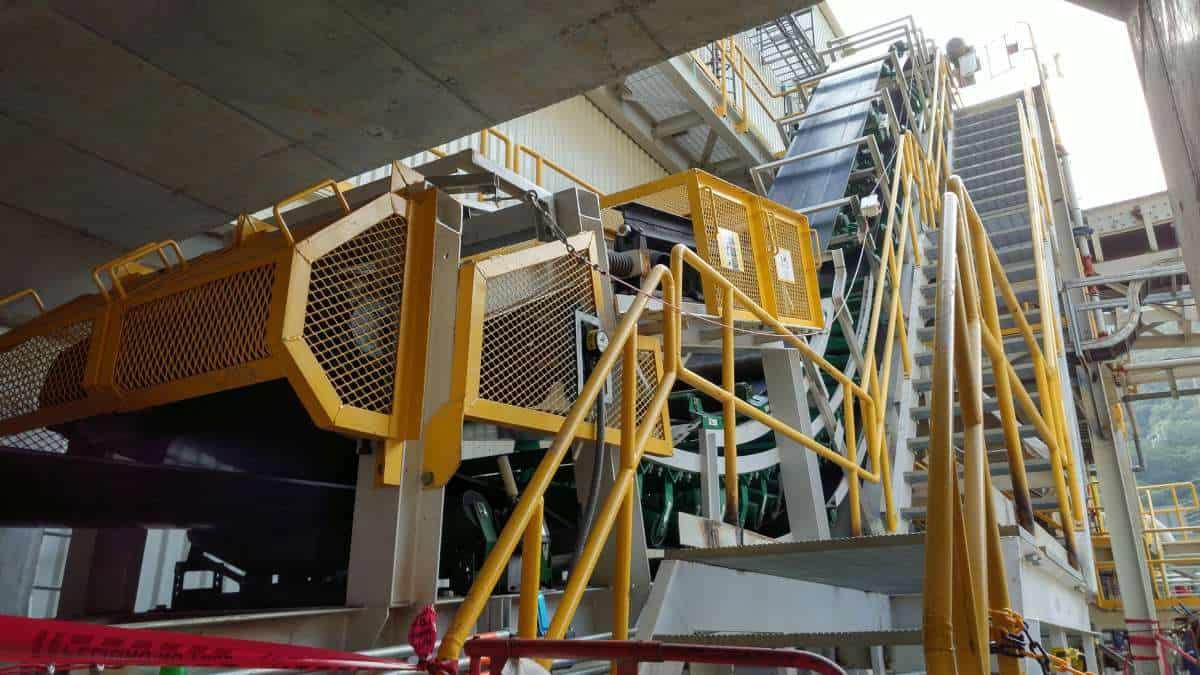

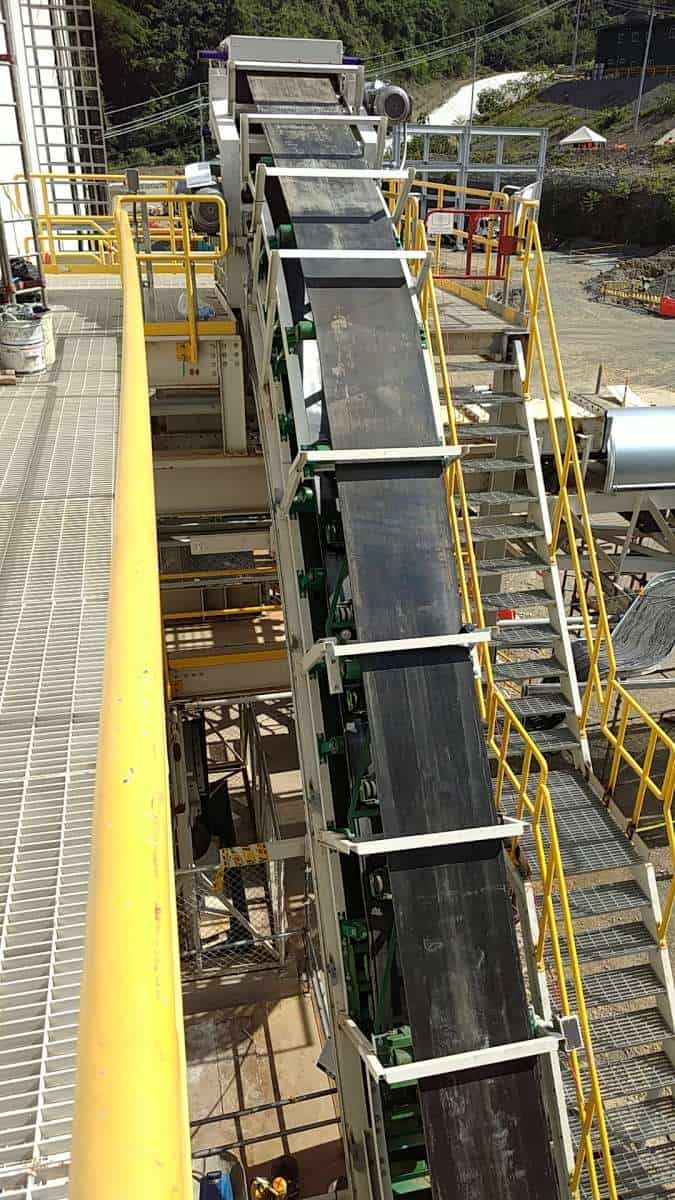

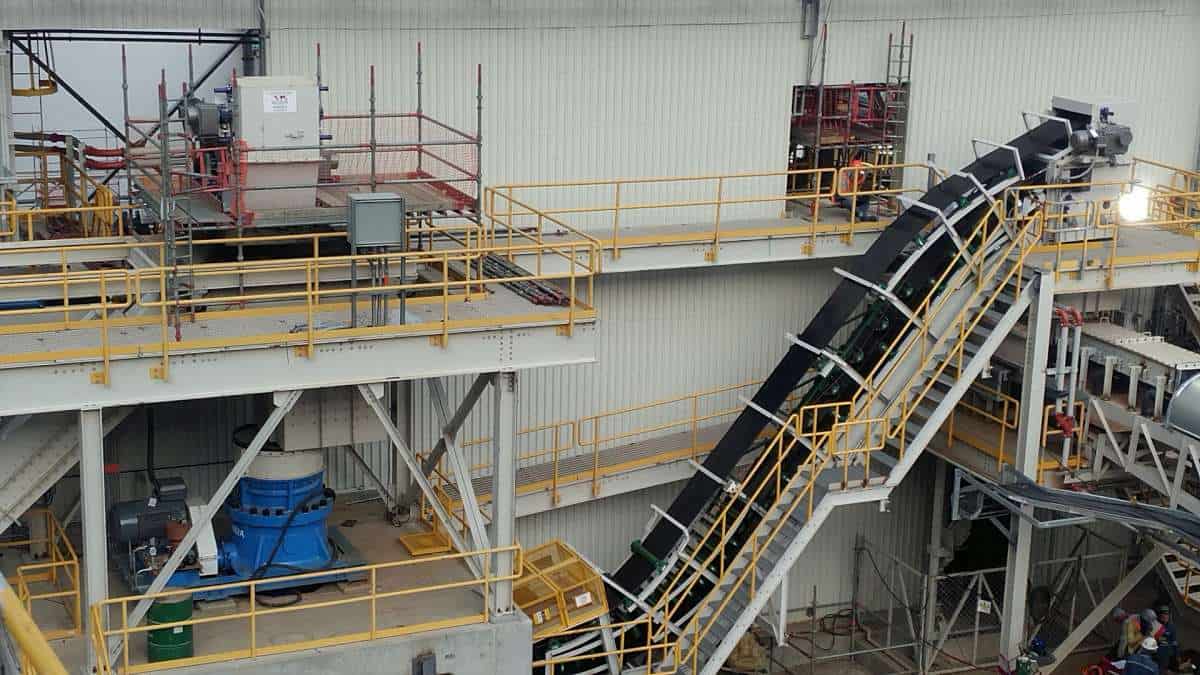

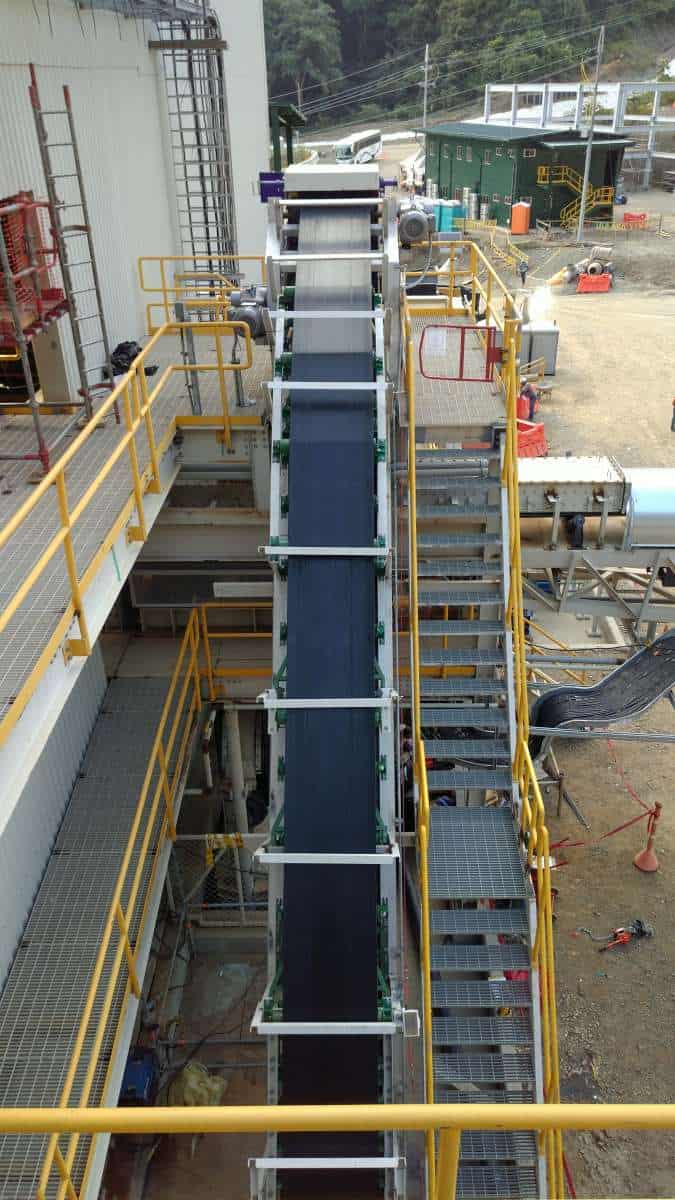

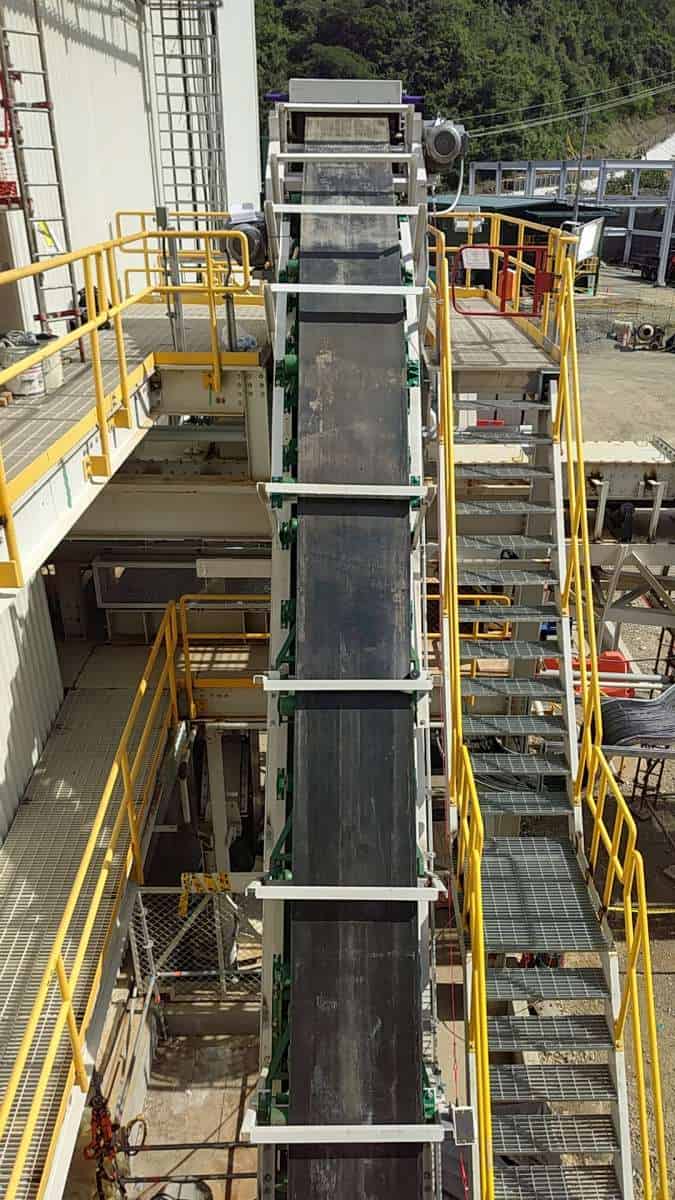

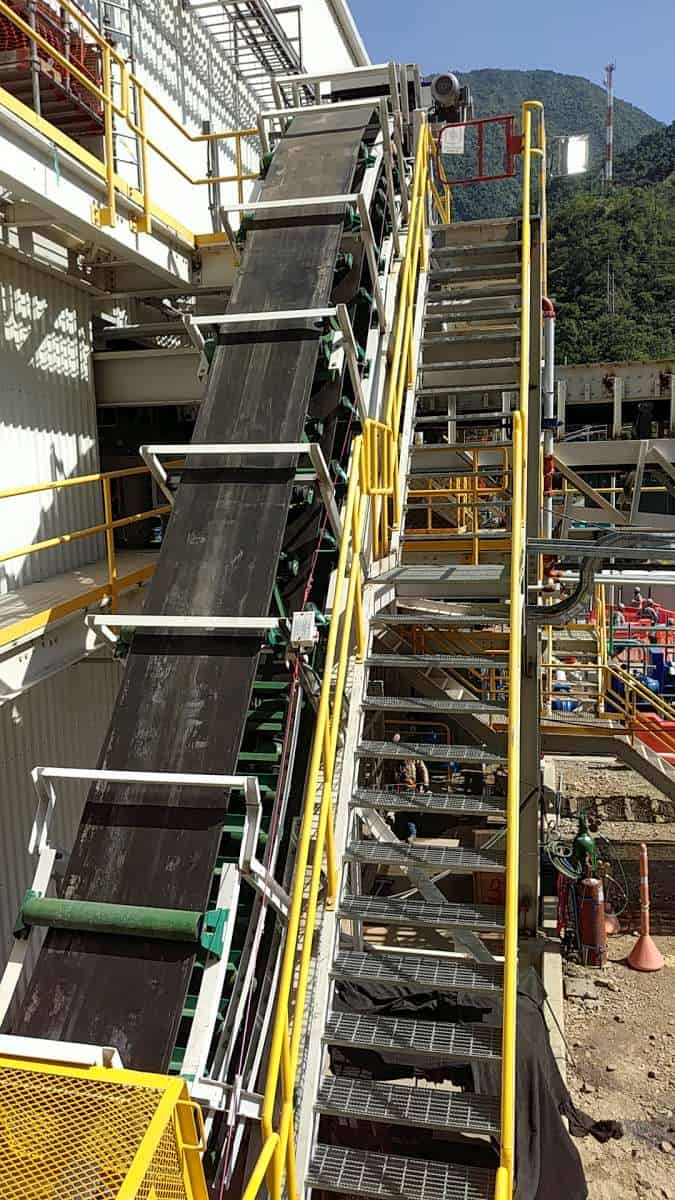

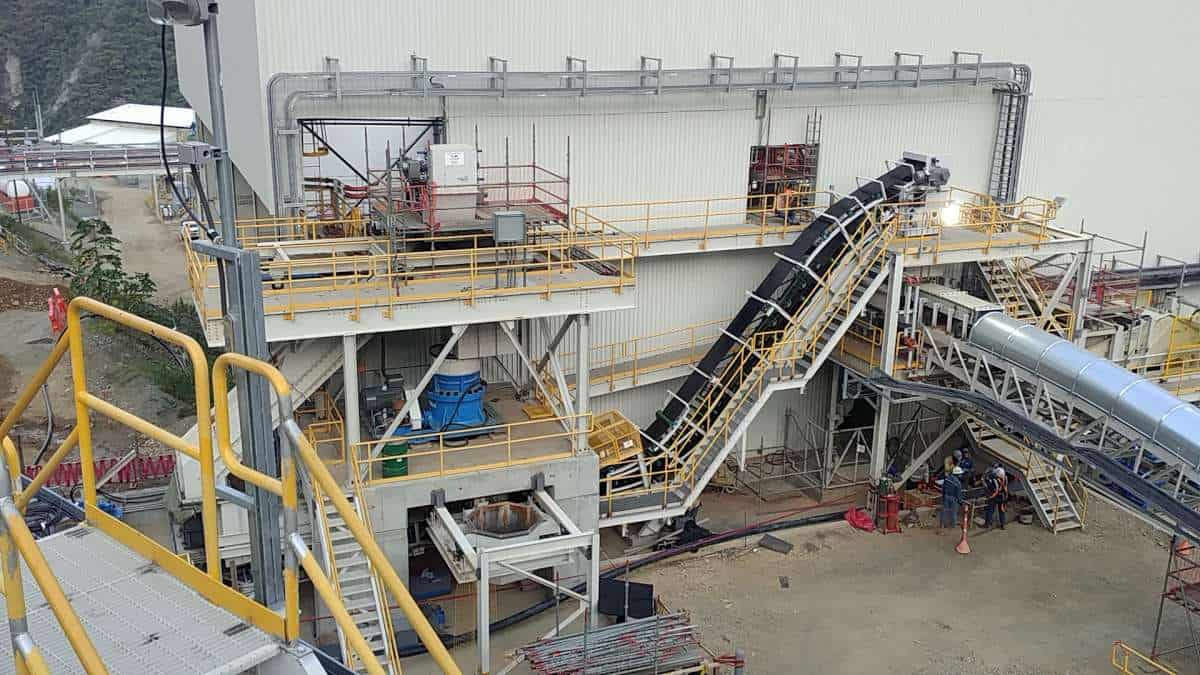

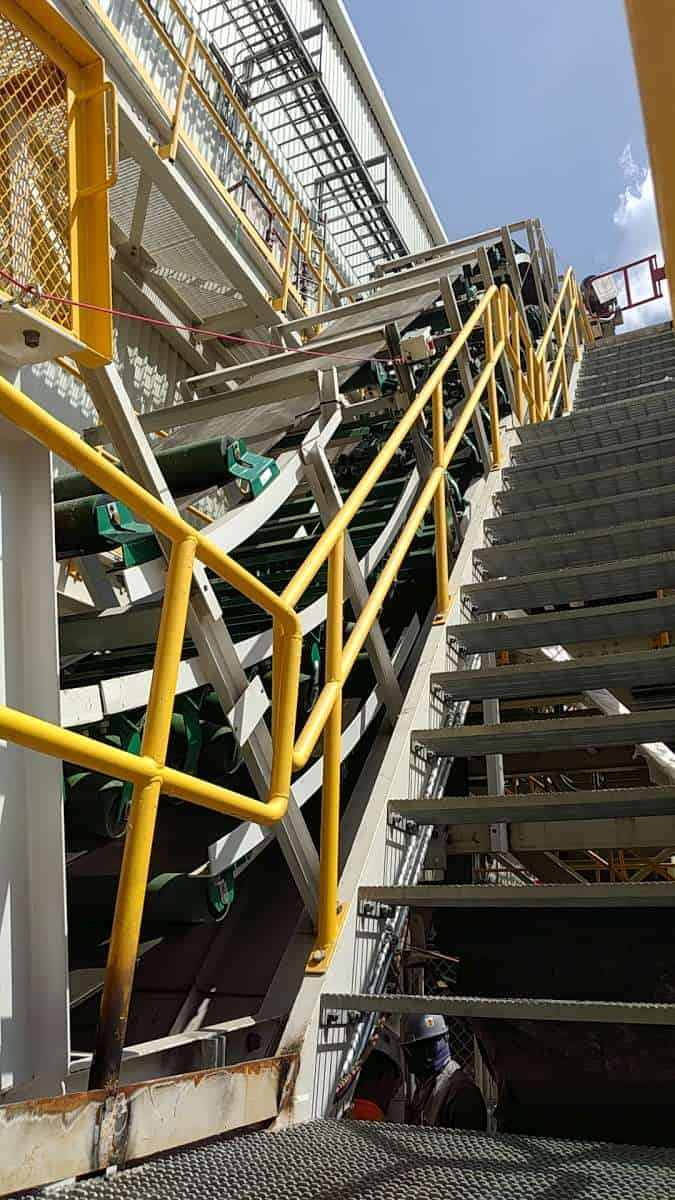

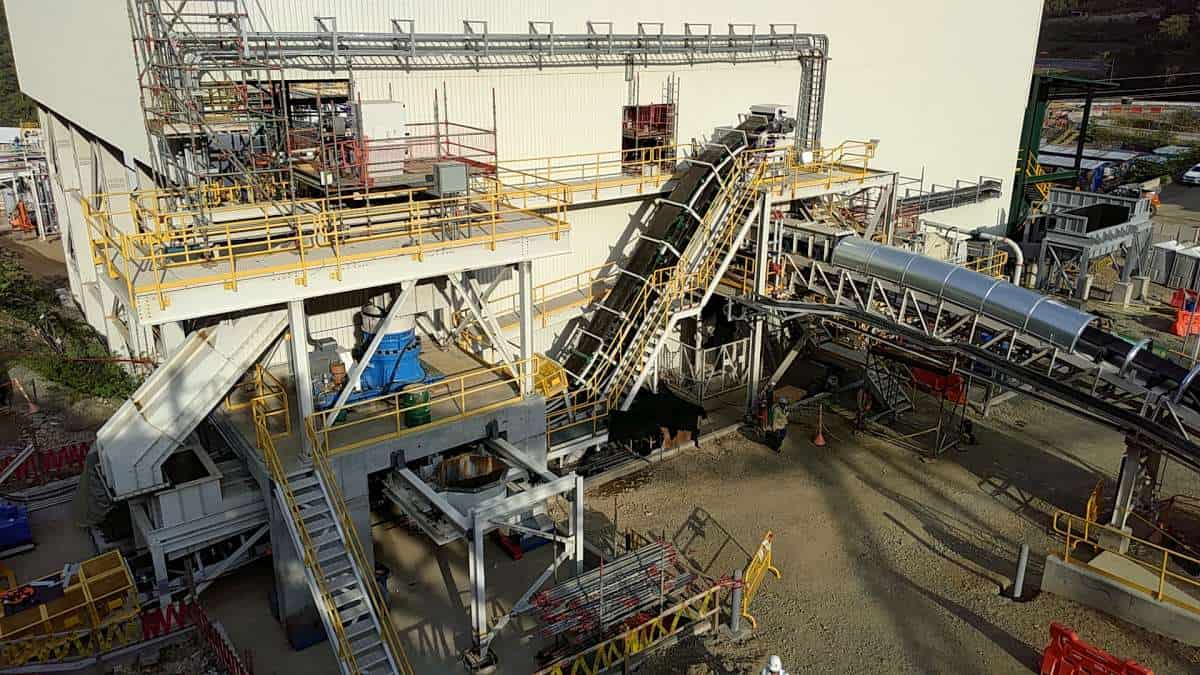

DS111 – M3 for Buritica Project

DS111 - M3 for Buritica Project - Image 3

DS111 - M3 for Buritica Project - Image 4

DS111 - M3 for Buritica Project - Image 5

DS111 - M3 for Buritica Project - Image 6

DS111 - M3 for Buritica Project - Image 7

DS111 - M3 for Buritica Project - Image 8

DS111 - M3 for Buritica Project - Image 9

DS111 - M3 for Buritica Project - Image 10

DS111 - M3 for Buritica Project - Image 11

DS111 - M3 for Buritica Project - Image 12

DS111 - M3 for Buritica Project - Image 13

DS111 - M3 for Buritica Project - Image 14

DS111 - M3 for Buritica Project - Image 15

DS111 - M3 for Buritica Project - Image 16

DS111 - M3 for Buritica Project - Image 17

DS111 - M3 for Buritica Project - Image 18

DS111 - M3 for Buritica Project - Image 19

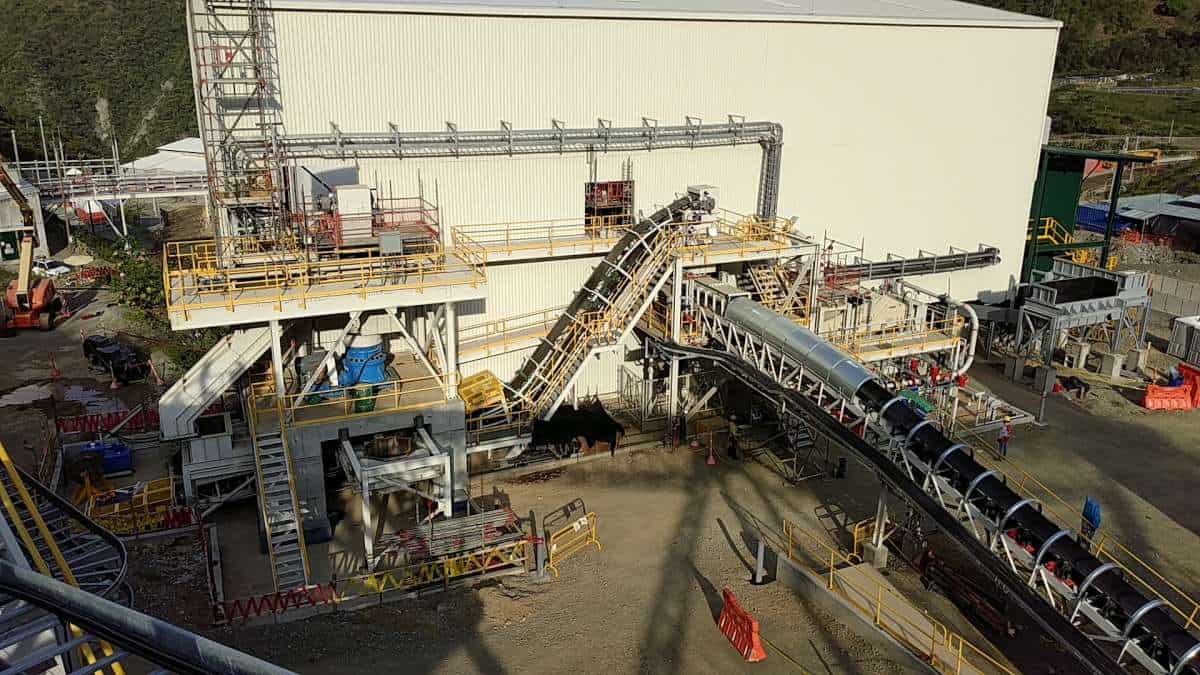

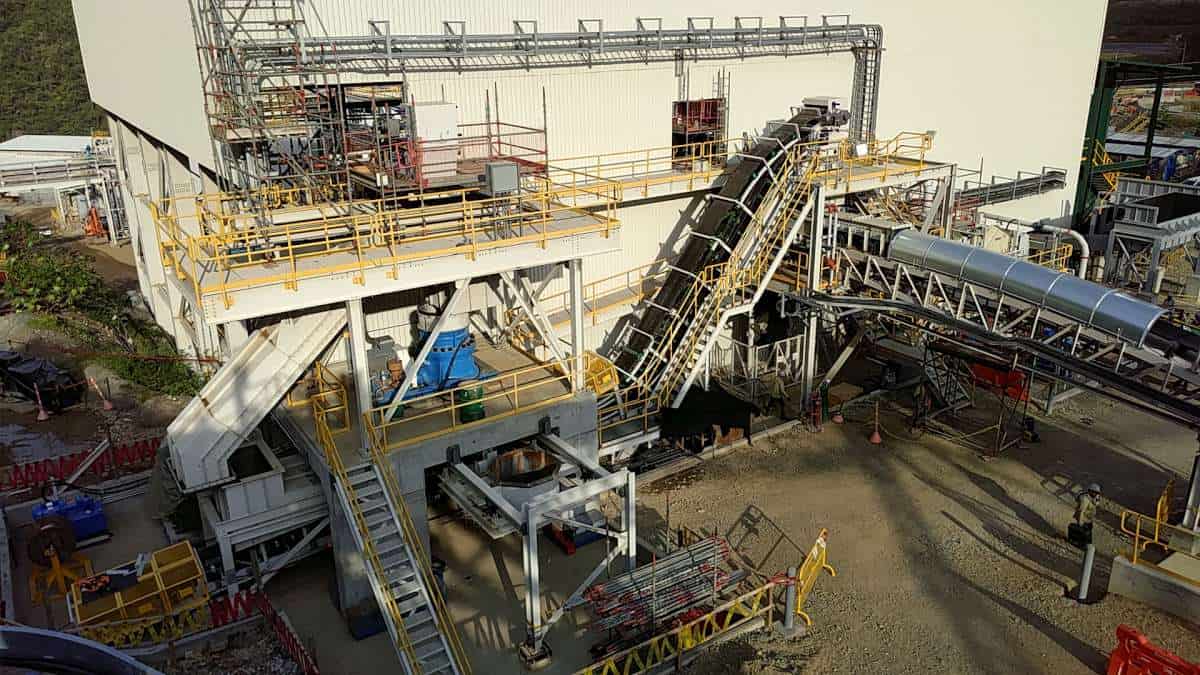

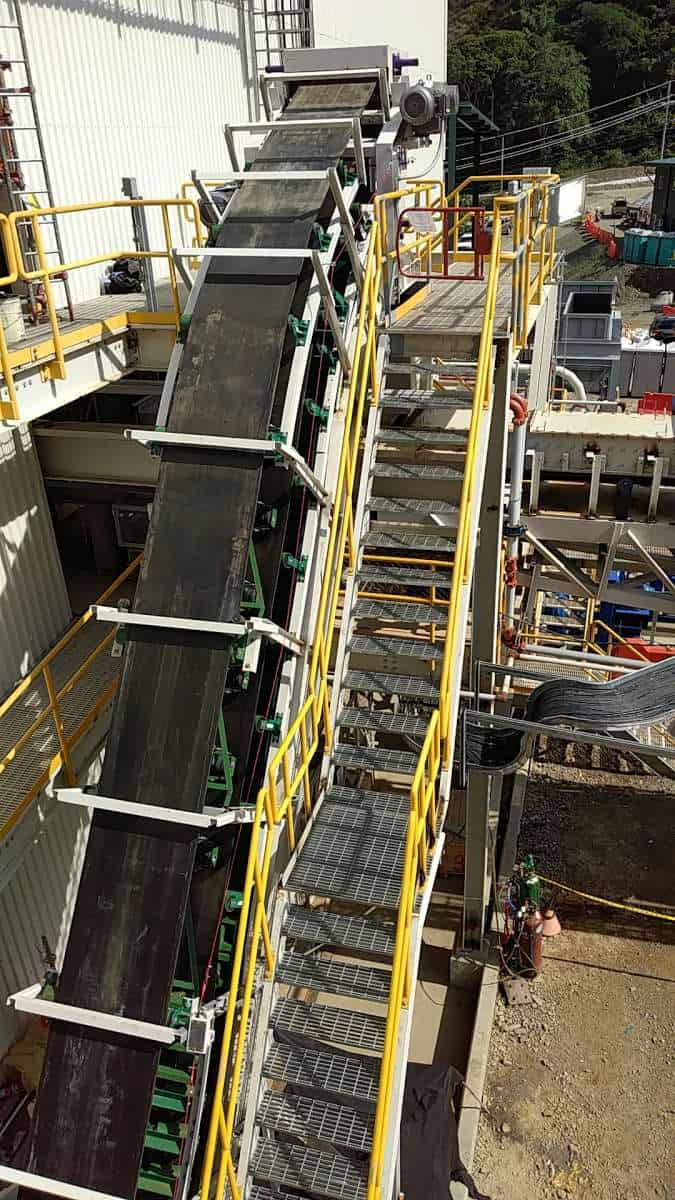

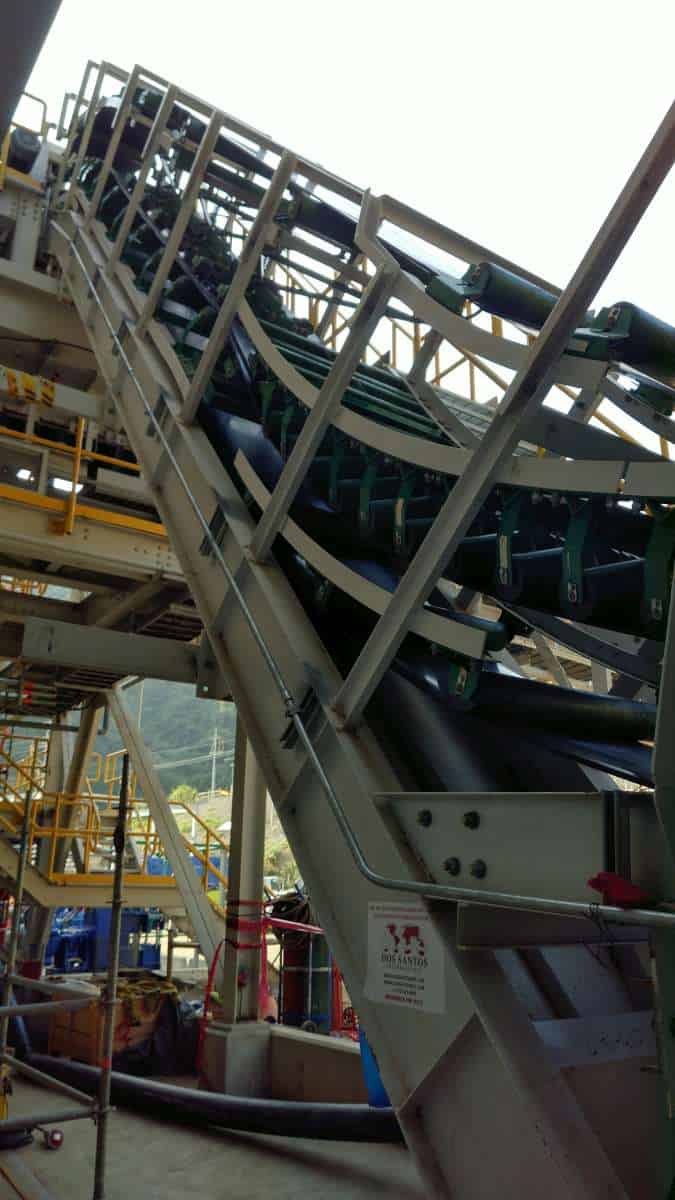

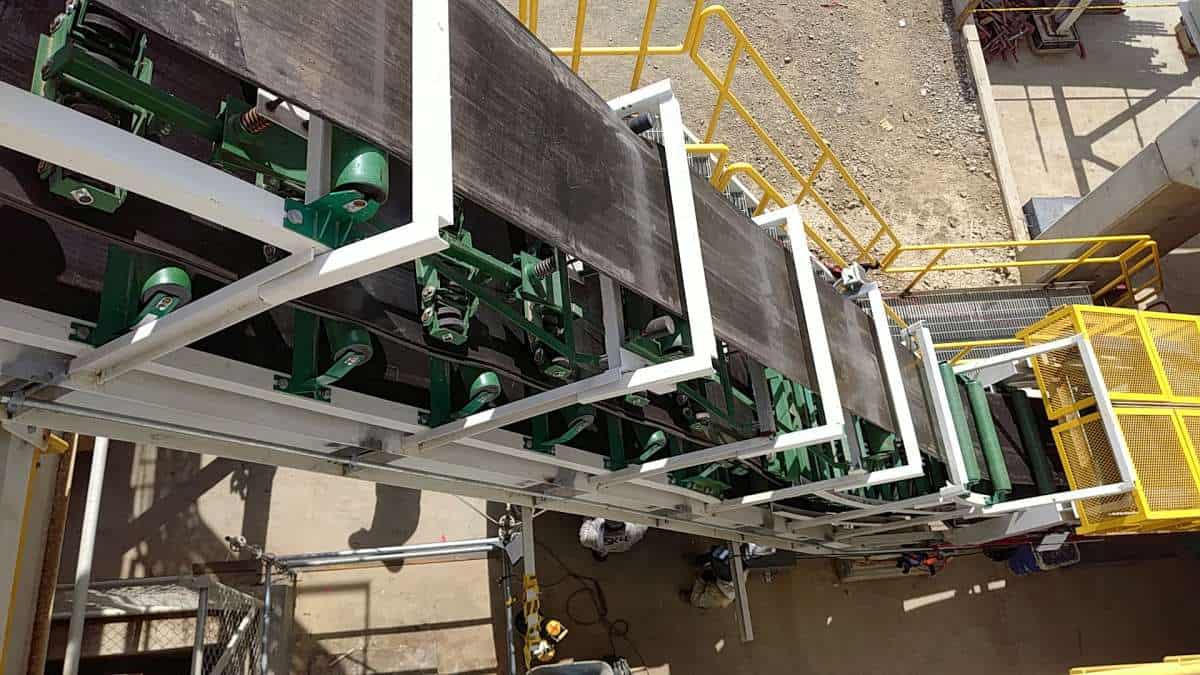

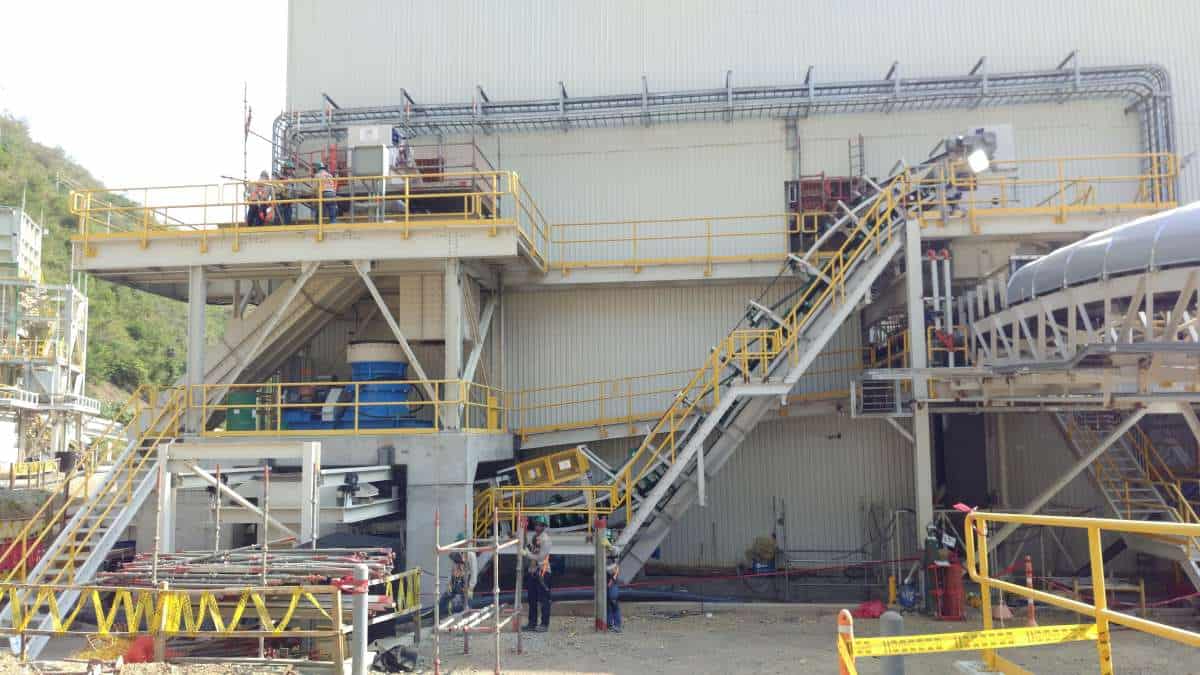

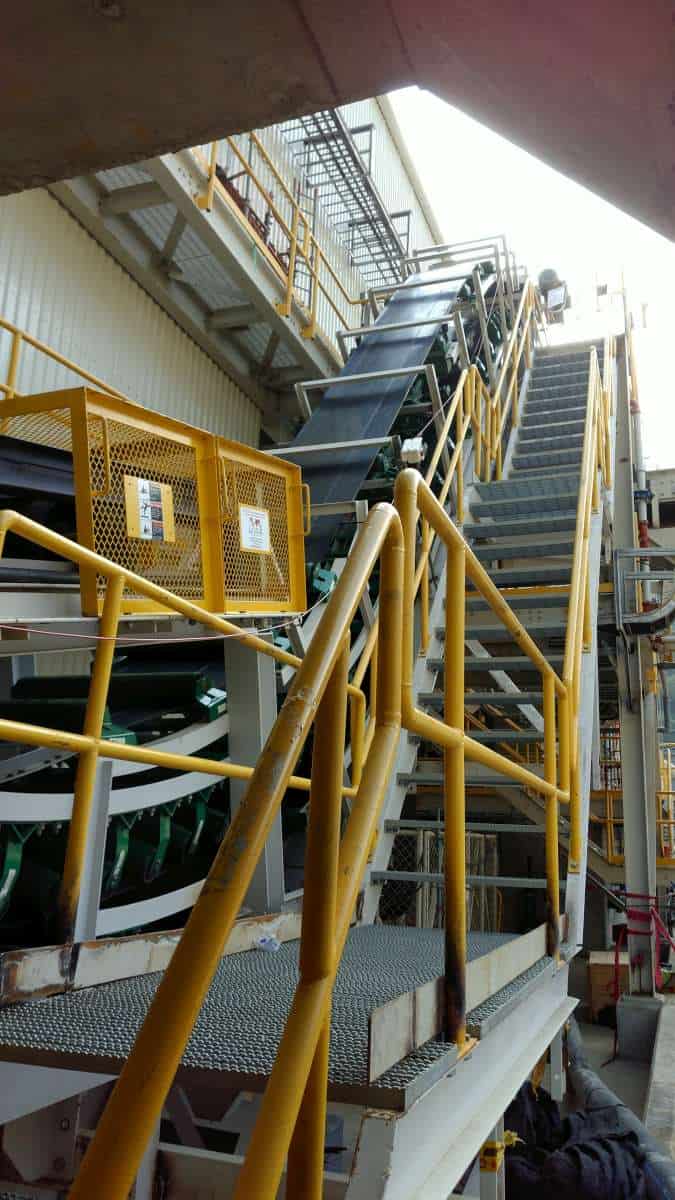

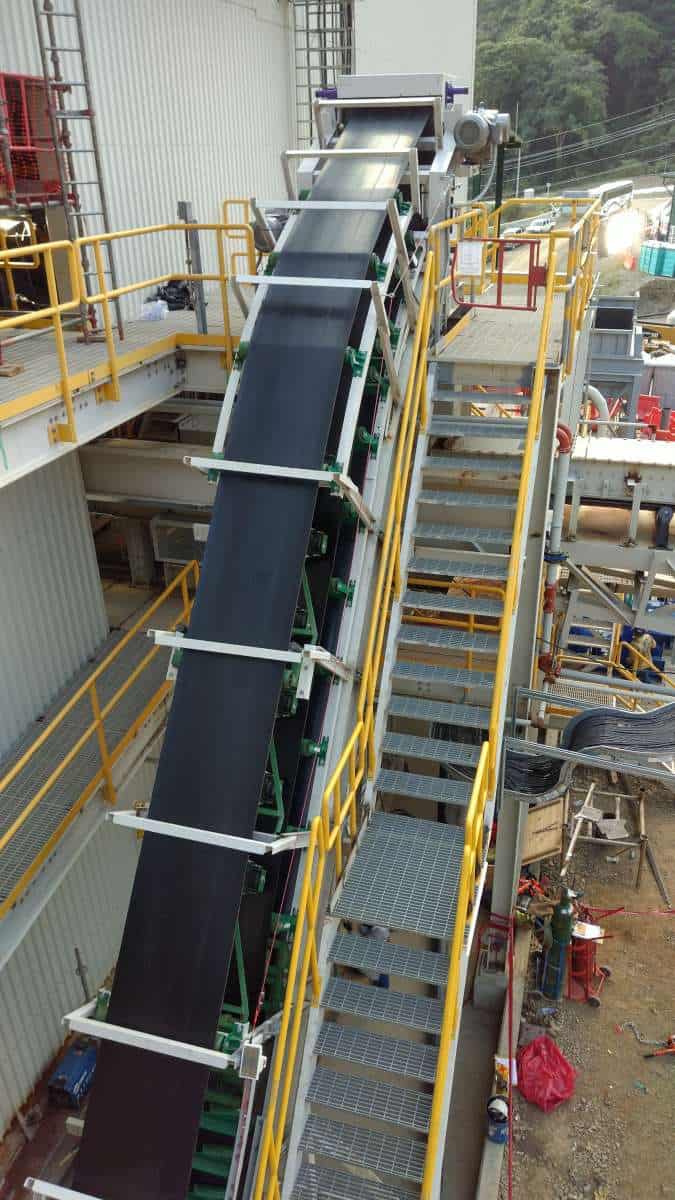

DS111 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

6750 mm |

22.2 ft

Length:

17500 mm |

57.3 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP

DS097 – Cortex Resources for Shiploader Project

Material:

Titanium ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

Conveying rate:

1000 t/h |

1102 STPH

Conveying angle:

50 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

21805 mm |

71.5 ft

Length:

56656 mm |

185.9 ft

Bottom drive power:

55 kW |

74 HP

Top drive power:

55 kW |

74 HP

DS095 – Becma Corporation for Victor Diamond Mine Project Unit 11

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

6 mm |

0.25 in

Conveying rate:

185 t/h |

204 STPH

Conveying angle:

50 deg

Belt width:

1067 mm |

42 in

Belt speed:

1 m/s |

197 FPM

Lift:

18508 mm |

60.7 ft

Length:

65981 mm |

216.5 ft

Bottom drive power:

18.6 kW |

25 HP

Top drive power:

18.6 kW |

25 HP

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DSCo012 – DSI Downhill Regenerative Overland Conveyor TB-32 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-9800 mm |

‘-32.3 ft

Length:

84500 mm |

277.2 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP
