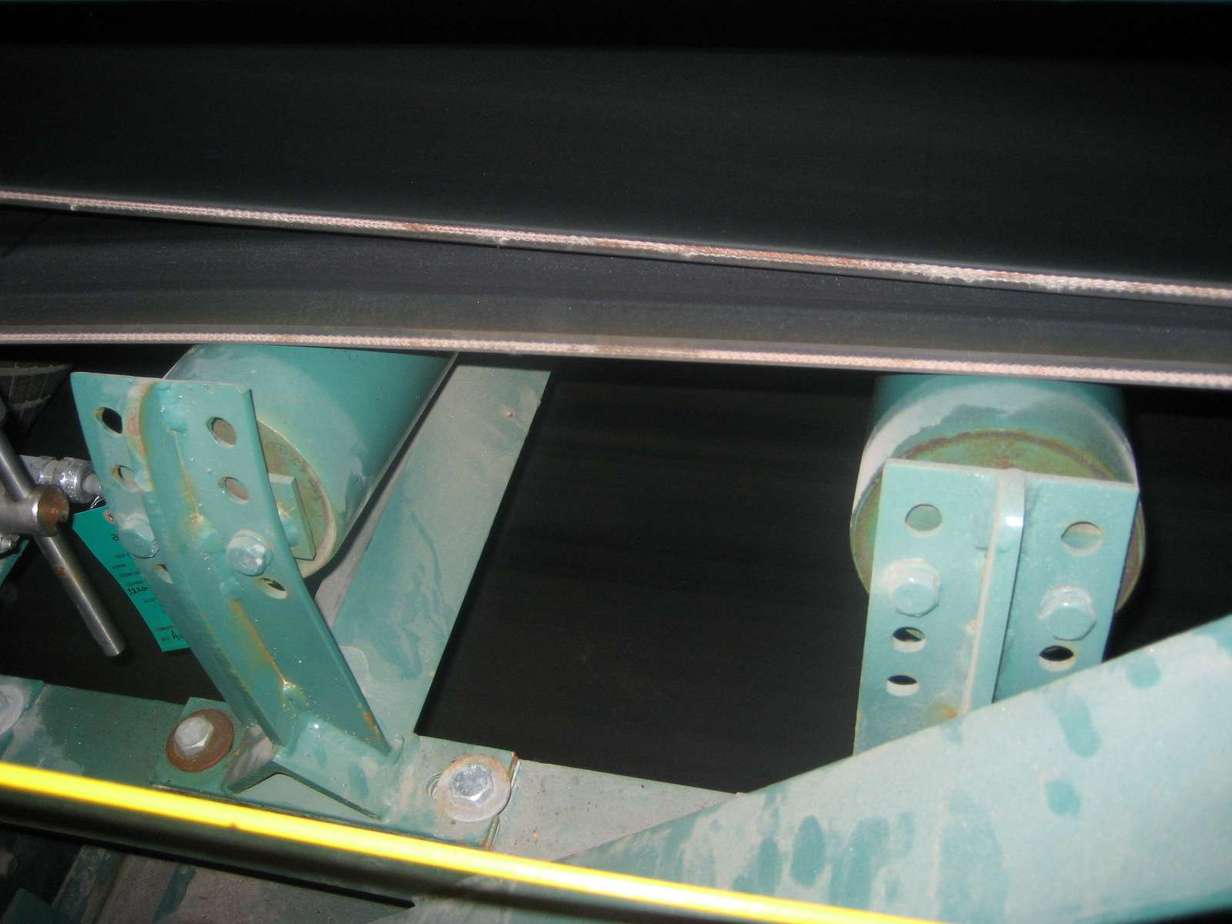

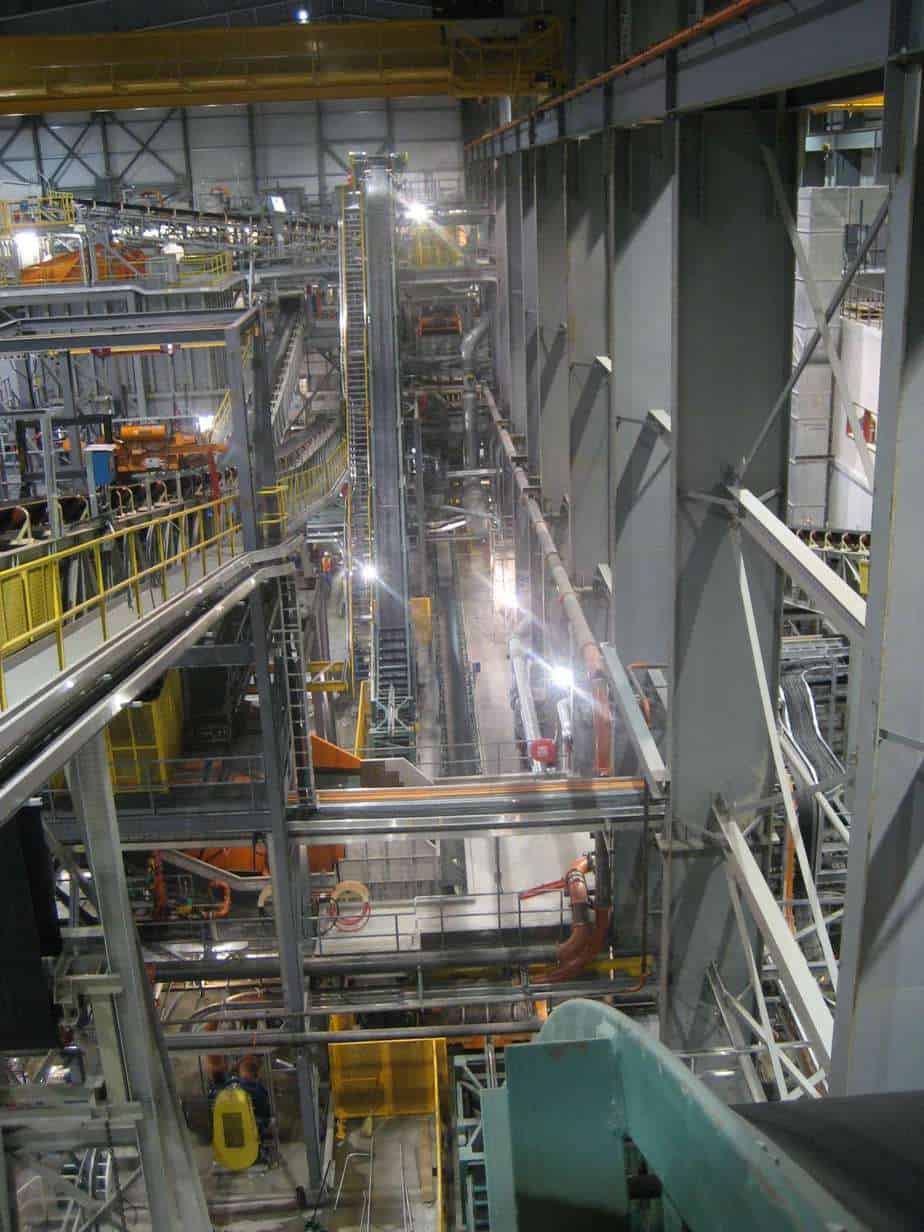

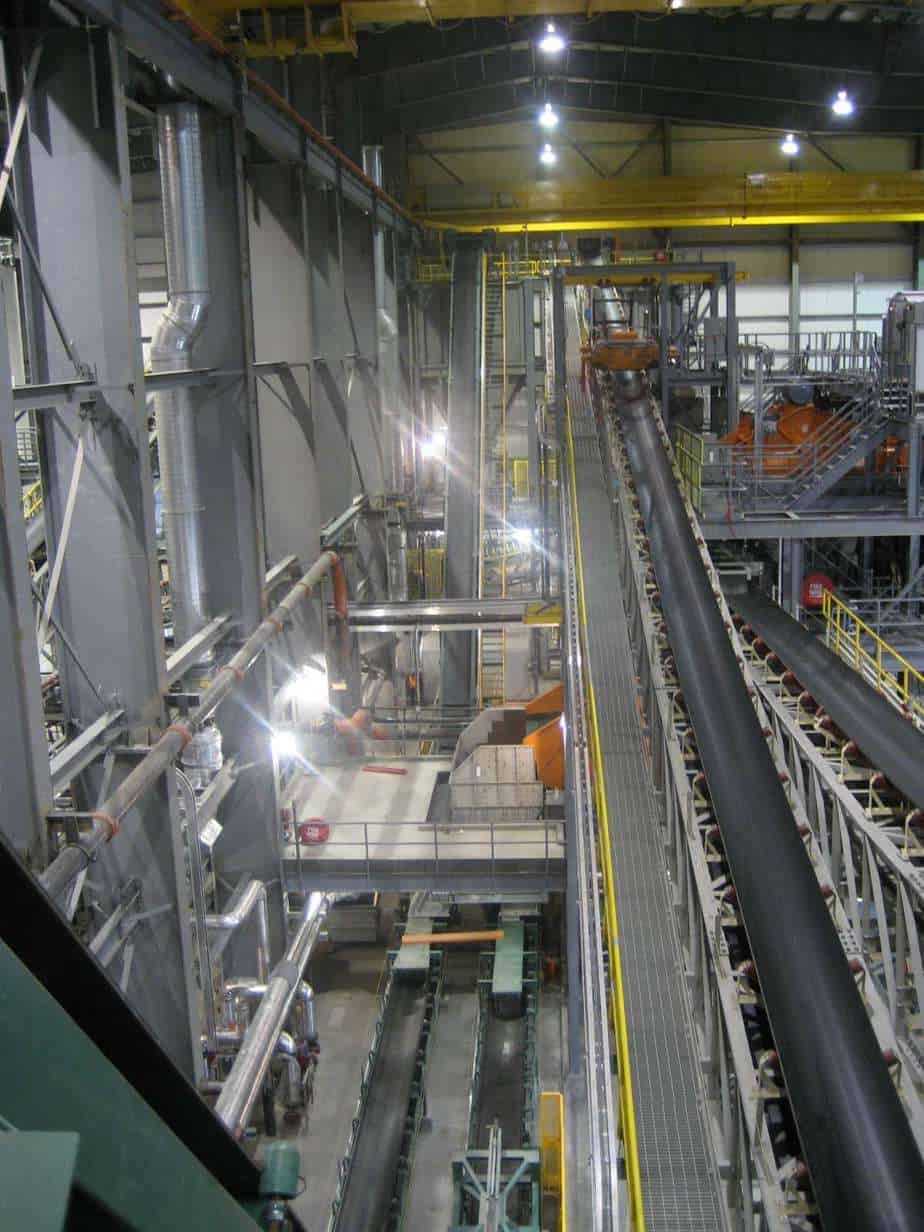

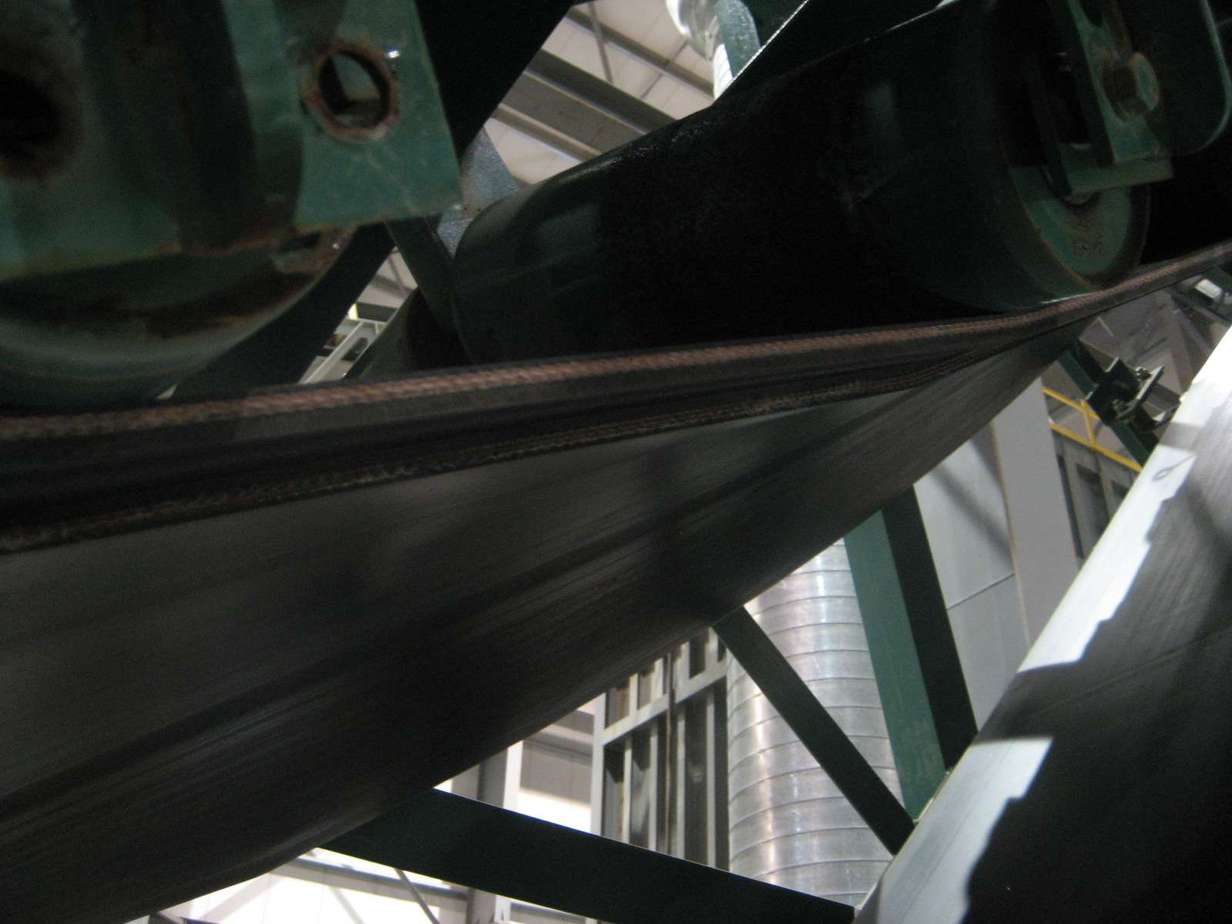

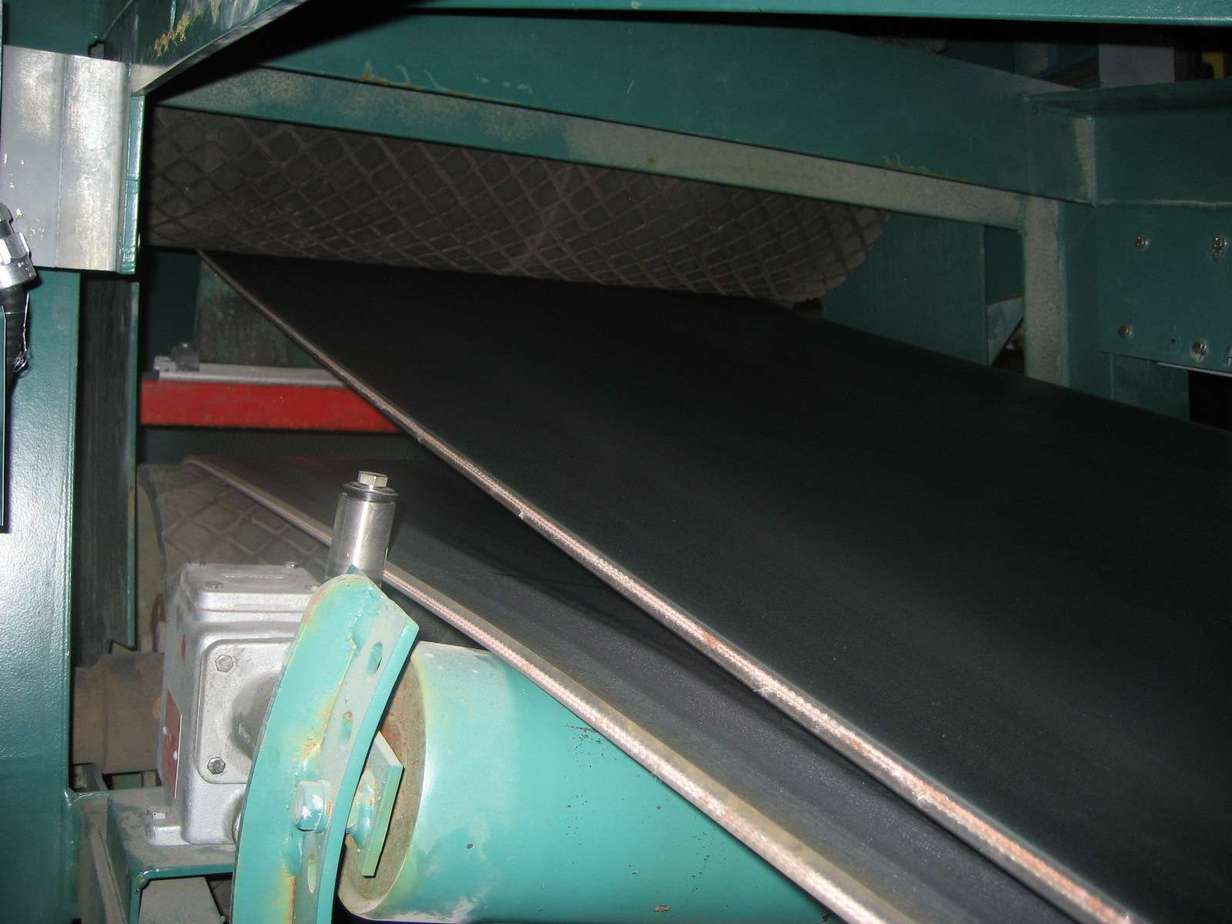

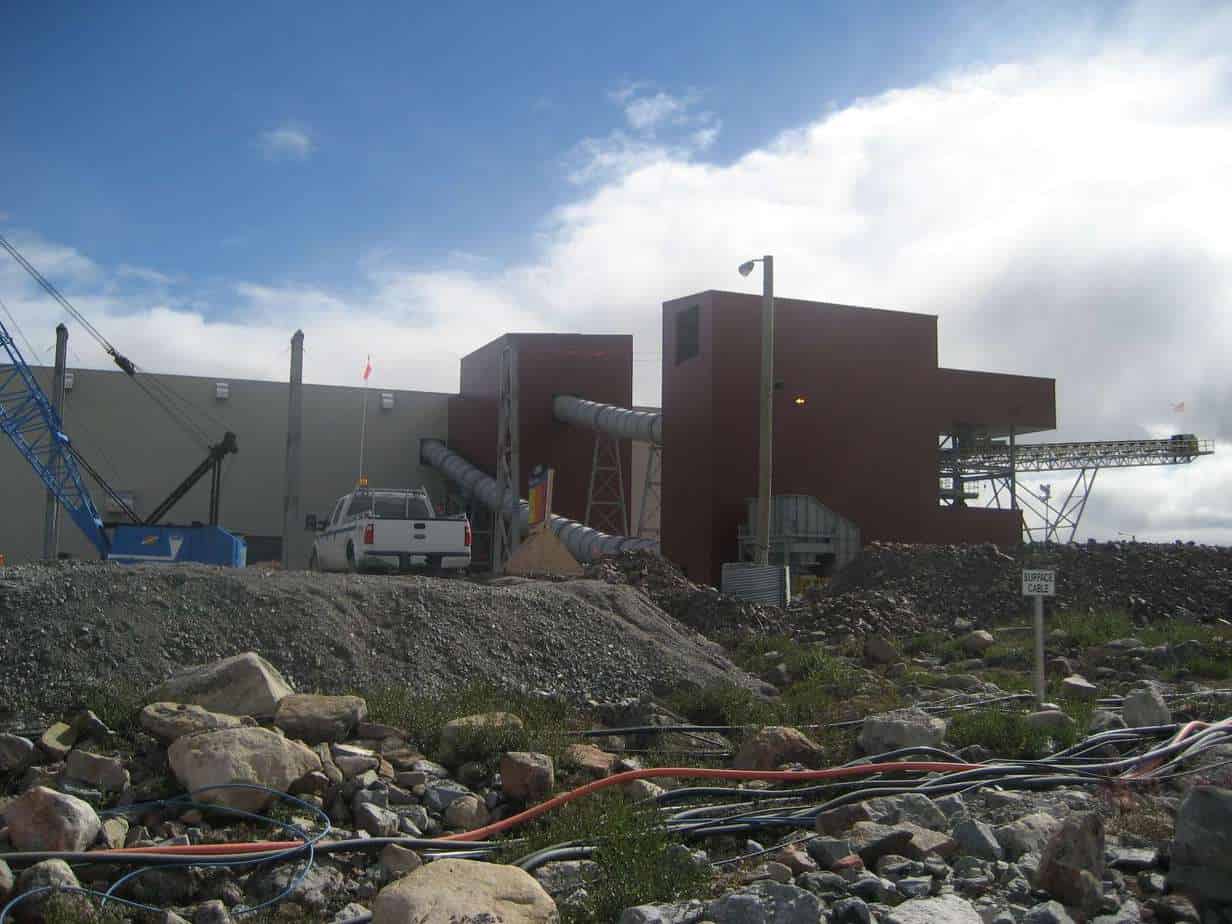

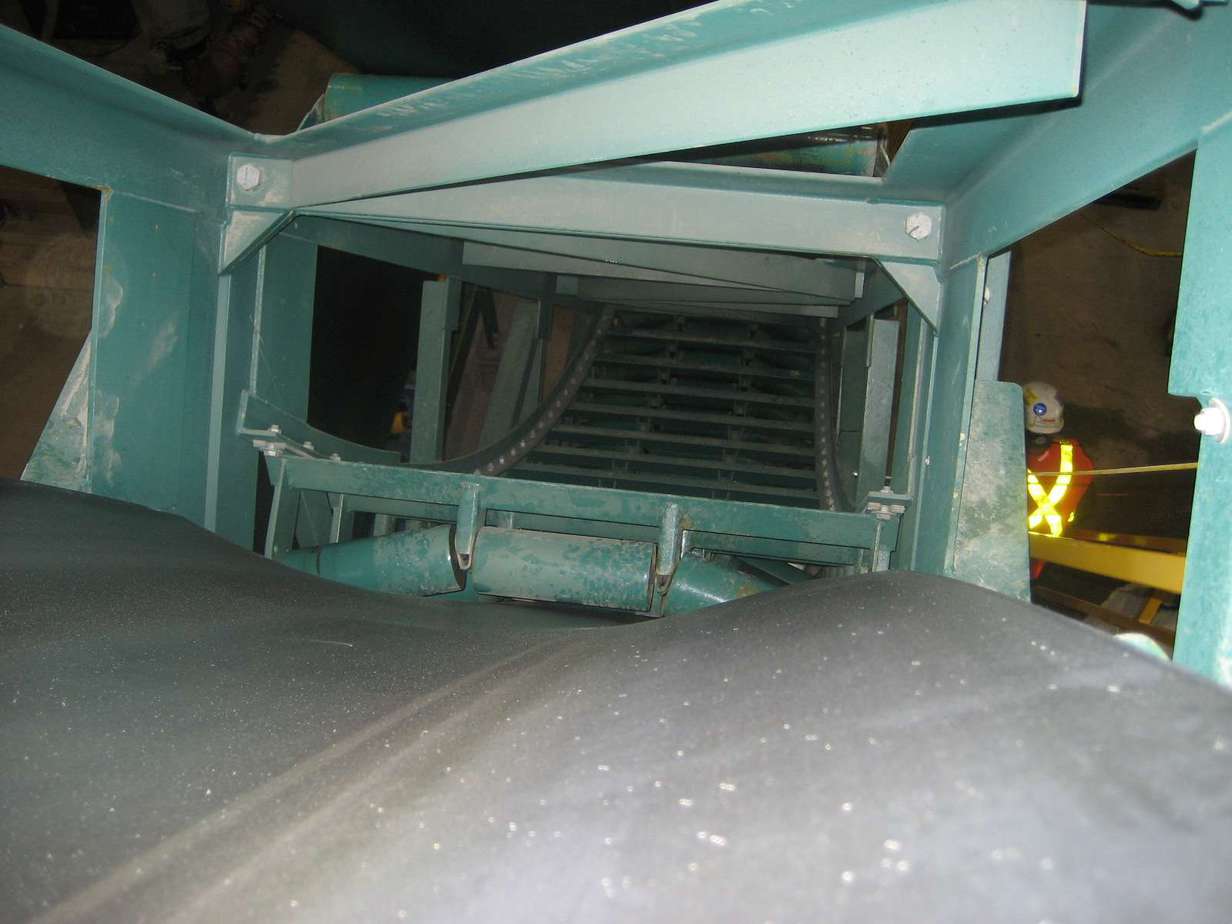

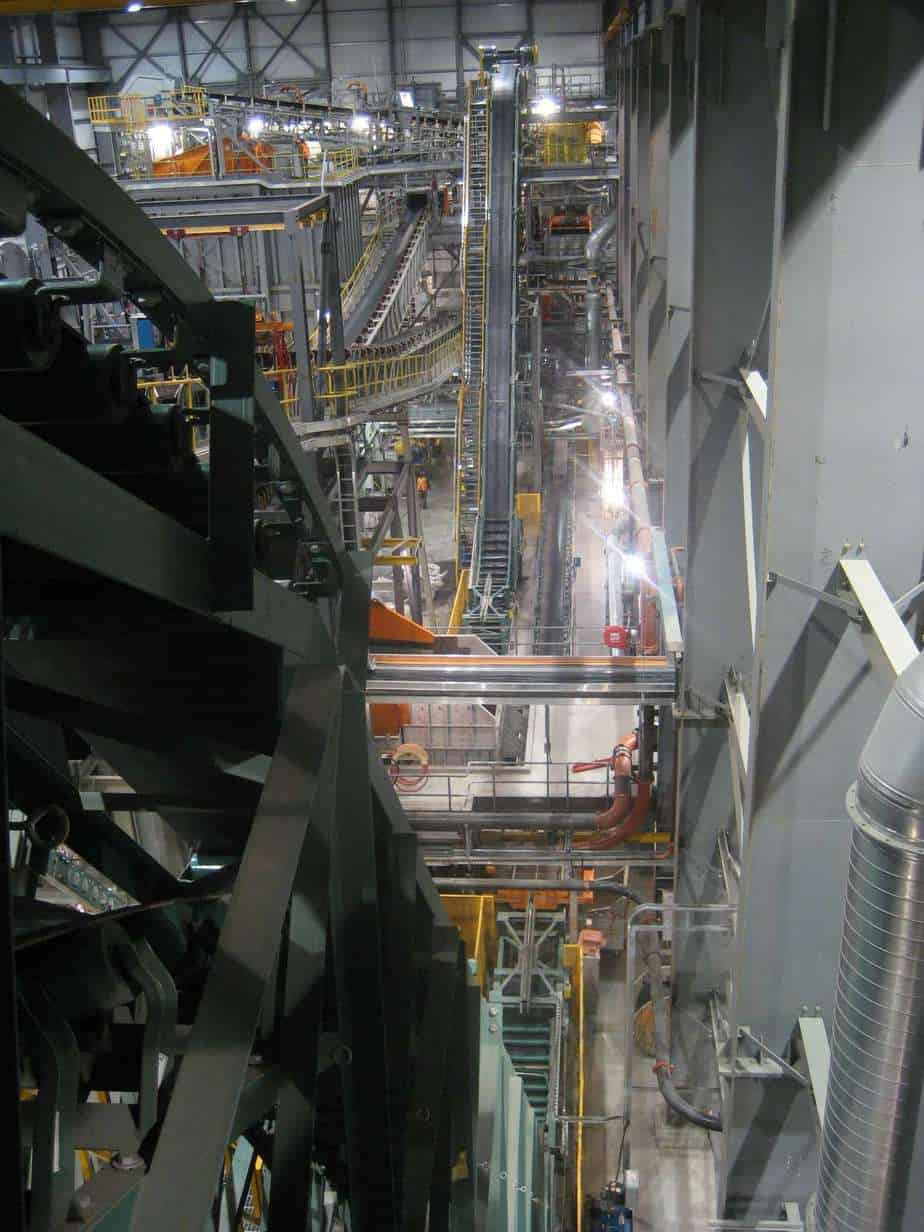

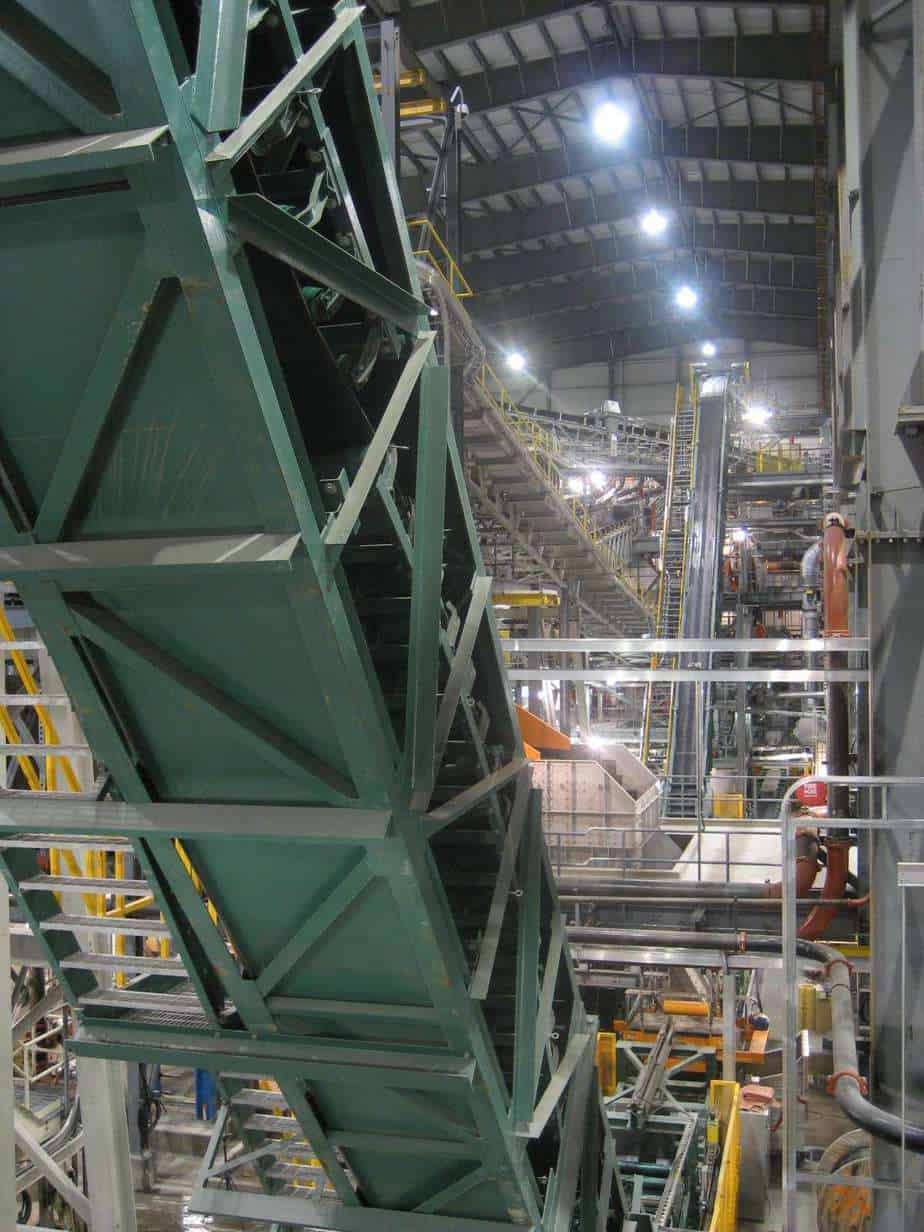

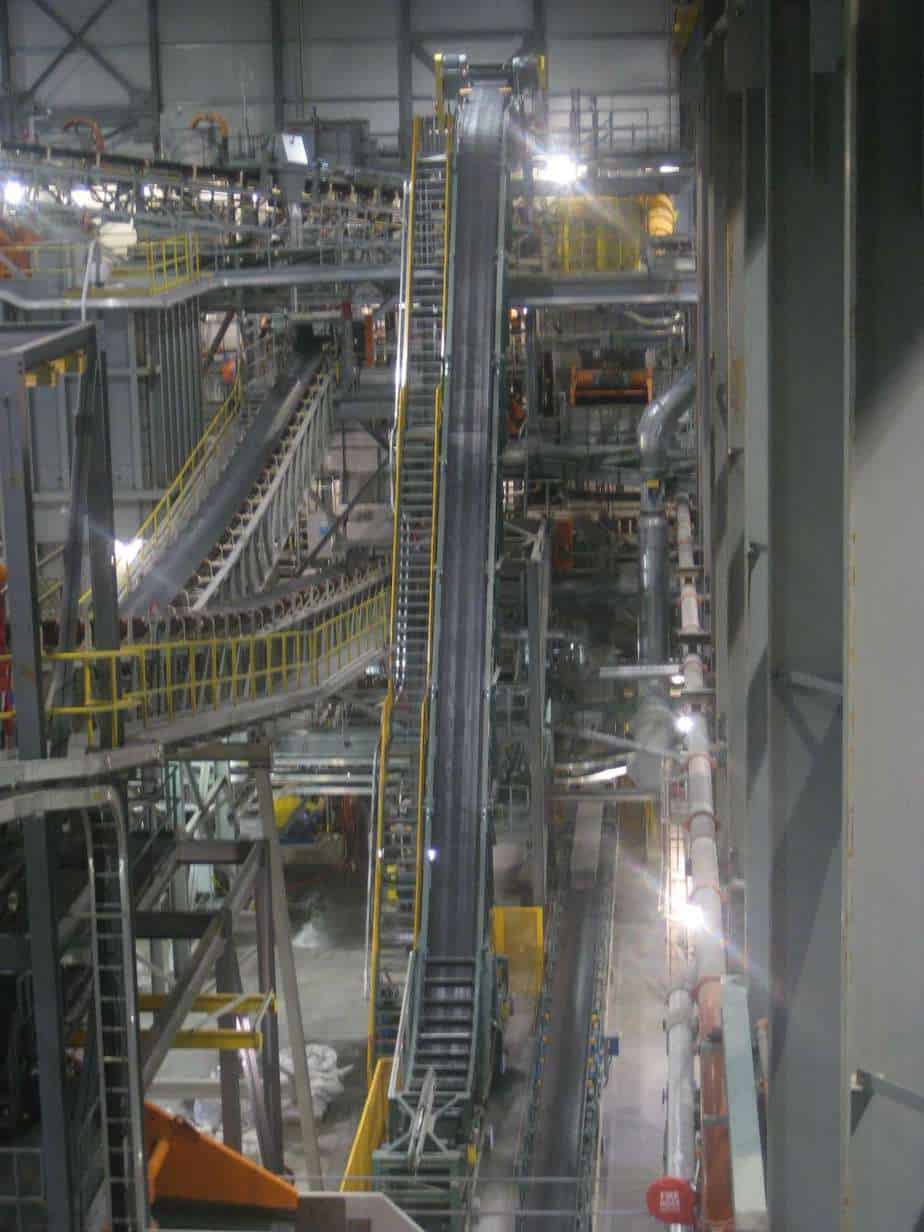

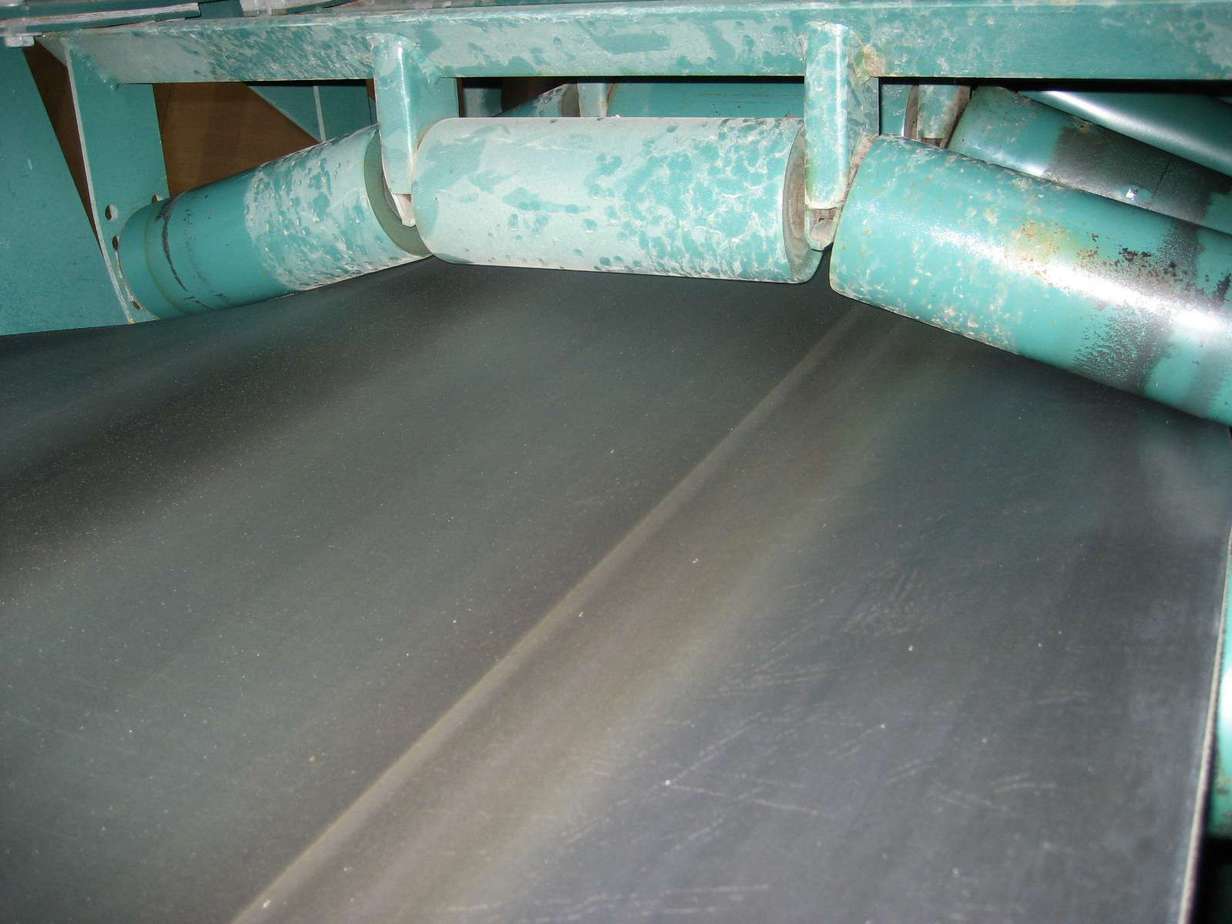

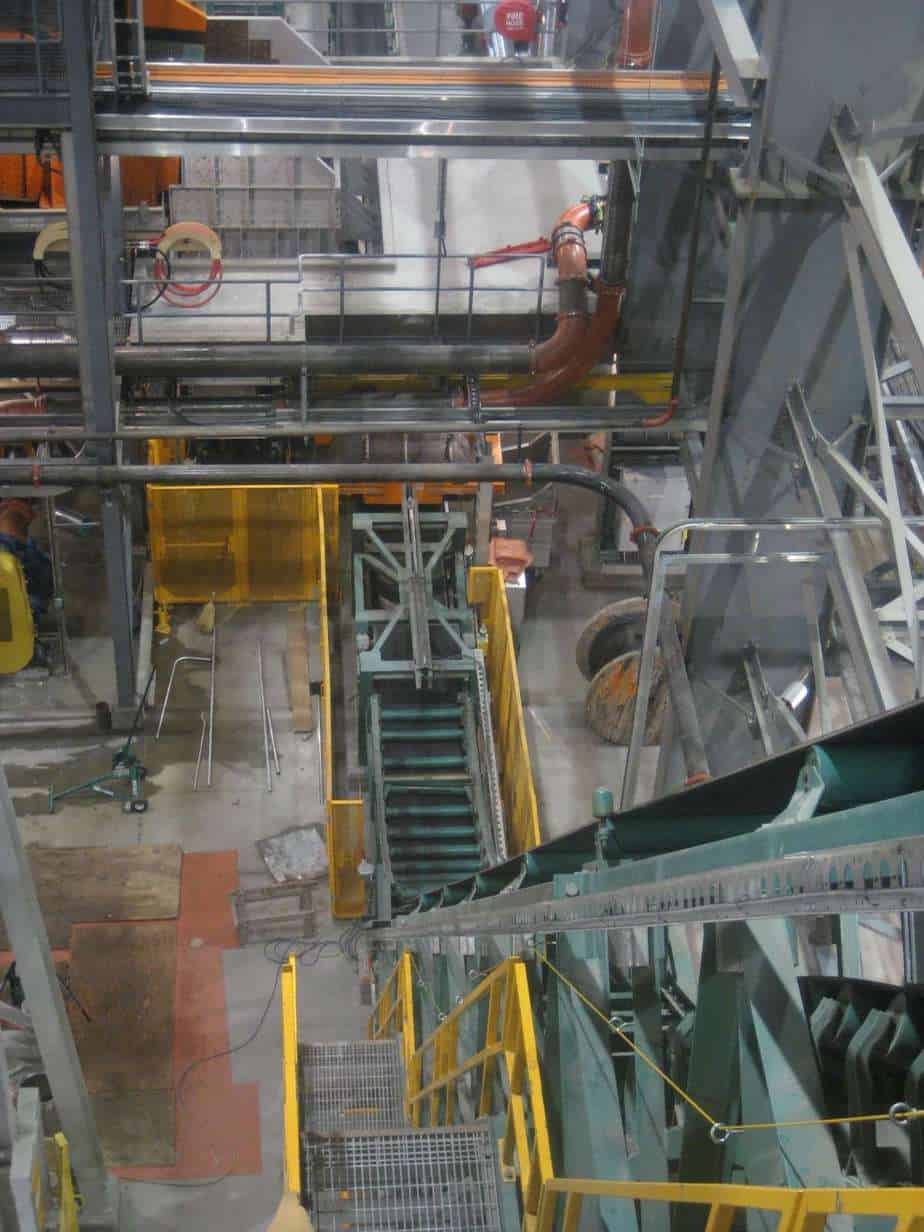

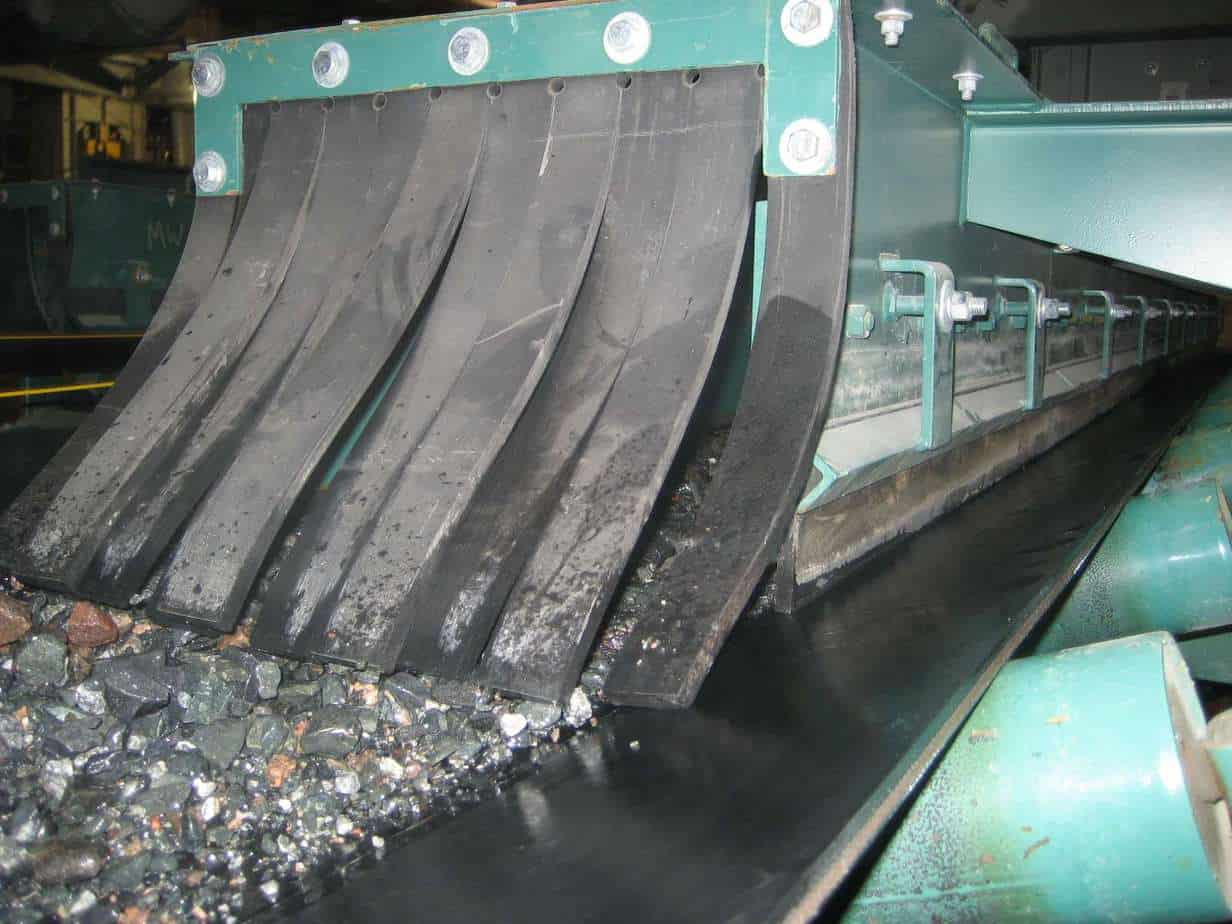

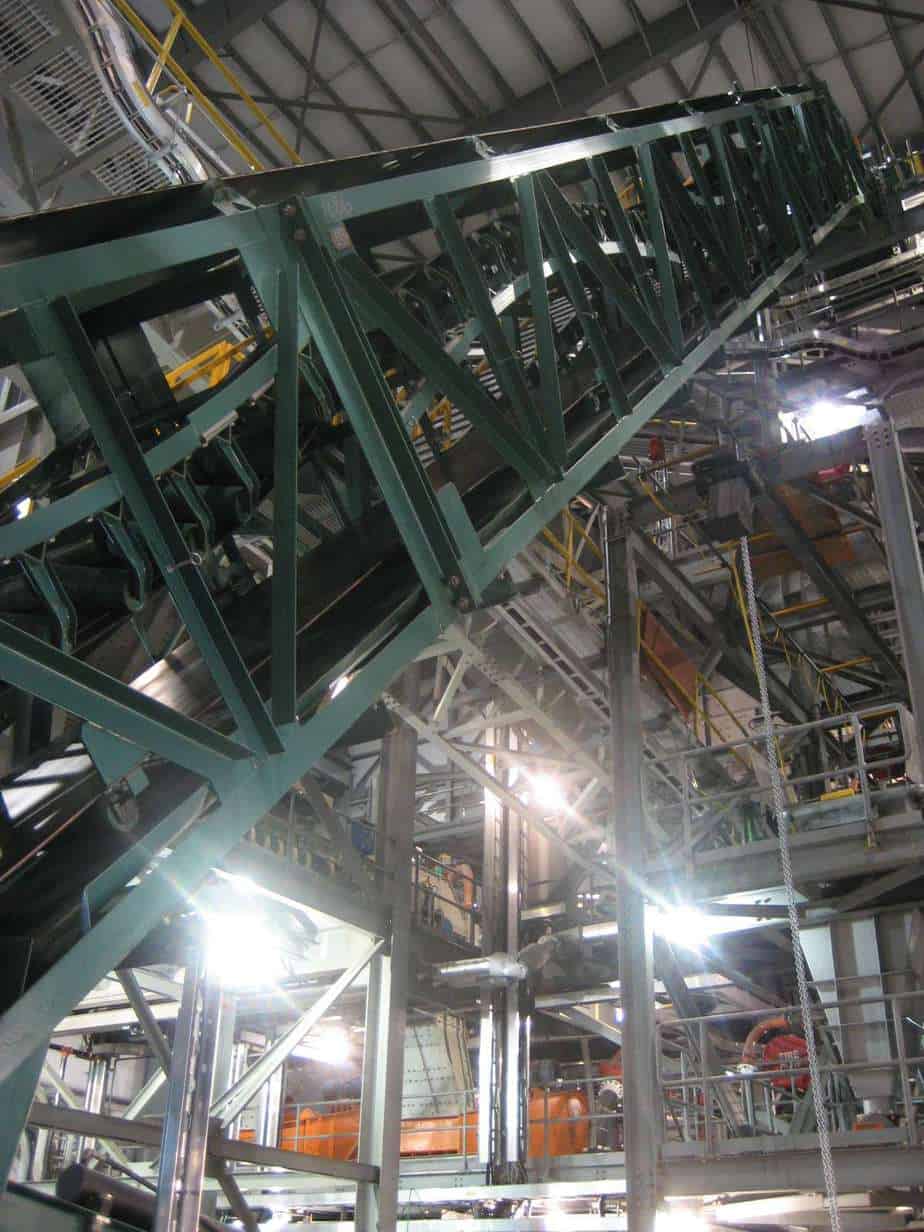

DS092 – Continental Canada for Snap Lake Diamond Mine Project 2

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 3

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 4

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 5

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 6

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 7

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 8

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 9

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 10

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 11

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 12

DS092 - Continental Canada for Snap Lake Diamond Mine Project 2 - Image 13

DS092 – Continental Canada for Snap Lake Diamond Mine Project 2

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

50 mm |

2 in

Conveying rate:

600 t/h |

552 STPH

Conveying angle:

50 deg

Belt width:

914 mm |

36 in

Belt speed:

2.2 m/s |

433 FPM

Lift:

18310 mm |

60.1 ft

Length:

70562 mm |

231.5 ft

Bottom drive power:

44.8 kW |

60 HP

Top drive power:

44.8 kW |

60 HP

DS100 – Breakwater Resources for El Toqui Mine Project

Material:

Filter cake

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

77 t/h |

85 STPH

Conveying angle:

64 deg

Belt width:

762 mm |

30 in

Belt speed:

1.3 m/s |

256 FPM

Lift:

7235 mm |

23.7 ft

Length:

14832 mm |

48.7 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS097 – Cortex Resources for Shiploader Project

Material:

Titanium ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

Conveying rate:

1000 t/h |

1102 STPH

Conveying angle:

50 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

21805 mm |

71.5 ft

Length:

56656 mm |

185.9 ft

Bottom drive power:

55 kW |

74 HP

Top drive power:

55 kW |

74 HP

DSCo012 – DSI Downhill Regenerative Overland Conveyor TB-32 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-9800 mm |

‘-32.3 ft

Length:

84500 mm |

277.2 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS117 – LMO Cooper Consolidated

Material:

Grain

Bulk density:

0.77 t/cu-m |

48 PCF

Material size:

101.6 mm |

4 in

Conveying rate:

2268 t/h |

2500 STPH

Conveying angle:

50 deg

Belt width:

2133 mm |

84 in

Belt speed:

4.57 m/s |

900 FPM

Lift:

18474 mm |

60.6 ft

Length:

36538 mm |

119.9 ft

Bottom drive power:

112 kW |

150 HP

Top drive power:

149 kW |

200 HP

DS088 – Western Canada Pulp Mill Project

Material:

Wood chips

Bulk density:

0.2 t/cu-m |

15 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

203 t/h |

224 STPH

Conveying angle:

45 deg

Belt width:

1372 mm |

54 in

Belt speed:

2.61 m/s |

513 FPM

Lift:

20422 mm |

67 ft

Length:

57303 mm |

188 ft

Bottom drive power:

22.4 kW |

30 HP

Top drive power:

22.4 kW |

30 HP
