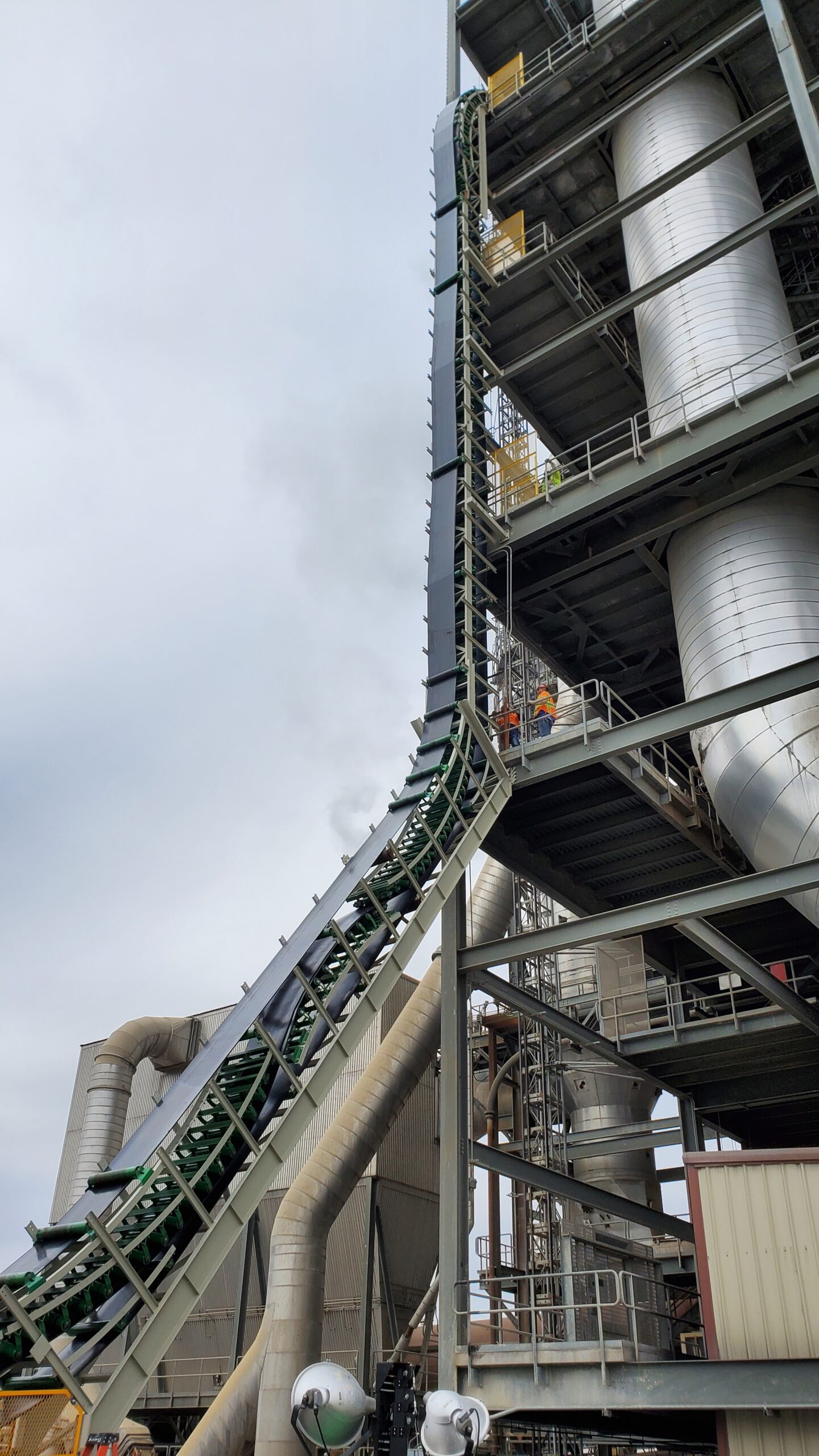

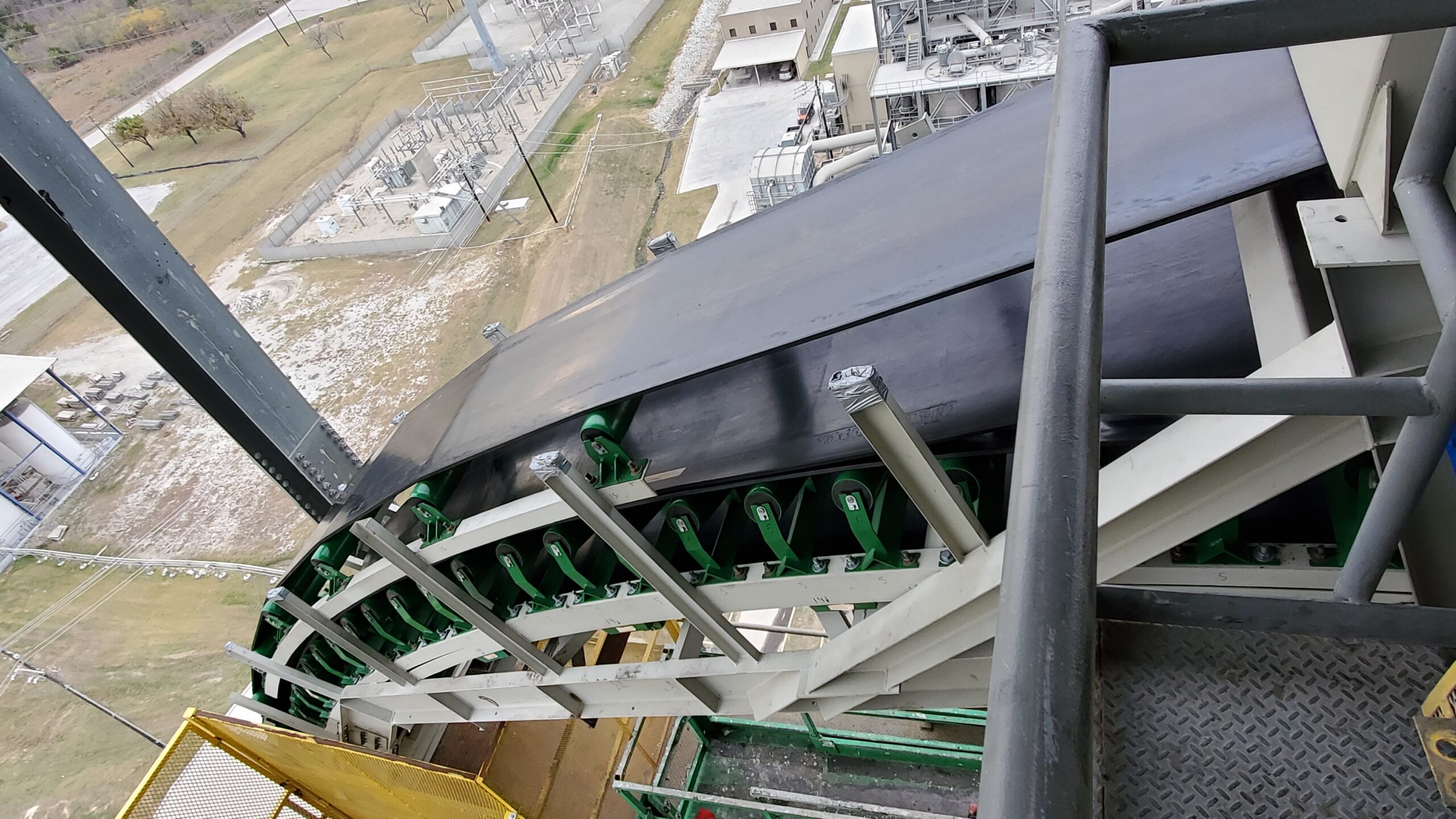

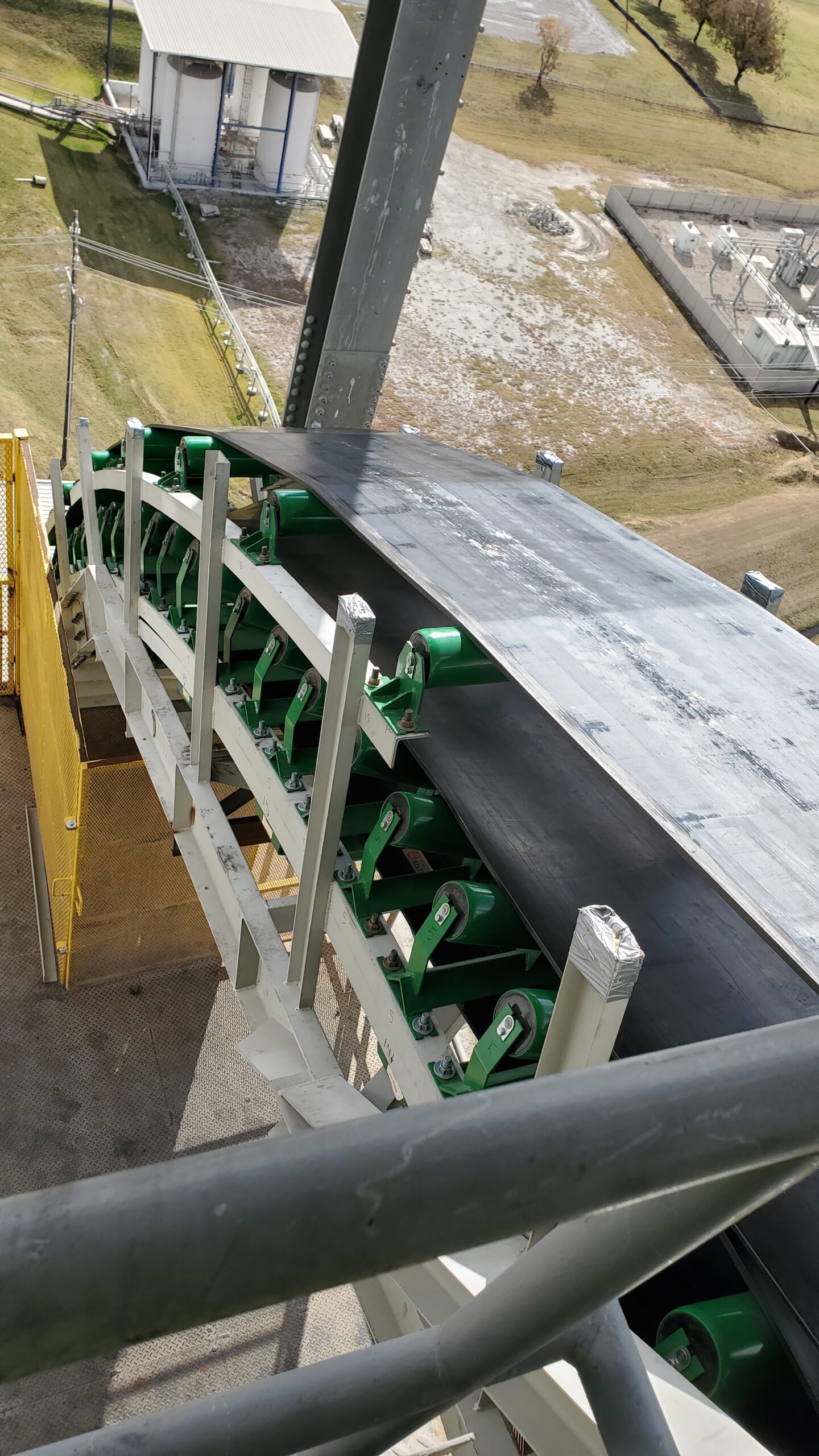

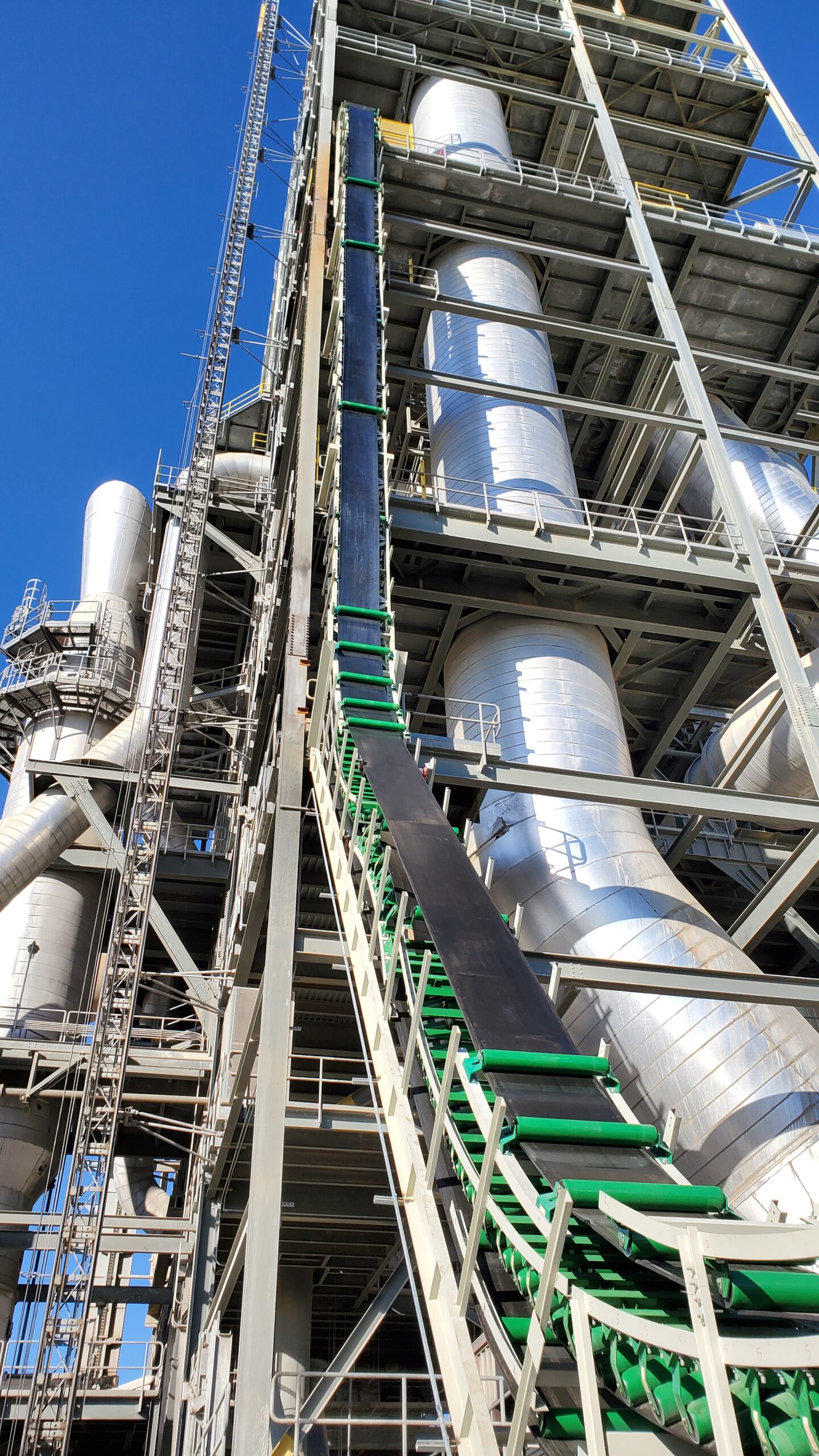

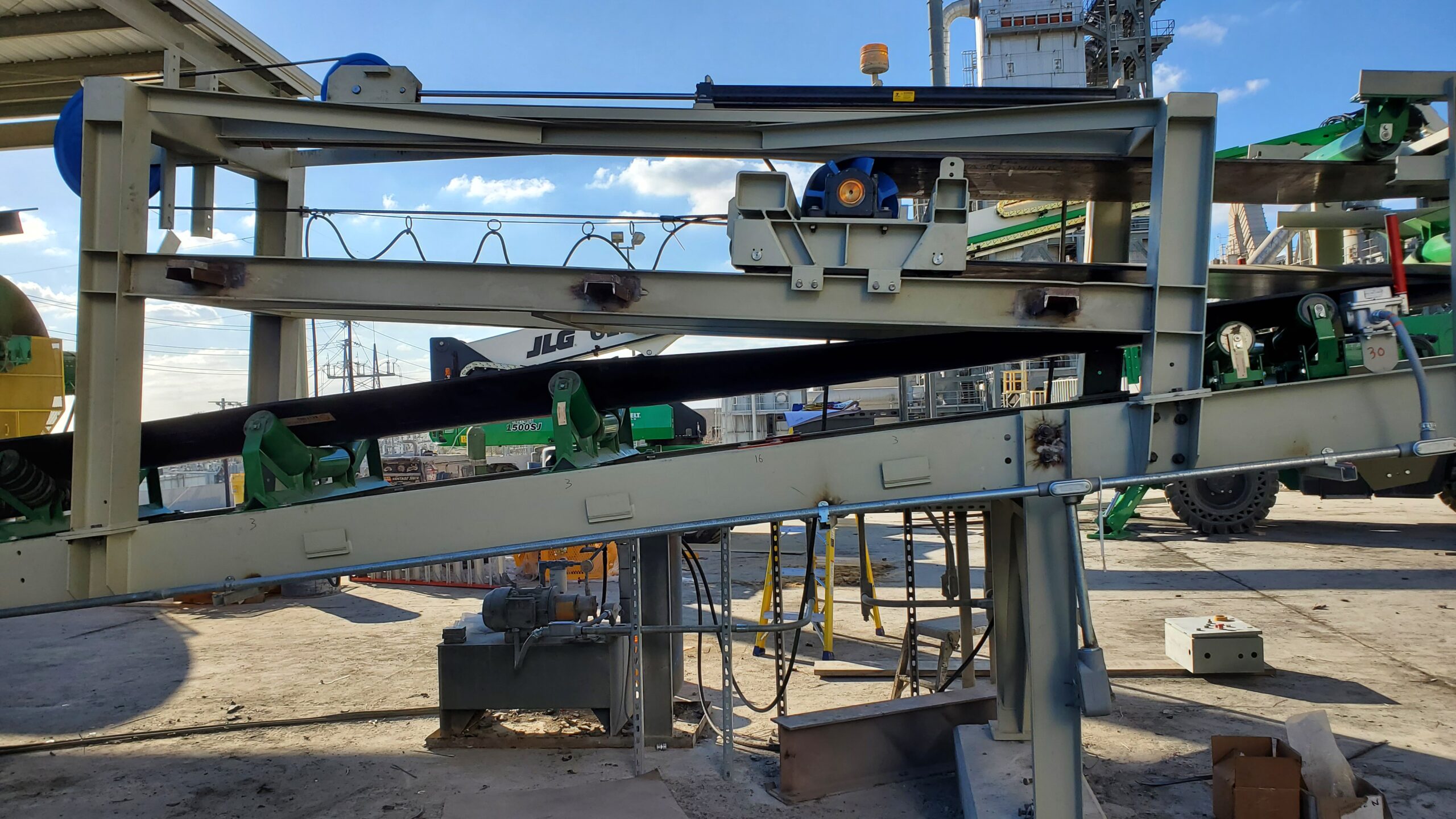

DS113 – Ash Grove Cement – Dos Santos Universal, LLC

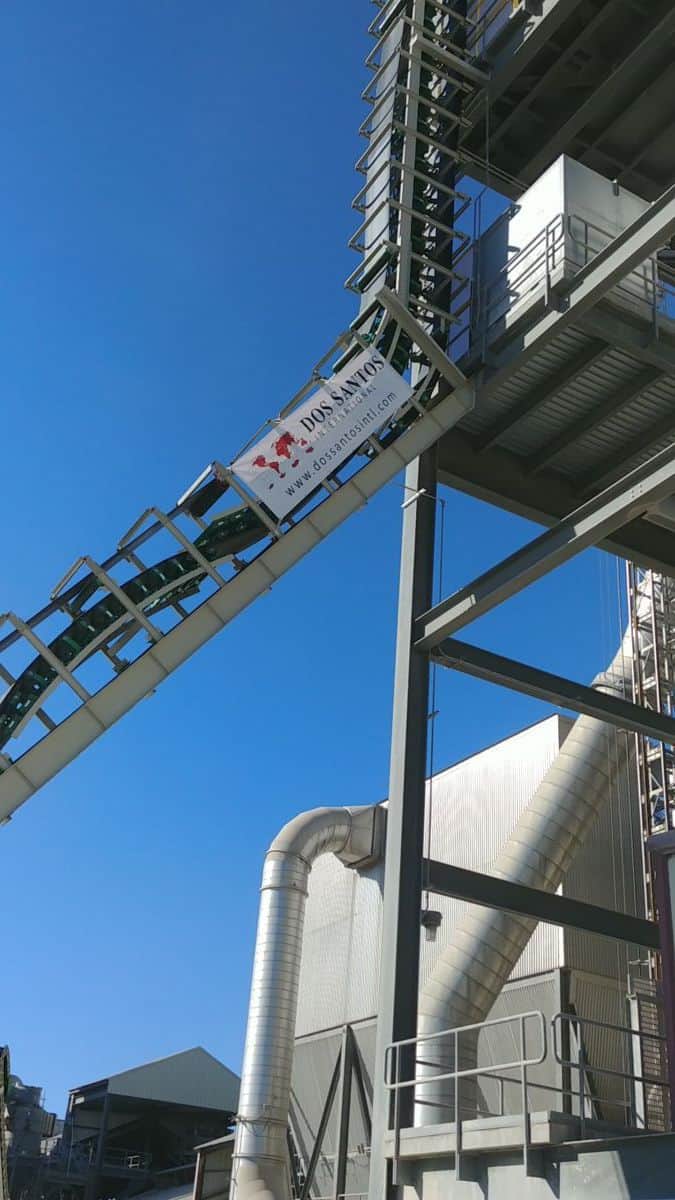

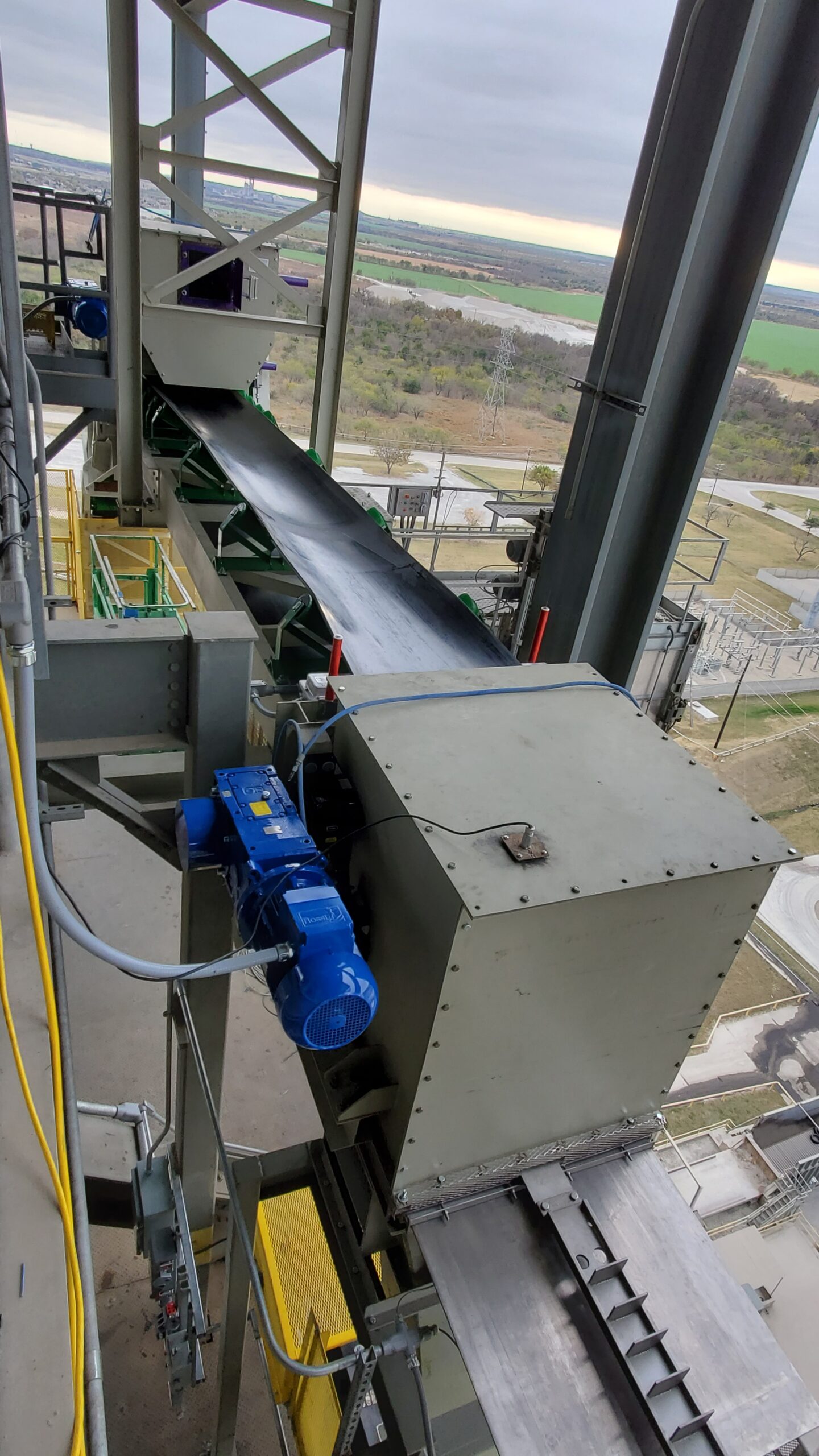

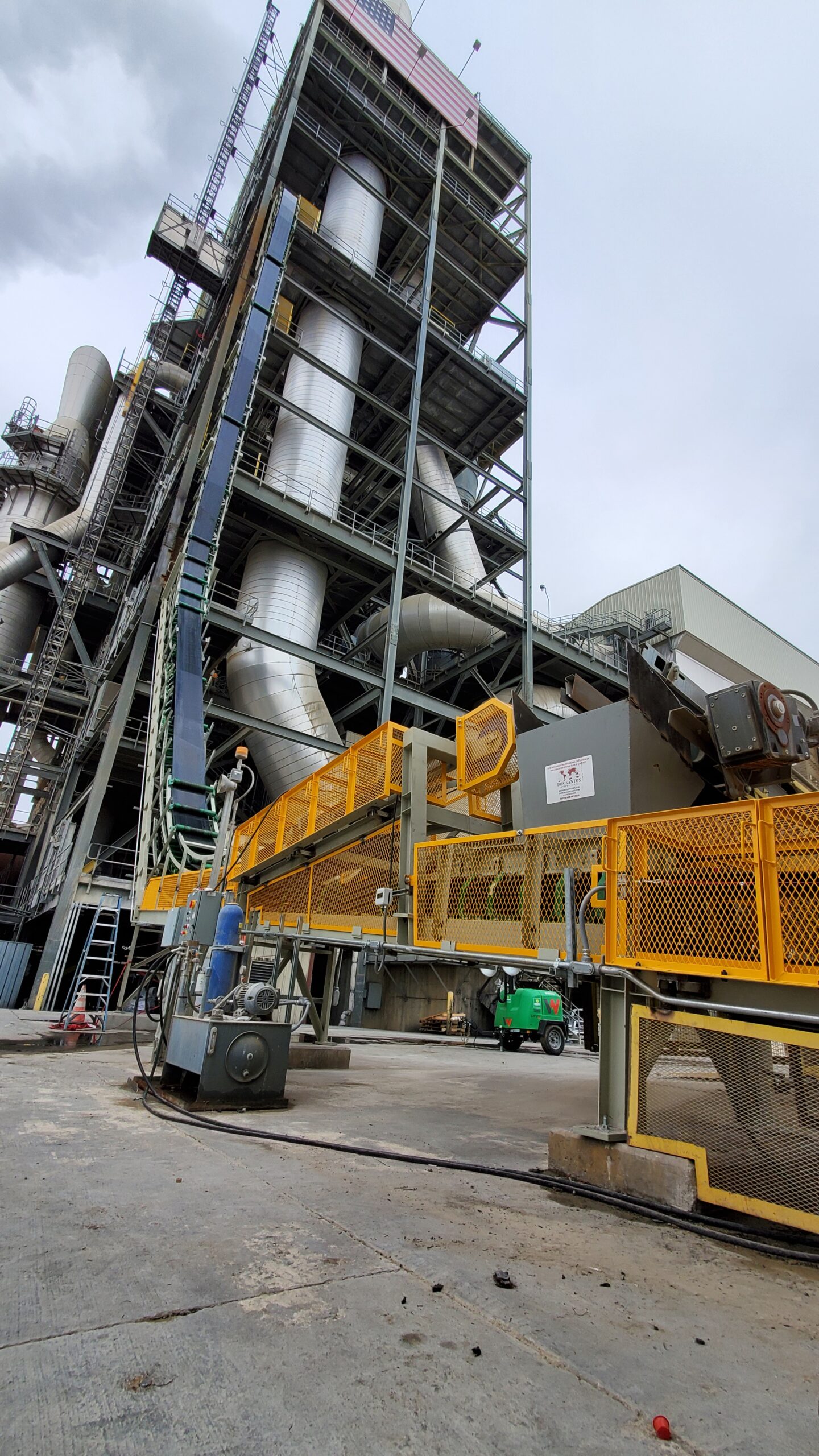

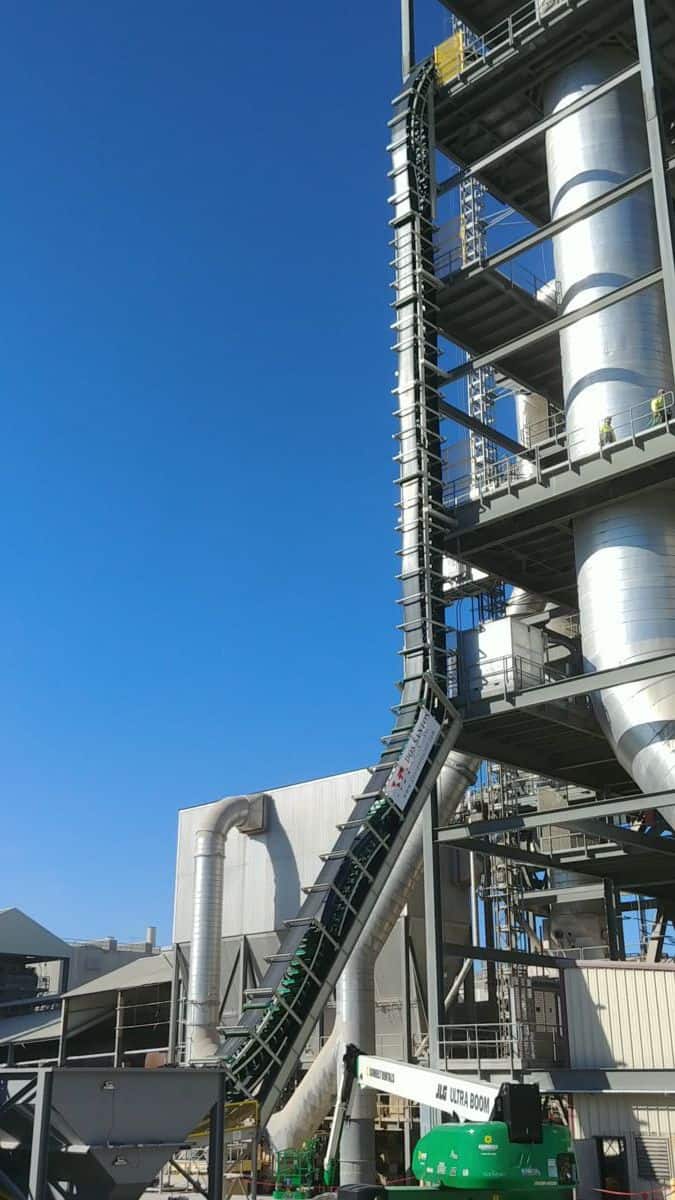

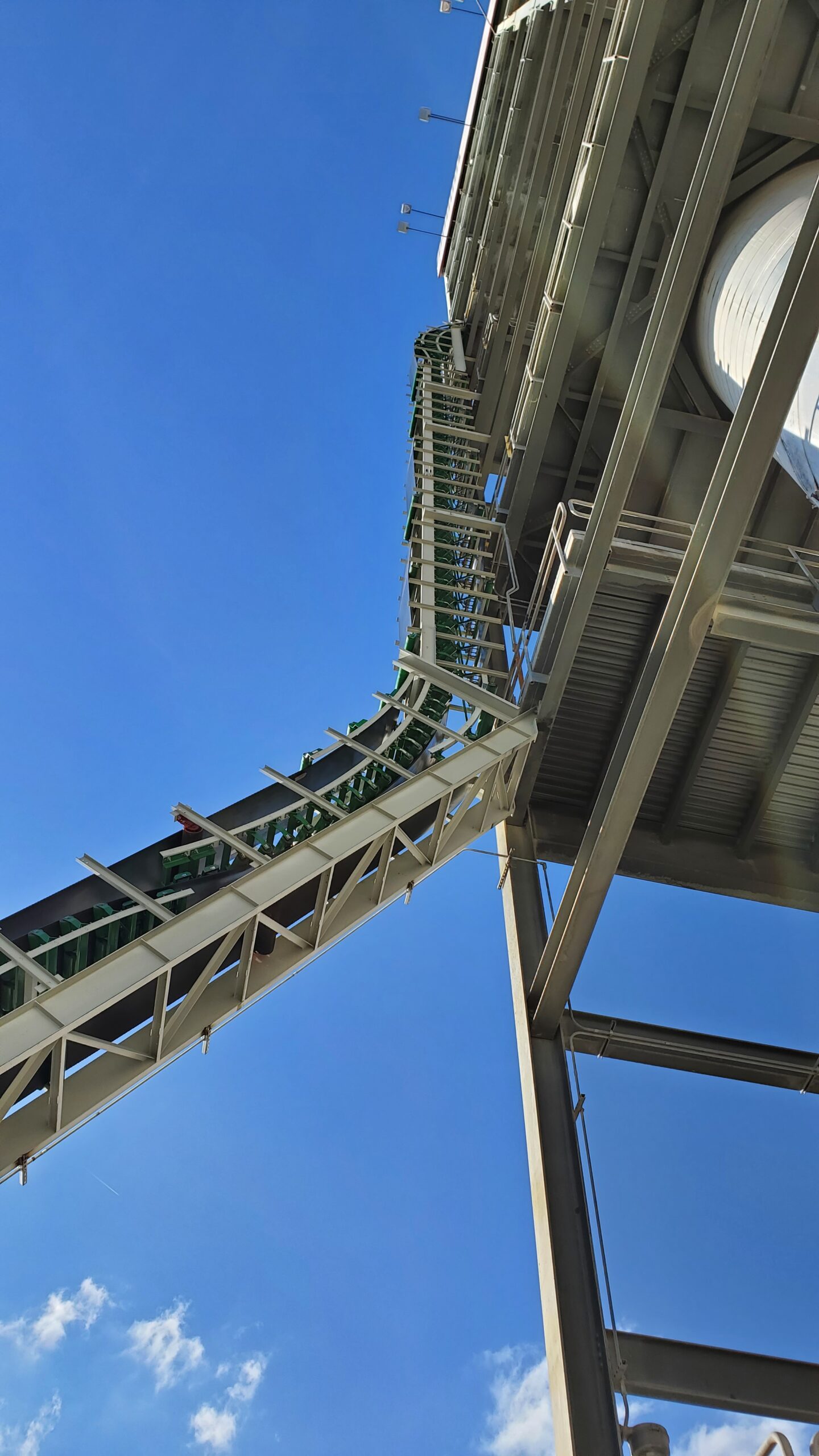

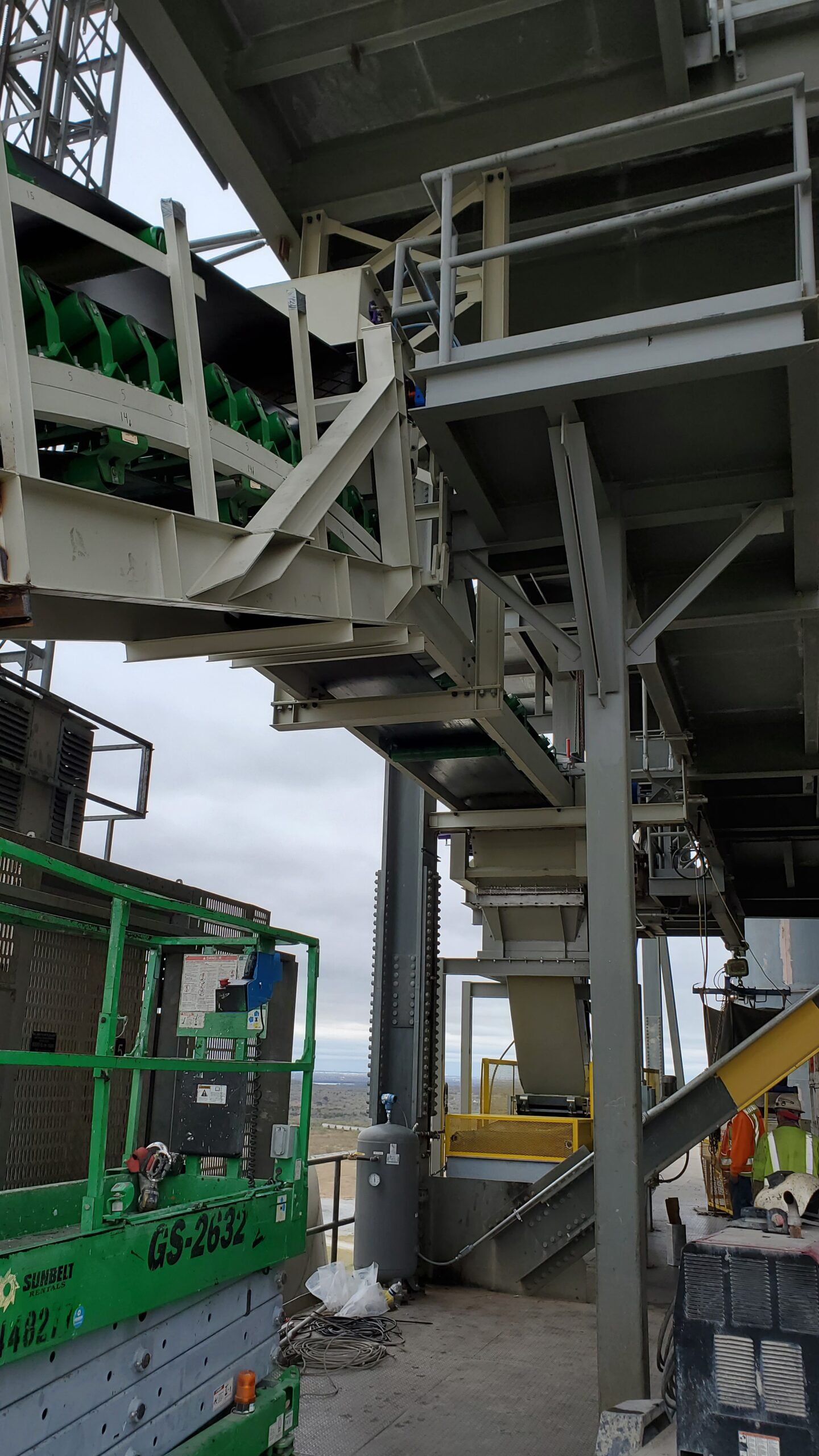

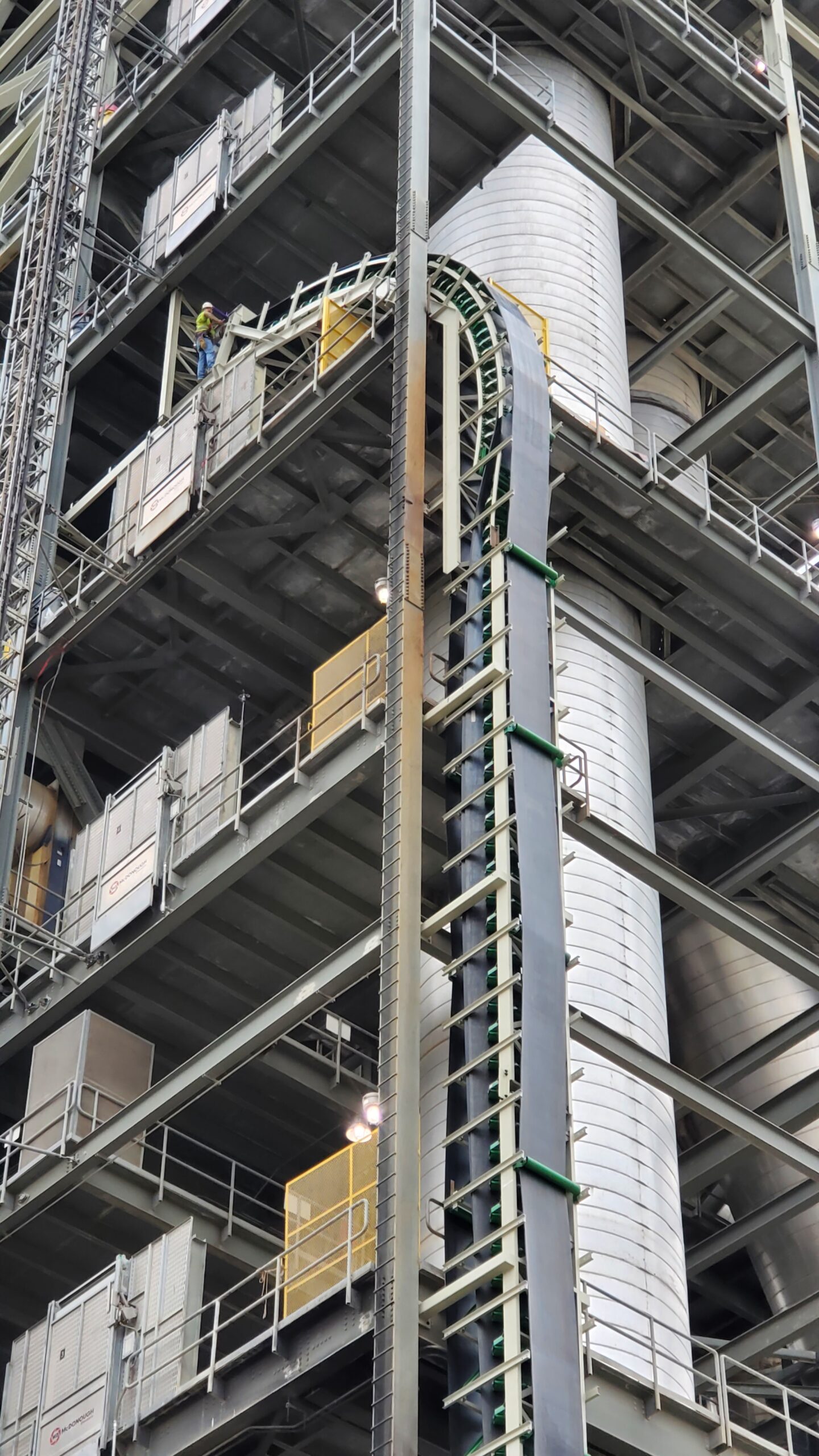

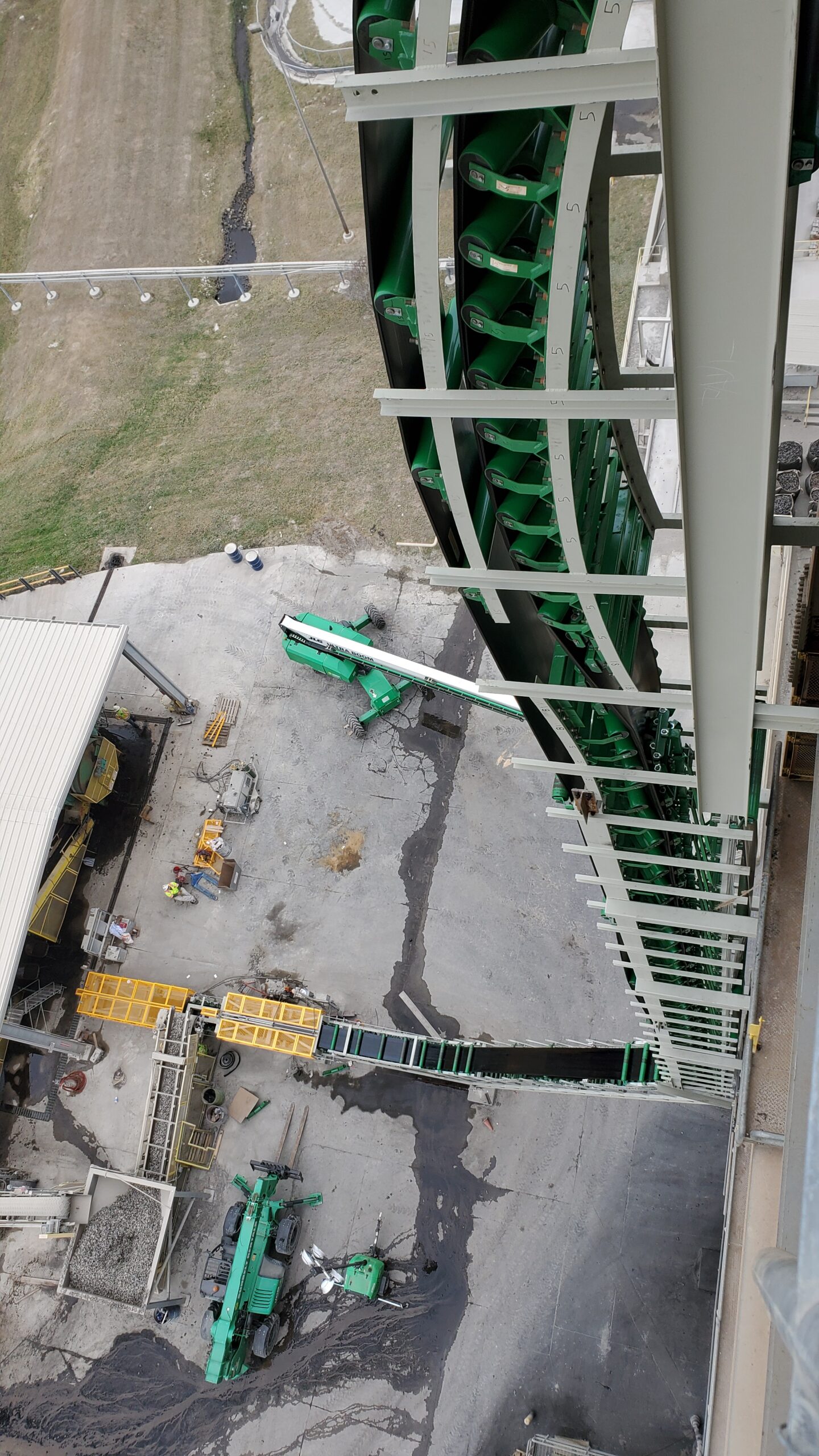

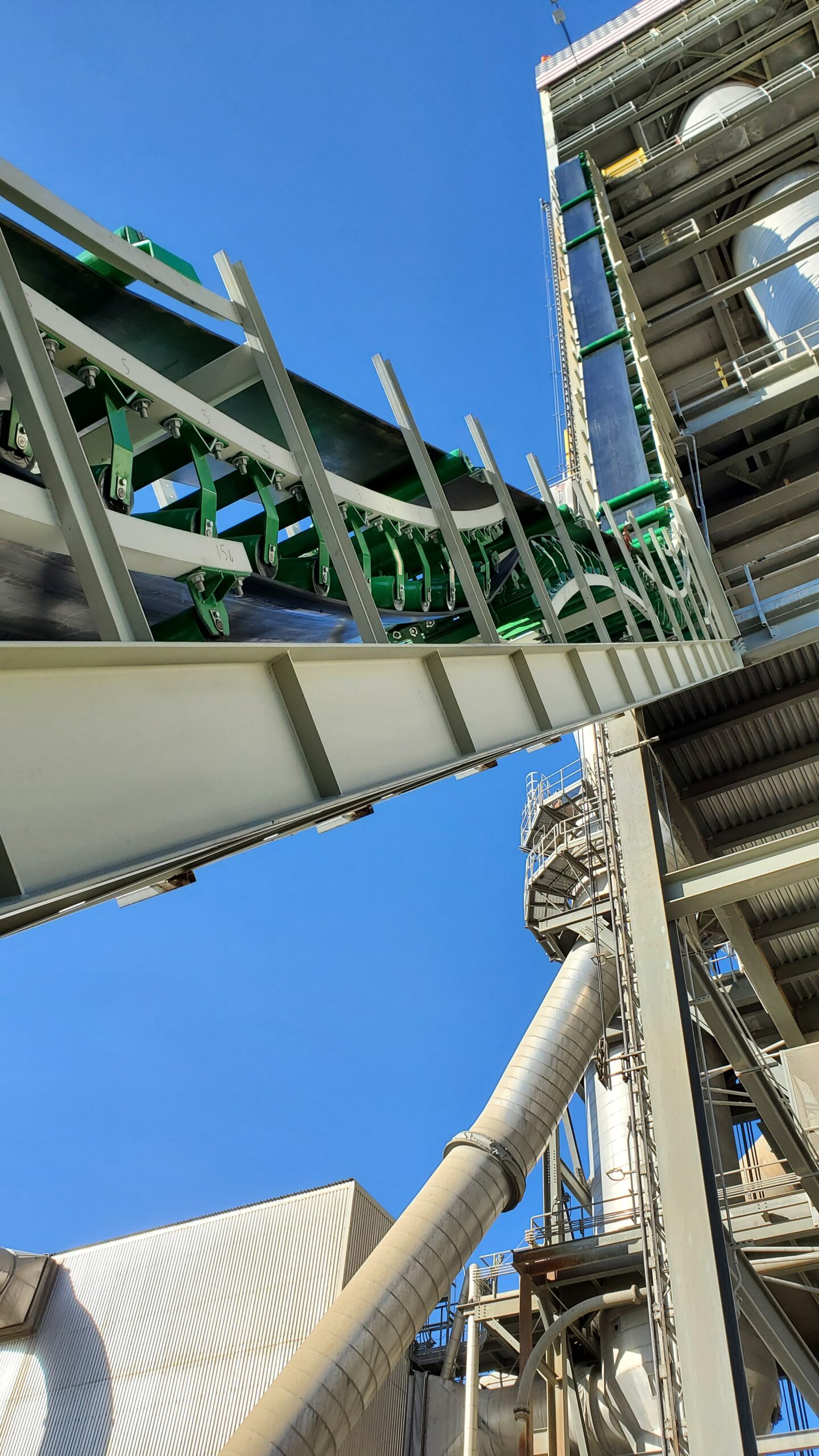

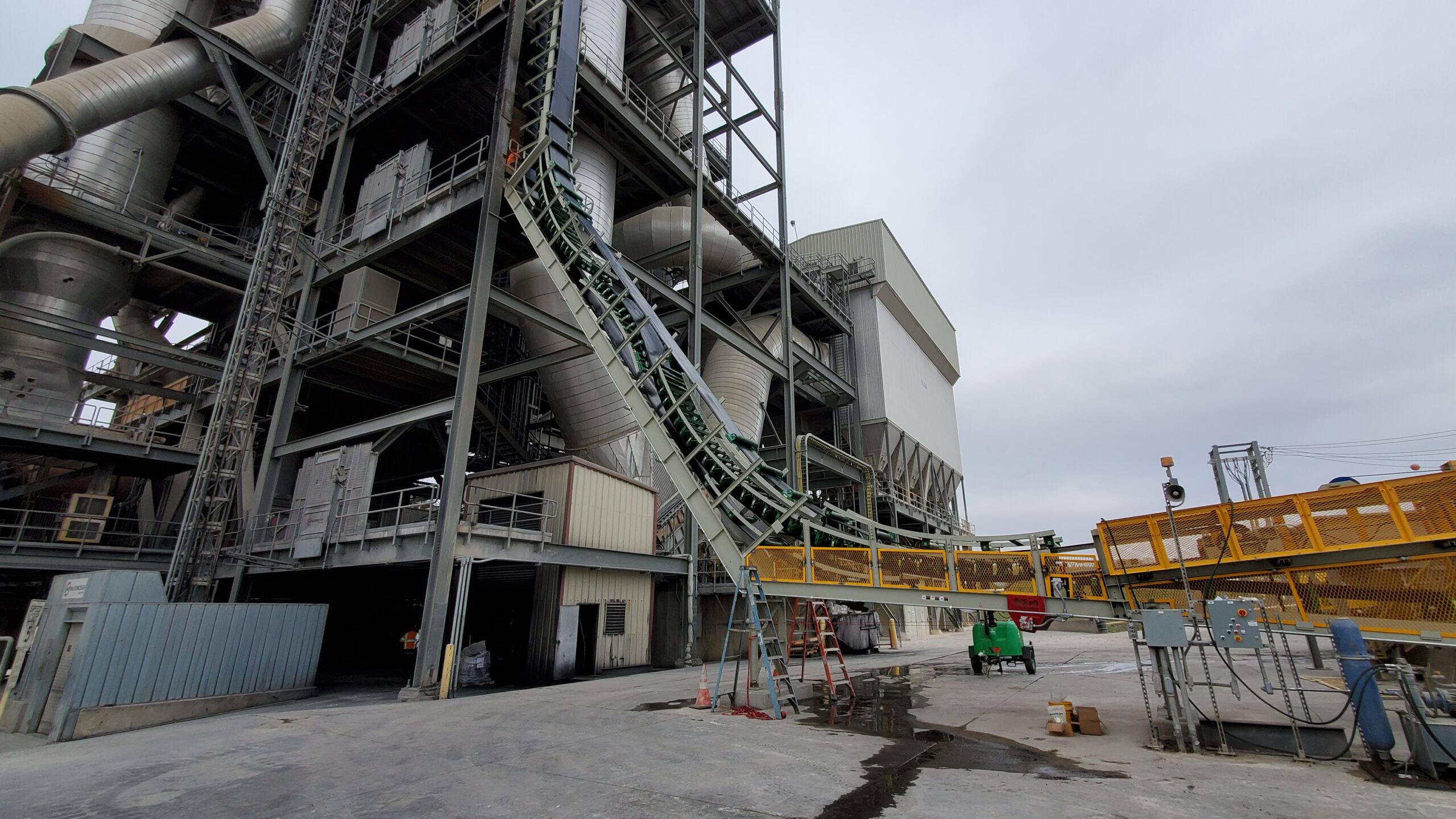

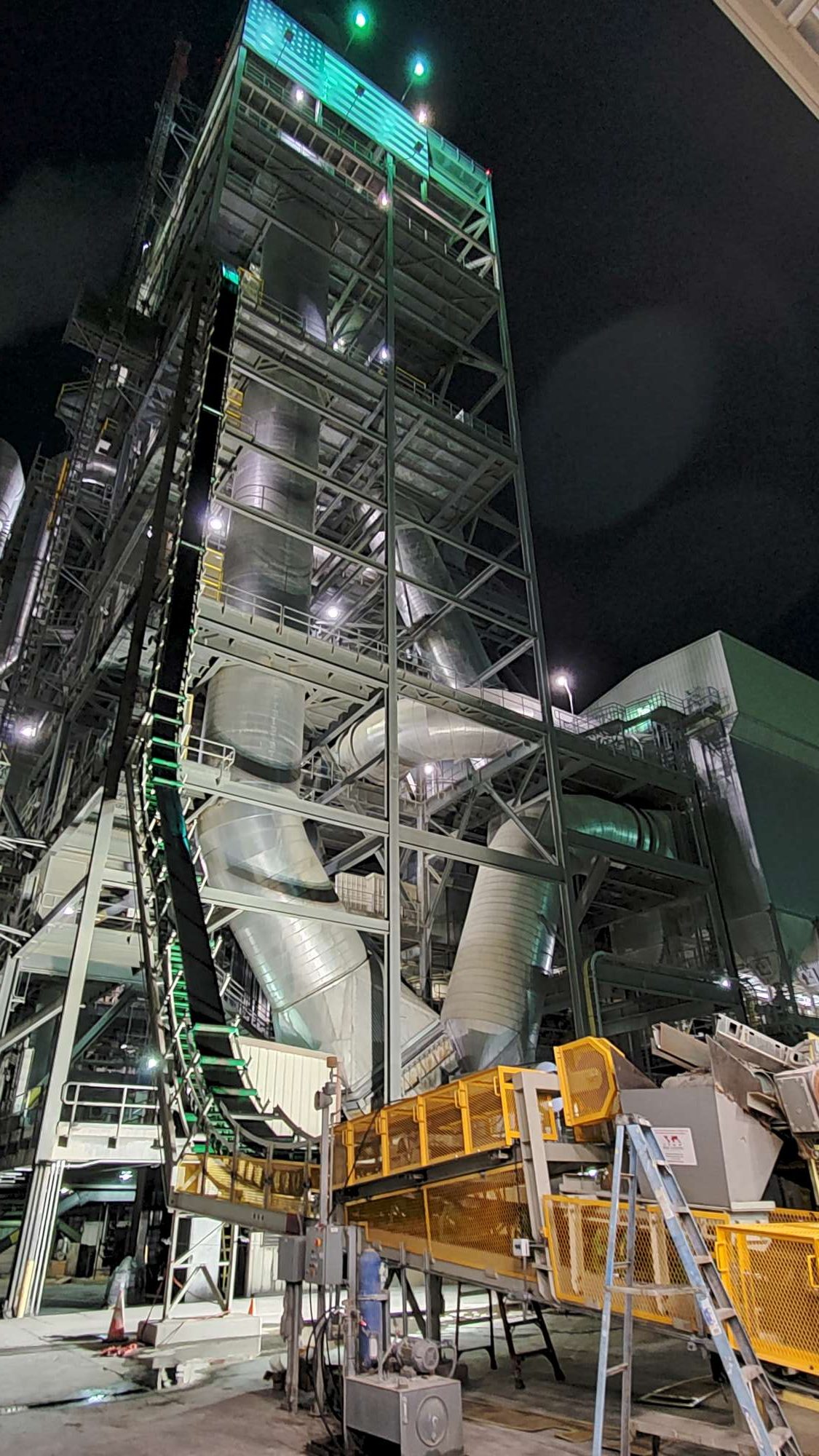

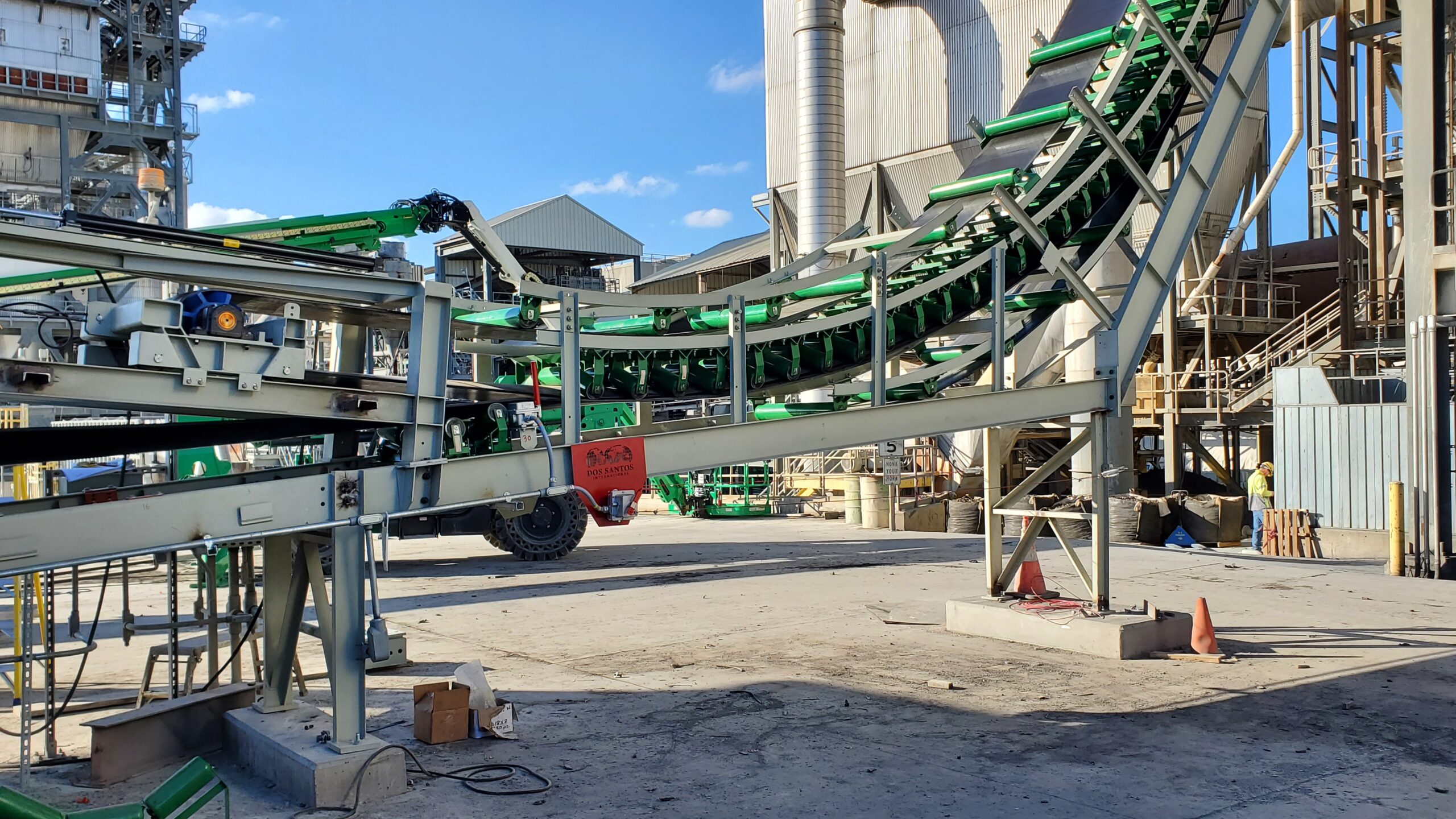

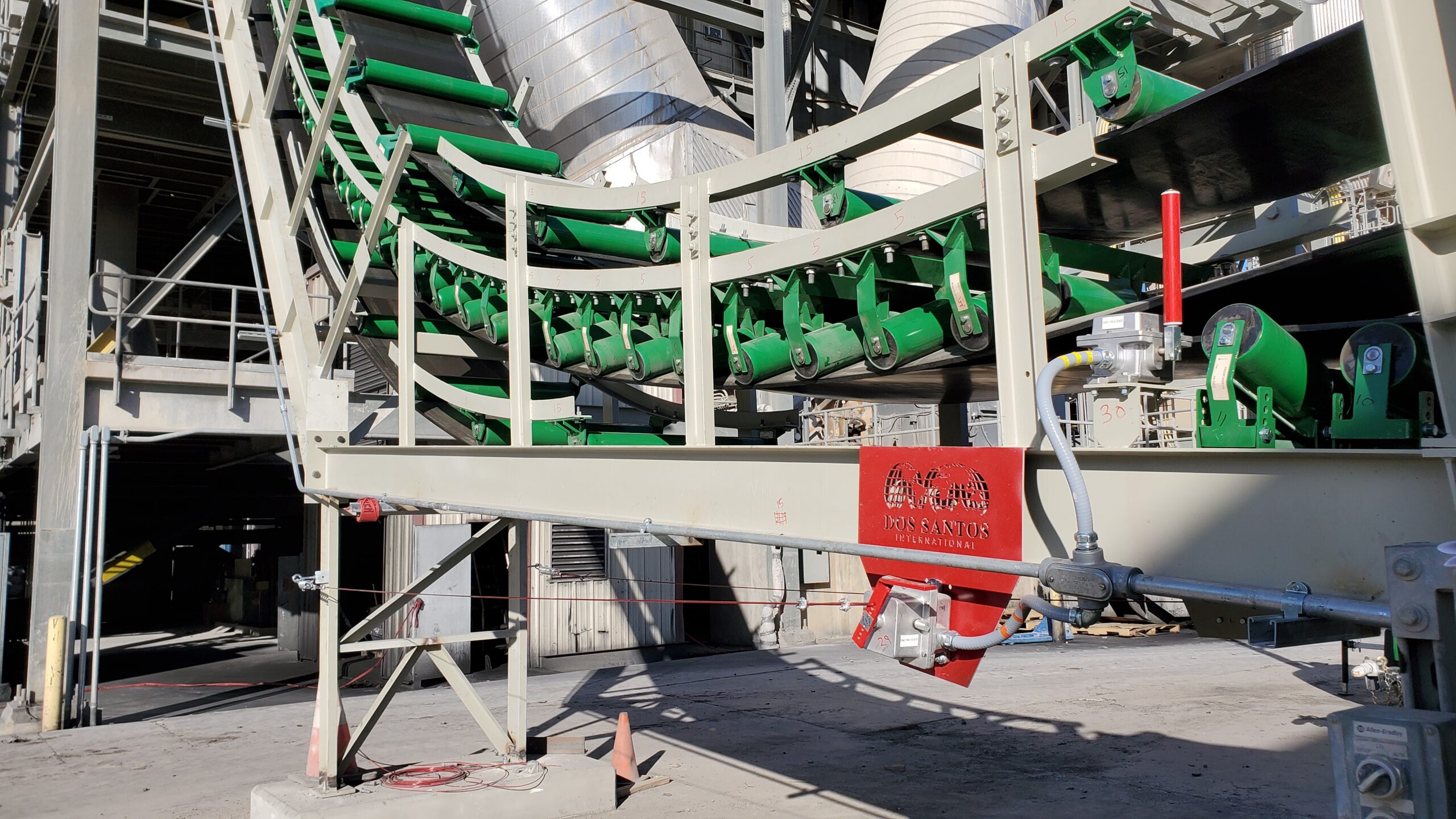

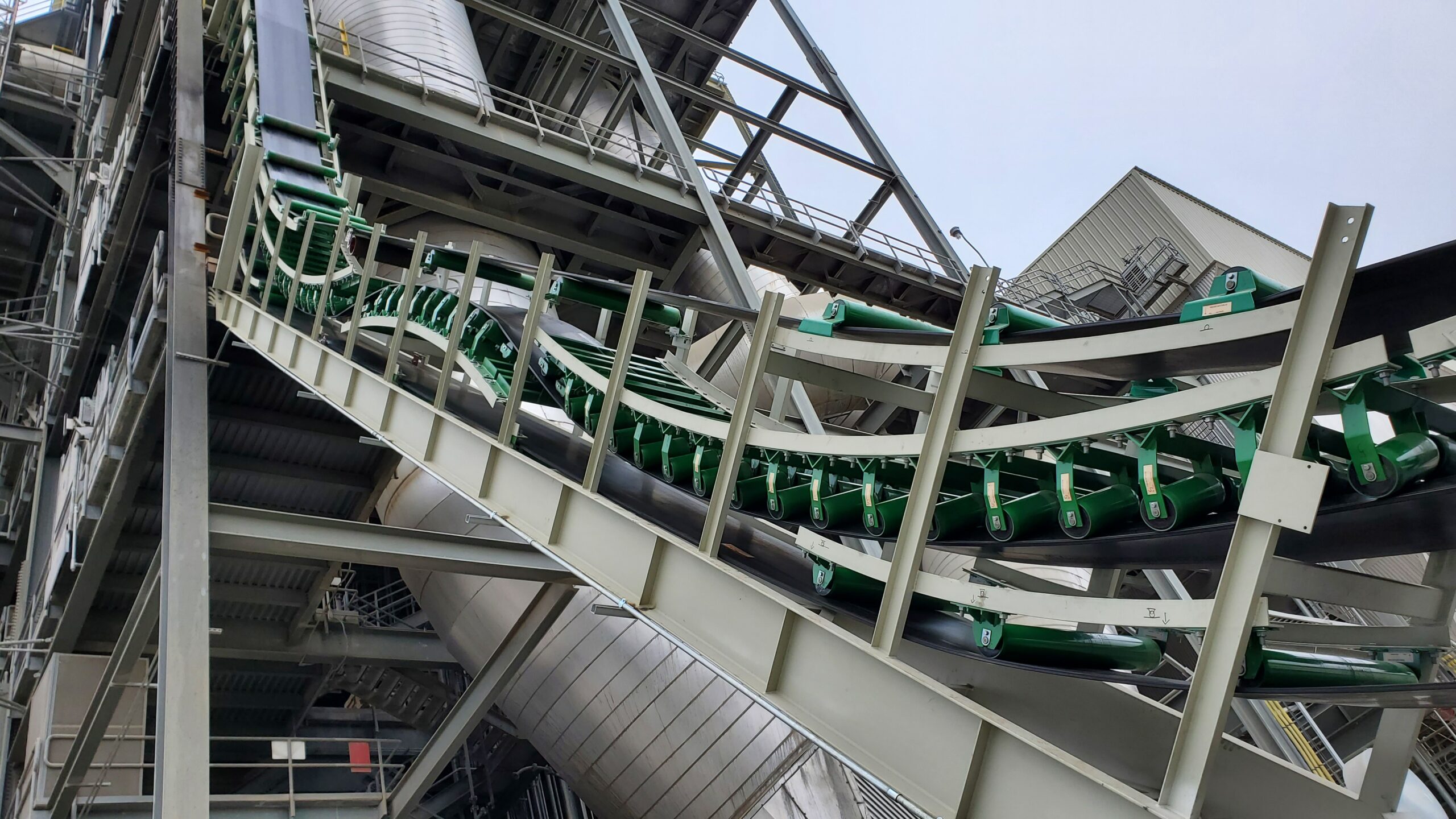

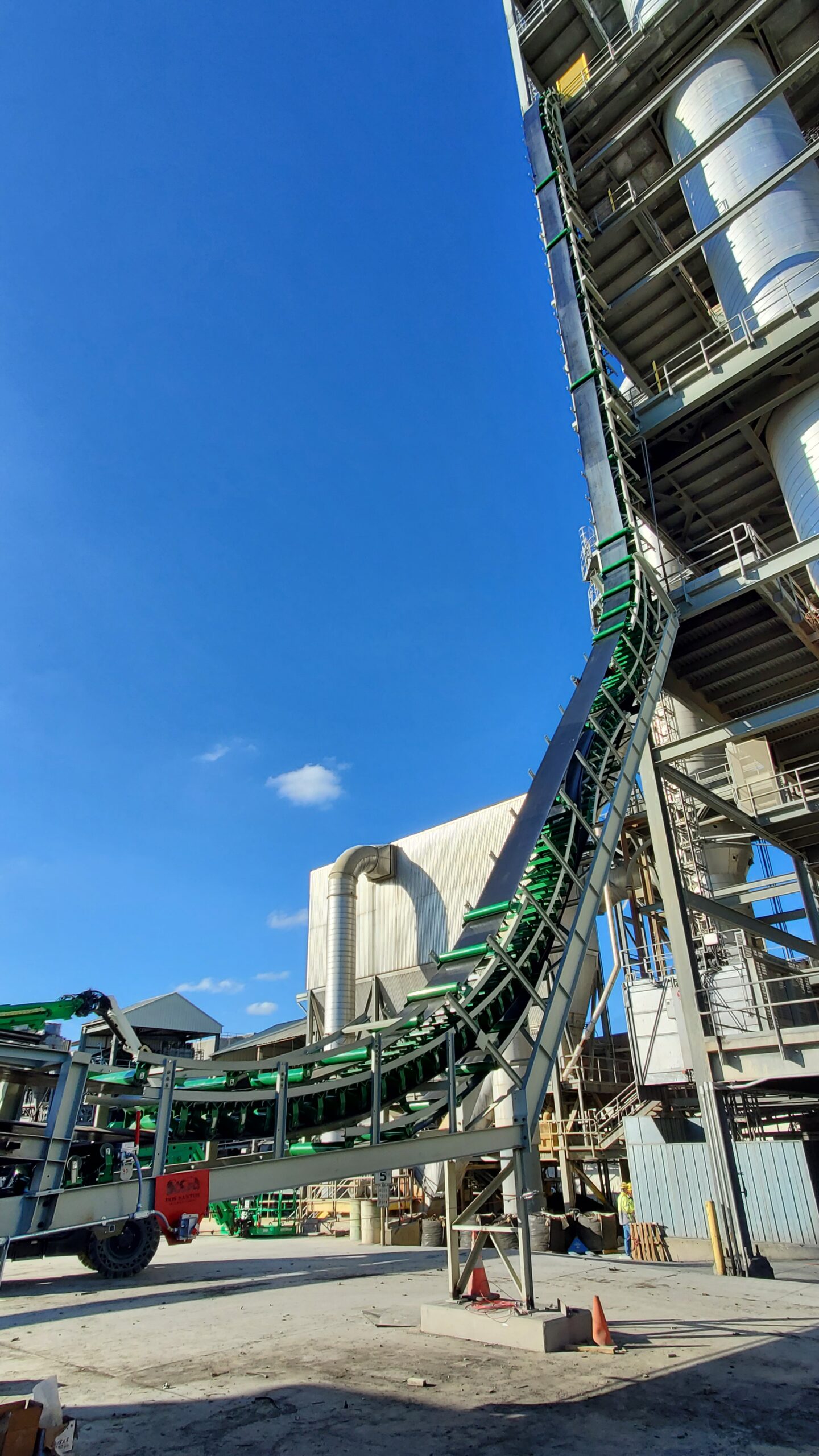

DS113 – Ash Grove Cement

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS083 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DSCo001 – DSI Temporary Reclaim TC-1 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

12 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

7620 mm |

25 ft

Length:

53340 mm |

175 ft

Bottom drive power:

74.6 kW |

100 HP

Top drive power:

N/A kW |

N/A HP

DSCo004 – DSI Temporary Reclaim TC-4 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

5 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

1753 mm |

5.75 ft

Length:

12619 mm |

41.4 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

N/A kW |

N/A HP

DS120 – EleVeyor EL, Blue Plains for WWTP Project 2

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS114 – Lafarge Holcim for Sparrow’s Point

Material:

Natural gypsum

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

76 mm |

3 in

Conveying rate:

122 t/h |

135 STPH

Conveying angle:

85 deg

Belt width:

762 mm |

30 in

Belt speed:

2.03 m/s |

400 FPM

Lift:

23300 mm |

76 ft

Length:

61500 mm |

202 ft

Bottom drive power:

19 kW |

25 HP

Top drive power:

19 kW |

25 HP
