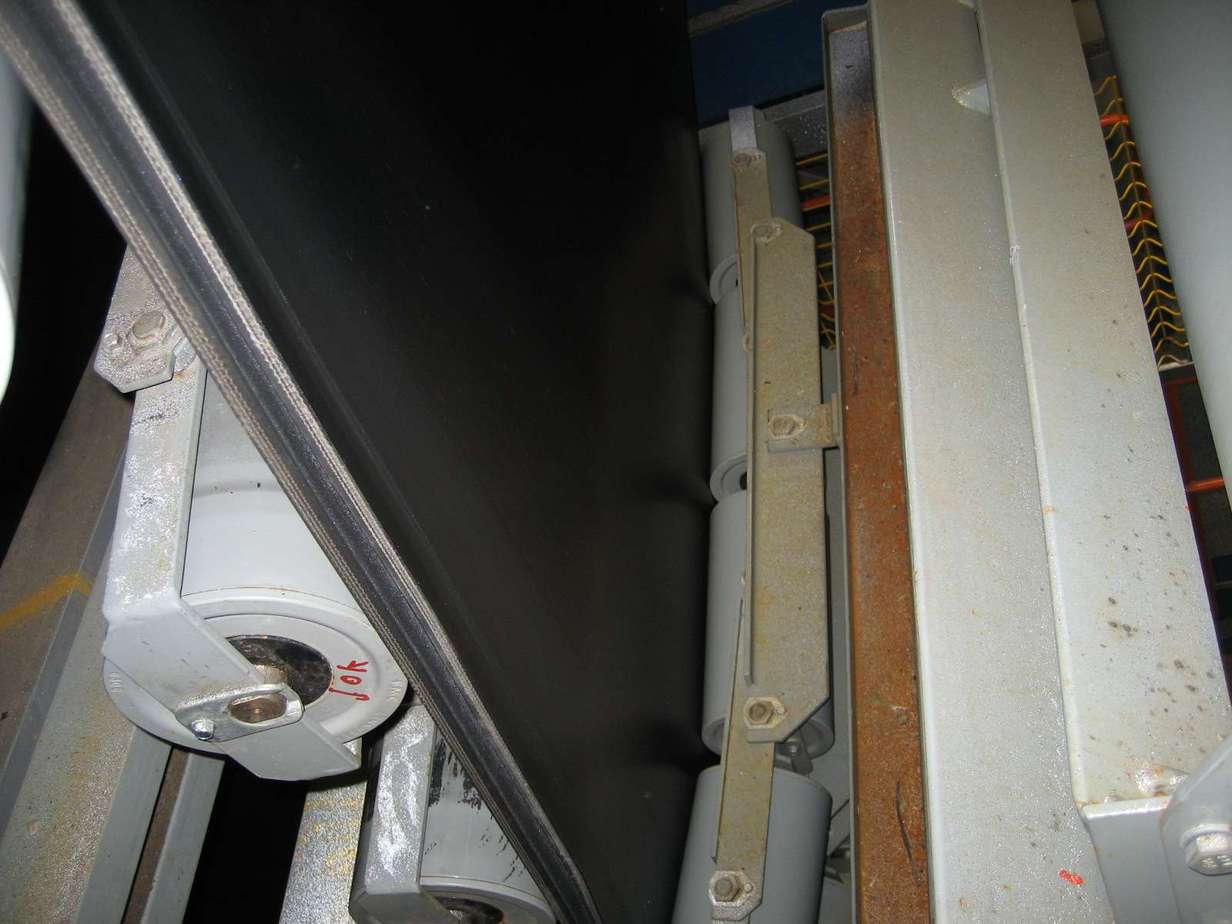

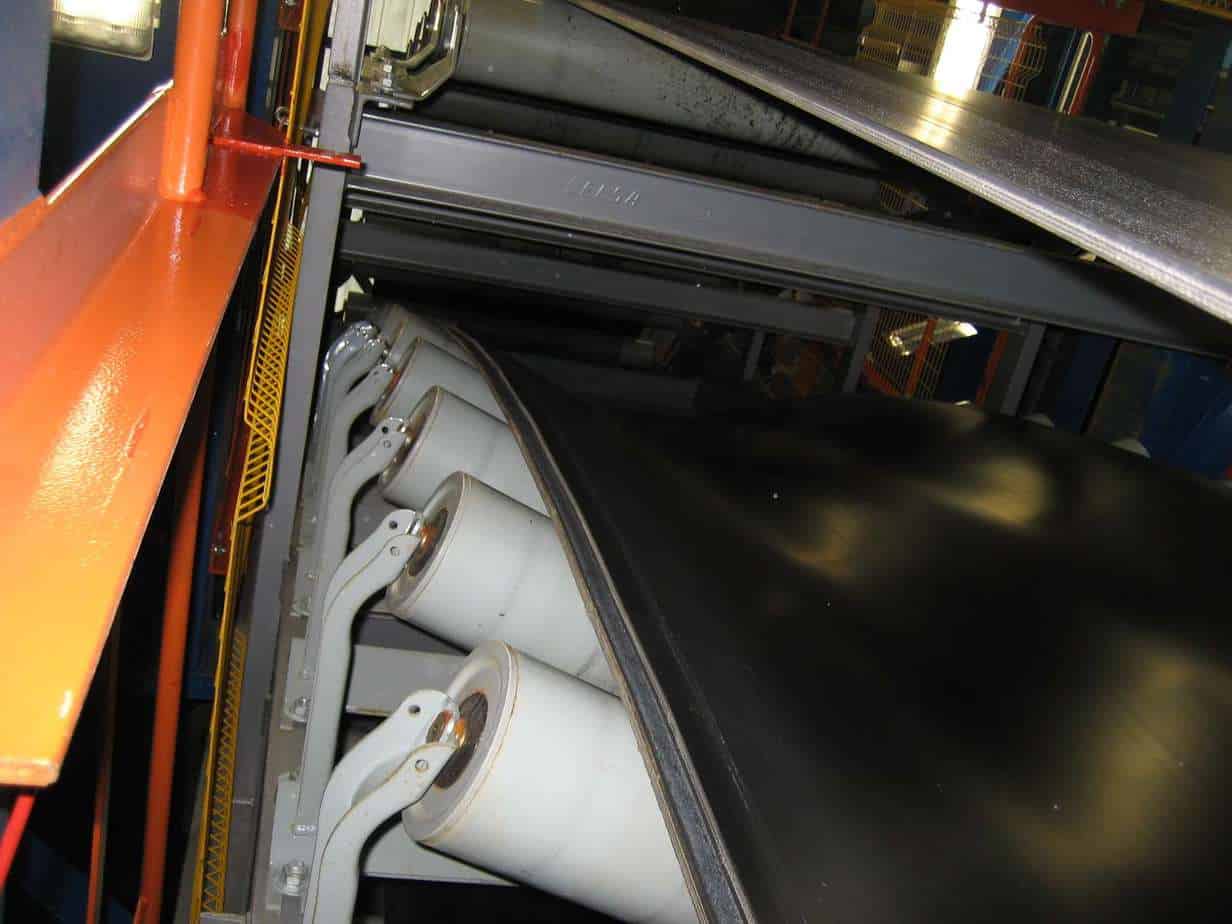

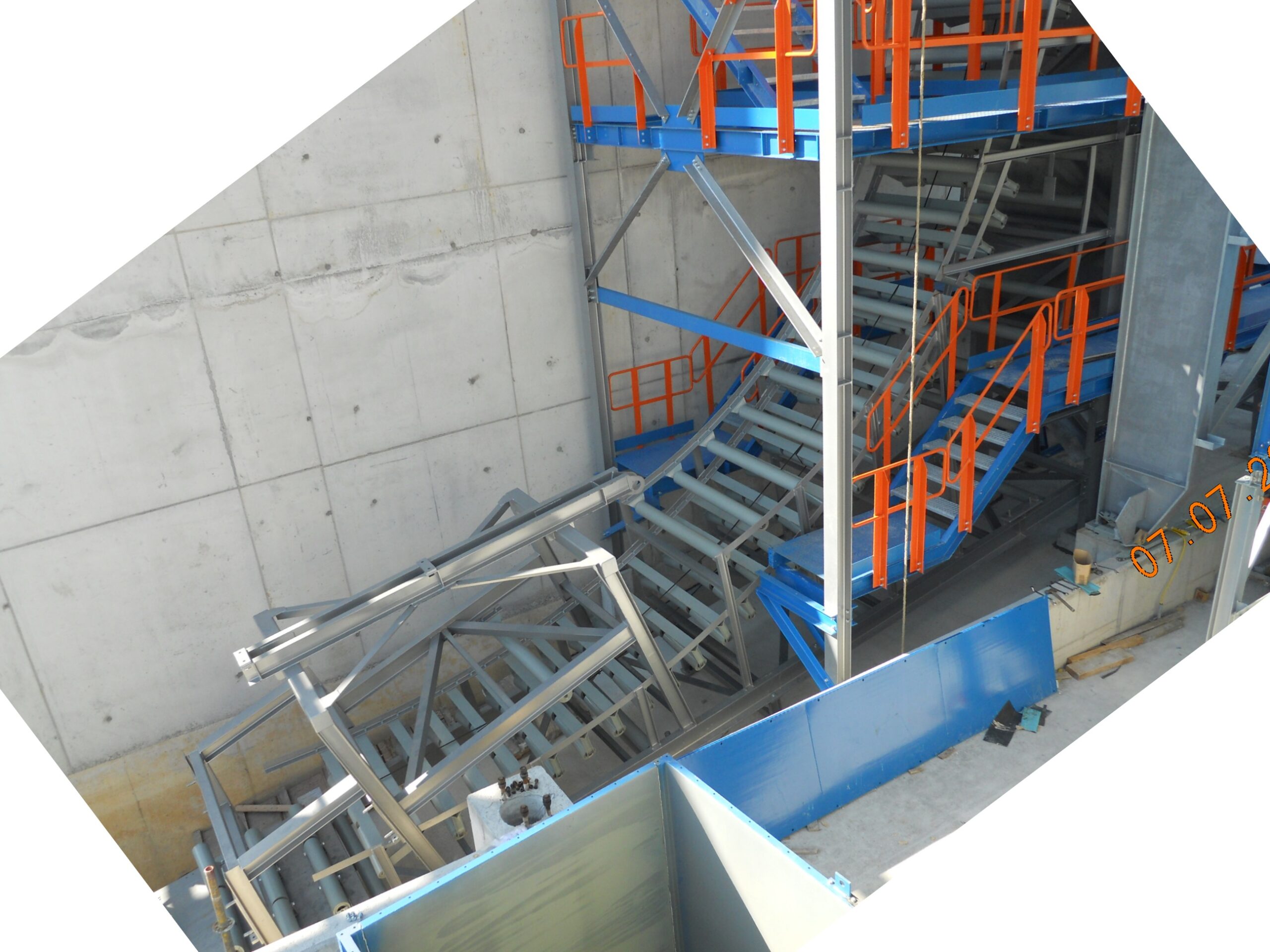

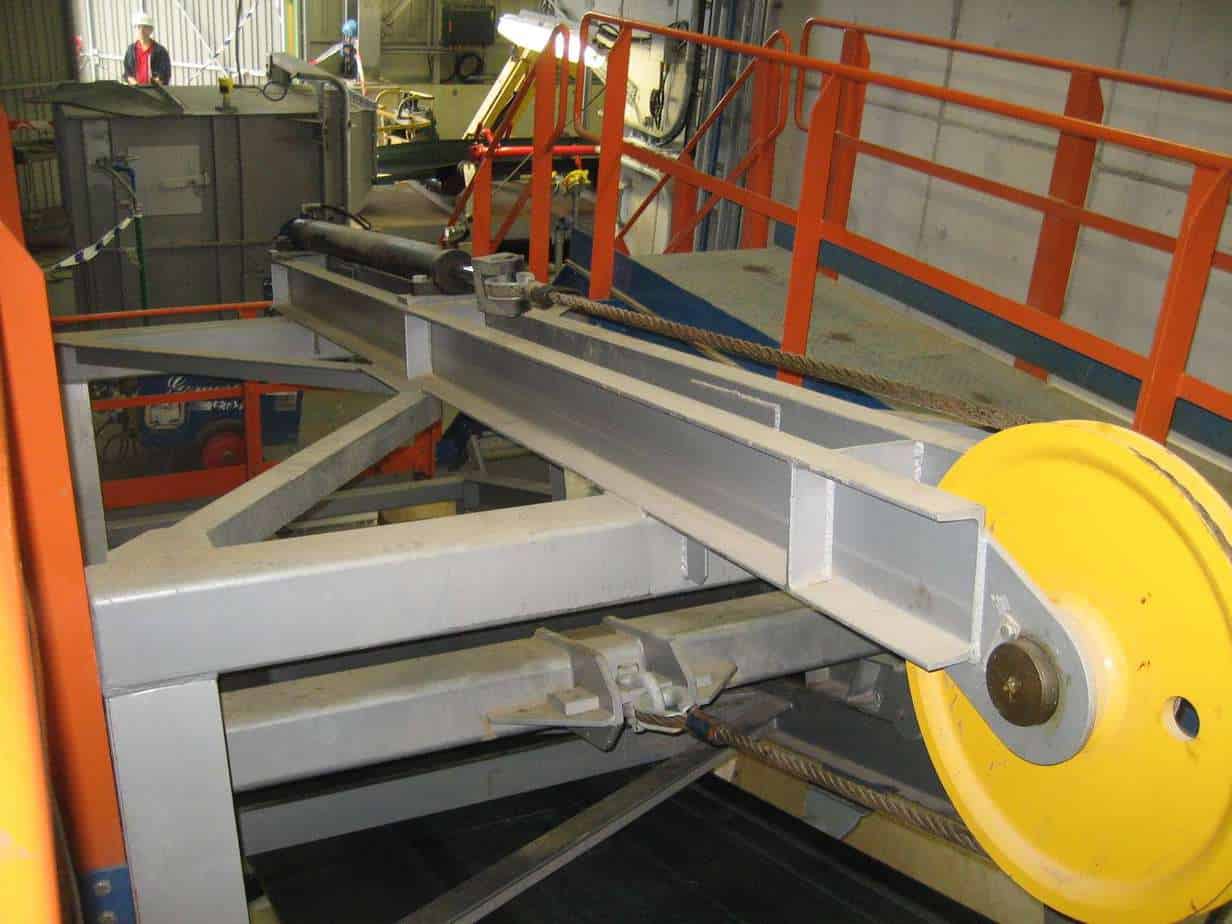

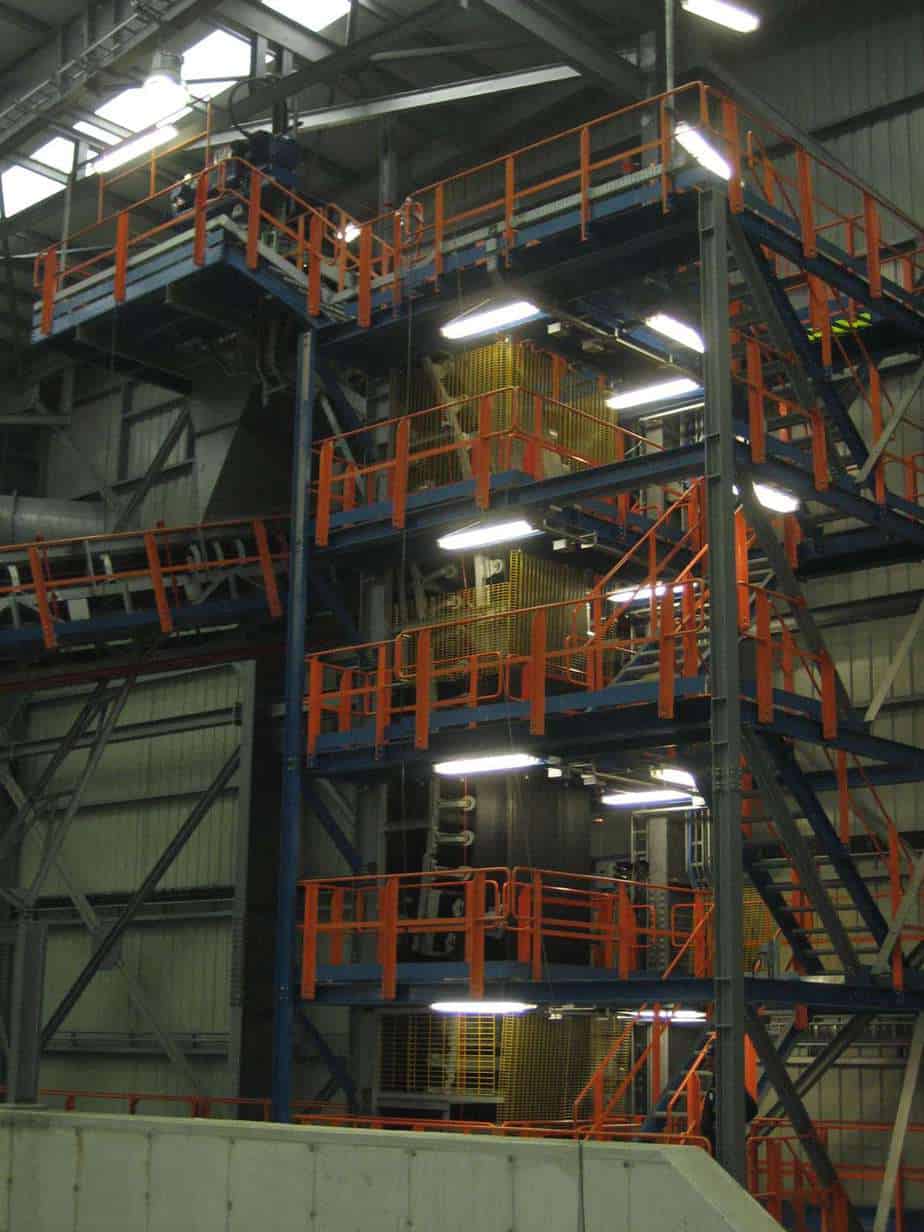

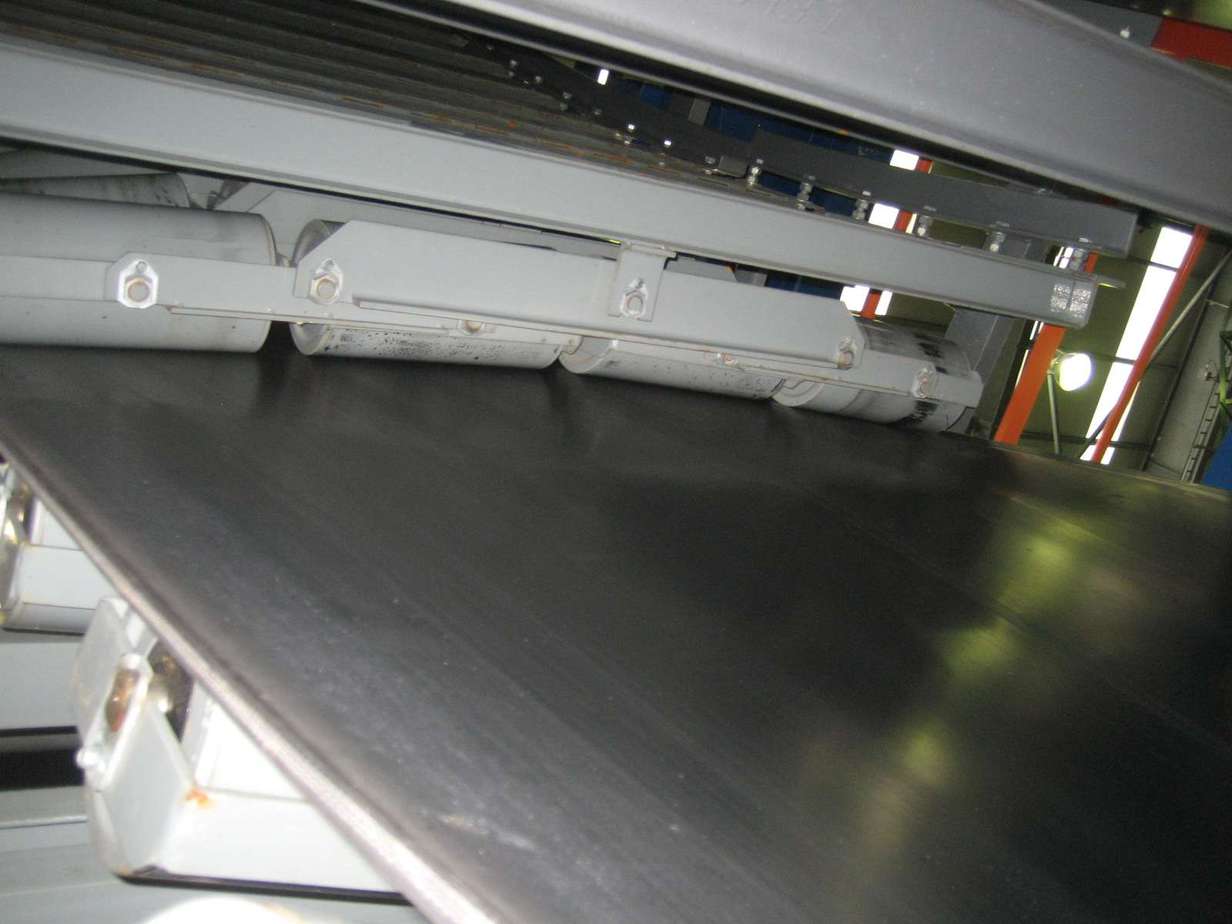

DS098 – Duro Felguera for Repsol Refinery Project

DS098 - Duro Felguera for Repsol Refinery Project - Image 3

DS098 - Duro Felguera for Repsol Refinery Project - Image 4

DS098 - Duro Felguera for Repsol Refinery Project - Image 5

DS098 – Duro Felguera for Repsol Refinery Project

Material:

Green petroleum coke

Bulk density:

0.7 t/cu-m |

45 PCF

Material size:

80 mm |

3.1 in

Conveying rate:

475 t/h |

524 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3.5 m/s |

689 FPM

Lift:

21155 mm |

69.4 ft

Length:

32266 mm |

105.2 ft

Bottom drive power:

45 kW |

60 HP

Top drive power:

45 kW |

60 HP

DS087 – PHB Weserhutte S.A. Project

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

50 mm |

2 in

Conveying rate:

250 t/h |

276 STPH

Conveying angle:

75 deg

Belt width:

1200 mm |

47 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

35100 mm |

115 ft

Length:

45065 mm |

148 ft

Bottom drive power:

30 kW |

40.2 HP

Top drive power:

30 kW |

40.2 HP

DSCo003 – DSI Temporary Reclaim TC-3 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

5 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

914 mm |

3 ft

Length:

6614 mm |

21.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

N/A kW |

N/A HP

DS112 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

67056 mm |

220 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS118 – AA Quarry vertical unit

Material:

Limestone

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

152 mm |

6 in

Conveying rate:

544 t/h |

600 STPH

Conveying angle:

90 deg

Belt width:

1372 mm |

54 in

Belt speed:

2.72 m/s |

535 FPM

Lift:

246560 mm |

808.9 ft

Length:

279900 mm |

918.4 ft

Bottom drive power:

298 kW |

400 HP

Top drive power:

298 kW |

400 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS114 – Lafarge Holcim for Sparrow’s Point

Material:

Natural gypsum

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

76 mm |

3 in

Conveying rate:

122 t/h |

135 STPH

Conveying angle:

85 deg

Belt width:

762 mm |

30 in

Belt speed:

2.03 m/s |

400 FPM

Lift:

23300 mm |

76 ft

Length:

61500 mm |

202 ft

Bottom drive power:

19 kW |

25 HP

Top drive power:

19 kW |

25 HP
