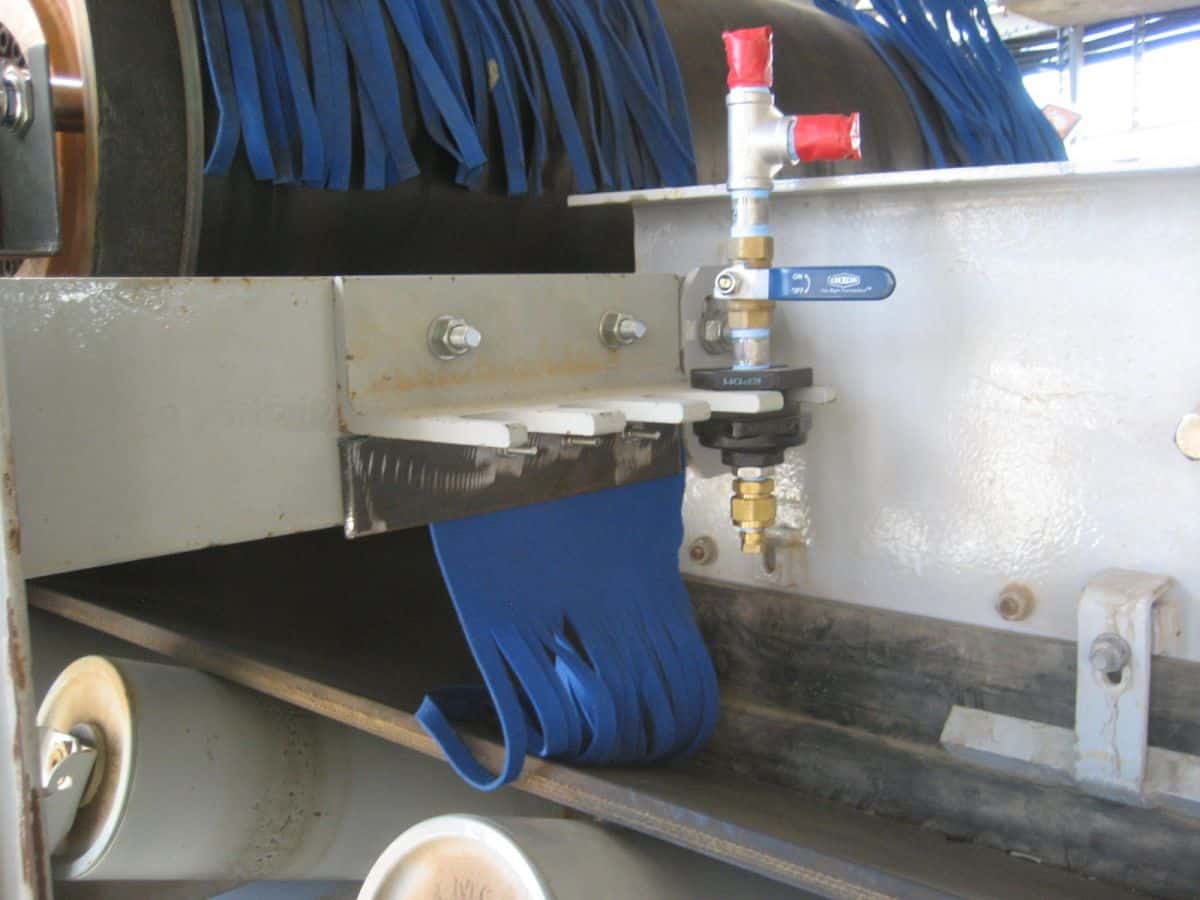

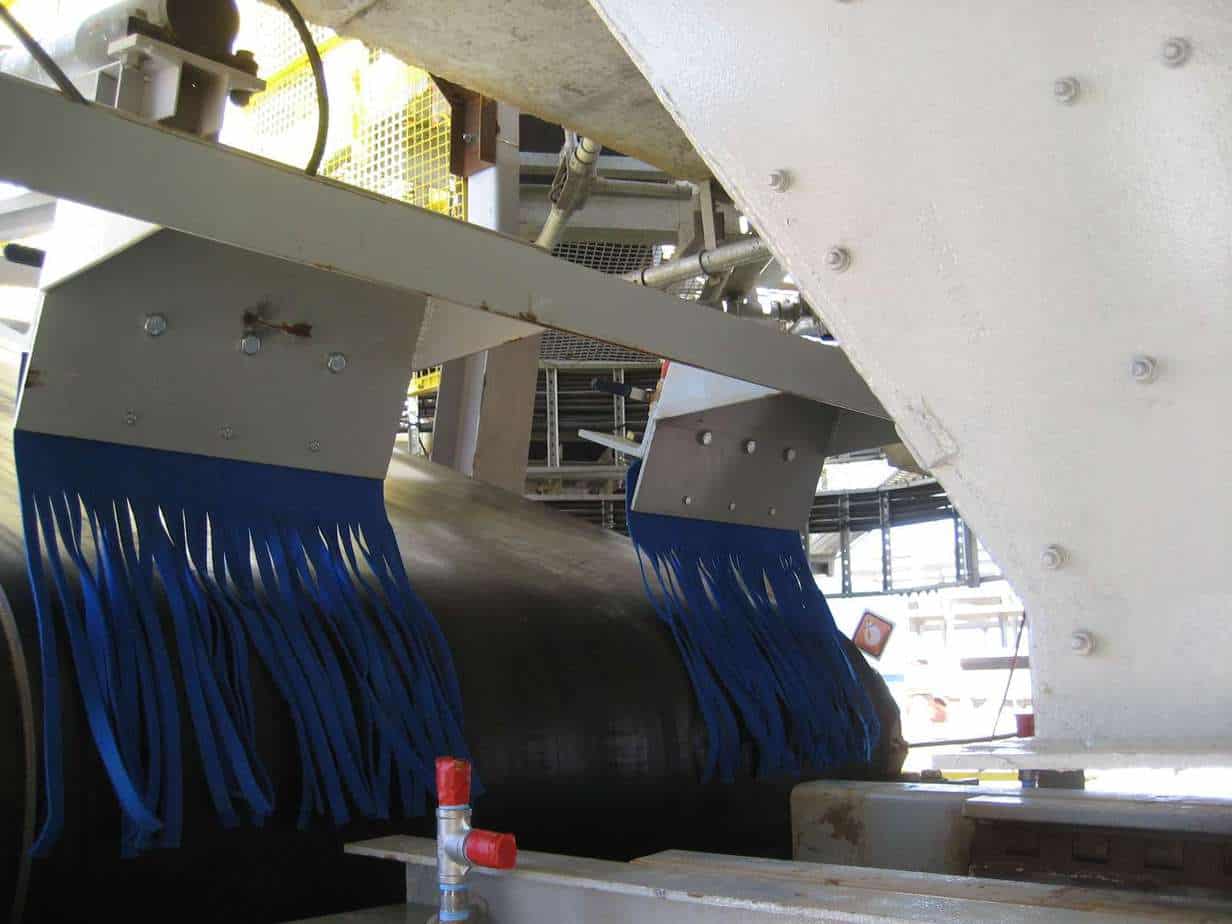

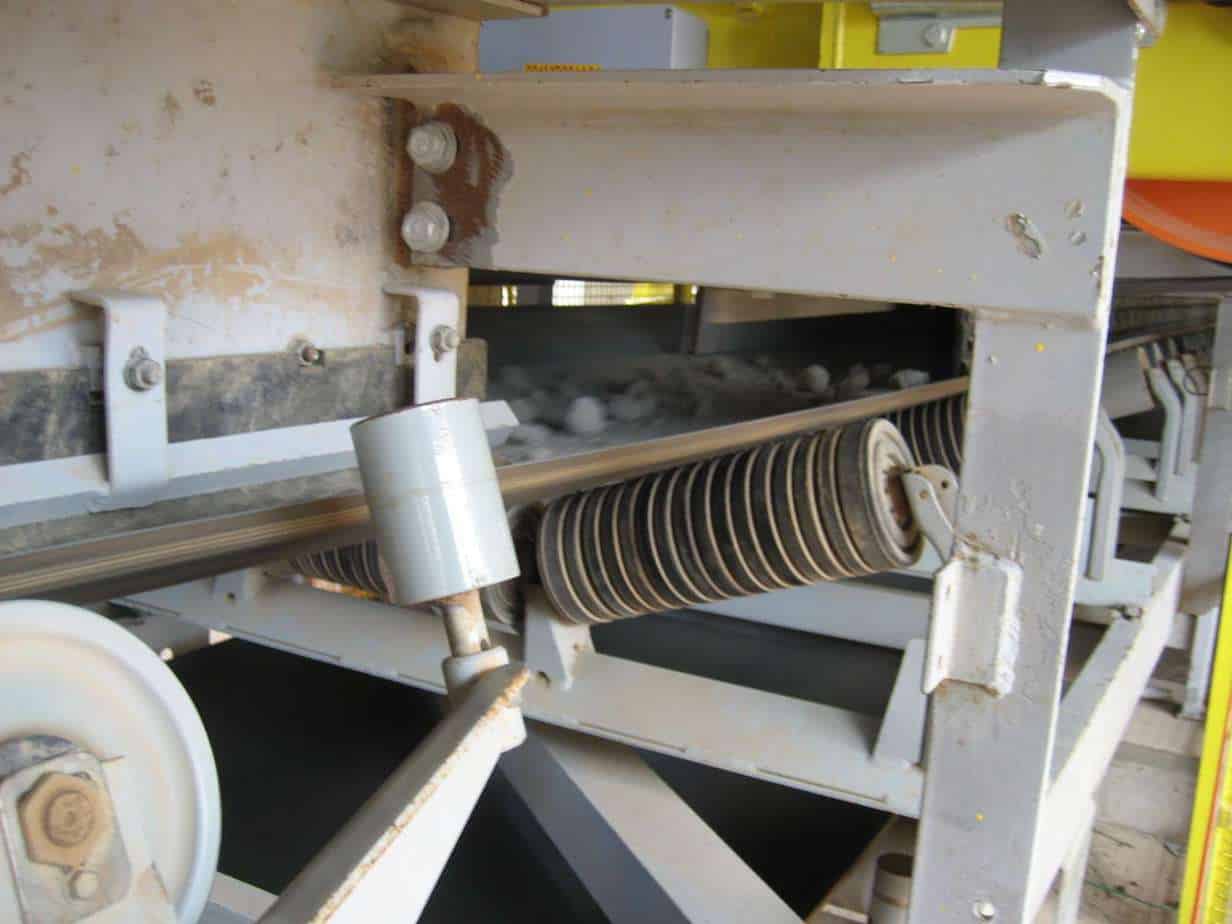

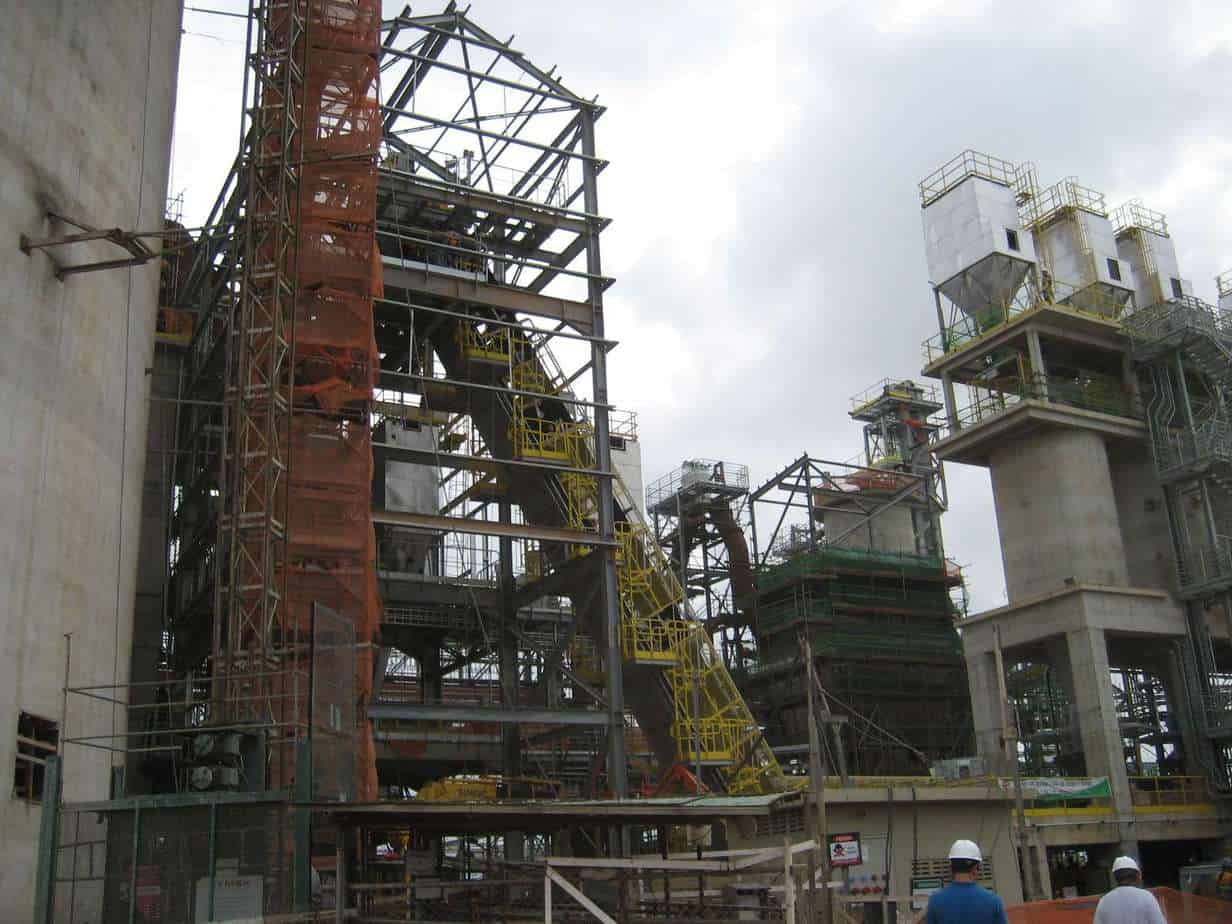

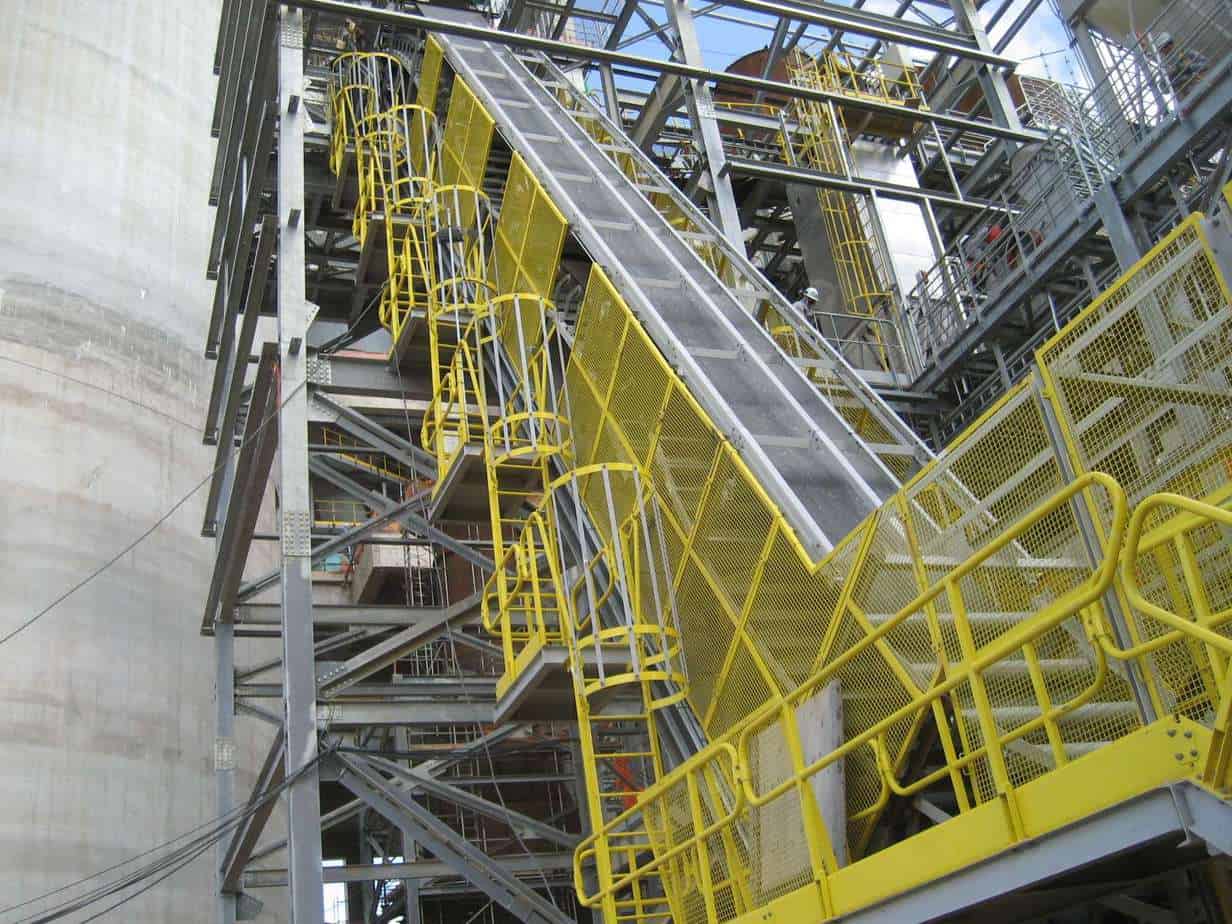

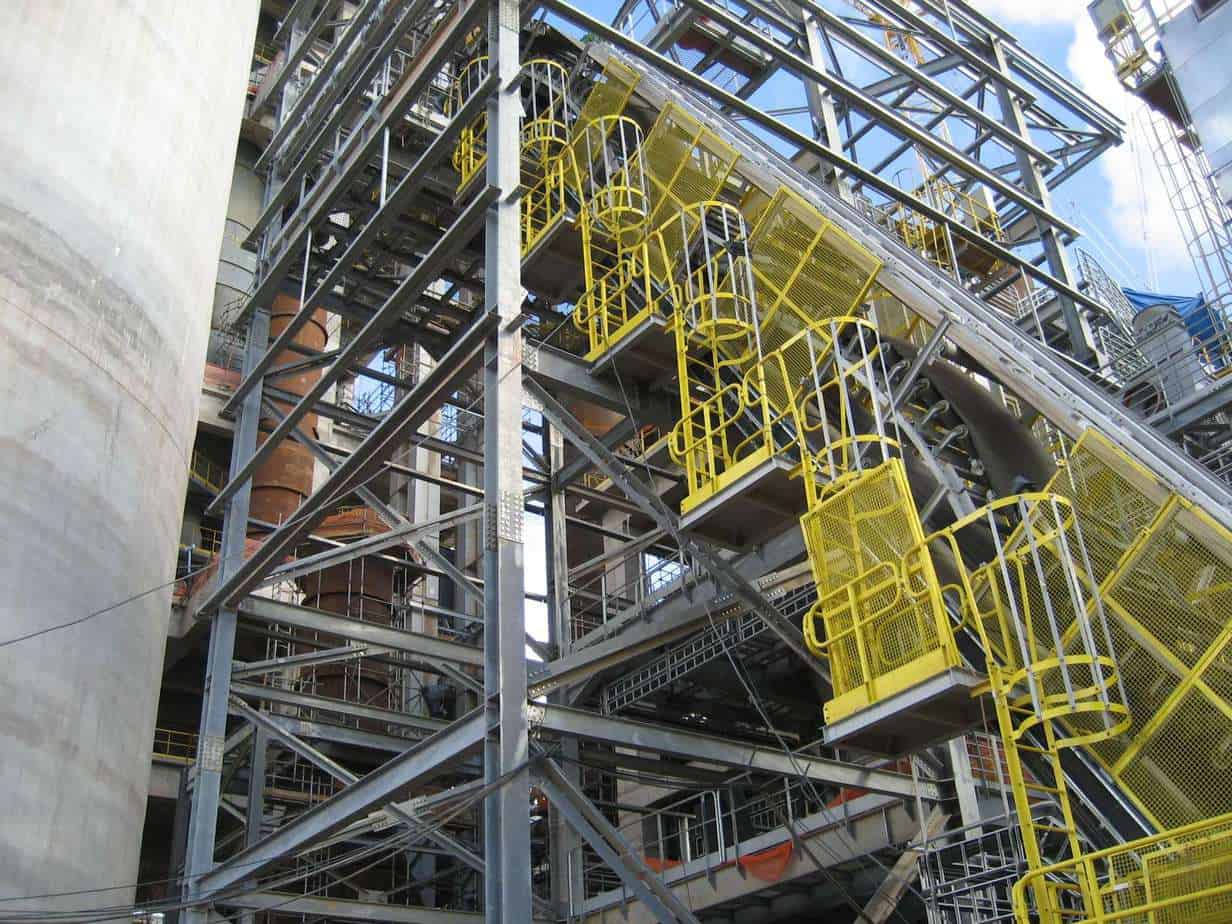

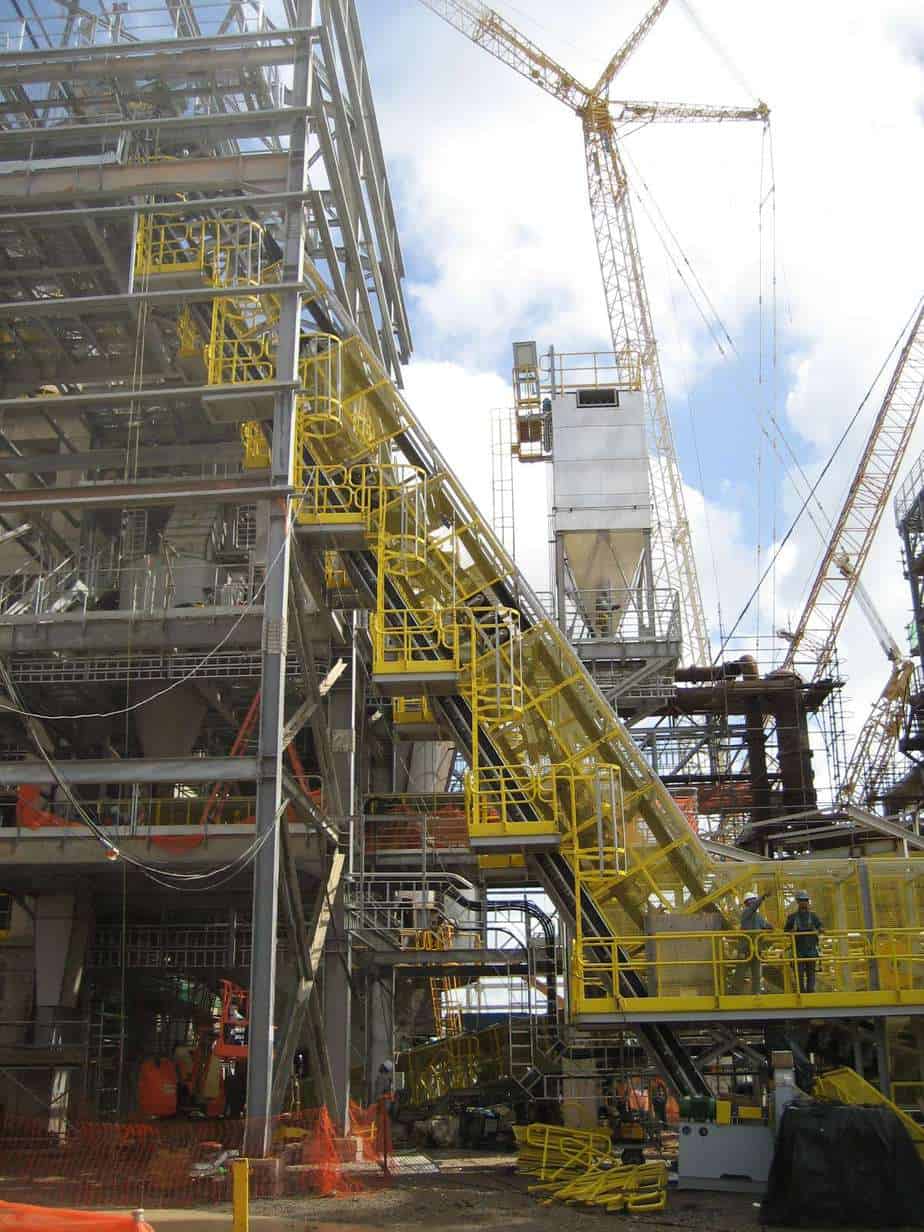

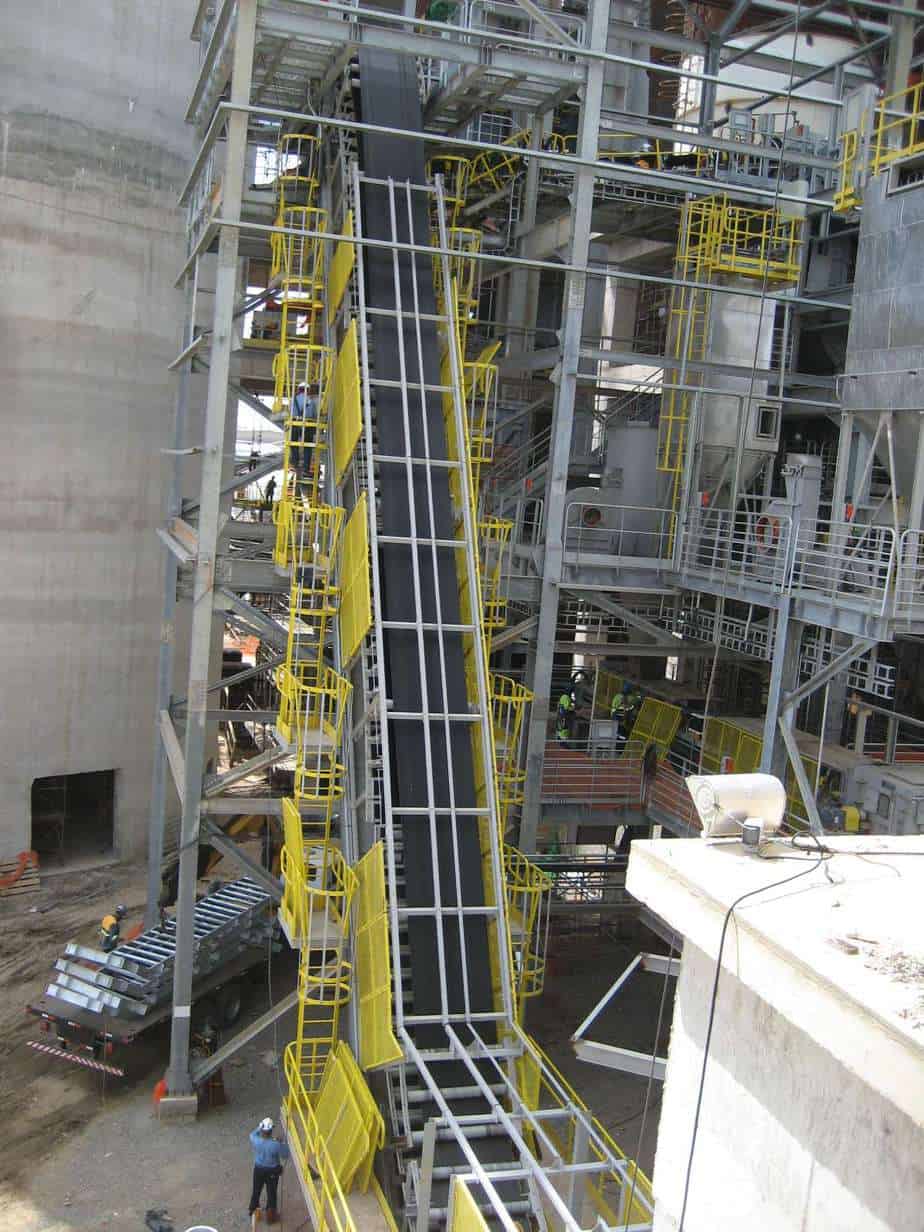

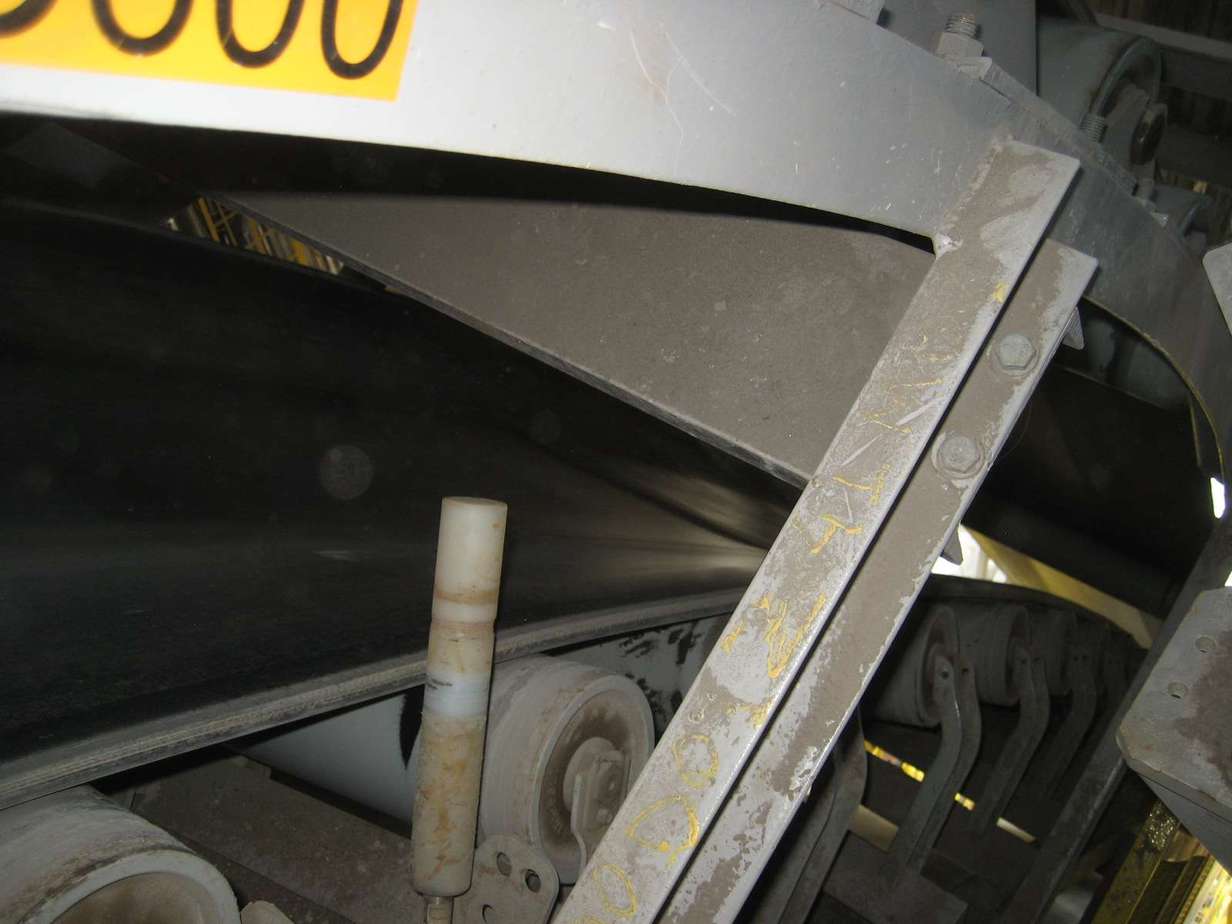

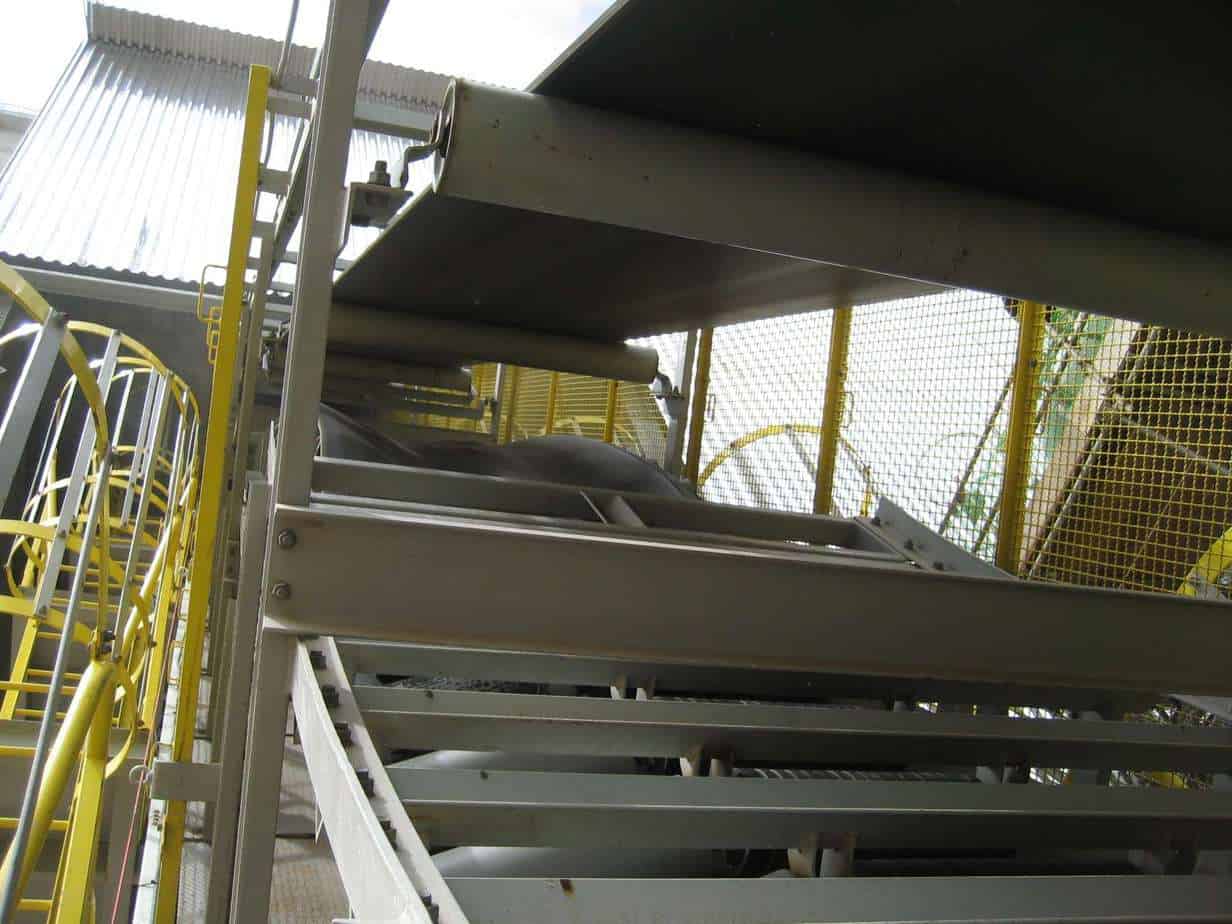

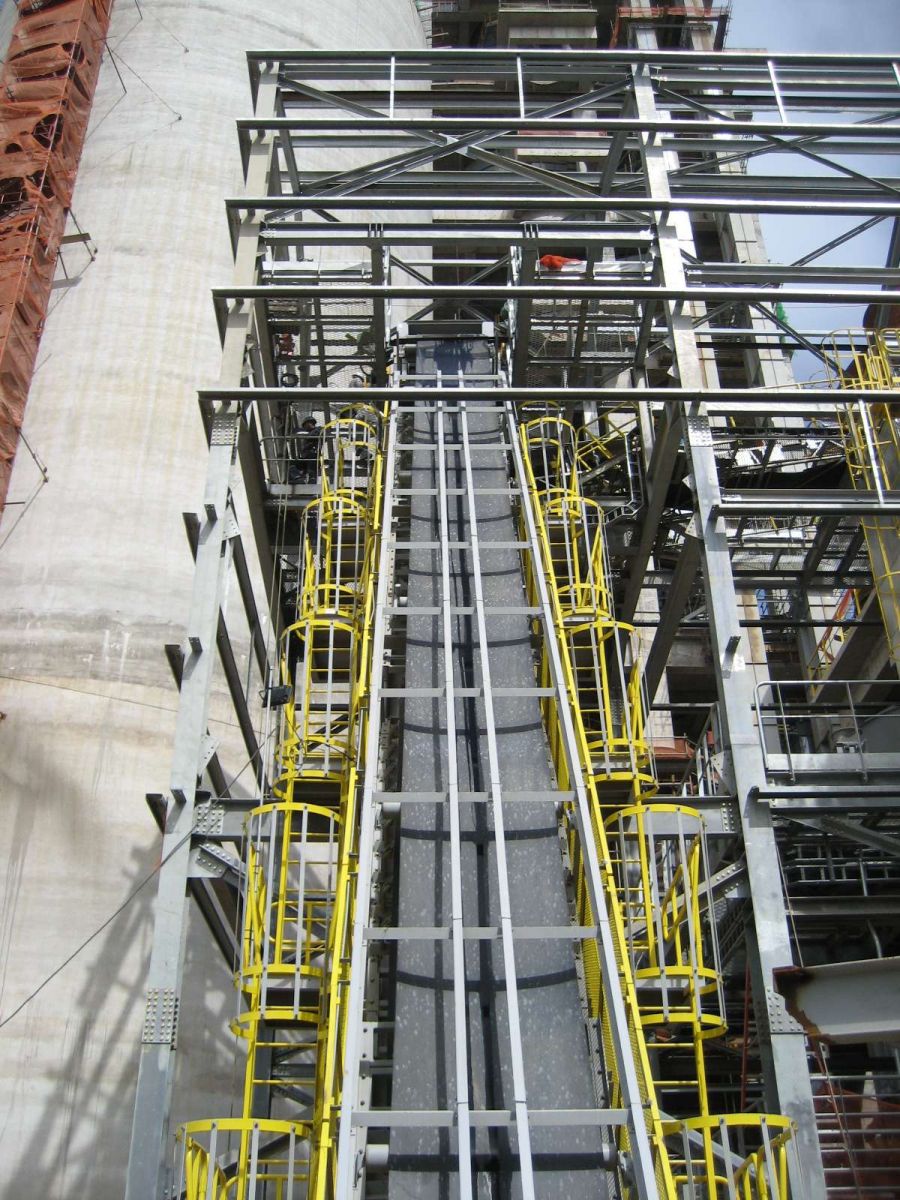

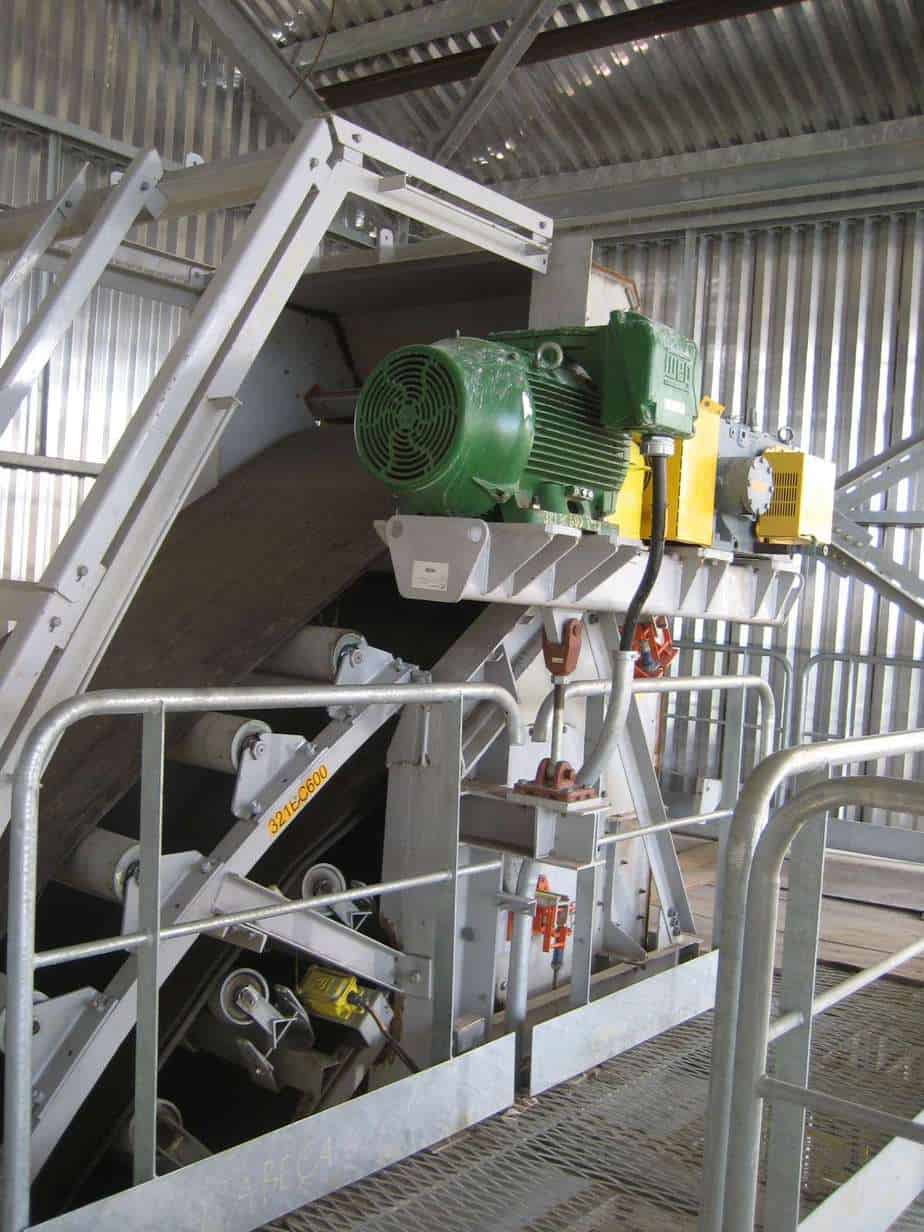

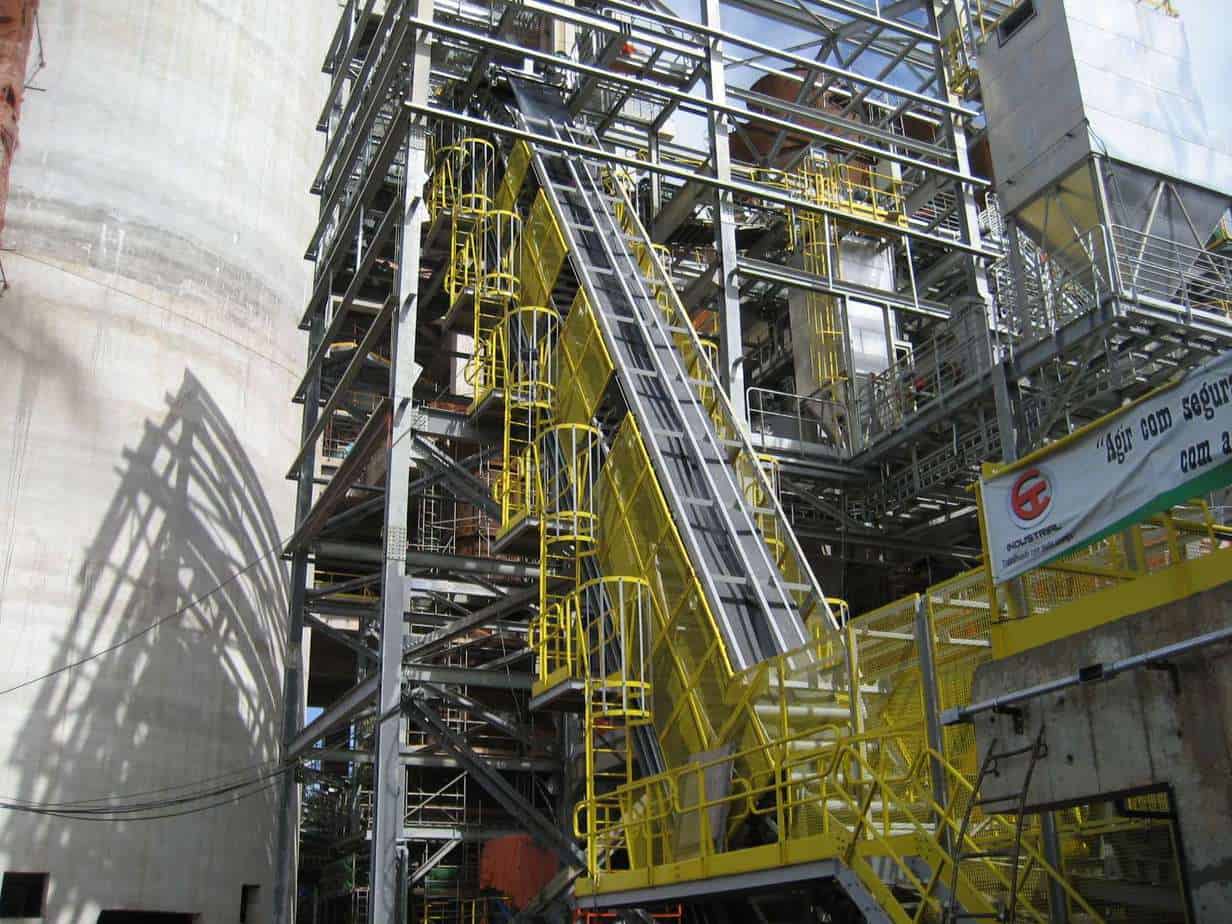

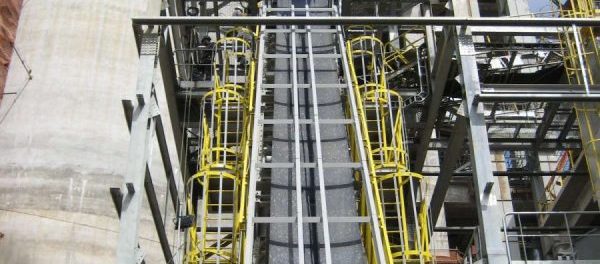

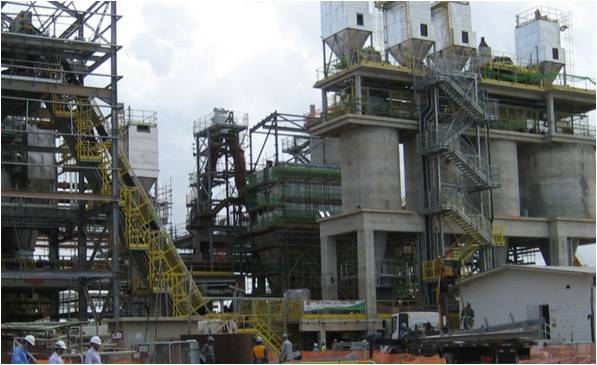

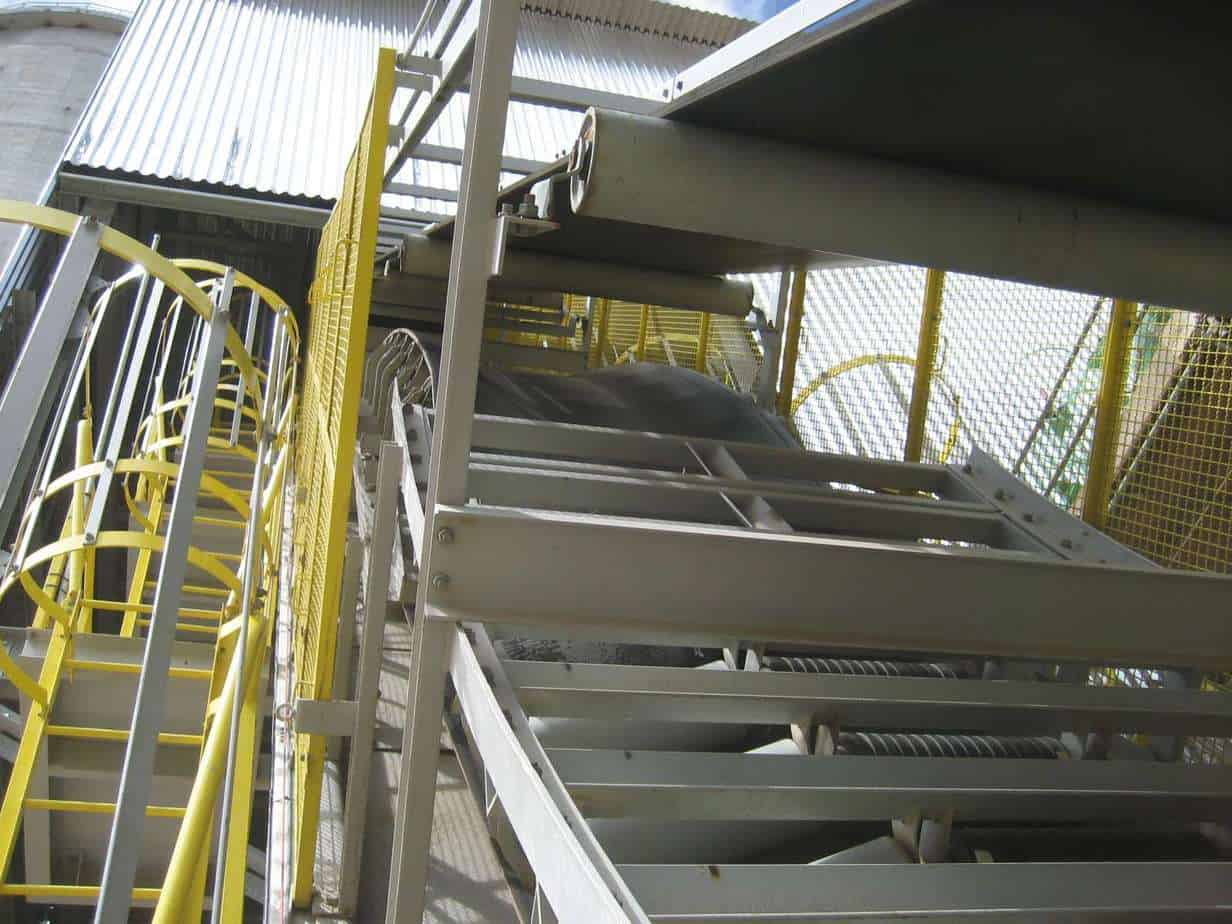

DS104 – Zanella Maquinas at Brennand Cimentos Project

Material:

Cement feed

Bulk density:

1.4 t/cu-m |

87 PCF

Material size:

100 mm |

4 in

Conveying rate:

720 t/h |

794 STPH

Conveying angle:

60 deg

Belt width:

1219 mm |

48 in

Belt speed:

3.1 m/s |

610 FPM

Lift:

20290 mm |

66.7 ft

Length:

61470 mm |

202.7 ft

Bottom drive power:

56 kW |

75 HP

Top drive power:

56 kW |

75 HP

DS108 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

24647 mm |

80.9 ft

Length:

33521 mm |

110 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS111 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

6750 mm |

22.2 ft

Length:

17500 mm |

57.3 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP

DS112 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

67056 mm |

220 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS088 – Western Canada Pulp Mill Project

Material:

Wood chips

Bulk density:

0.2 t/cu-m |

15 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

203 t/h |

224 STPH

Conveying angle:

45 deg

Belt width:

1372 mm |

54 in

Belt speed:

2.61 m/s |

513 FPM

Lift:

20422 mm |

67 ft

Length:

57303 mm |

188 ft

Bottom drive power:

22.4 kW |

30 HP

Top drive power:

22.4 kW |

30 HP

DS114 – Lafarge Holcim for Sparrow’s Point

Material:

Natural gypsum

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

76 mm |

3 in

Conveying rate:

122 t/h |

135 STPH

Conveying angle:

85 deg

Belt width:

762 mm |

30 in

Belt speed:

2.03 m/s |

400 FPM

Lift:

23300 mm |

76 ft

Length:

61500 mm |

202 ft

Bottom drive power:

19 kW |

25 HP

Top drive power:

19 kW |

25 HP
