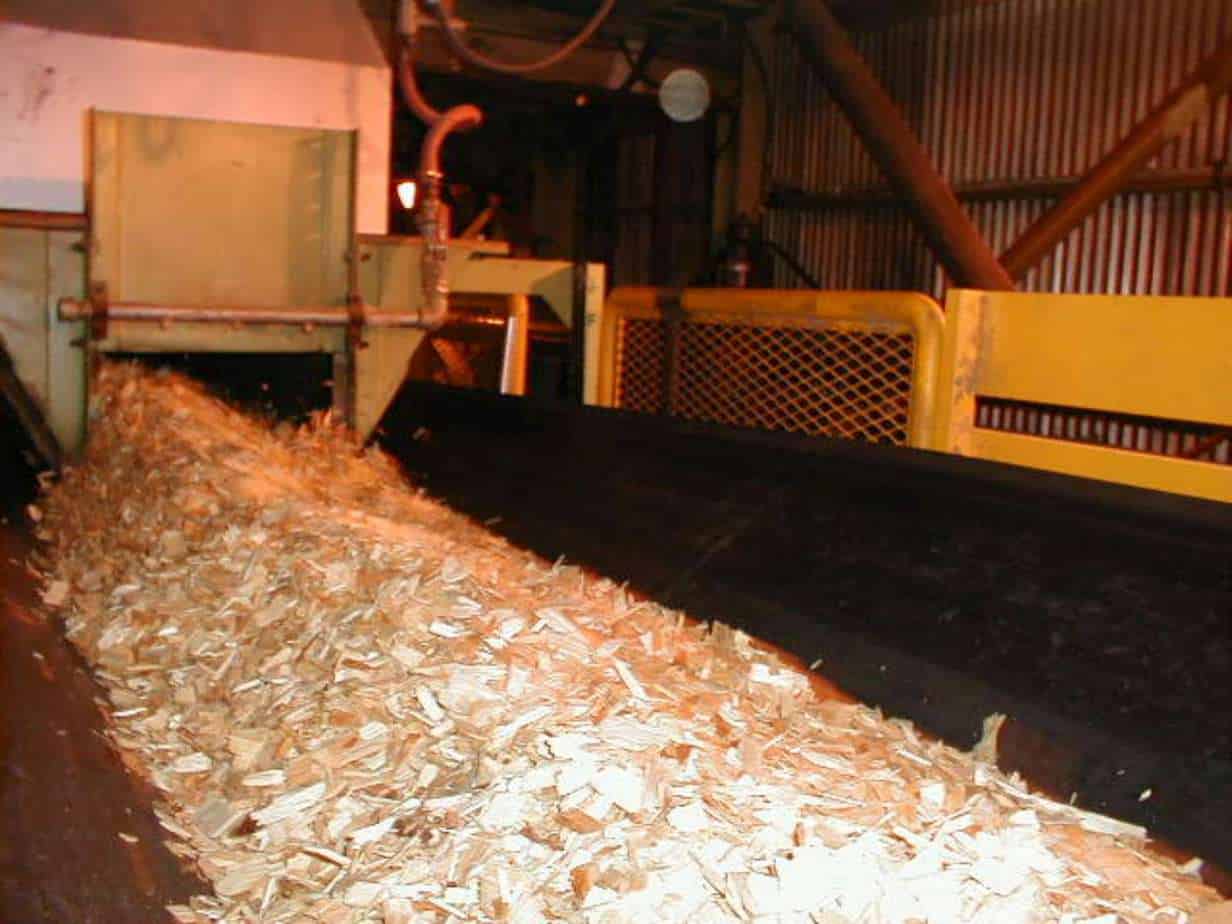

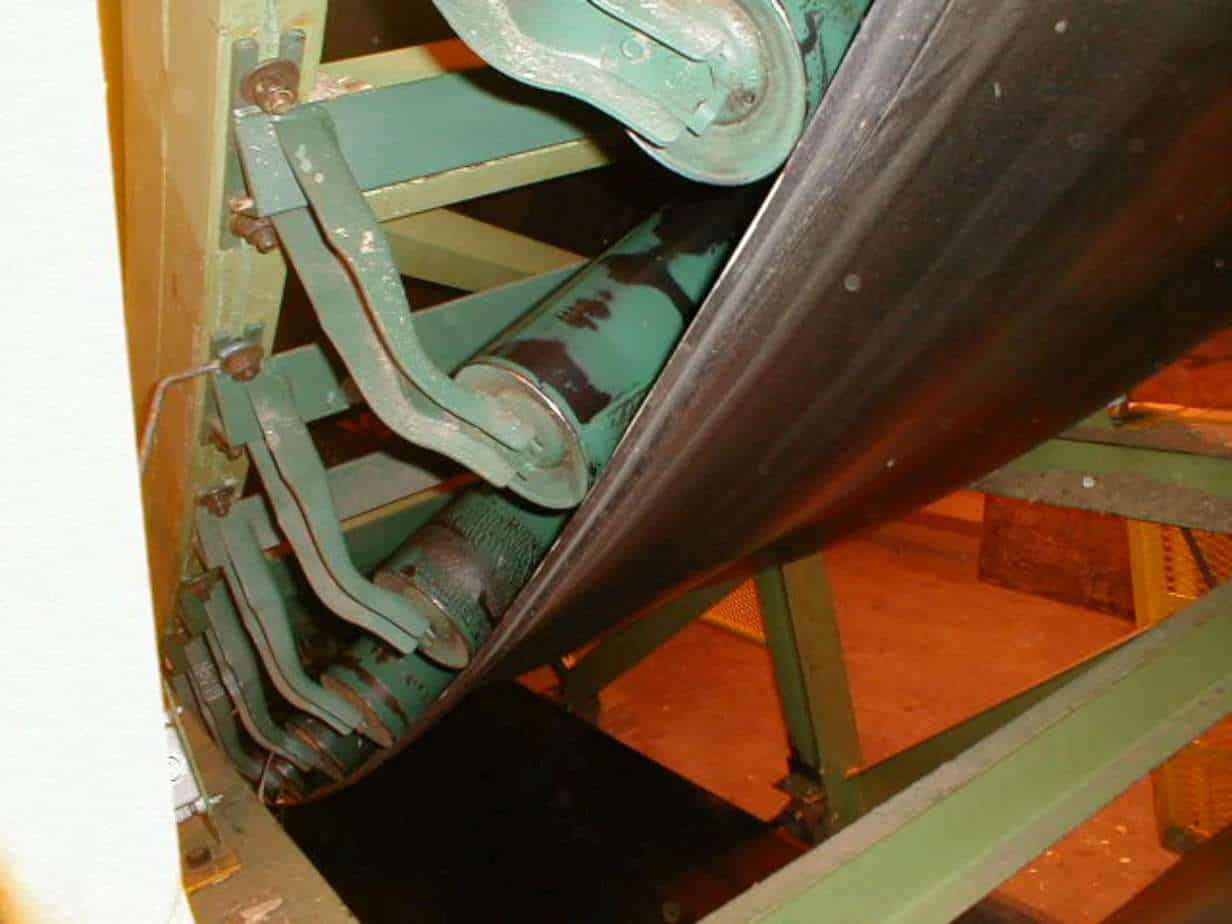

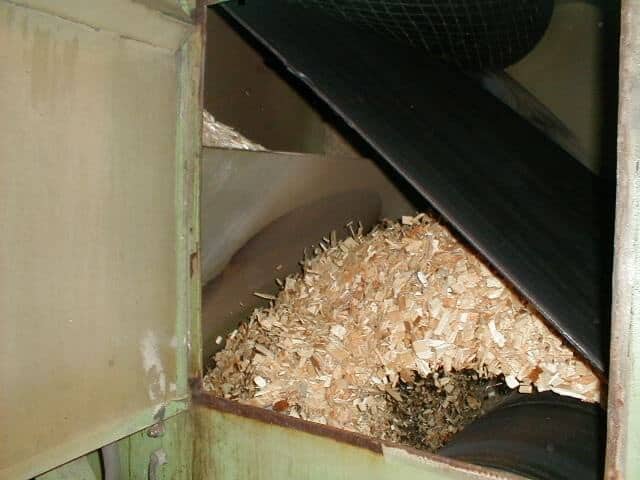

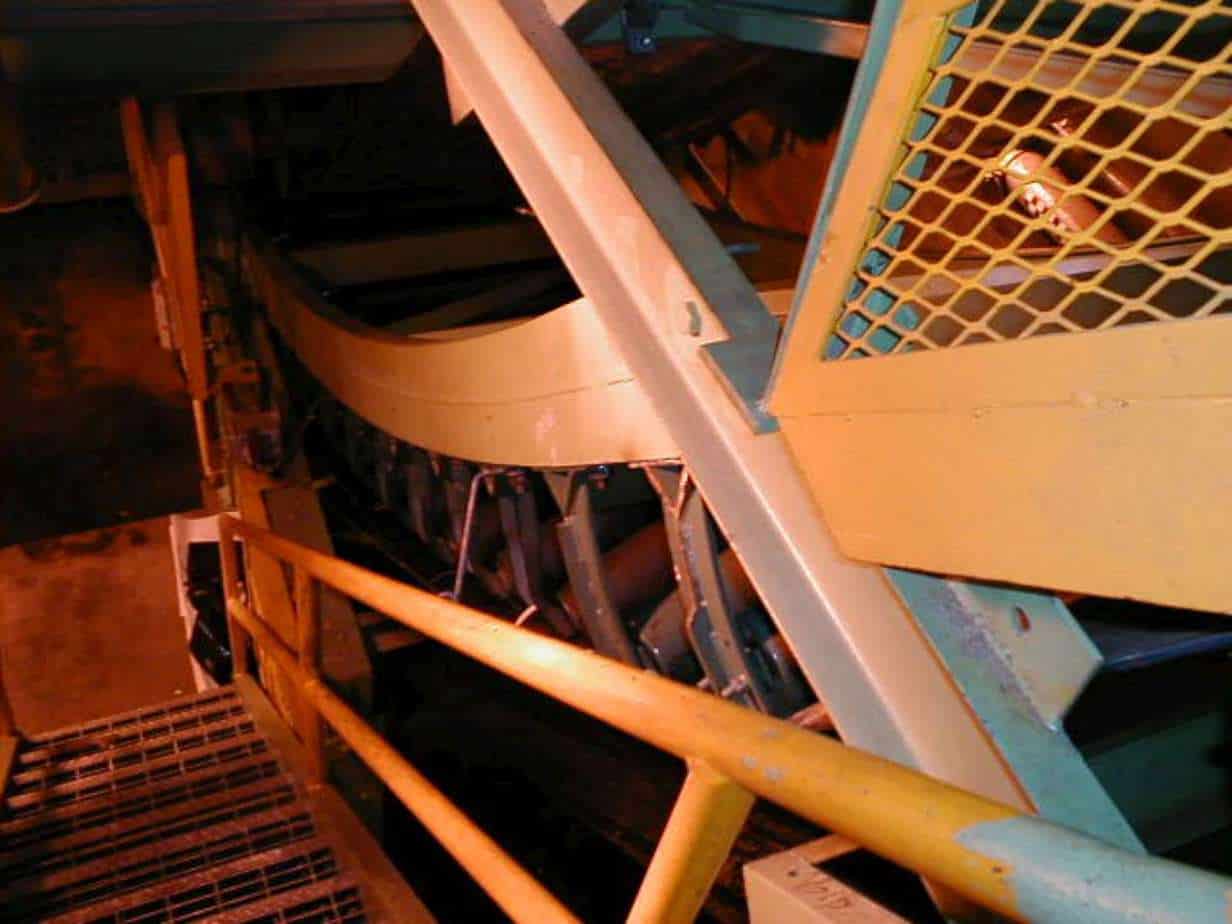

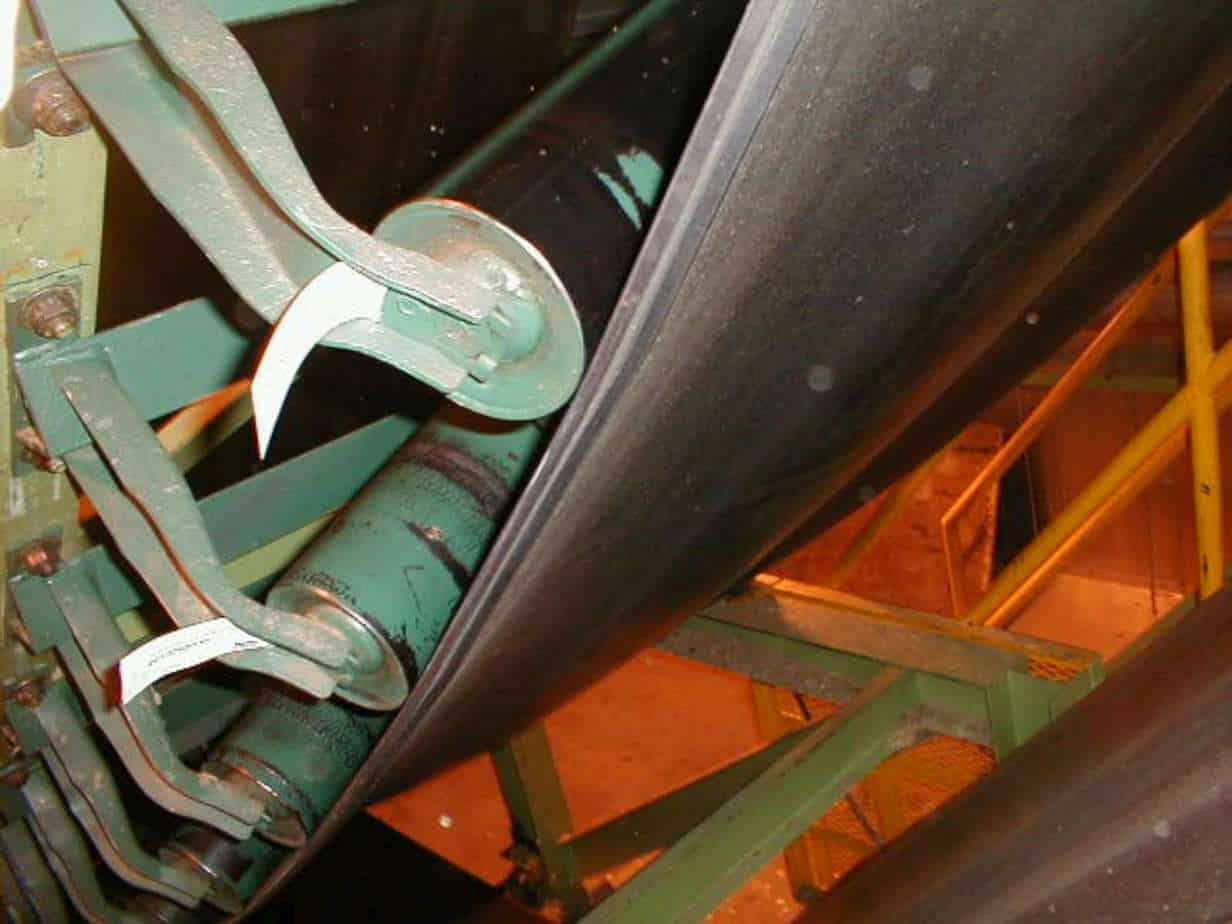

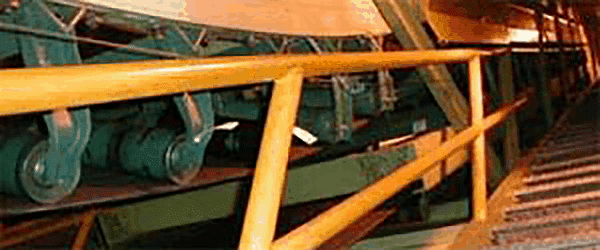

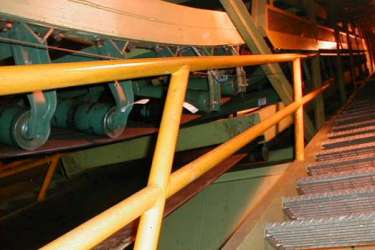

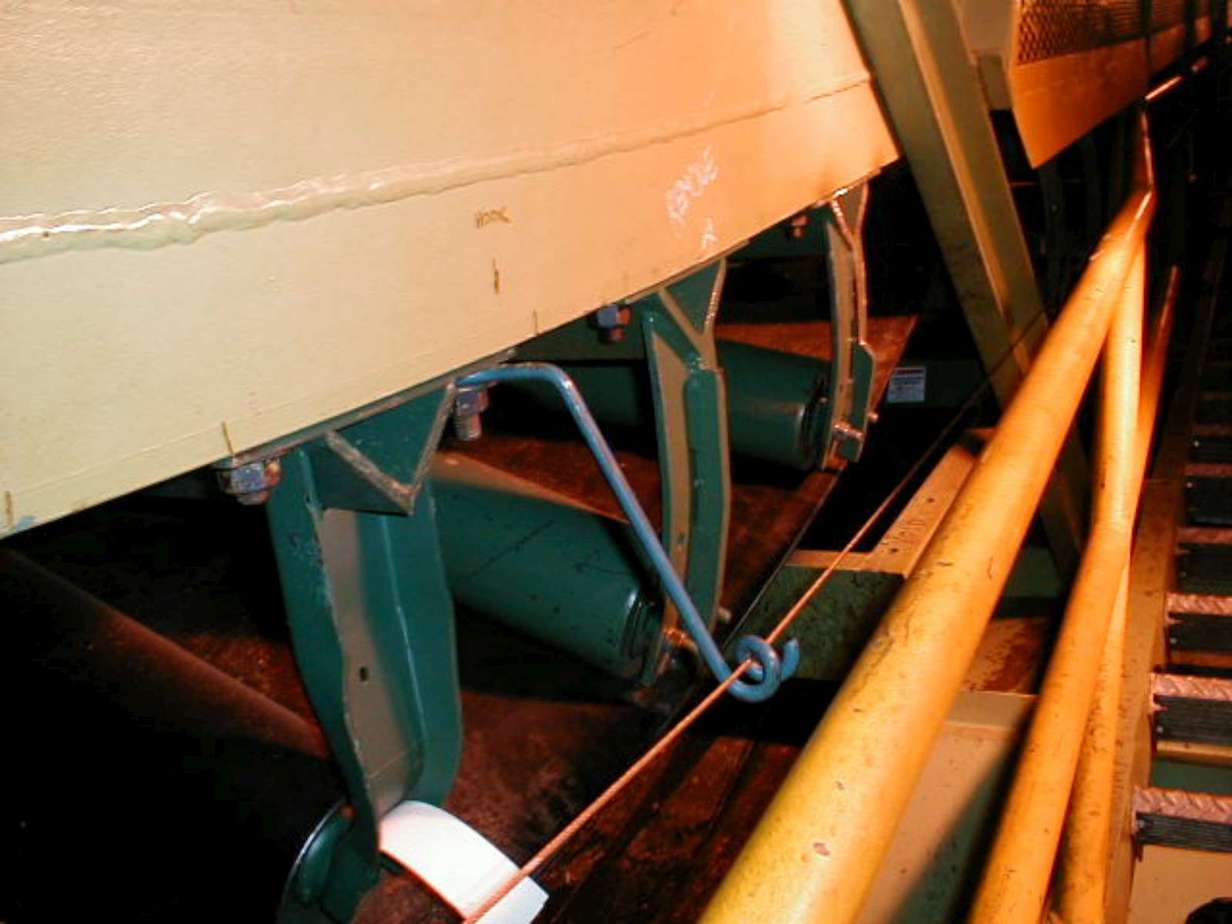

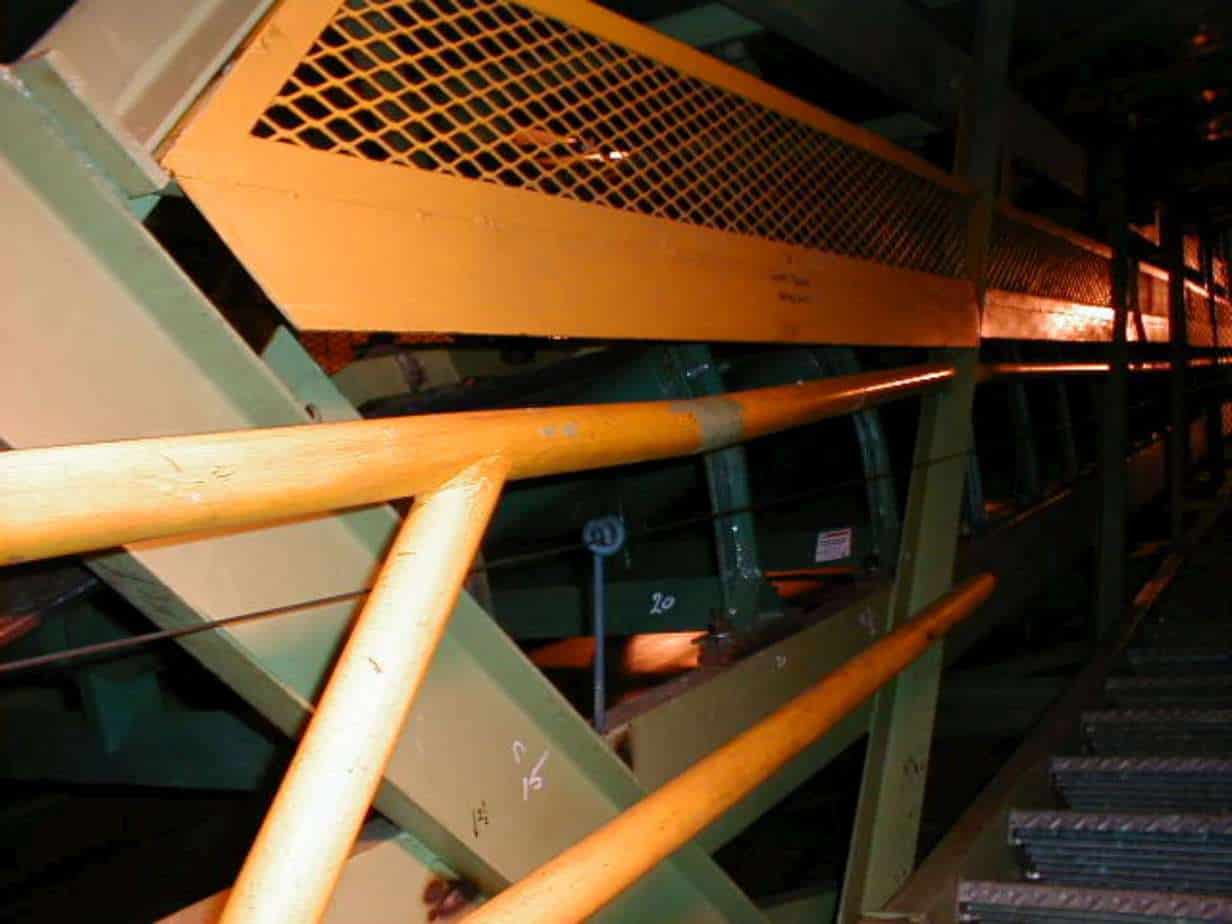

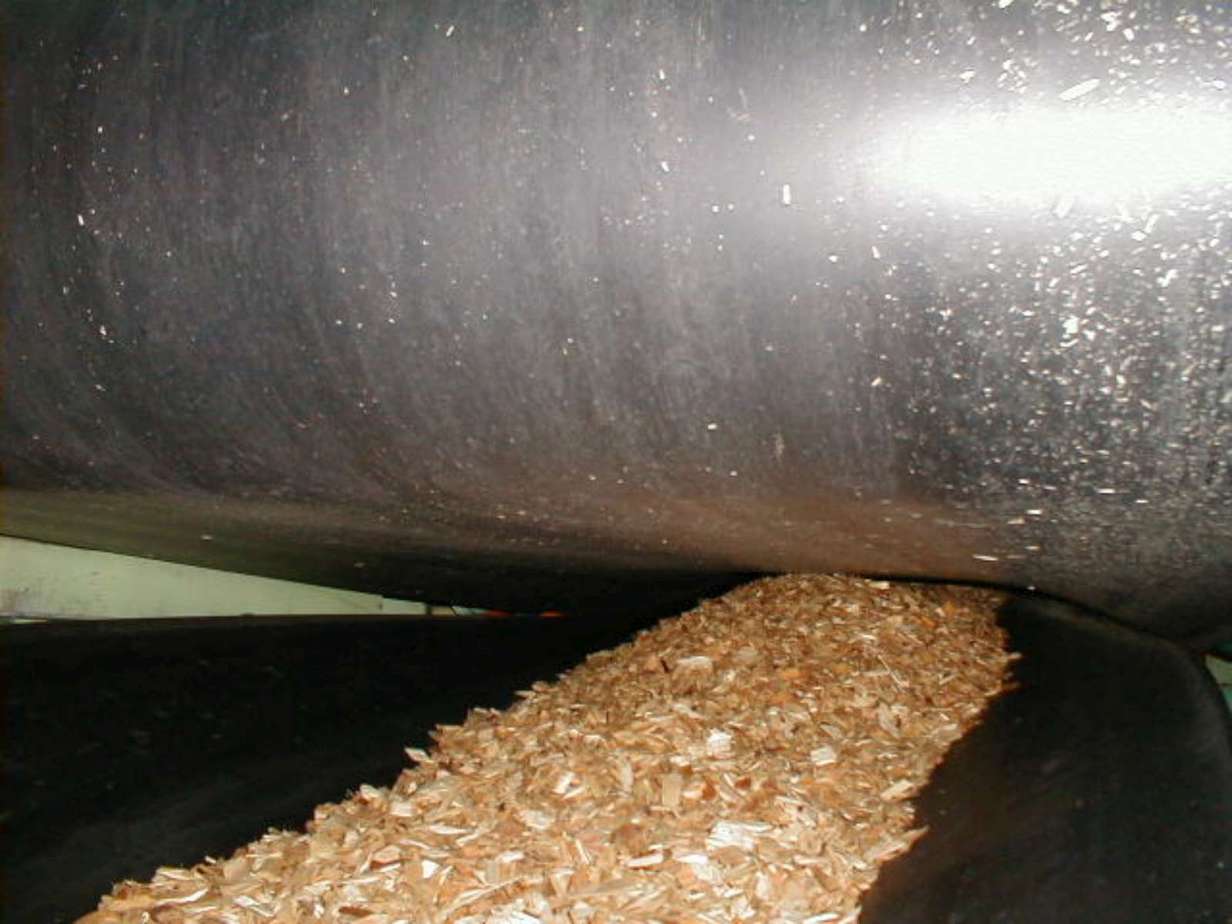

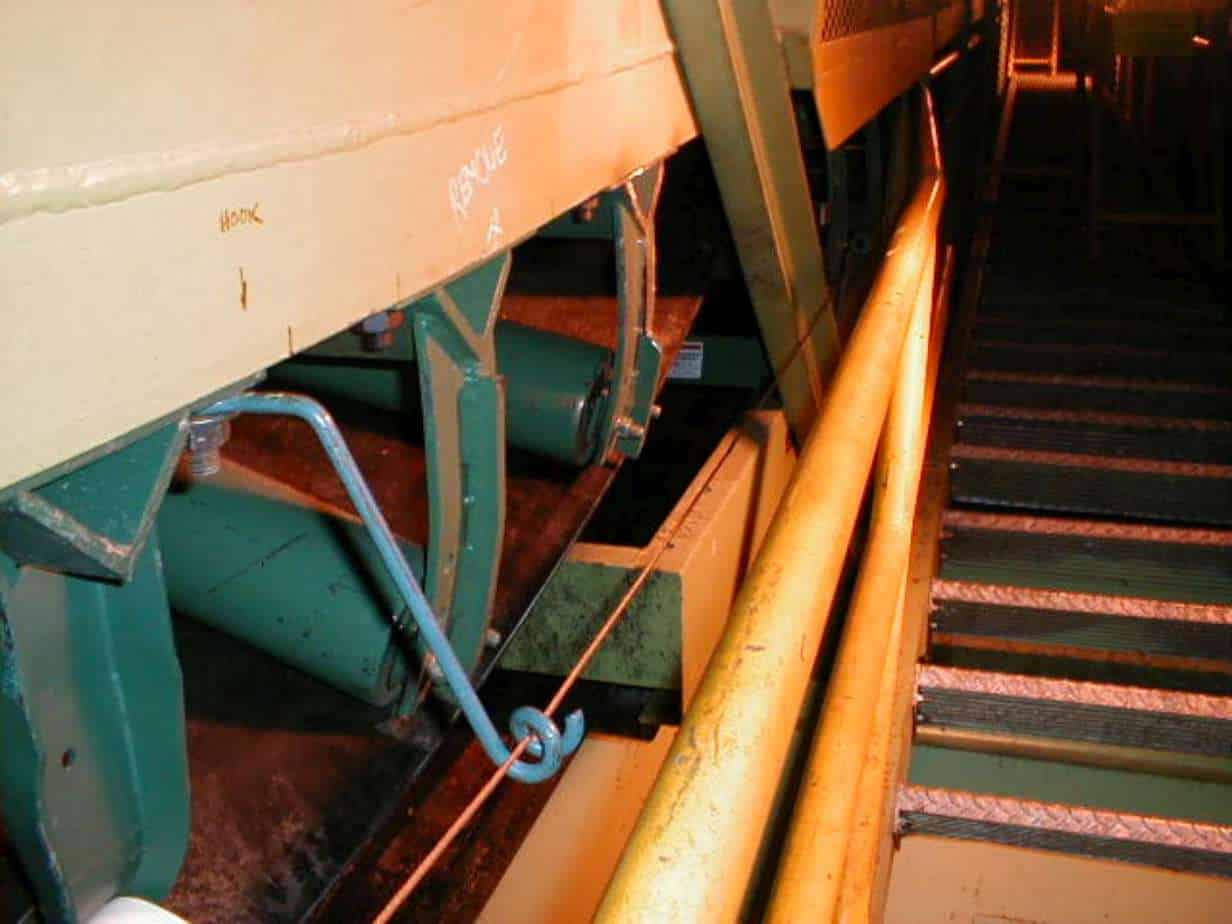

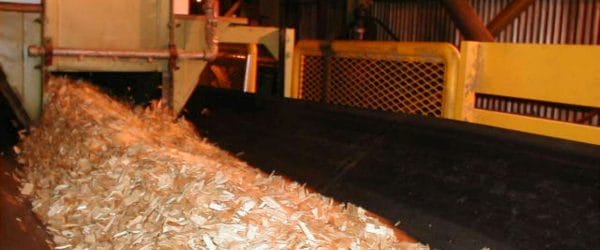

DS088 – Western Canada Pulp Mill Project

Material:

Wood chips

Bulk density:

0.2 t/cu-m |

15 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

203 t/h |

224 STPH

Conveying angle:

45 deg

Belt width:

1372 mm |

54 in

Belt speed:

2.61 m/s |

513 FPM

Lift:

20422 mm |

67 ft

Length:

57303 mm |

188 ft

Bottom drive power:

22.4 kW |

30 HP

Top drive power:

22.4 kW |

30 HP

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS104 – Zanella Maquinas at Brennand Cimentos Project

Material:

Cement feed

Bulk density:

1.4 t/cu-m |

87 PCF

Material size:

100 mm |

4 in

Conveying rate:

720 t/h |

794 STPH

Conveying angle:

60 deg

Belt width:

1219 mm |

48 in

Belt speed:

3.1 m/s |

610 FPM

Lift:

20290 mm |

66.7 ft

Length:

61470 mm |

202.7 ft

Bottom drive power:

56 kW |

75 HP

Top drive power:

56 kW |

75 HP

DS112 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

67056 mm |

220 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS116 – Singapore Airport Tunneling Project

Material:

Tunnel muck

Bulk density:

1.8 t/cu-m |

114 PCF

Material size:

150 mm |

6 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

45 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

32783 mm |

108 ft

Length:

90142 mm |

296 ft

Bottom drive power:

75 kW |

100 HP

Top drive power:

75 kW |

100 HP

DS120 – EleVeyor EL, Blue Plains for WWTP Project 2

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS117 – LMO Cooper Consolidated

Material:

Grain

Bulk density:

0.77 t/cu-m |

48 PCF

Material size:

101.6 mm |

4 in

Conveying rate:

2268 t/h |

2500 STPH

Conveying angle:

50 deg

Belt width:

2133 mm |

84 in

Belt speed:

4.57 m/s |

900 FPM

Lift:

18474 mm |

60.6 ft

Length:

36538 mm |

119.9 ft

Bottom drive power:

112 kW |

150 HP

Top drive power:

149 kW |

200 HP
