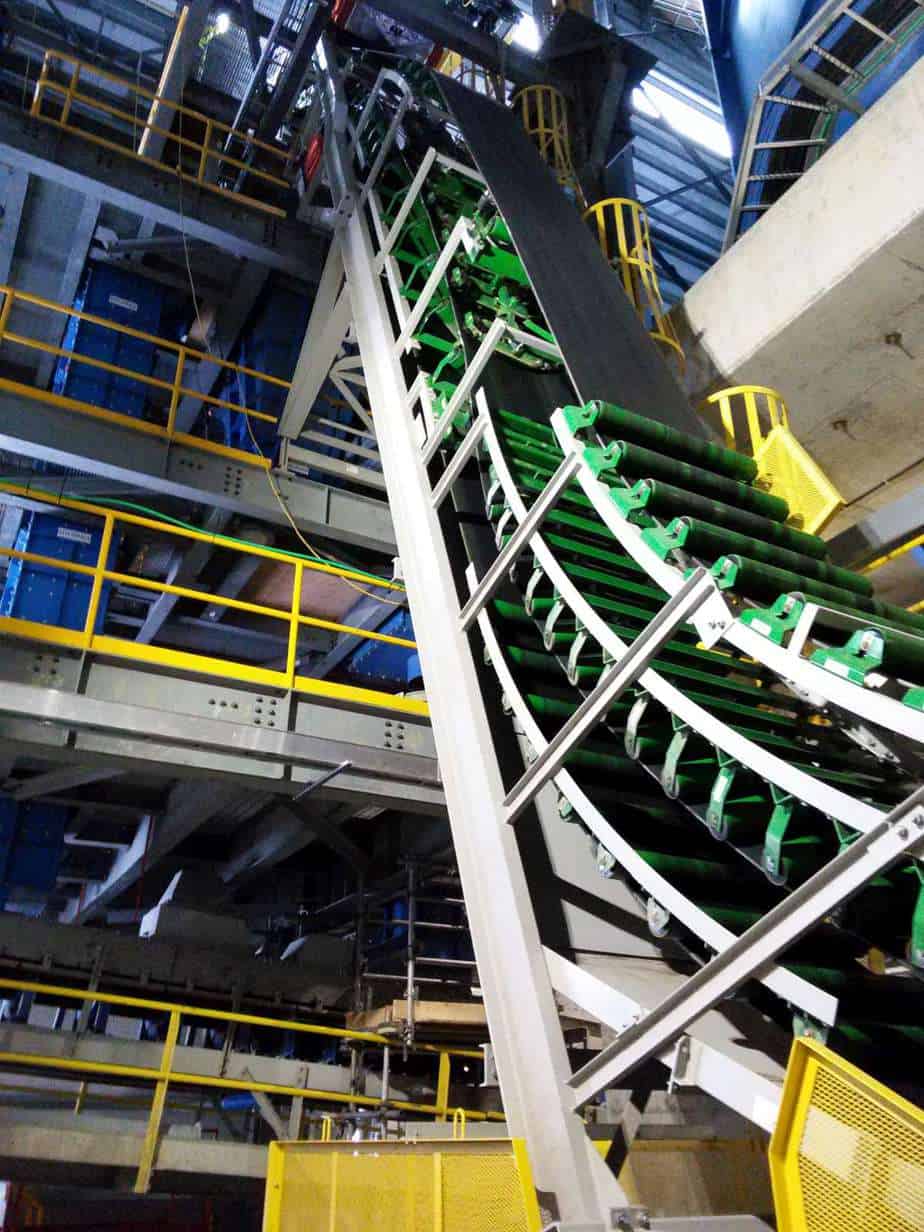

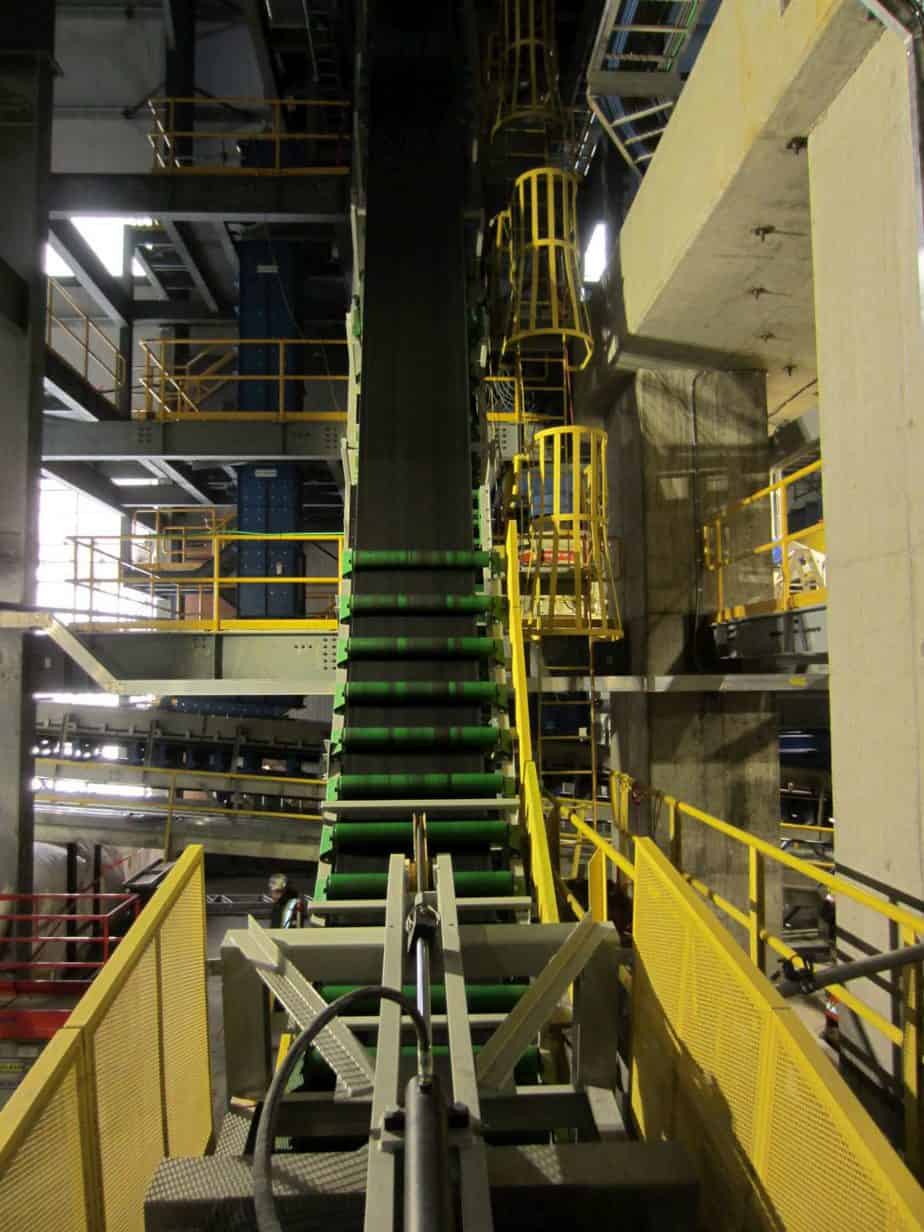

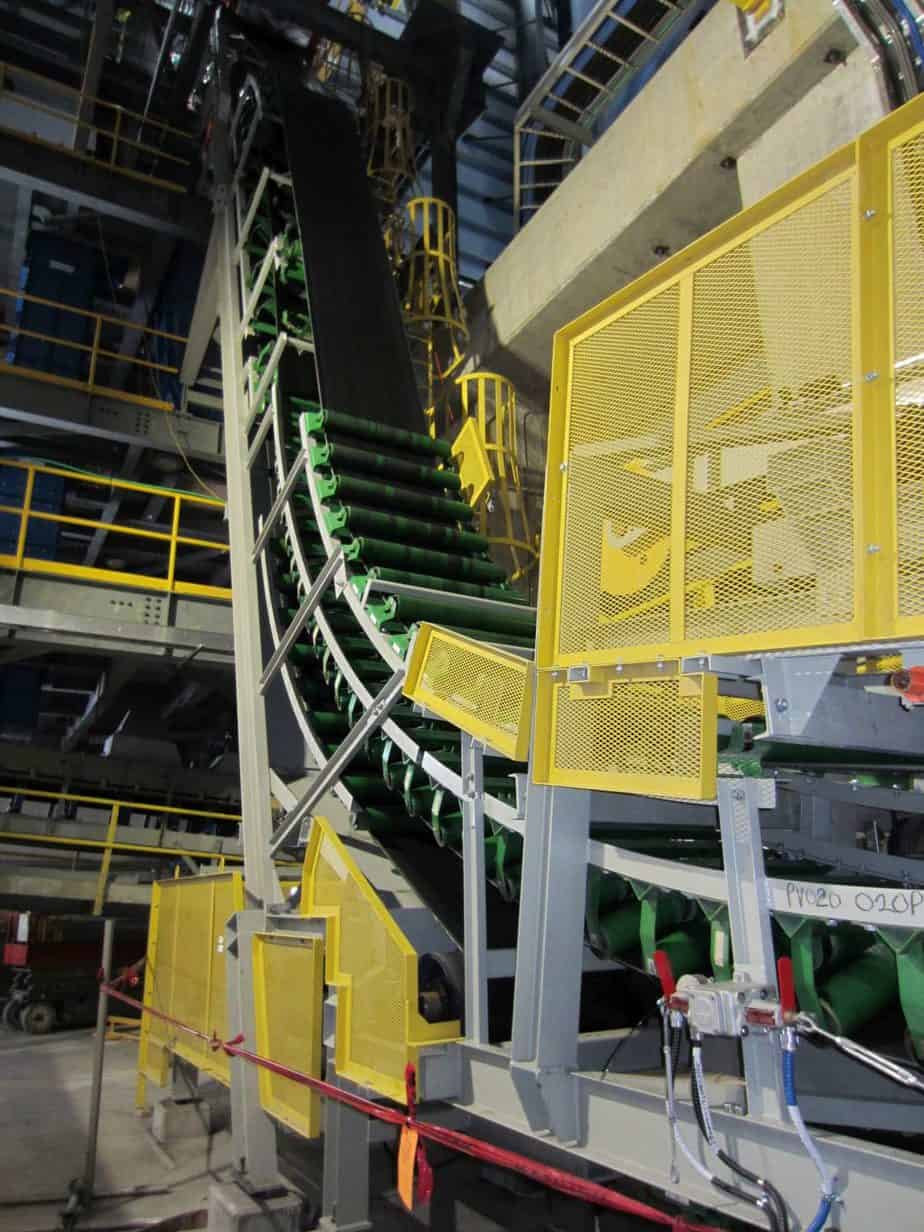

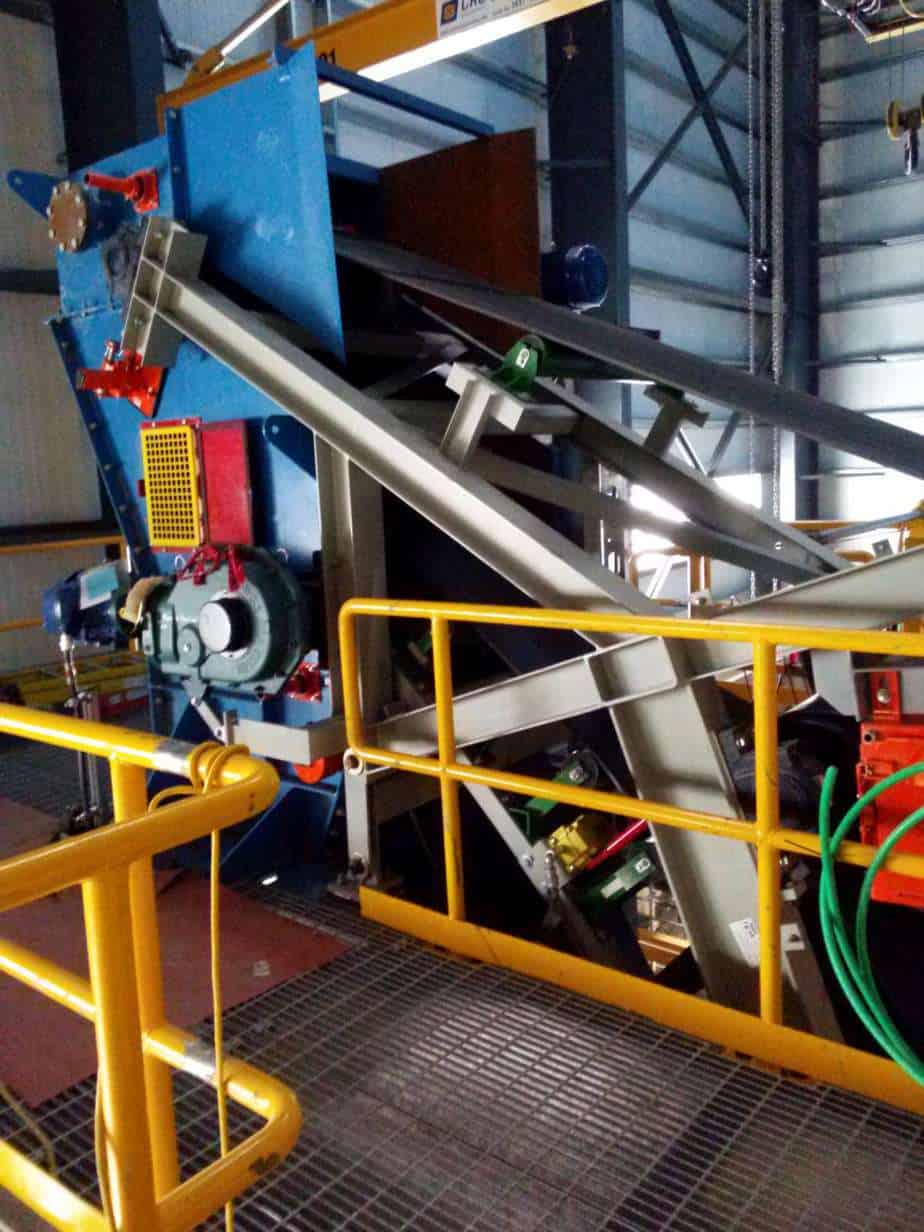

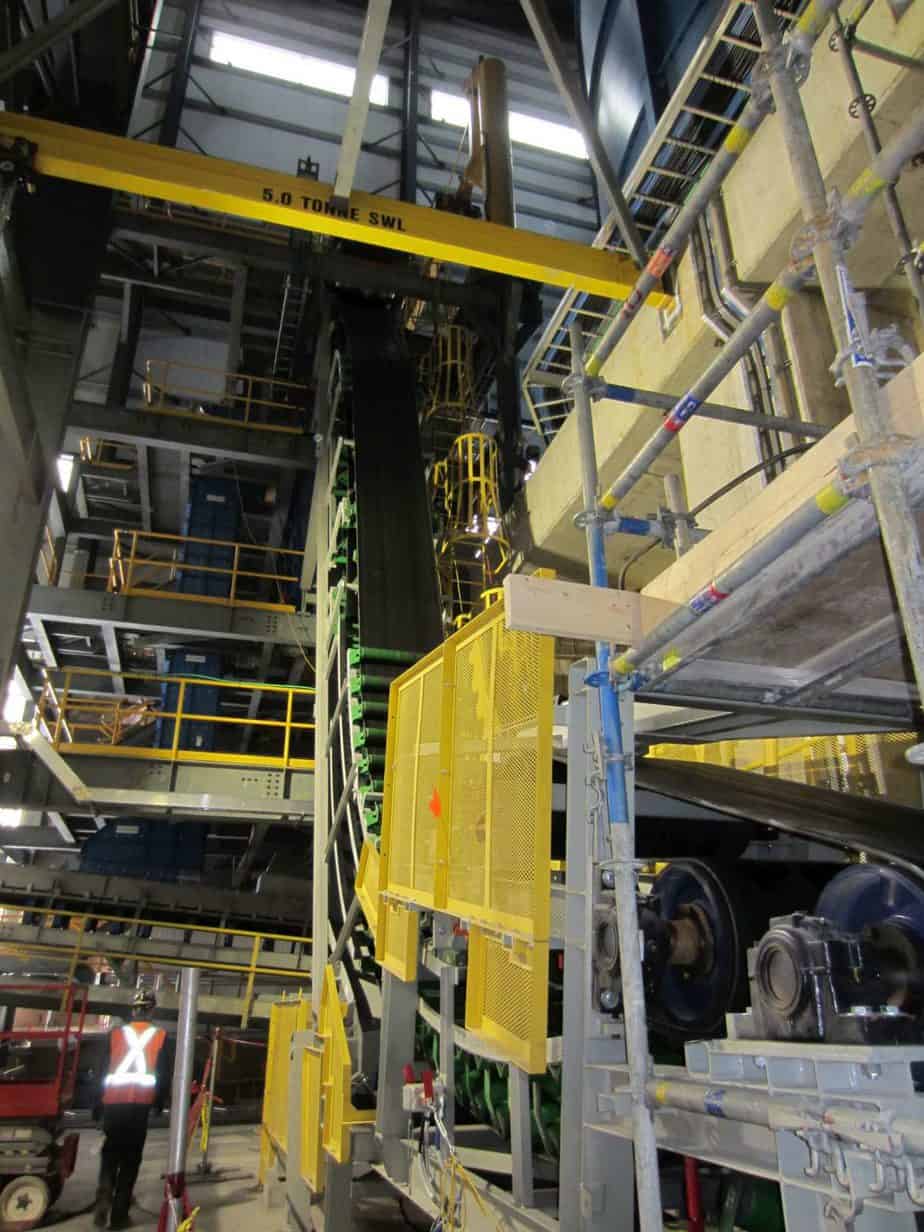

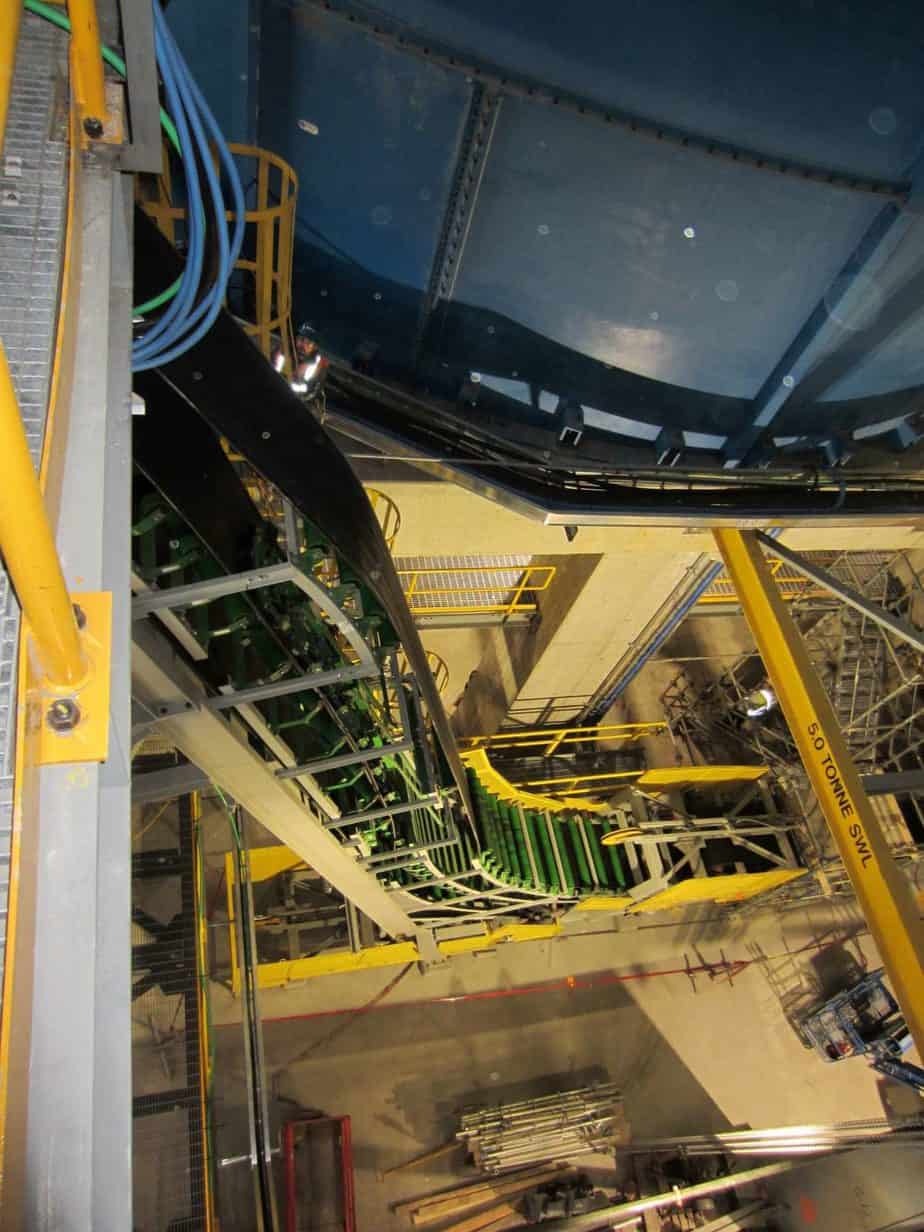

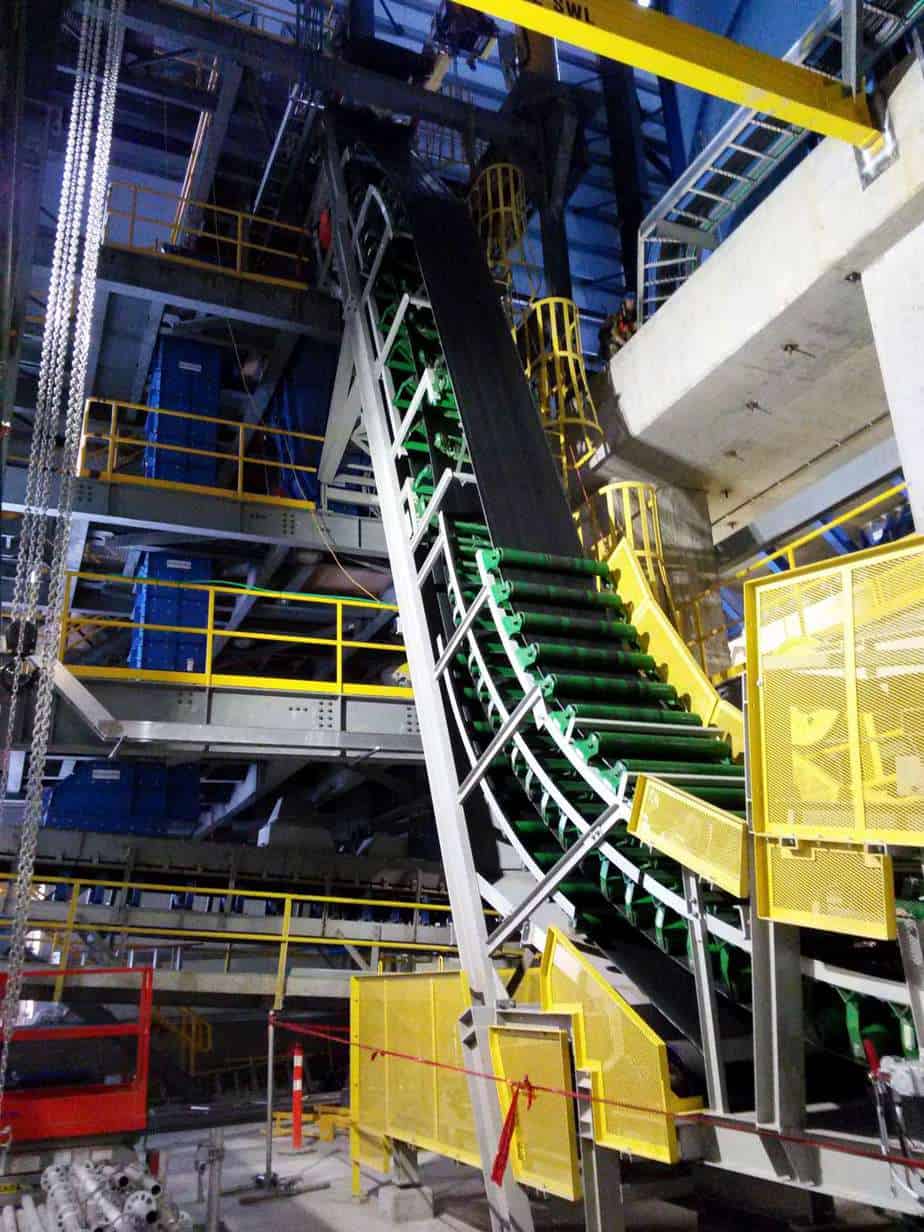

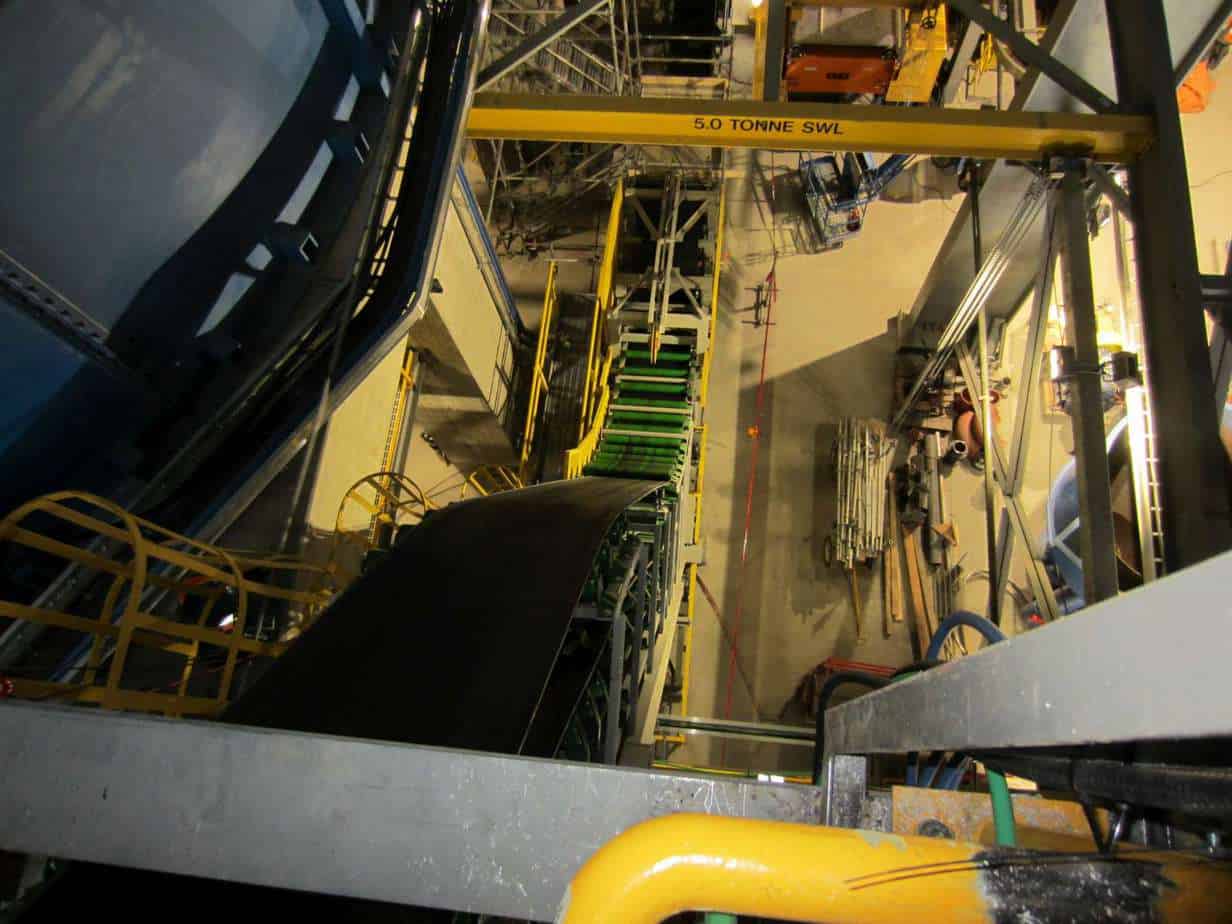

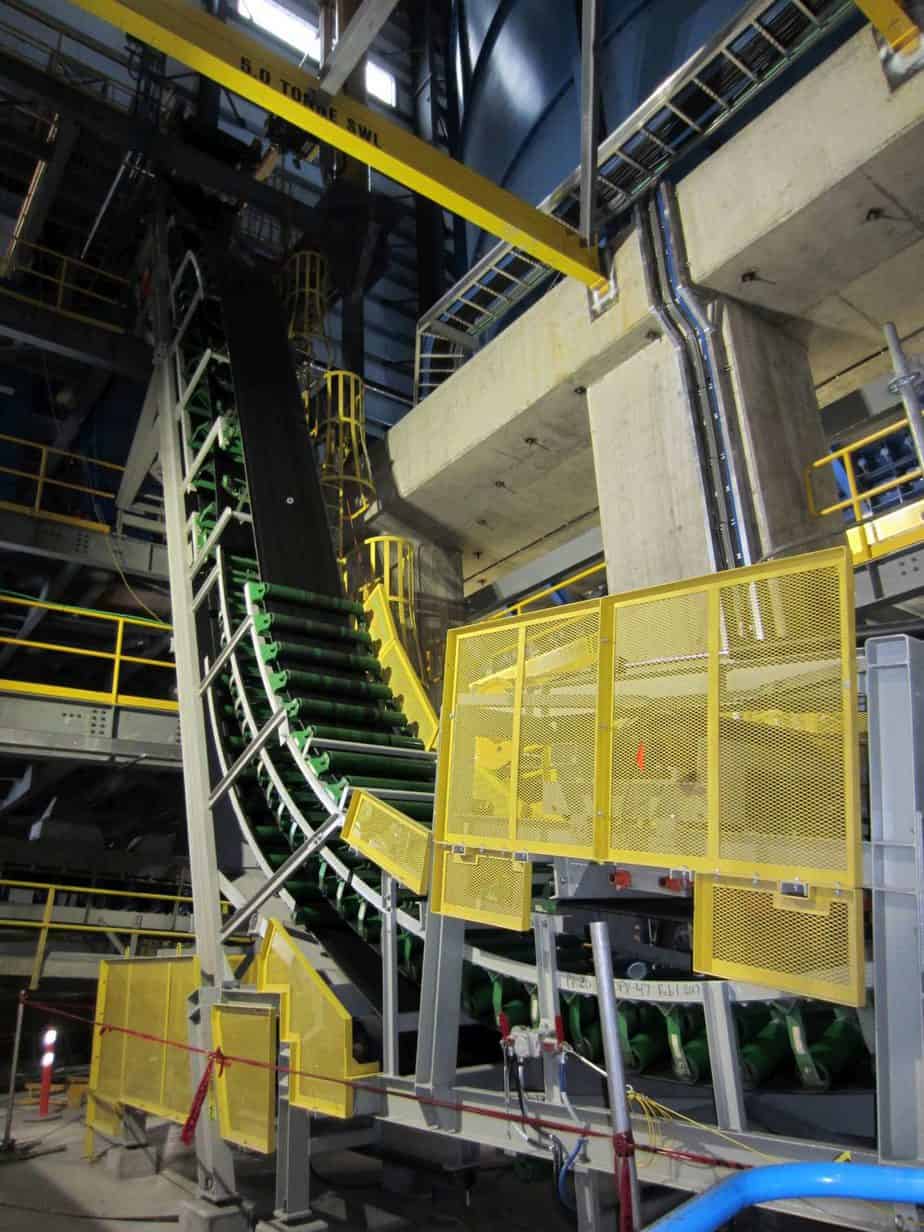

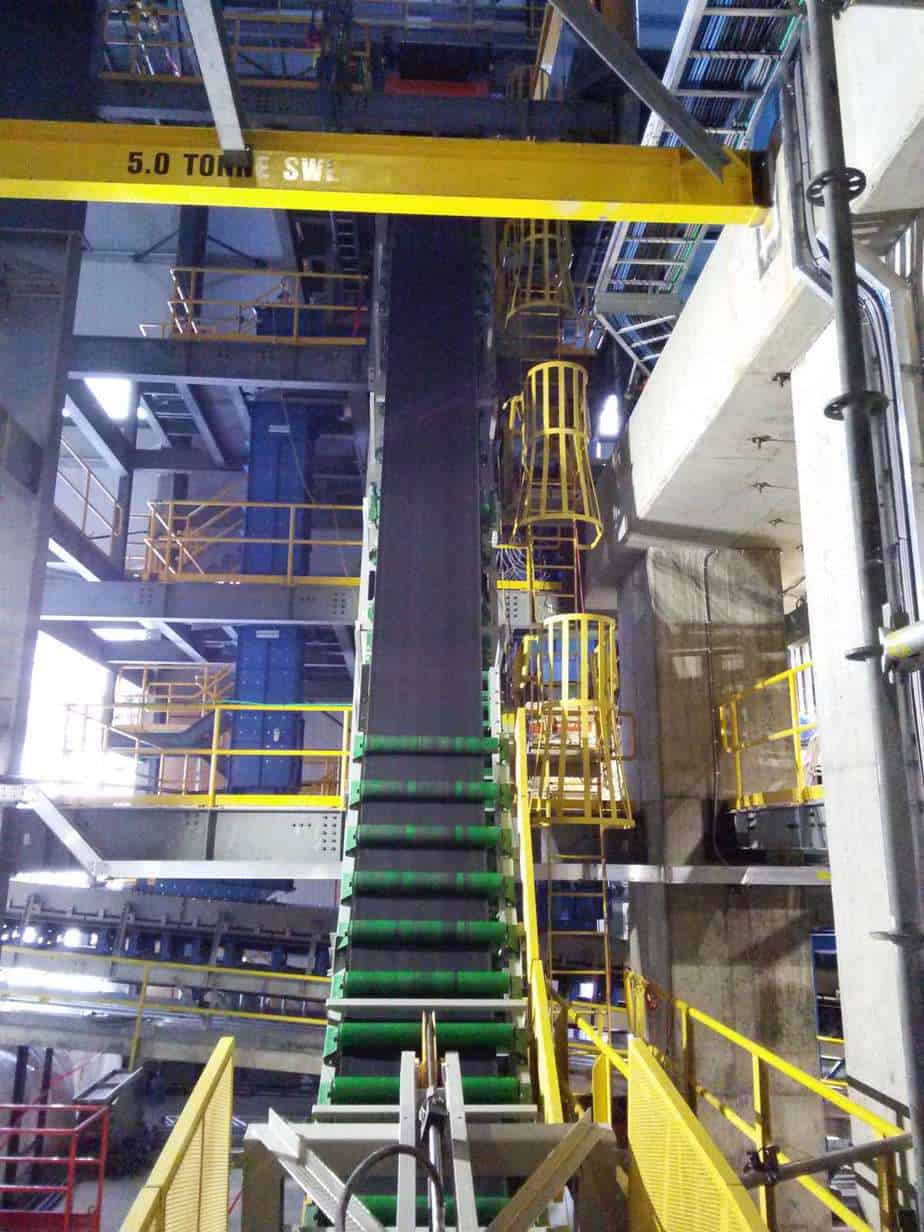

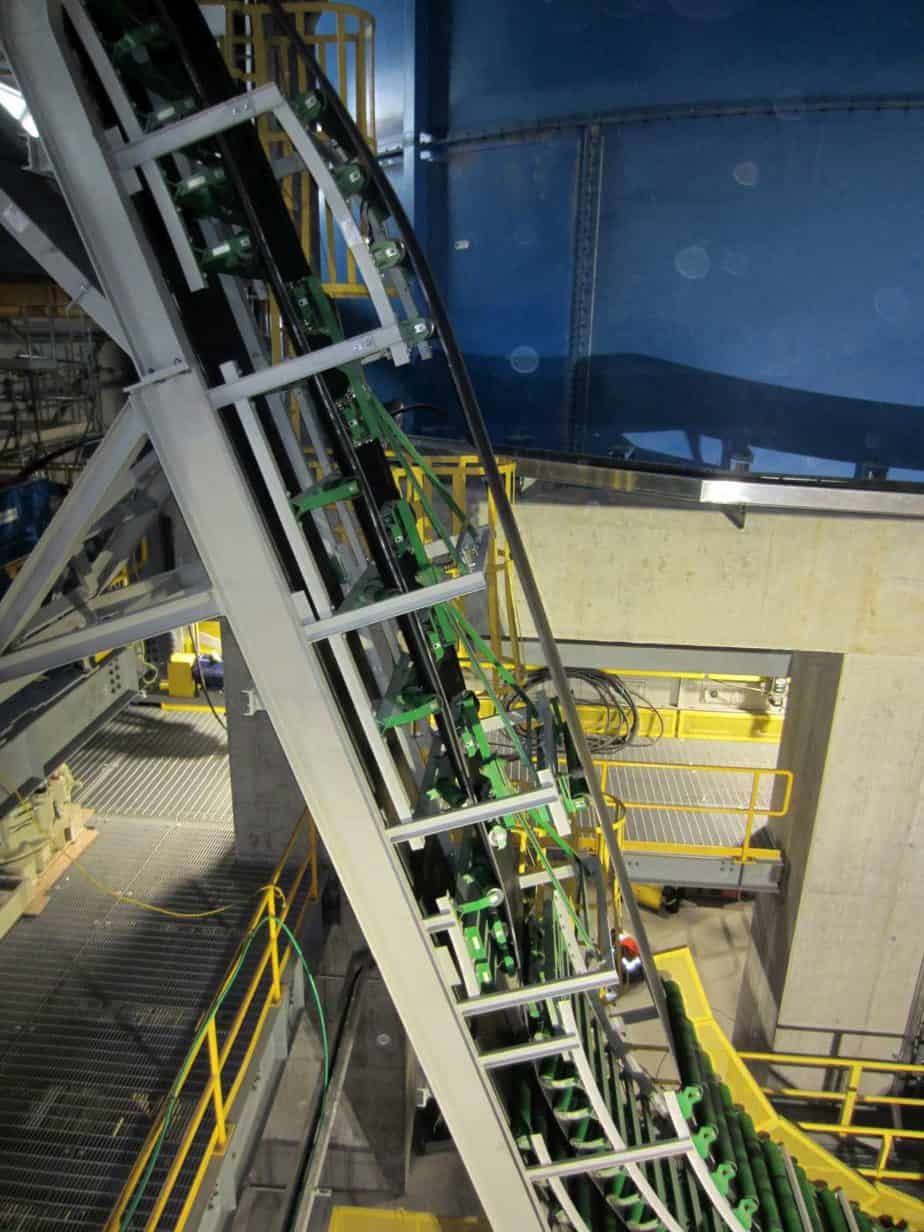

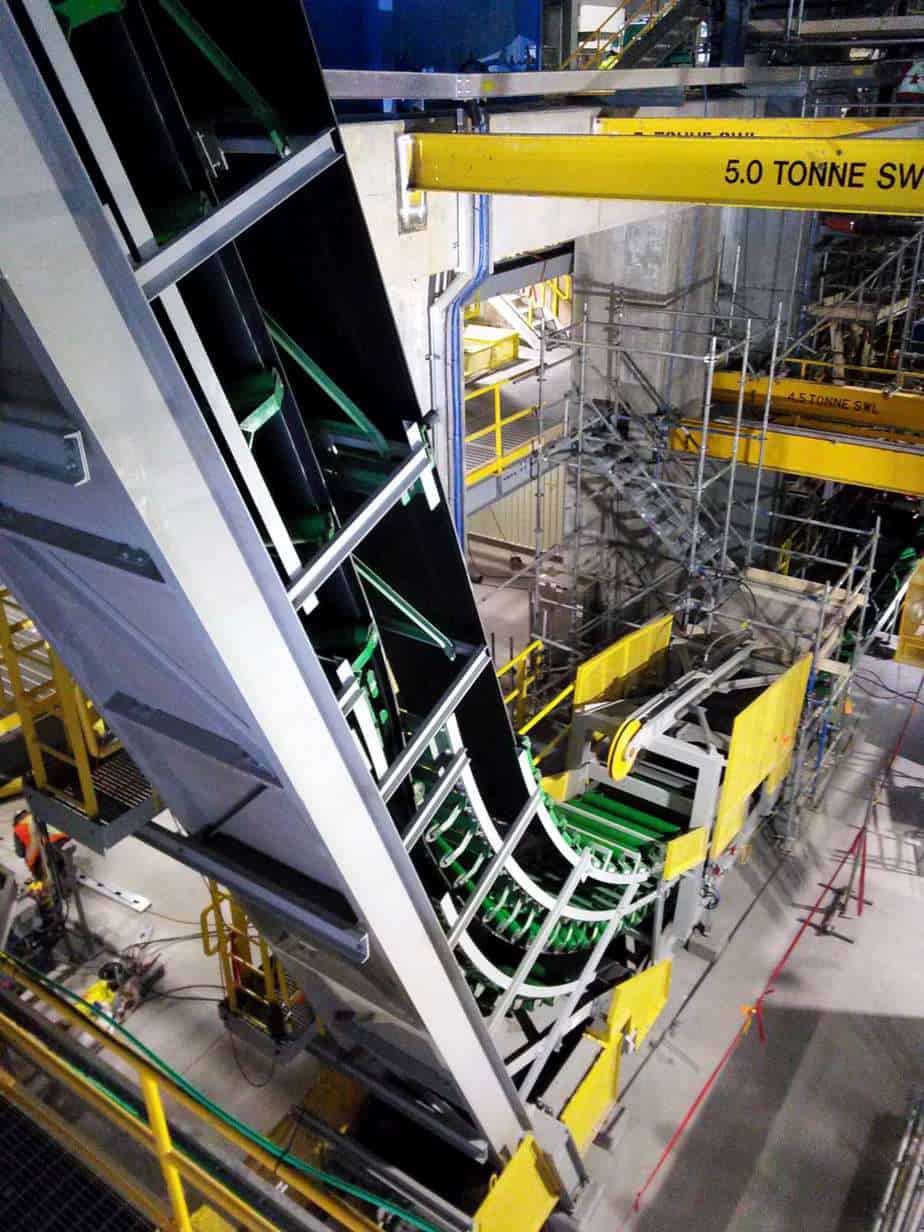

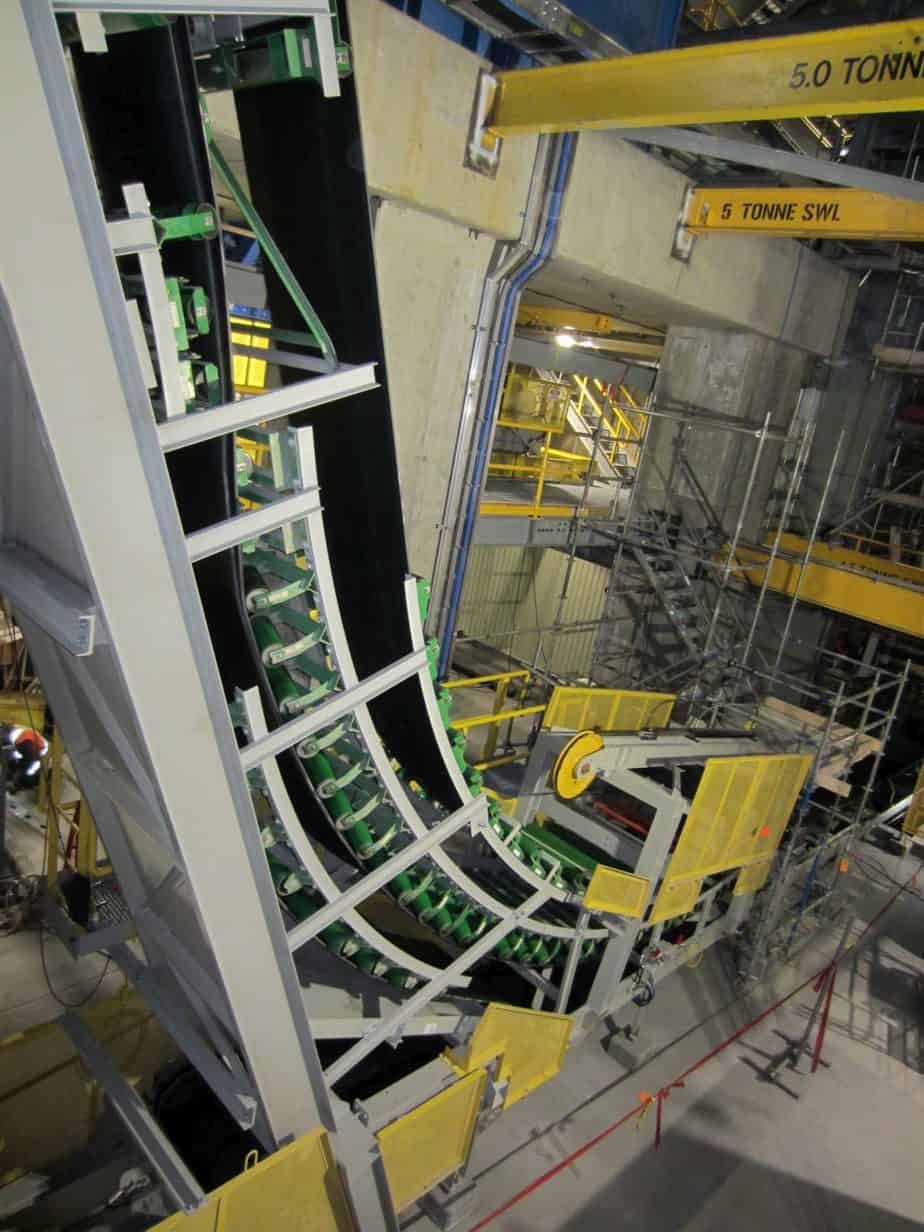

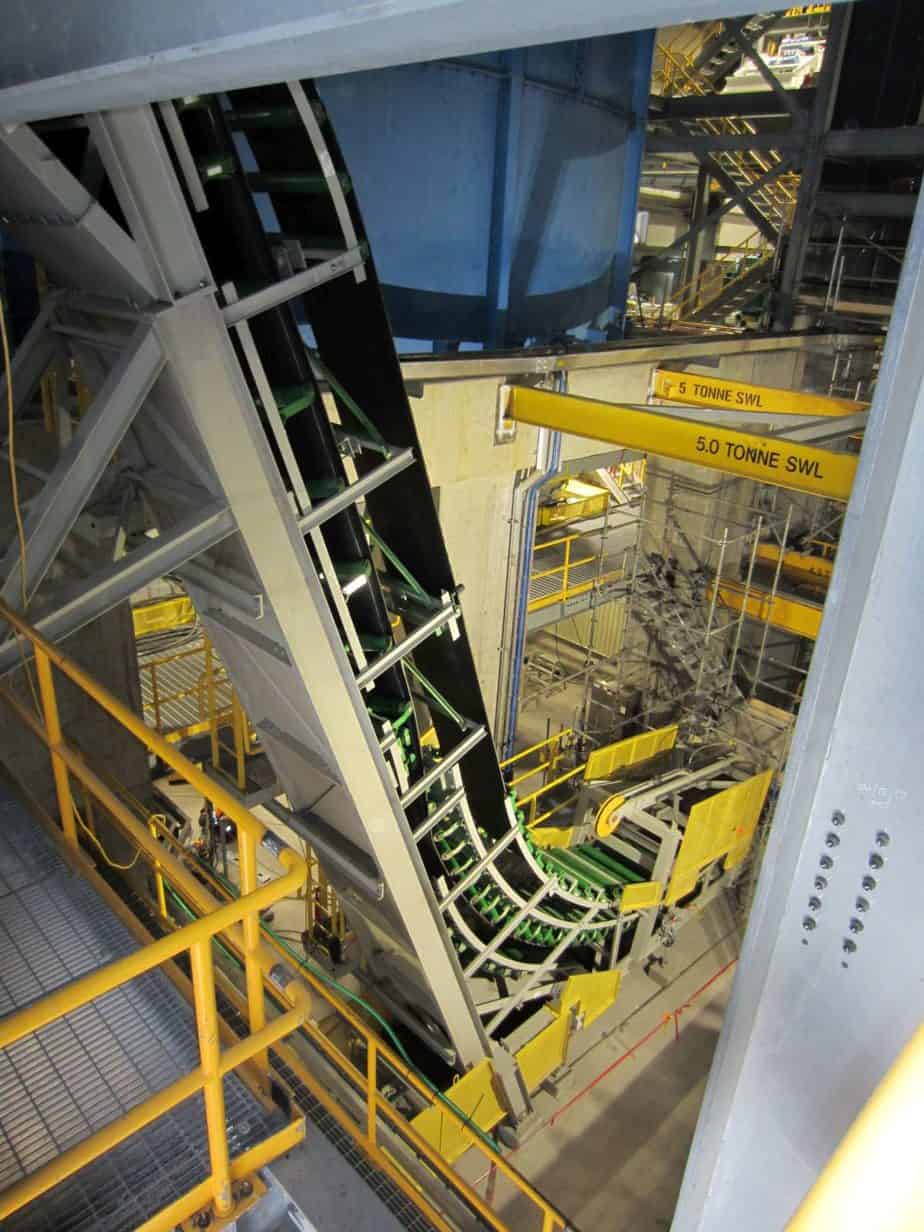

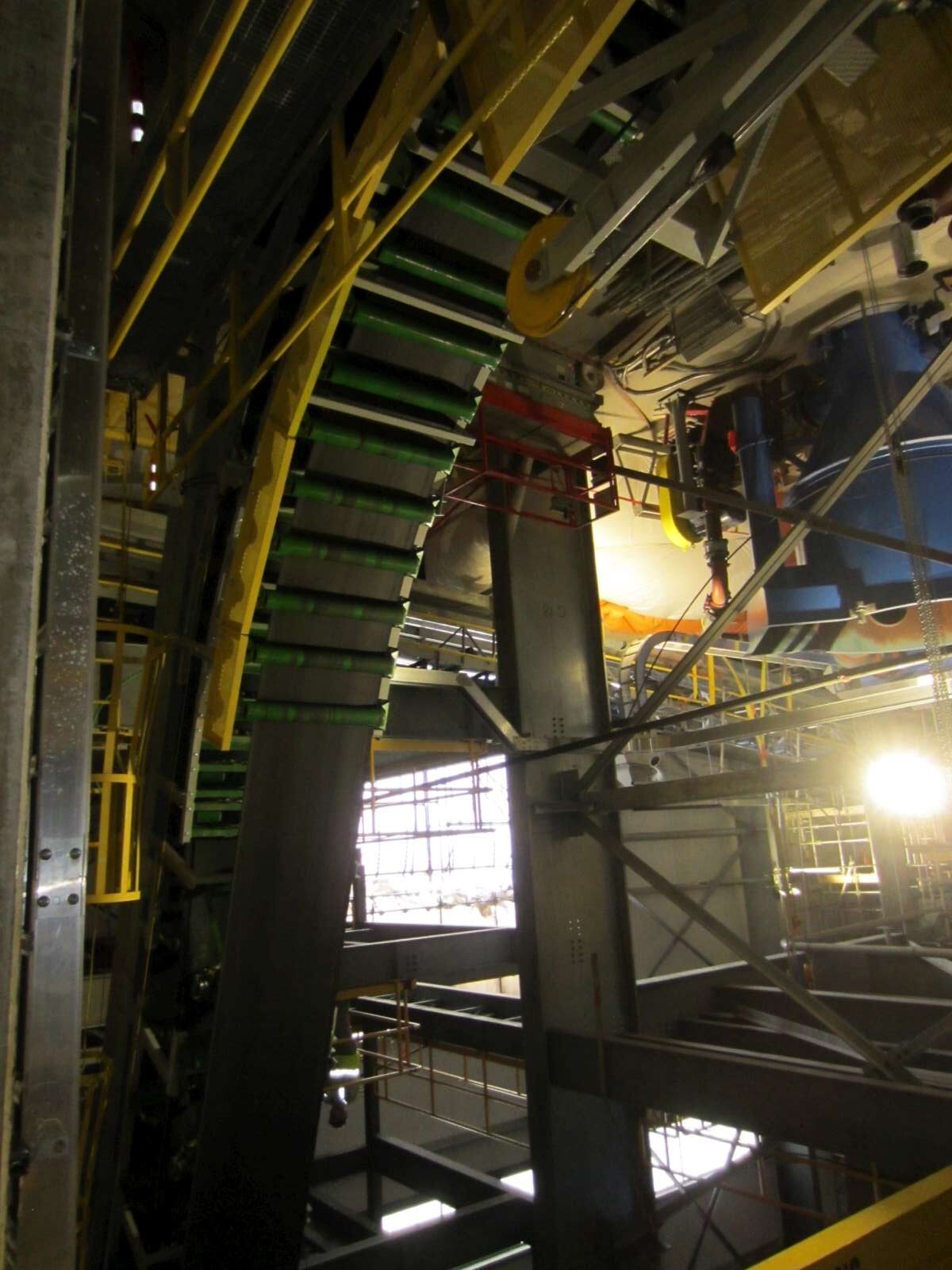

DS106 – Brucejack Mine Project

DS106 - Brucejack Mine Project - Image 3

DS106 - Brucejack Mine Project - Image 4

DS106 - Brucejack Mine Project - Image 5

DS106 - Brucejack Mine Project - Image 6

DS106 - Brucejack Mine Project - Image 7

DS106 - Brucejack Mine Project - Image 8

DS106 - Brucejack Mine Project - Image 9

DS106 - Brucejack Mine Project - Image 10

DS106 - Brucejack Mine Project - Image 11

DS106 - Brucejack Mine Project - Image 12

DS106 - Brucejack Mine Project - Image 13

DS106 - Brucejack Mine Project - Image 14

DS106 - Brucejack Mine Project - Image 15

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS094 – Becma Corporation for Victor Diamond Mine Project Unit 10

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

381 t/h |

420 STPH

Conveying angle:

50 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

18508 mm |

60.7 ft

Length:

67581 mm |

221.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS089 – Continental Canada Inco Voisey’s Bay Project

Material:

Pebble ore

Bulk density:

2.3 t/cu-m |

140 PCF

Material size:

60 mm |

2.4 in

Conveying rate:

102 t/h |

112 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

1.02 m/s |

200 FPM

Lift:

13010 mm |

42.7 ft

Length:

23500 mm |

77.1 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS086 – Empire Iron Ore Mining Partnership Project

Material:

Iron ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

2 mm |

0.08 in

Conveying rate:

793 t/h |

708 STPH

Conveying angle:

65 deg

Belt width:

1067 mm |

42 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

11522 mm |

37.8 ft

Length:

21489 mm |

70.5 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

37.3 kW |

50 HP

DSCo006 – DSI Conveyor TB-25 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

11 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

5500 mm |

17.9 ft

Length:

41200 mm |

133.4 ft

Bottom drive power:

44.7 kW |

60 HP

Top drive power:

N/A kW |

N/A HP

DS111 – M3 for Buritica Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

76 mm |

3 in

Conveying rate:

135 t/h |

149 STPH

Conveying angle:

45 deg

Belt width:

762 mm |

30 in

Belt speed:

1.07 m/s |

211 FPM

Lift:

6750 mm |

22.2 ft

Length:

17500 mm |

57.3 ft

Bottom drive power:

11 kW |

15 HP

Top drive power:

11 kW |

15 HP

DS117 – LMO Cooper Consolidated

Material:

Grain

Bulk density:

0.77 t/cu-m |

48 PCF

Material size:

101.6 mm |

4 in

Conveying rate:

2268 t/h |

2500 STPH

Conveying angle:

50 deg

Belt width:

2133 mm |

84 in

Belt speed:

4.57 m/s |

900 FPM

Lift:

18474 mm |

60.6 ft

Length:

36538 mm |

119.9 ft

Bottom drive power:

112 kW |

150 HP

Top drive power:

149 kW |

200 HP
