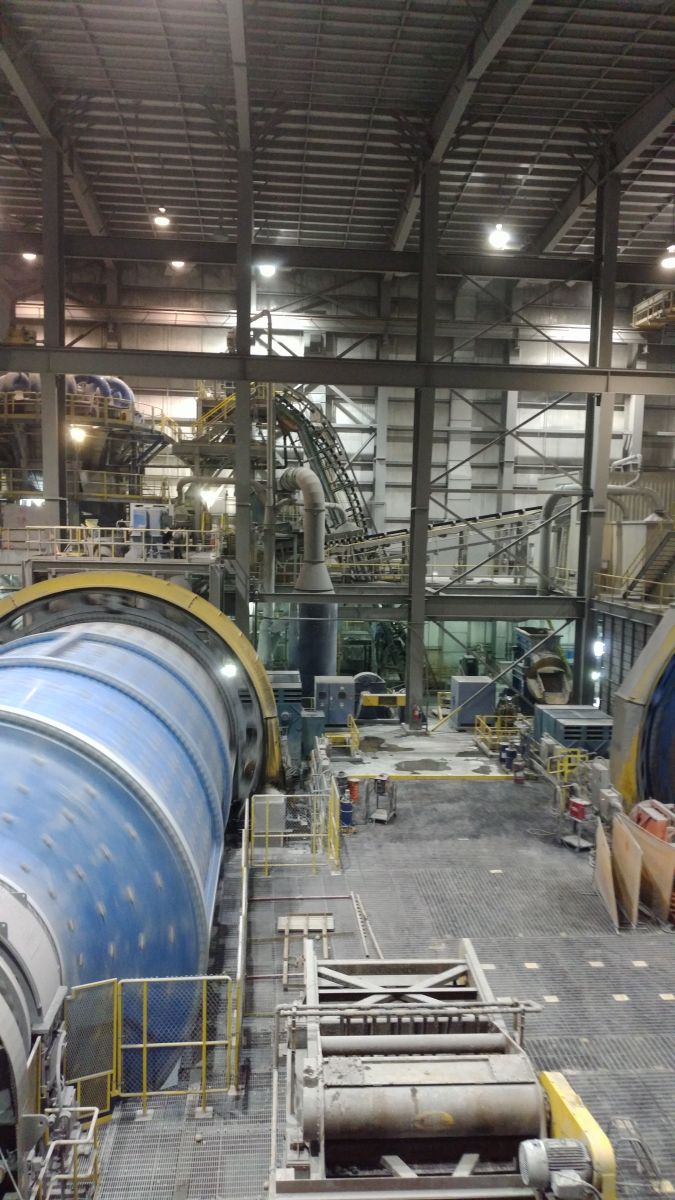

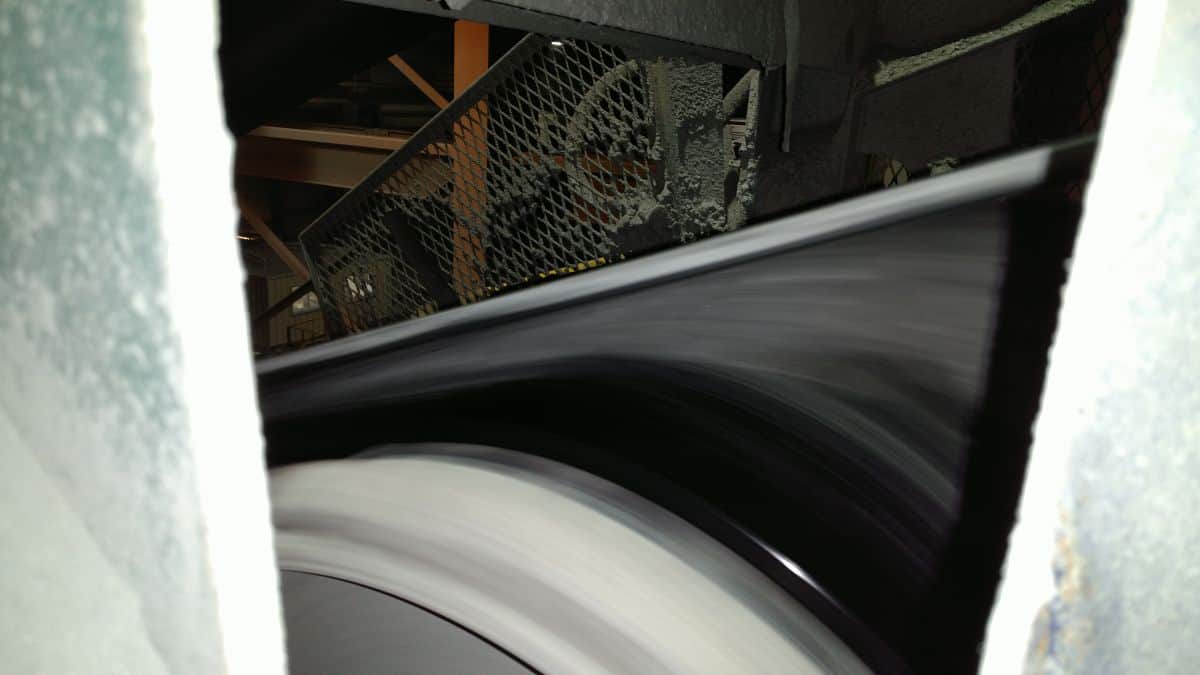

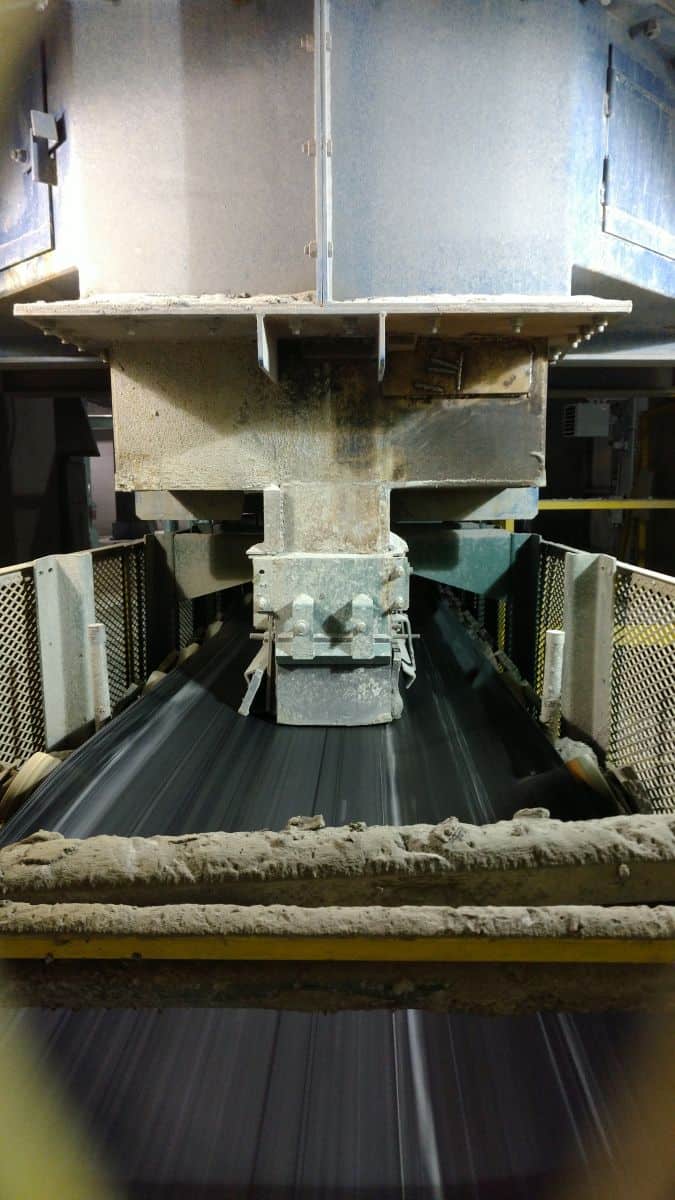

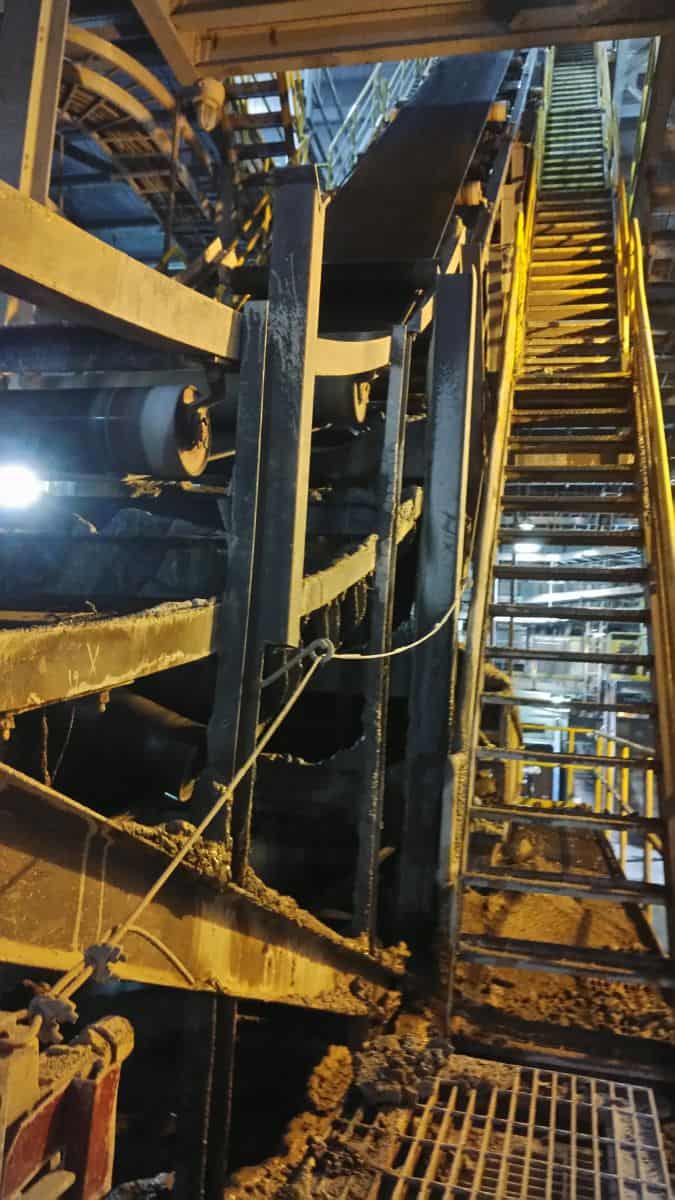

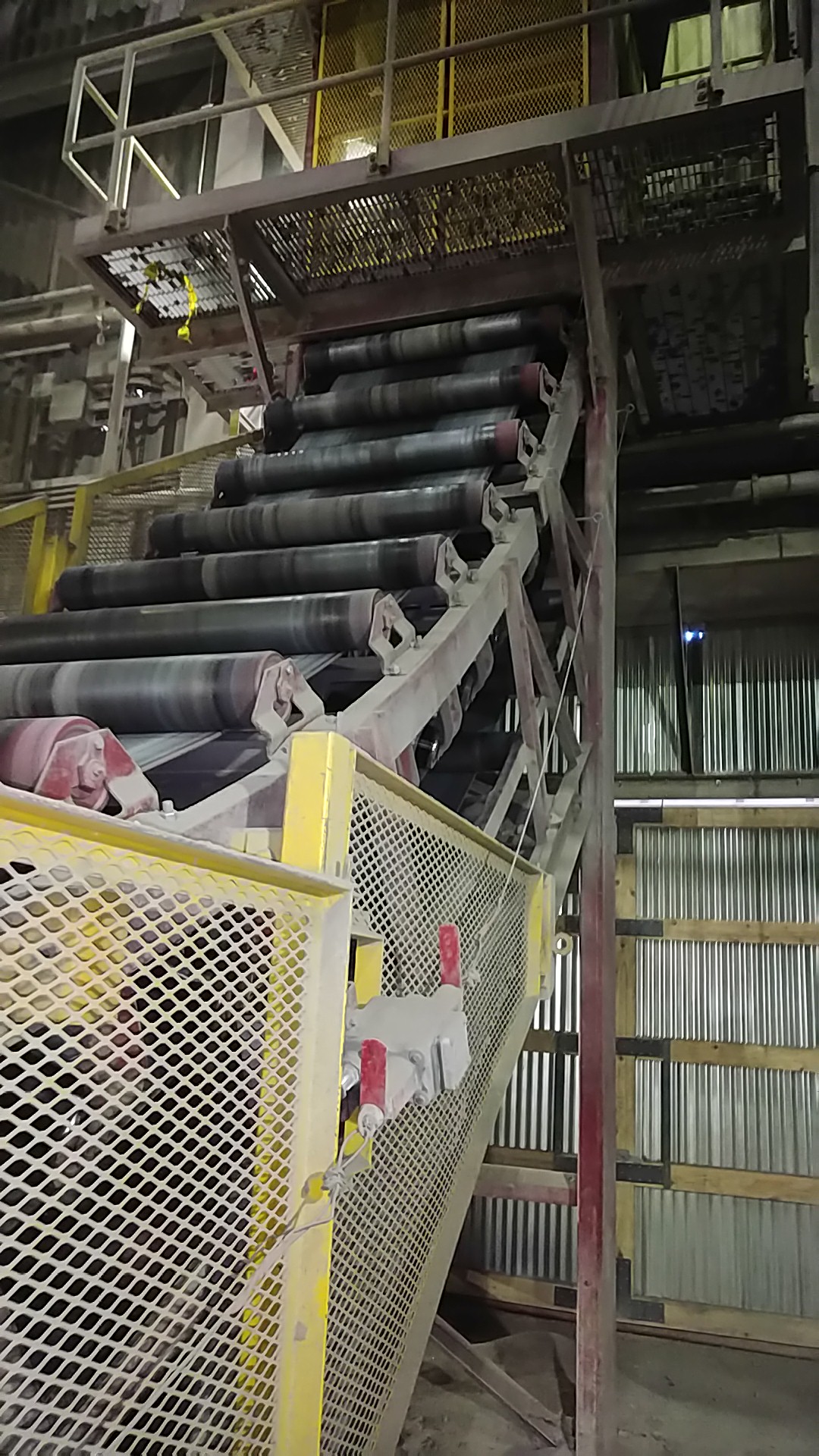

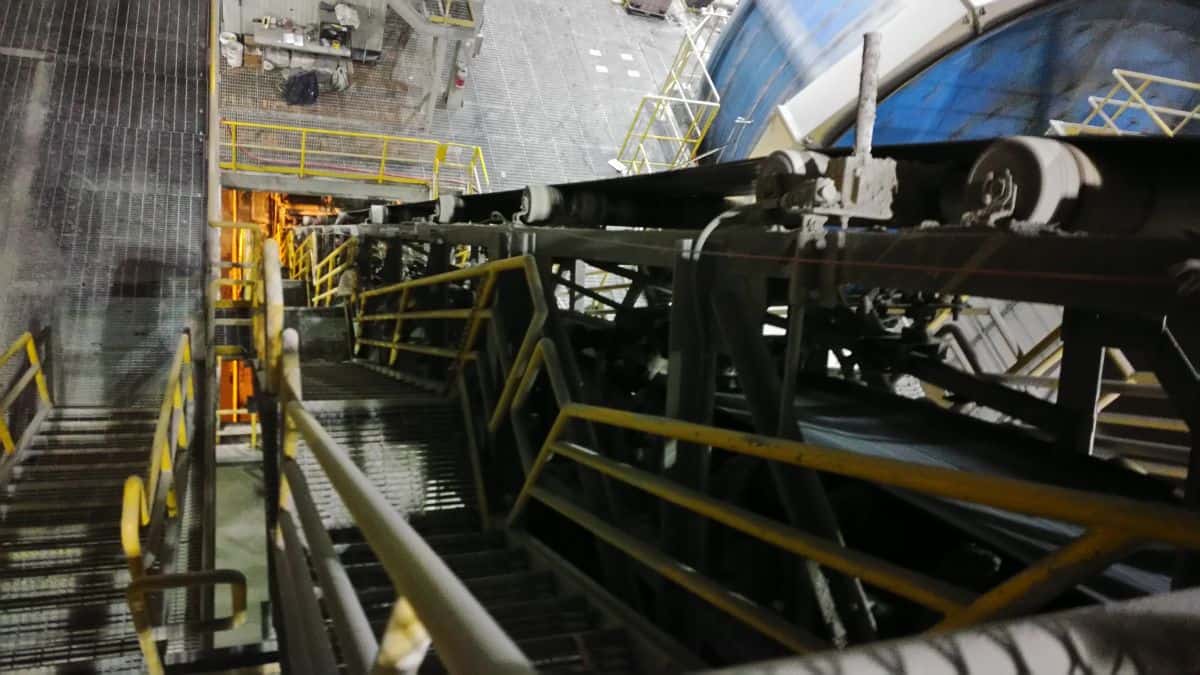

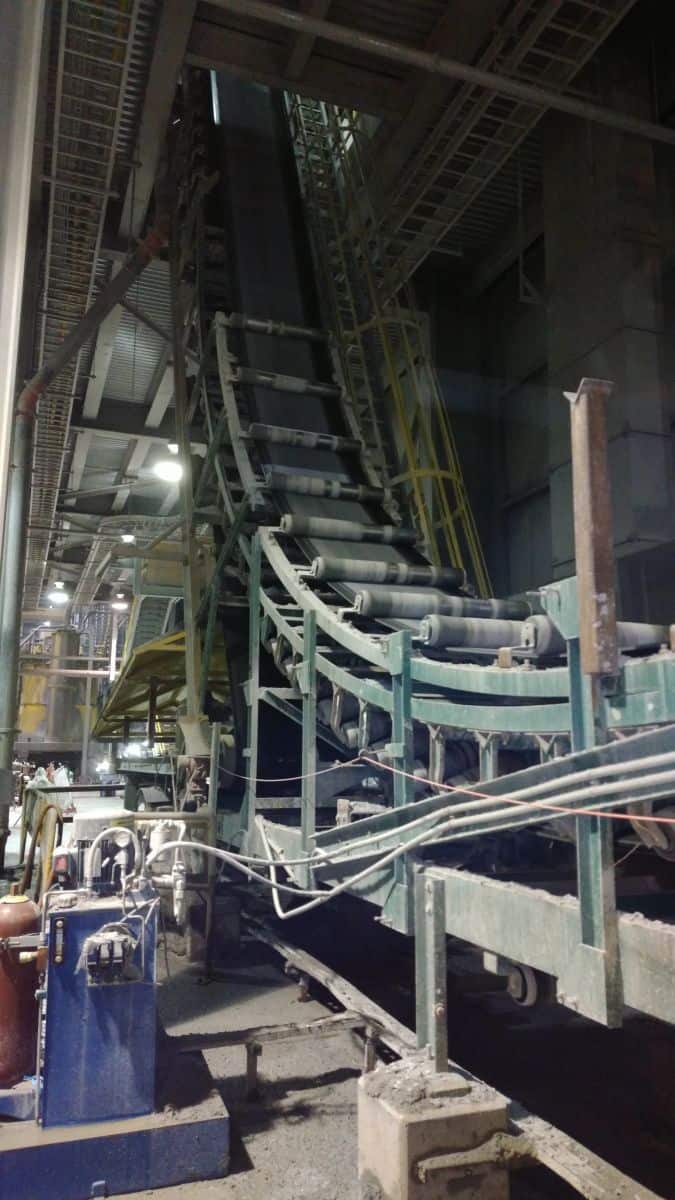

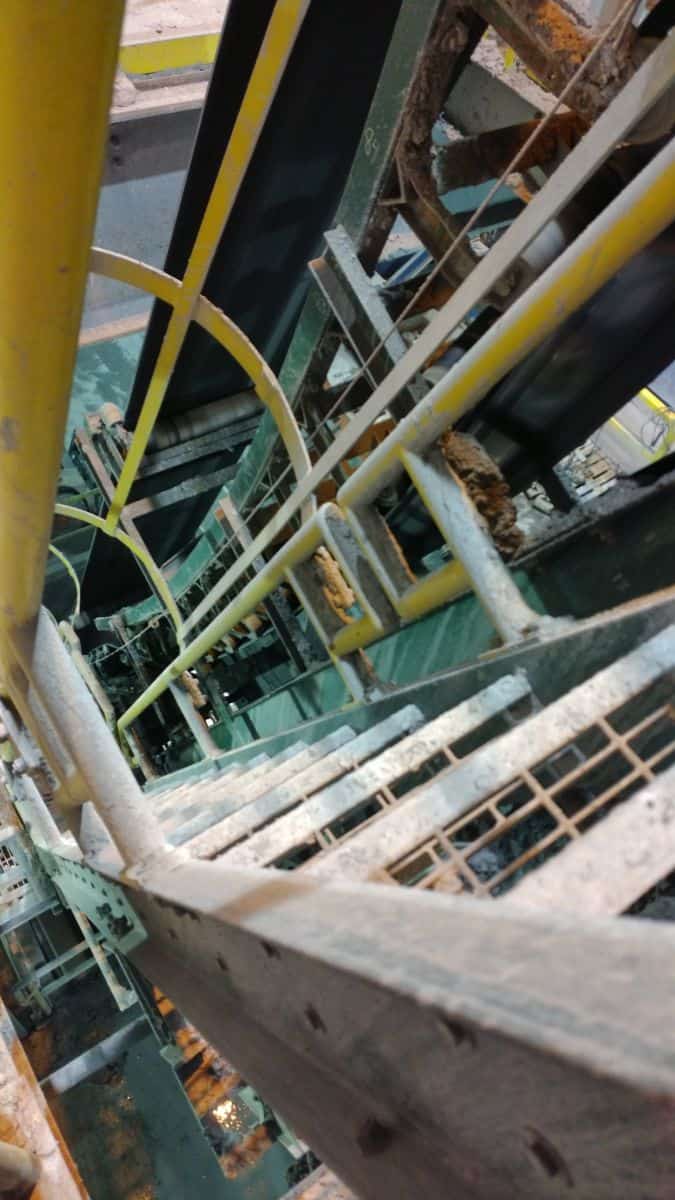

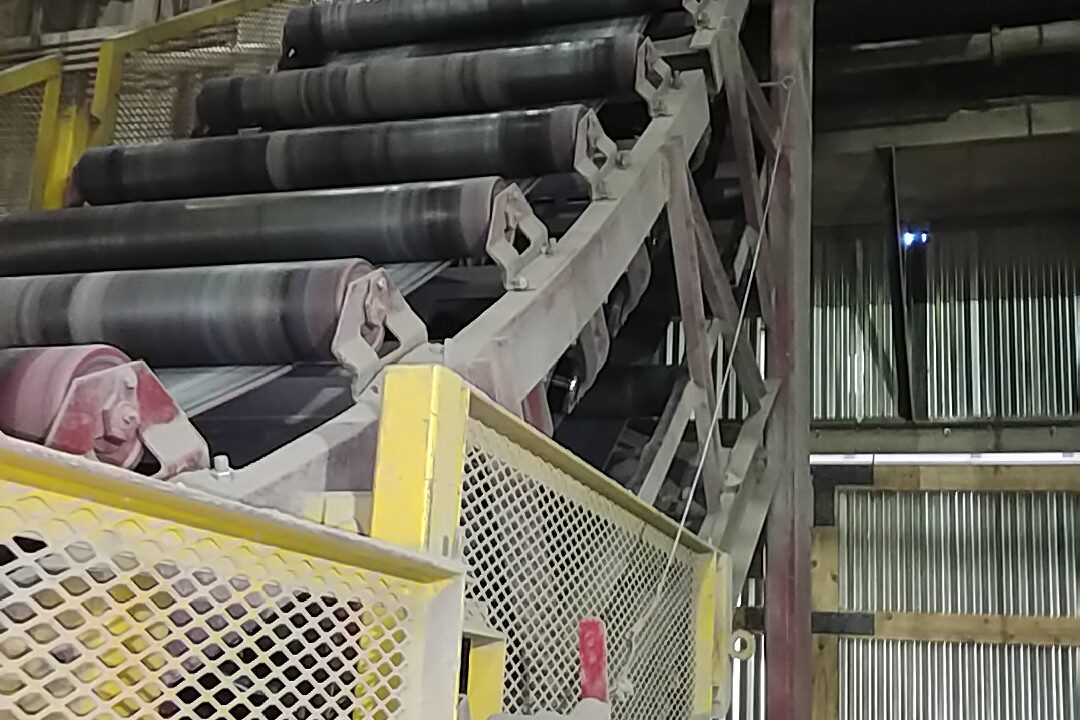

DS102 – Continental Canada at Red Chris Project

DS102 - Continental Canada at Red Chris Project - Image 3

DS102 - Continental Canada at Red Chris Project - Image 4

DS102 - Continental Canada at Red Chris Project - Image 5

DS102 - Continental Canada at Red Chris Project - Image 6

DS102 - Continental Canada at Red Chris Project - Image 7

DS102 - Continental Canada at Red Chris Project - Image 8

DS102 - Continental Canada at Red Chris Project - Image 9

DS102 - Continental Canada at Red Chris Project - Image 10

DS102 - Continental Canada at Red Chris Project - Image 11

DS102 - Continental Canada at Red Chris Project - Image 12

DS102 - Continental Canada at Red Chris Project - Image 13

DS102 - Continental Canada at Red Chris Project - Image 14

DS102 - Continental Canada at Red Chris Project - Image 15

DS102 - Continental Canada at Red Chris Project - Image 16

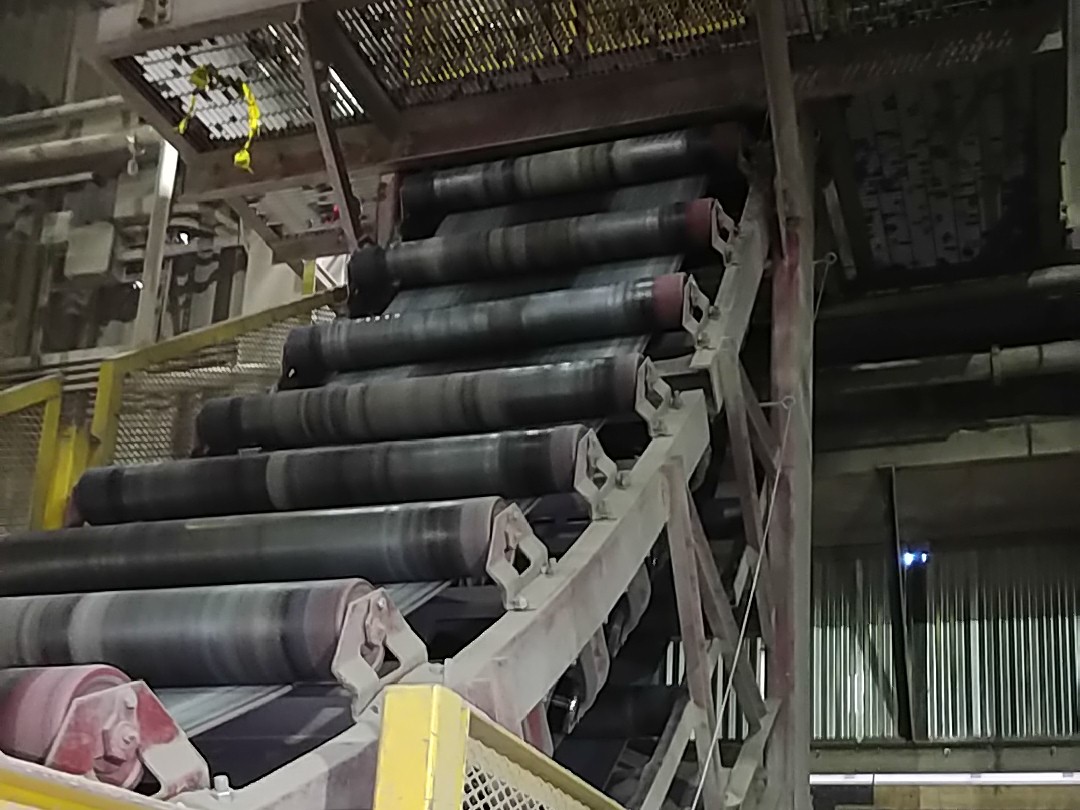

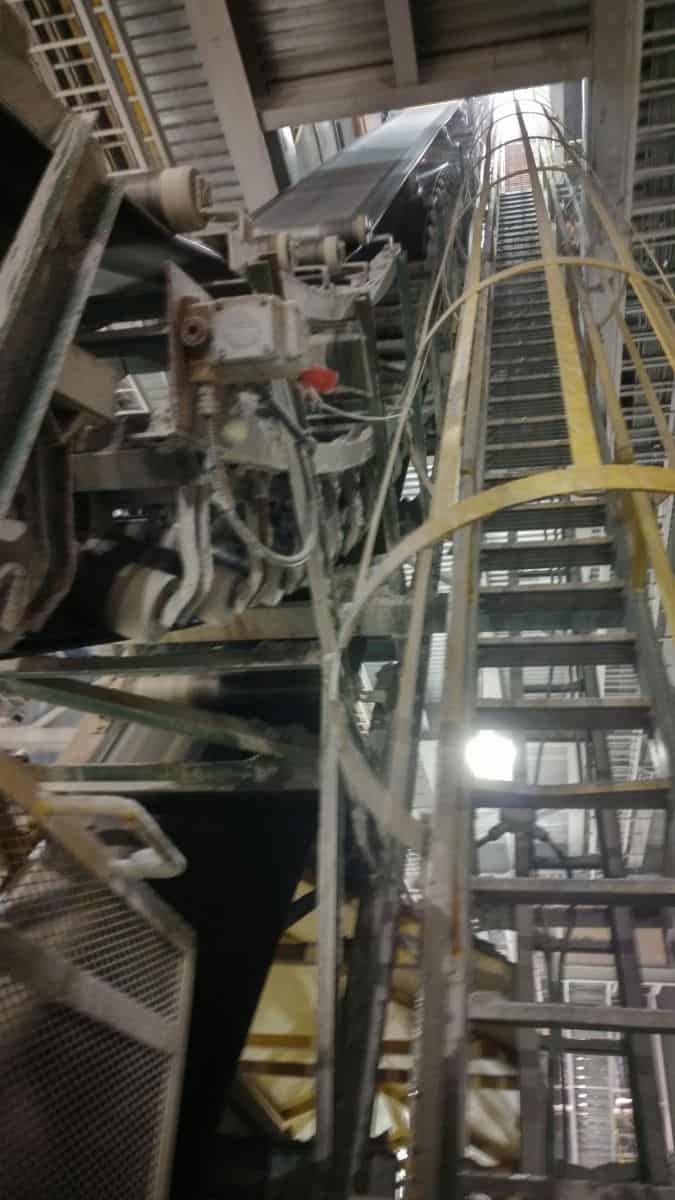

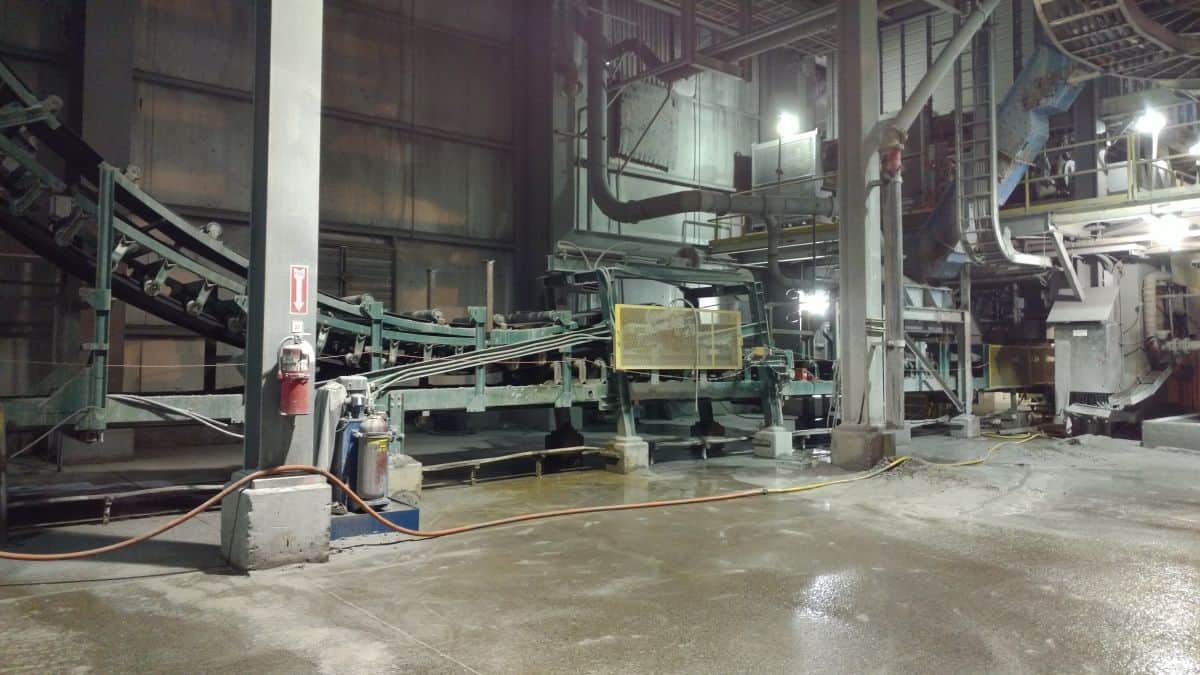

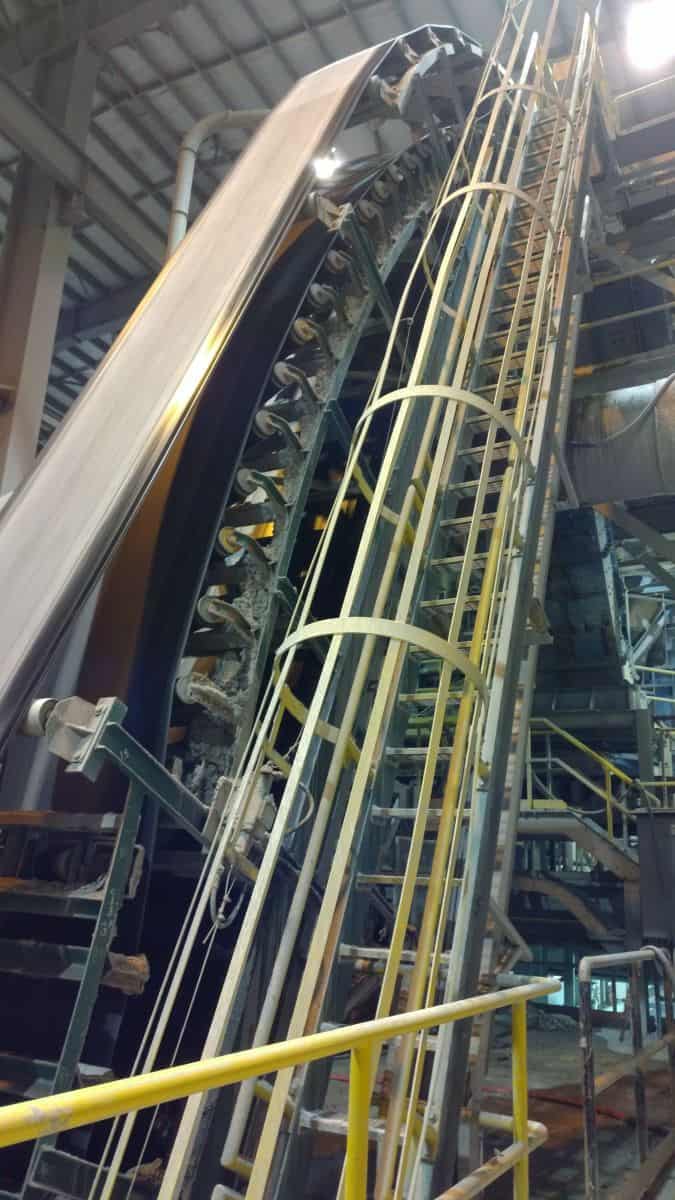

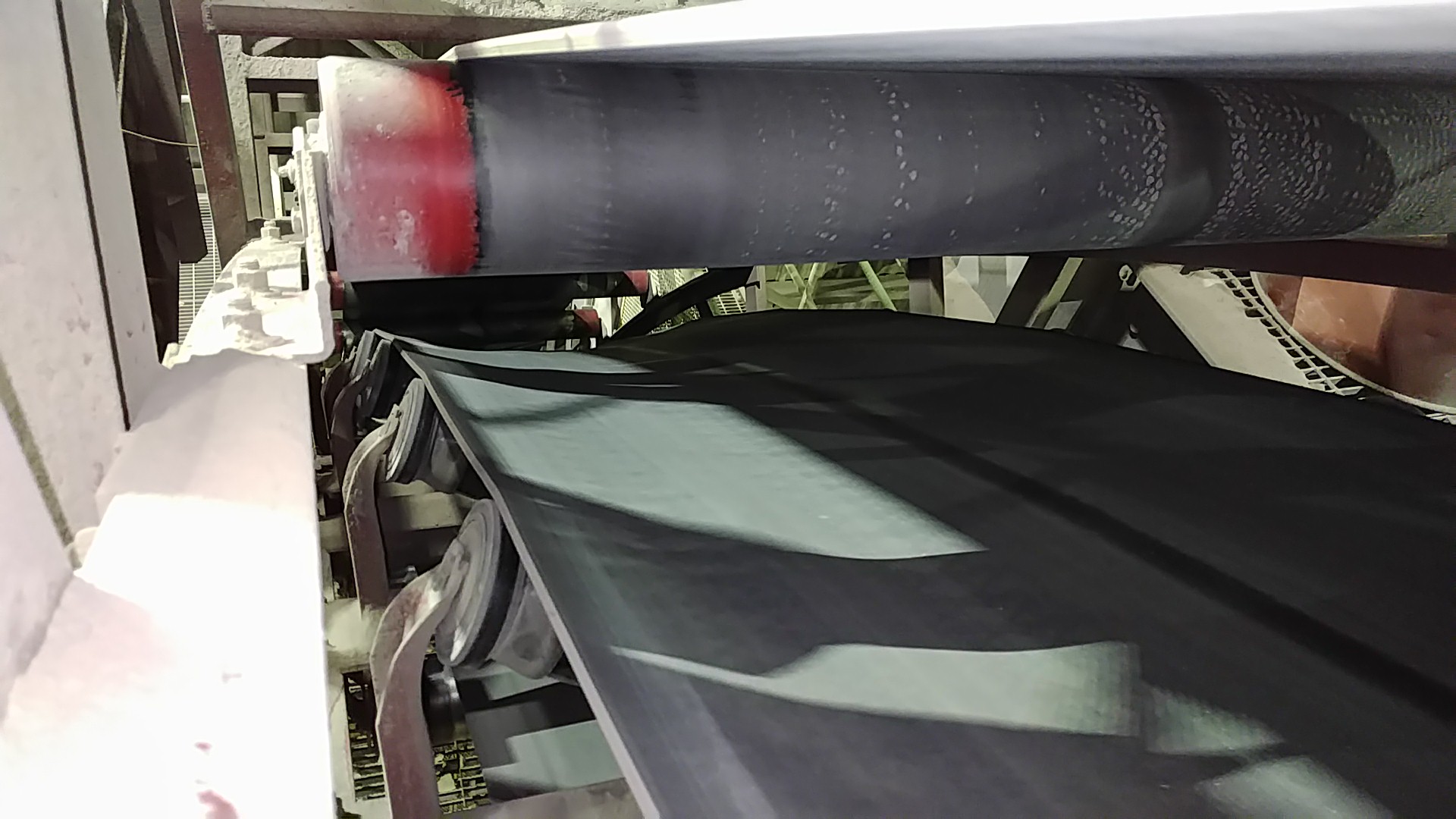

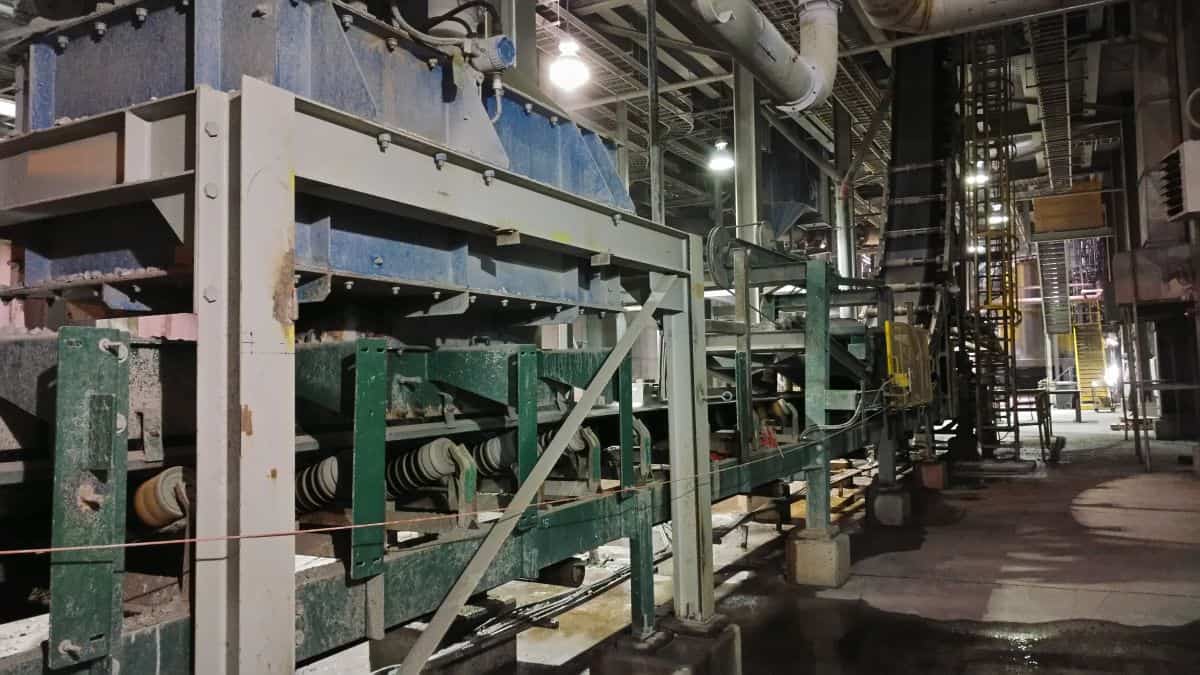

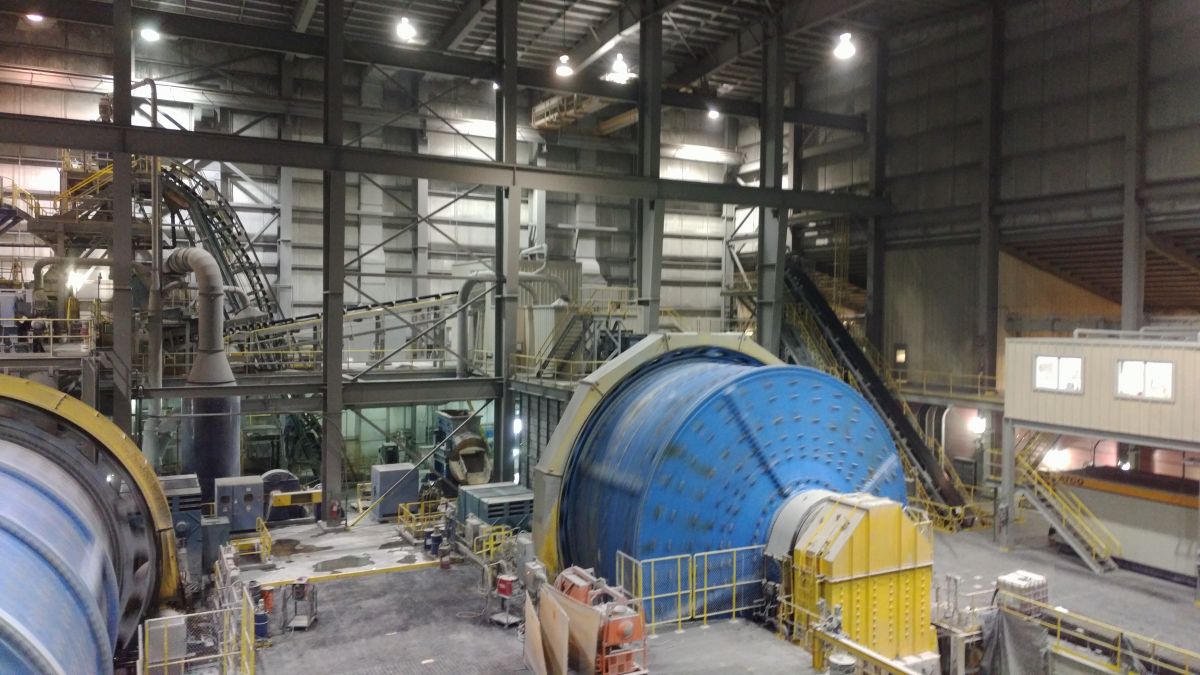

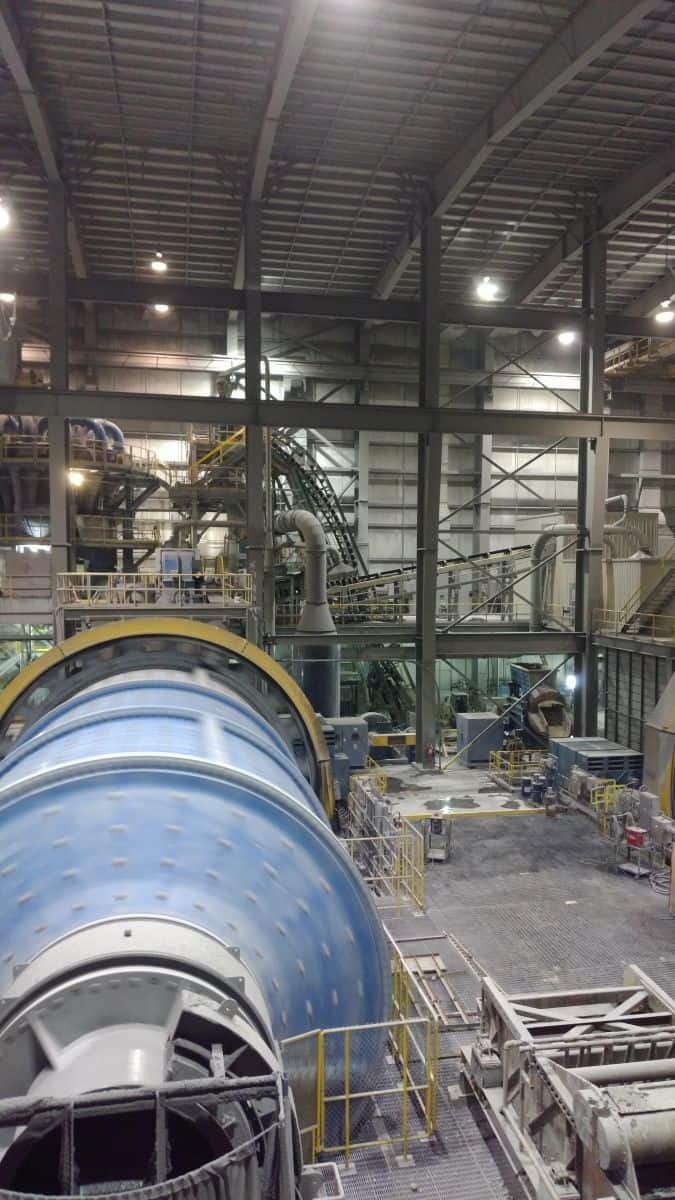

DS102 – Continental Canada at Red Chris Project

Material:

Pebble ore

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

55 mm |

2.2 in

Conveying rate:

340 t/h |

375 STPH

Conveying angle:

67 deg

Belt width:

914 mm |

36 in

Belt speed:

2.1 m/s |

413 FPM

Lift:

24215 mm |

79.5 ft

Length:

49817 mm |

160.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS096 – Becma Corporation for Victor Diamond Mine Project Unit 12

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

422 t/h |

465 STPH

Conveying angle:

60 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

11886 mm |

39 ft

Length:

33282 mm |

109.2 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DS094 – Becma Corporation for Victor Diamond Mine Project Unit 10

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

28 mm |

1.1 in

Conveying rate:

381 t/h |

420 STPH

Conveying angle:

50 deg

Belt width:

1067 mm |

42 in

Belt speed:

2 m/s |

394 FPM

Lift:

18508 mm |

60.7 ft

Length:

67581 mm |

221.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

29.8 kW |

40 HP

DSCo008 – DSI Downhill Regenerative Overland Conveyor TB-27 for Los Filos, Goldcorp

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

‘-5.45 deg

Belt width:

1219 mm |

48 in

Belt speed:

1.2 m/s |

244 FPM

Lift:

‘-20900 mm |

‘-68.6 ft

Length:

213000 mm |

698.8 ft

Bottom drive power:

‘-44.7 kW |

‘-60 HP

Top drive power:

N/A kW |

N/A HP

DSCo009 – DSI Horizontally Curving Downhill Regenerative Overland Conveyor TB-28 for Los Filos, Goldcorp – 300m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

‘-5.8 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-24600 mm |

‘-81.5 ft

Length:

243000 mm |

802.8 ft

Bottom drive power:

‘-74.6 kW |

‘-100 HP

Top drive power:

N/A kW |

N/A HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
