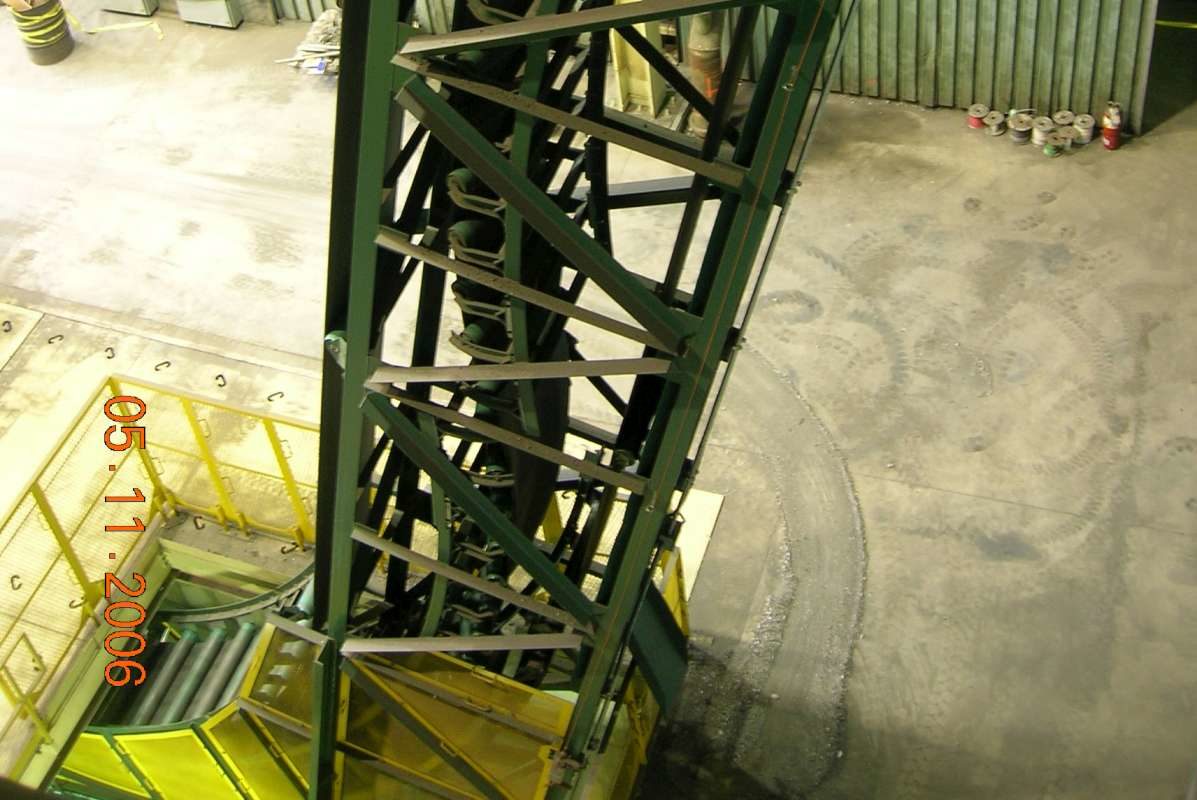

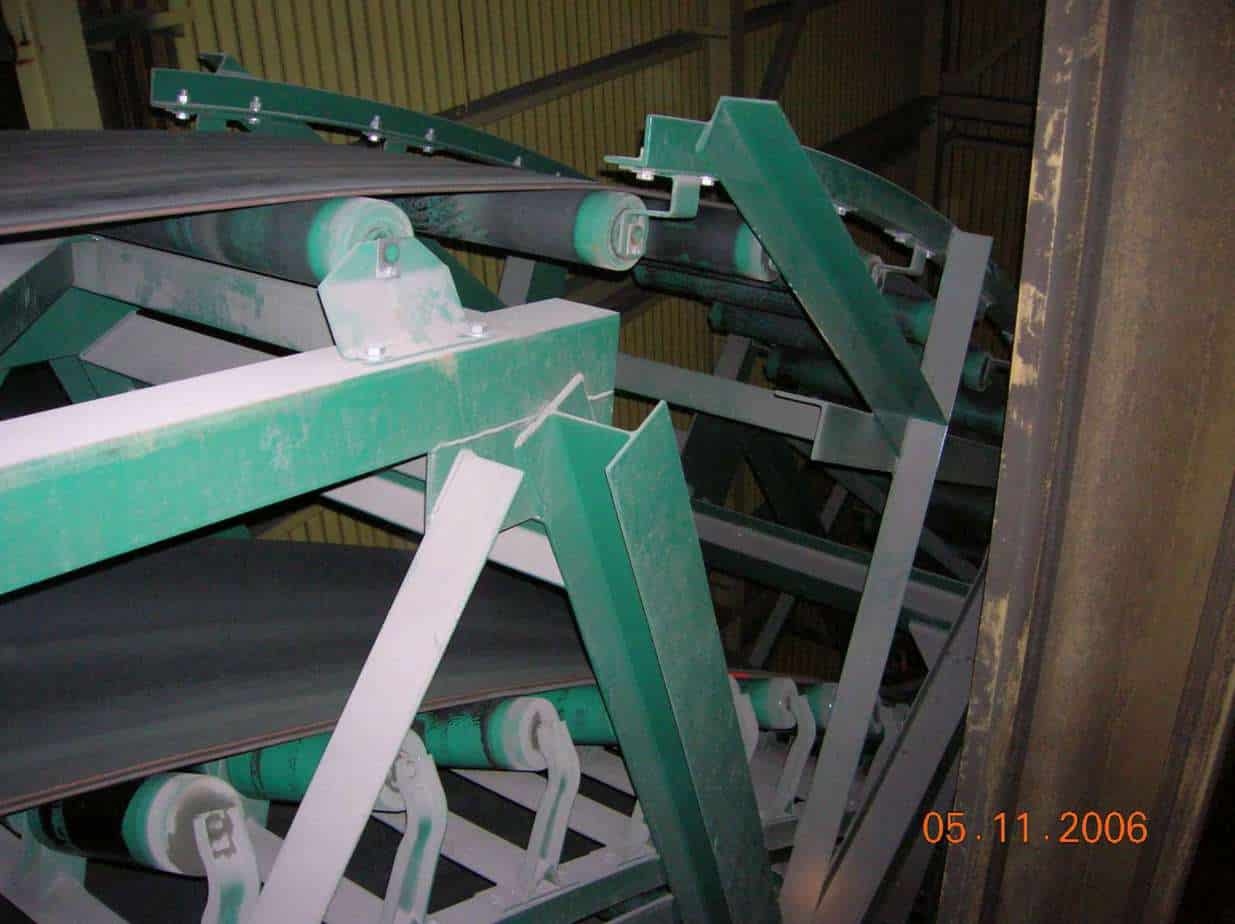

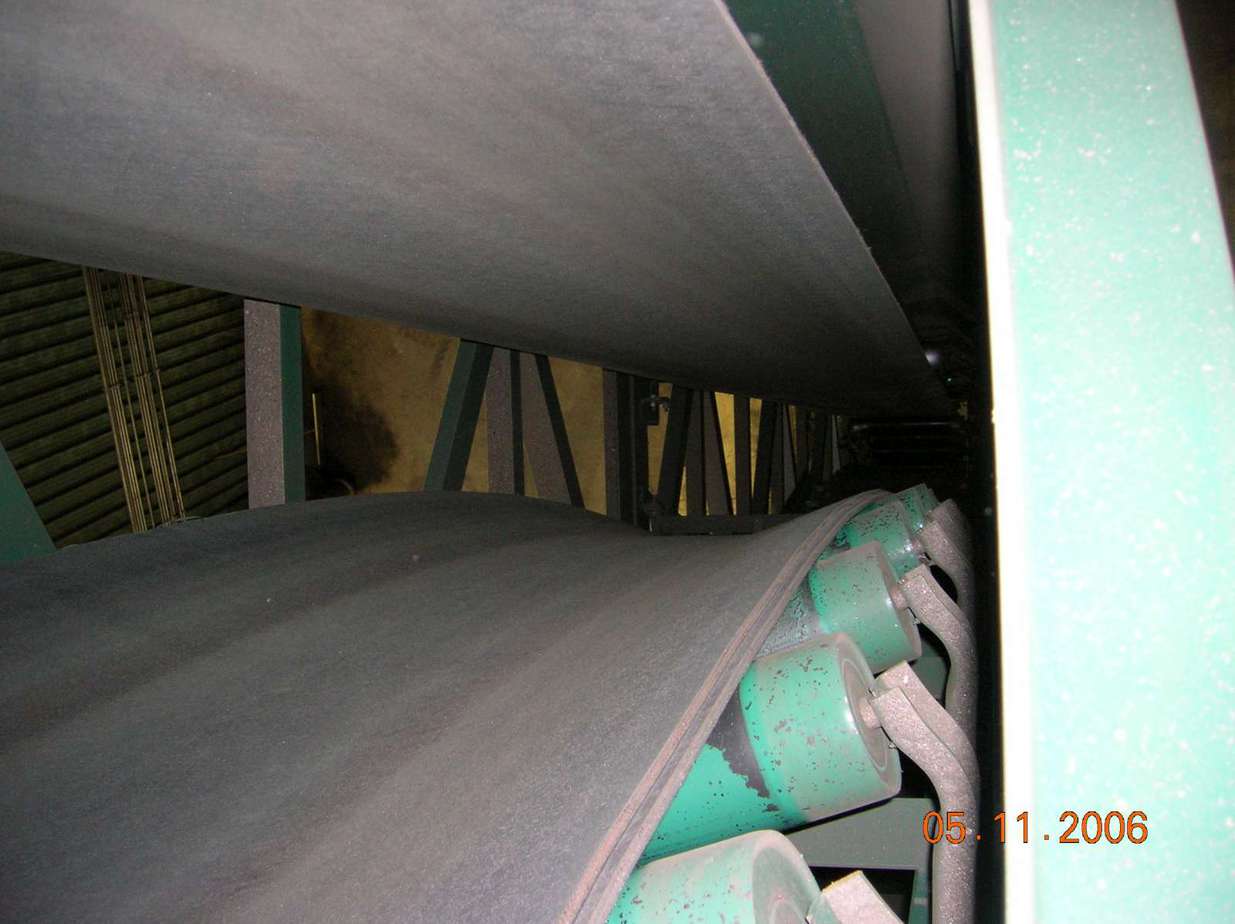

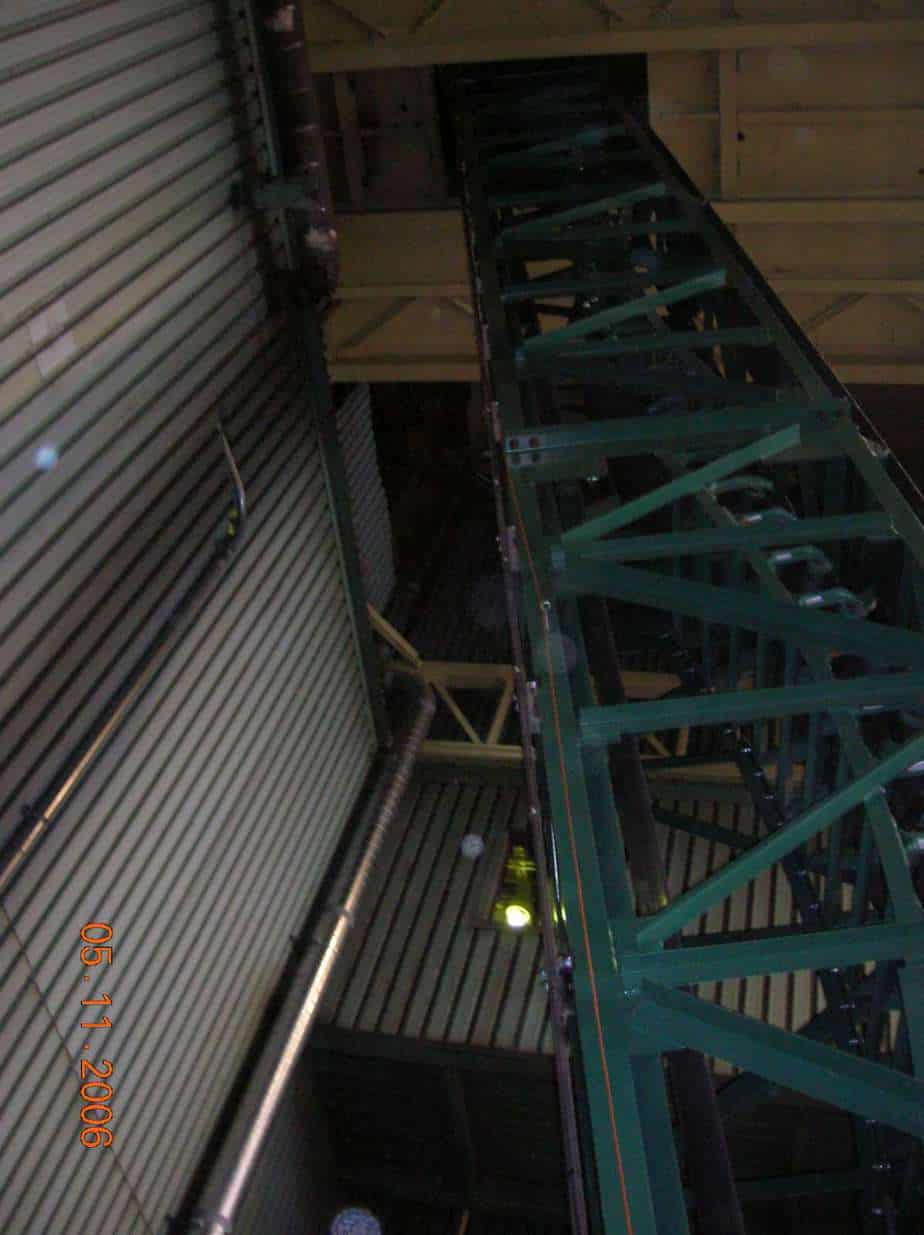

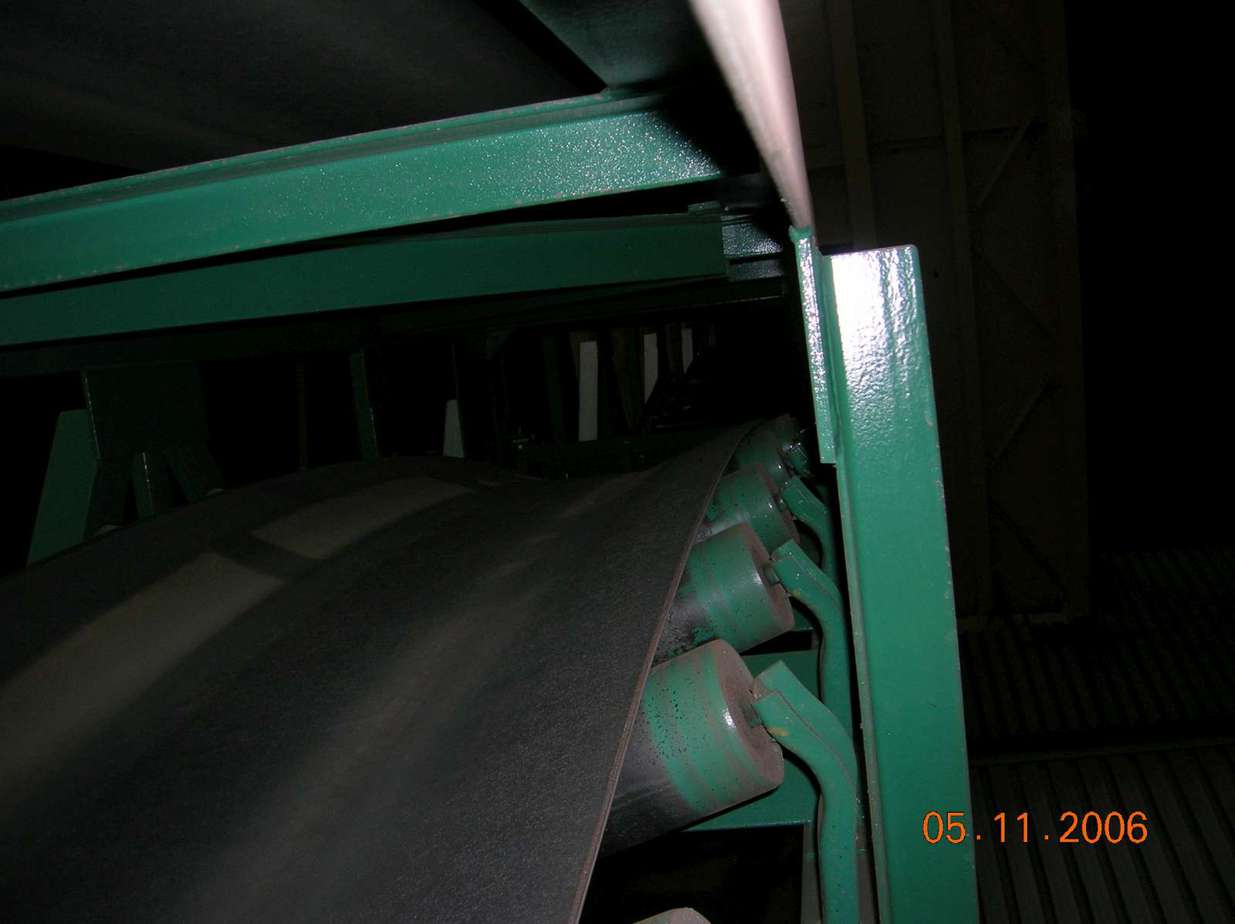

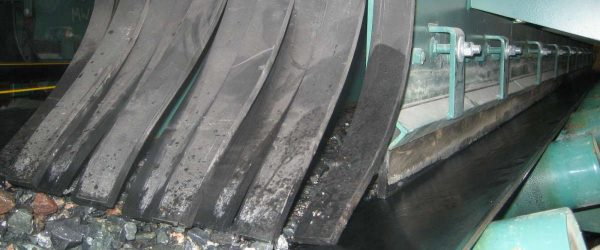

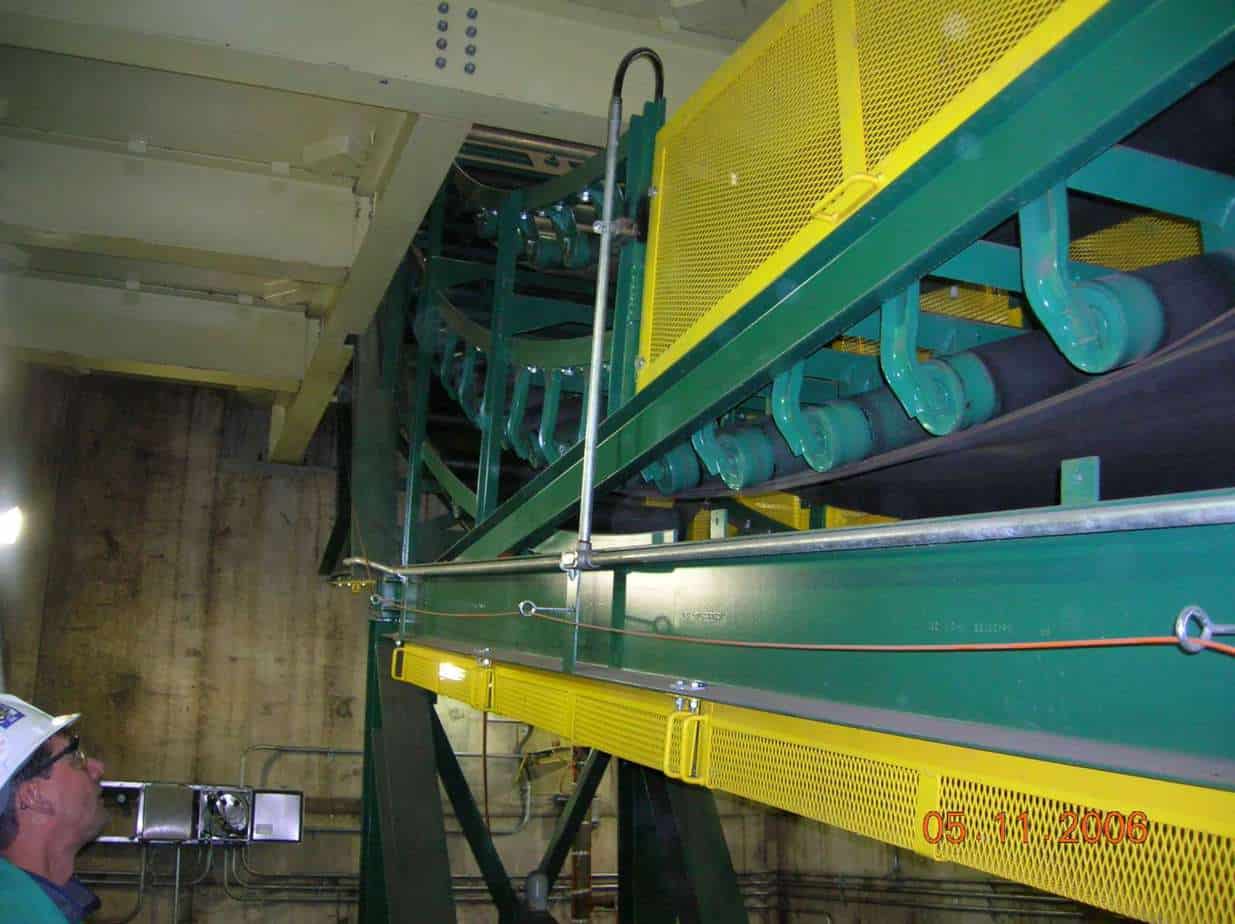

DS093 – Continental Canada for DOFASCO Steel Project Alloys

Material:

Various

Bulk density:

4.2 t/cu-m |

260 PCF

Material size:

75 mm |

3 in

Conveying rate:

188 t/h |

200 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

1.02 m/s |

207 FPM

Lift:

35235 mm |

115.6 ft

Length:

48768 mm |

160 ft

Bottom drive power:

18.6 kW |

25 HP

Top drive power:

18.6 kW |

25 HP

DS086 – Empire Iron Ore Mining Partnership Project

Material:

Iron ore

Bulk density:

2.4 t/cu-m |

150 PCF

Material size:

2 mm |

0.08 in

Conveying rate:

793 t/h |

708 STPH

Conveying angle:

65 deg

Belt width:

1067 mm |

42 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

11522 mm |

37.8 ft

Length:

21489 mm |

70.5 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

37.3 kW |

50 HP

DS083 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS106 – Brucejack Mine Project

Material:

Pebble ore

Bulk density:

1.7 t/cu-m |

103 PCF

Material size:

76 mm |

3 in

Conveying rate:

45 t/h |

50 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

0.71 m/s |

140 FPM

Lift:

13490 mm |

44.2 ft

Length:

30900 mm |

101.5 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS109 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

26323 mm |

86.4 ft

Length:

35197 mm |

115.5 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS120 – EleVeyor EL, Blue Plains for WWTP Project 2

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
