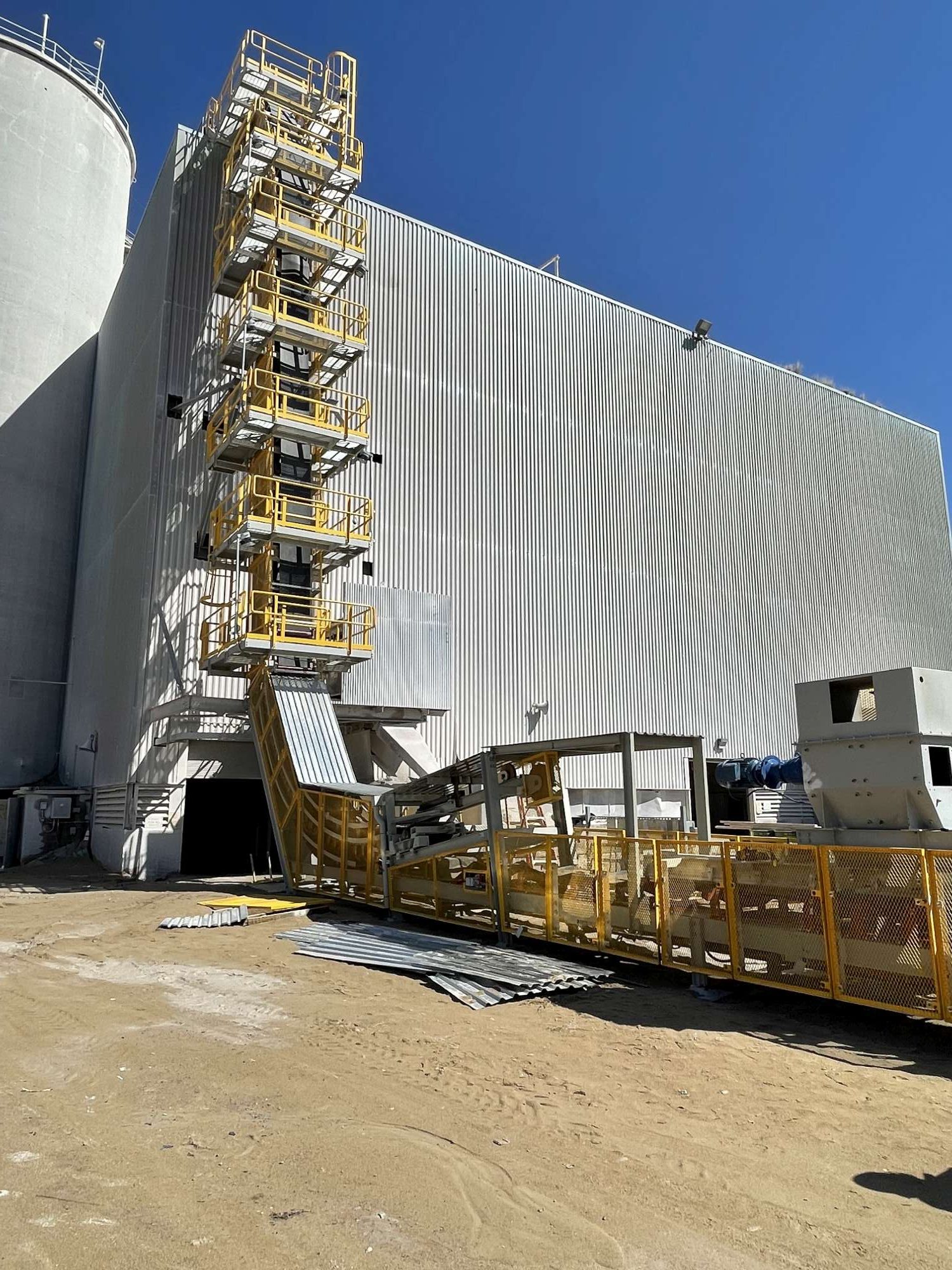

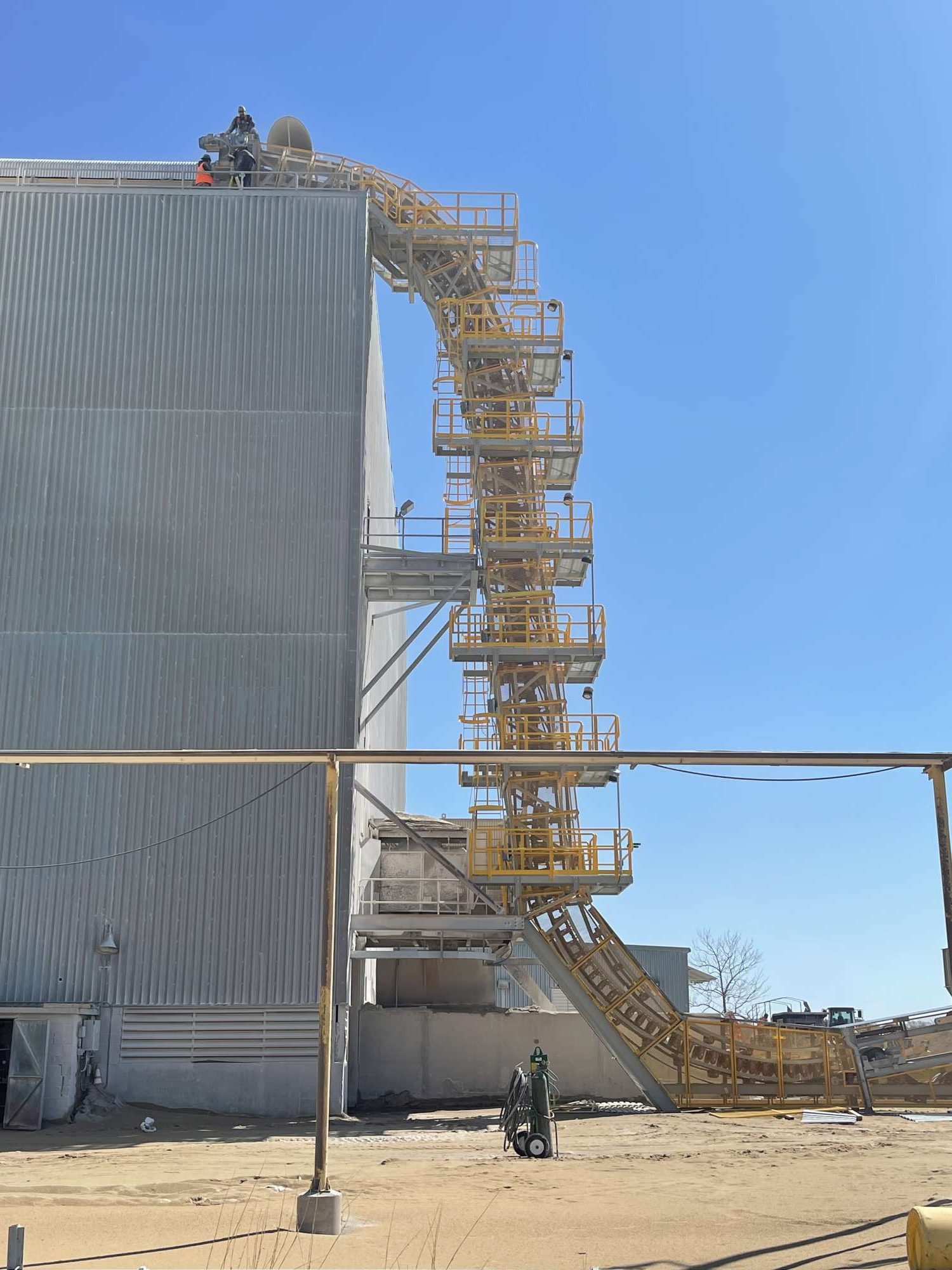

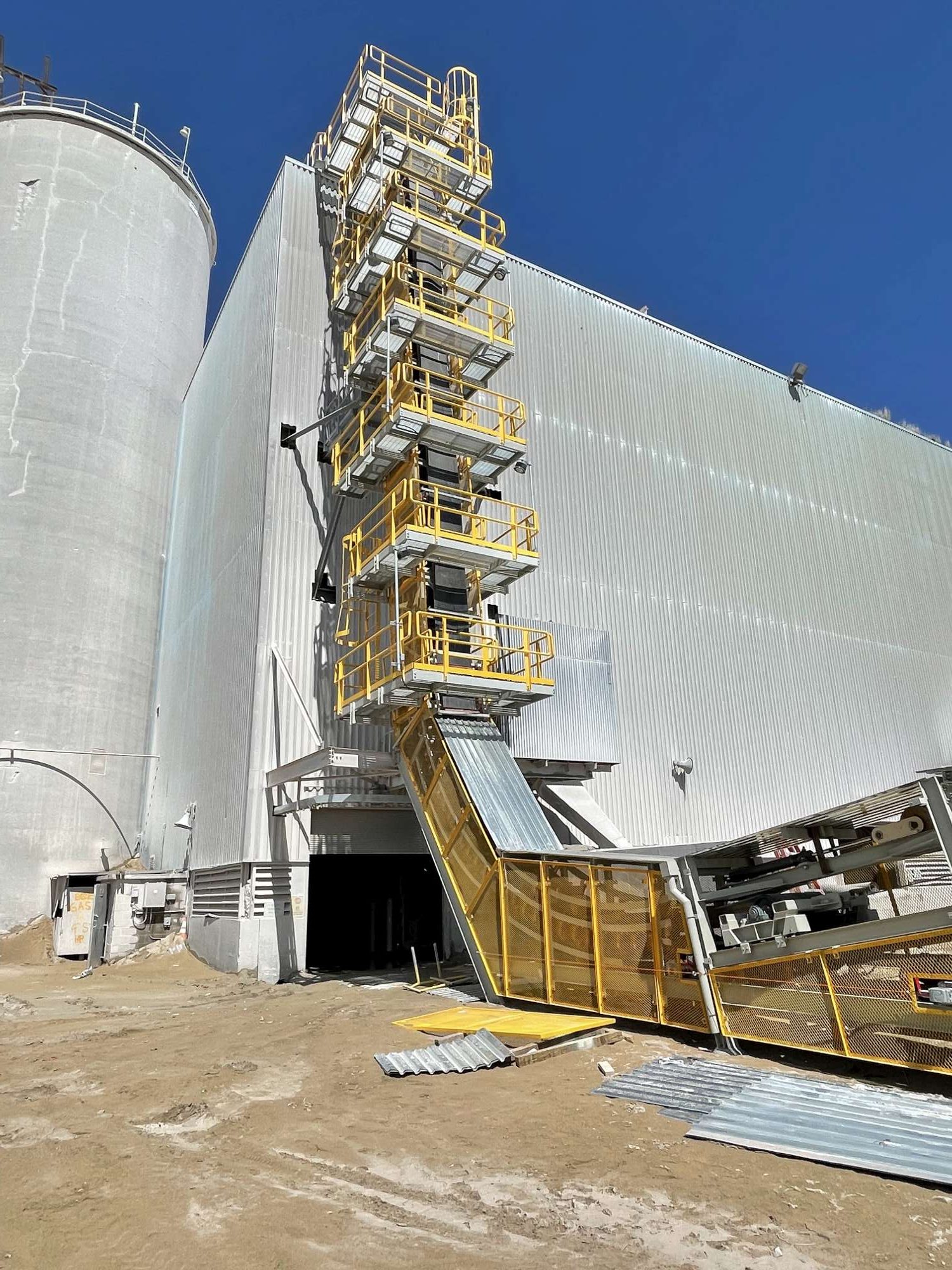

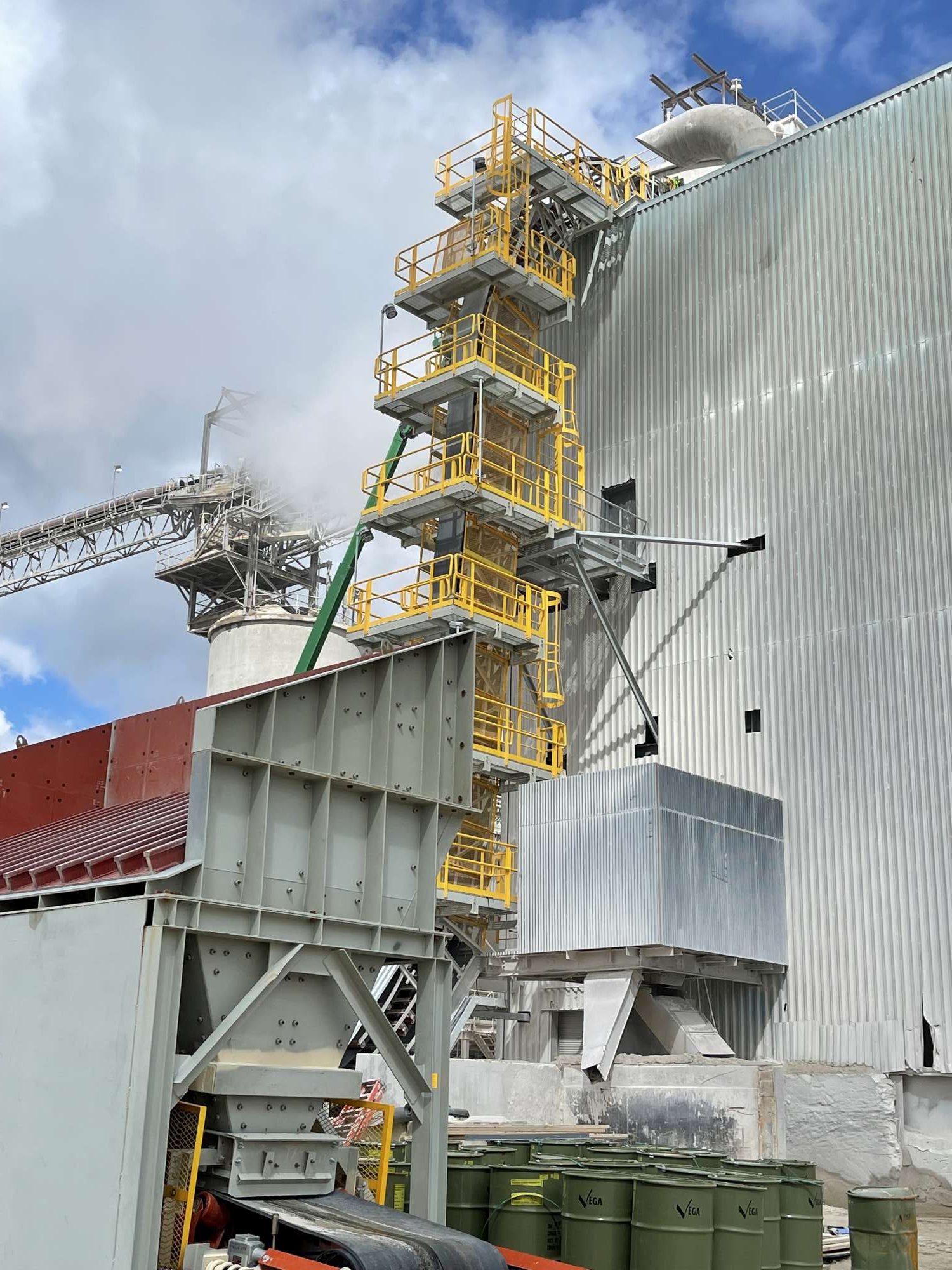

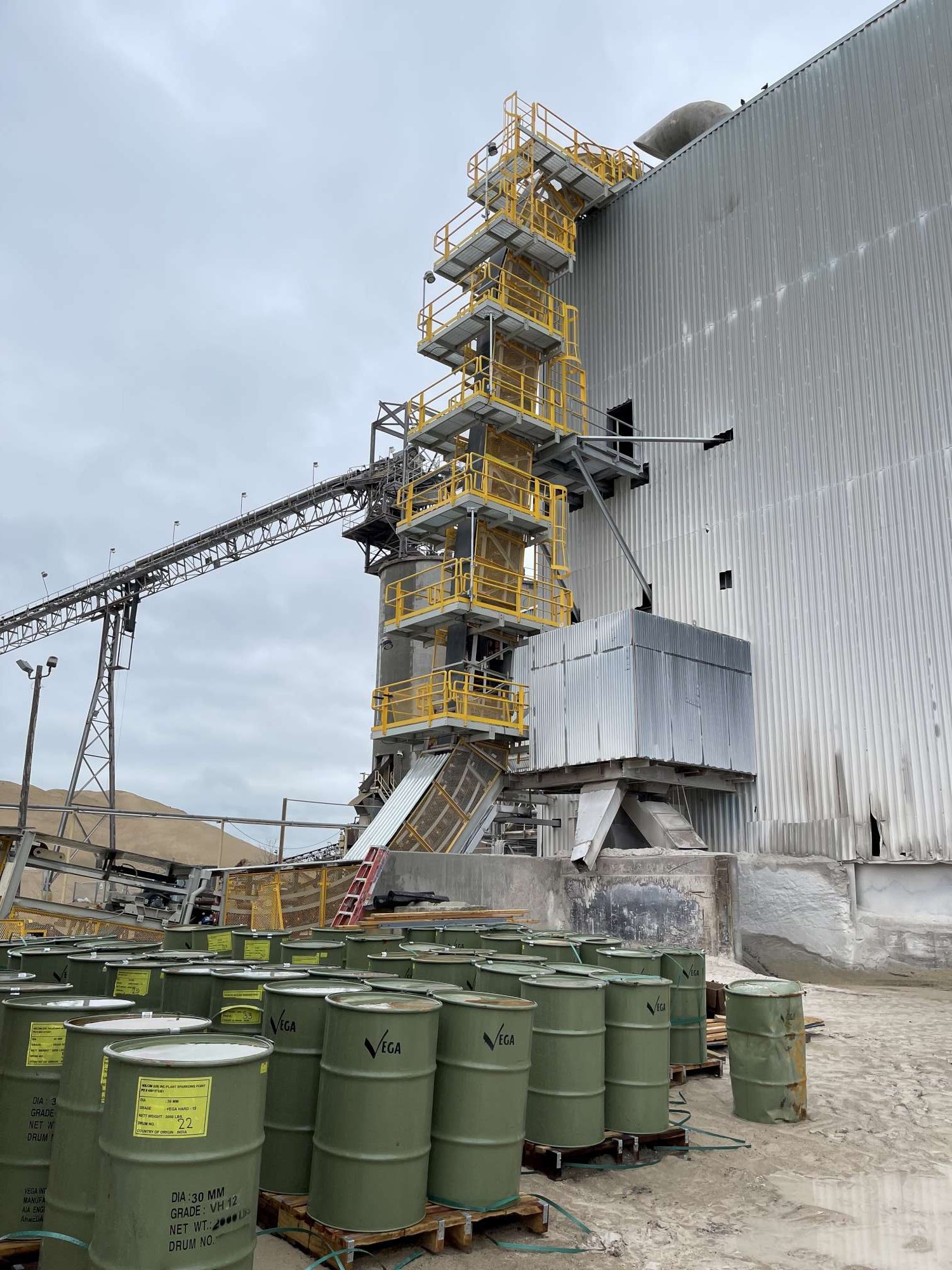

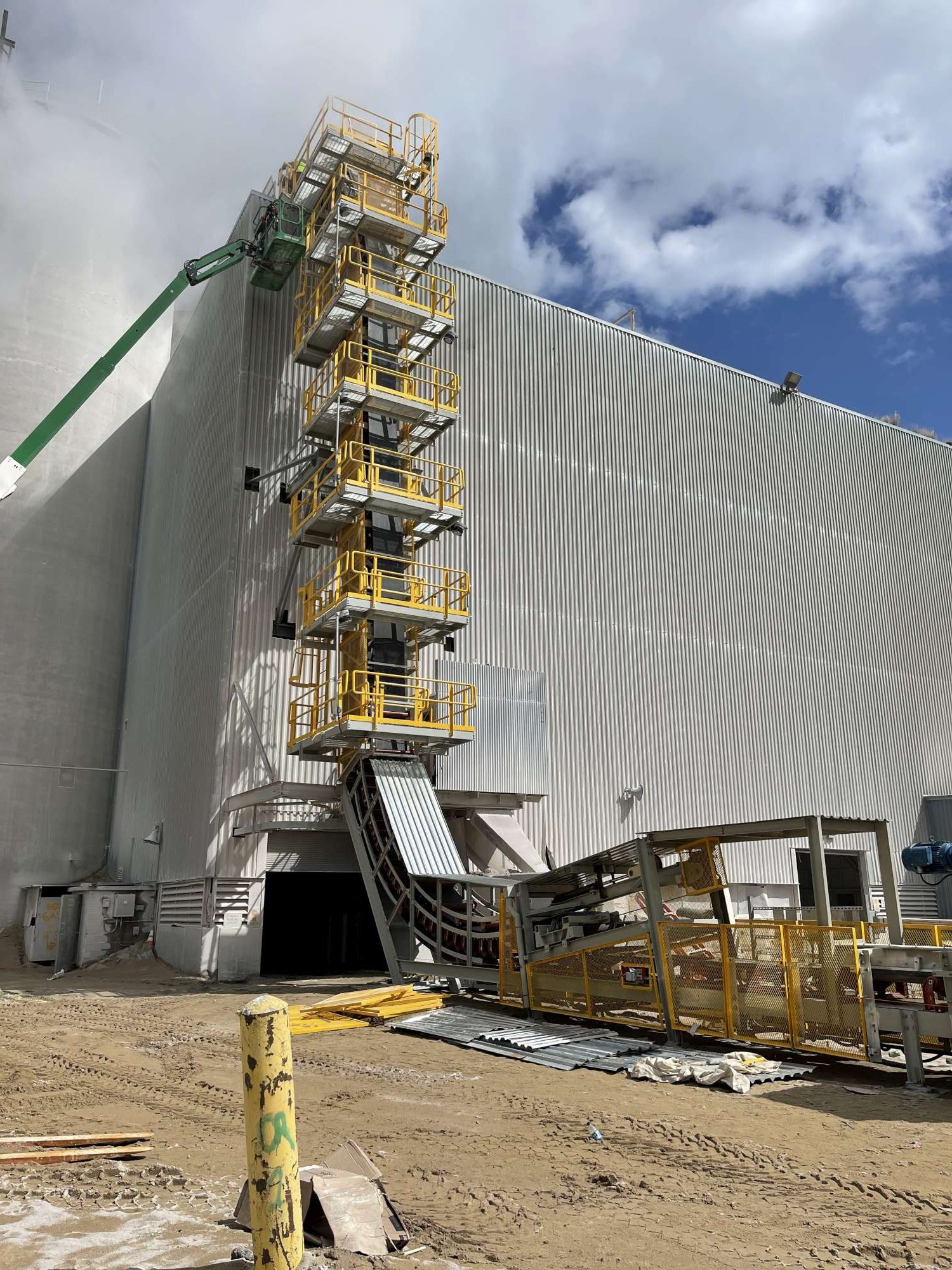

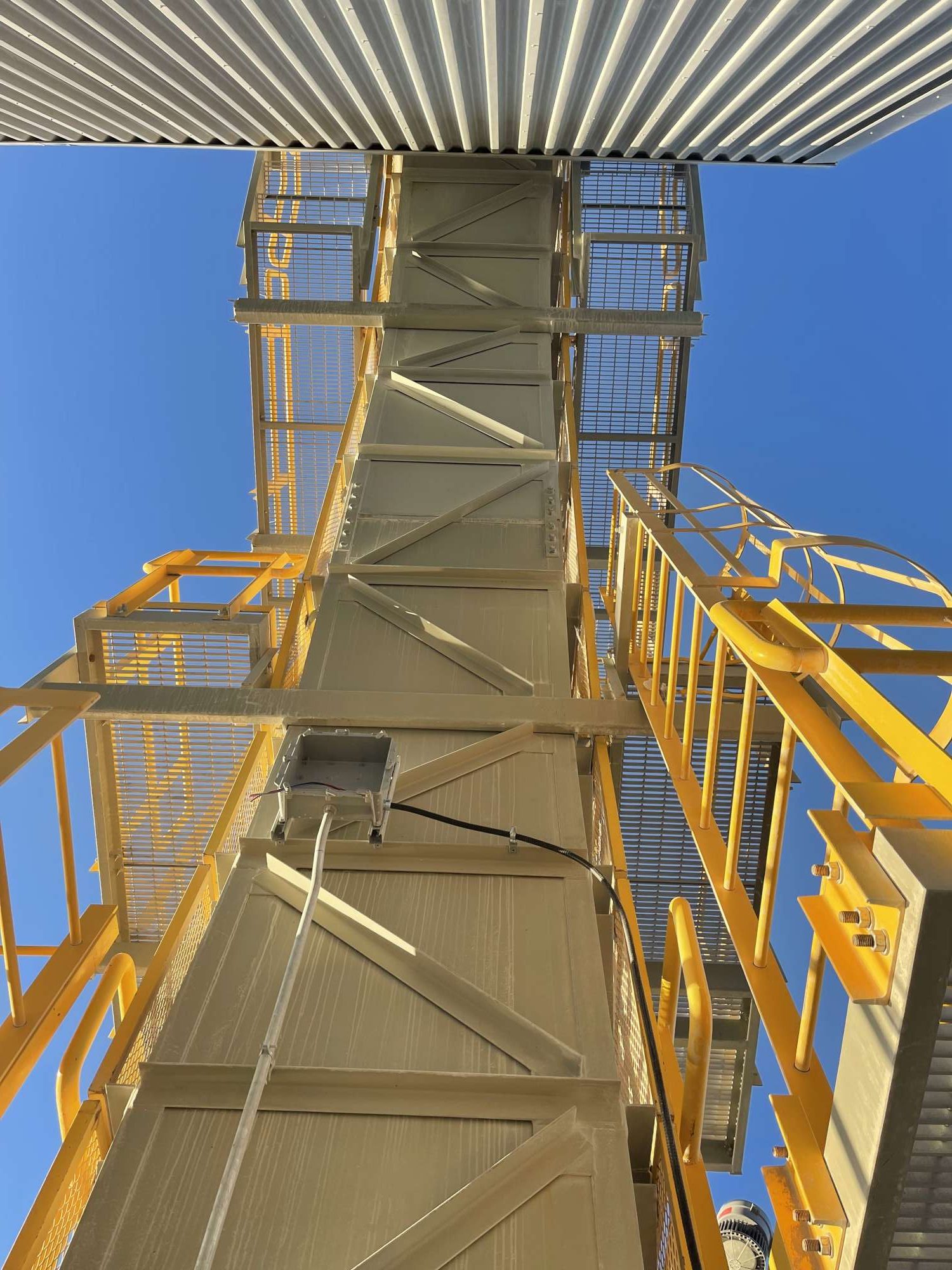

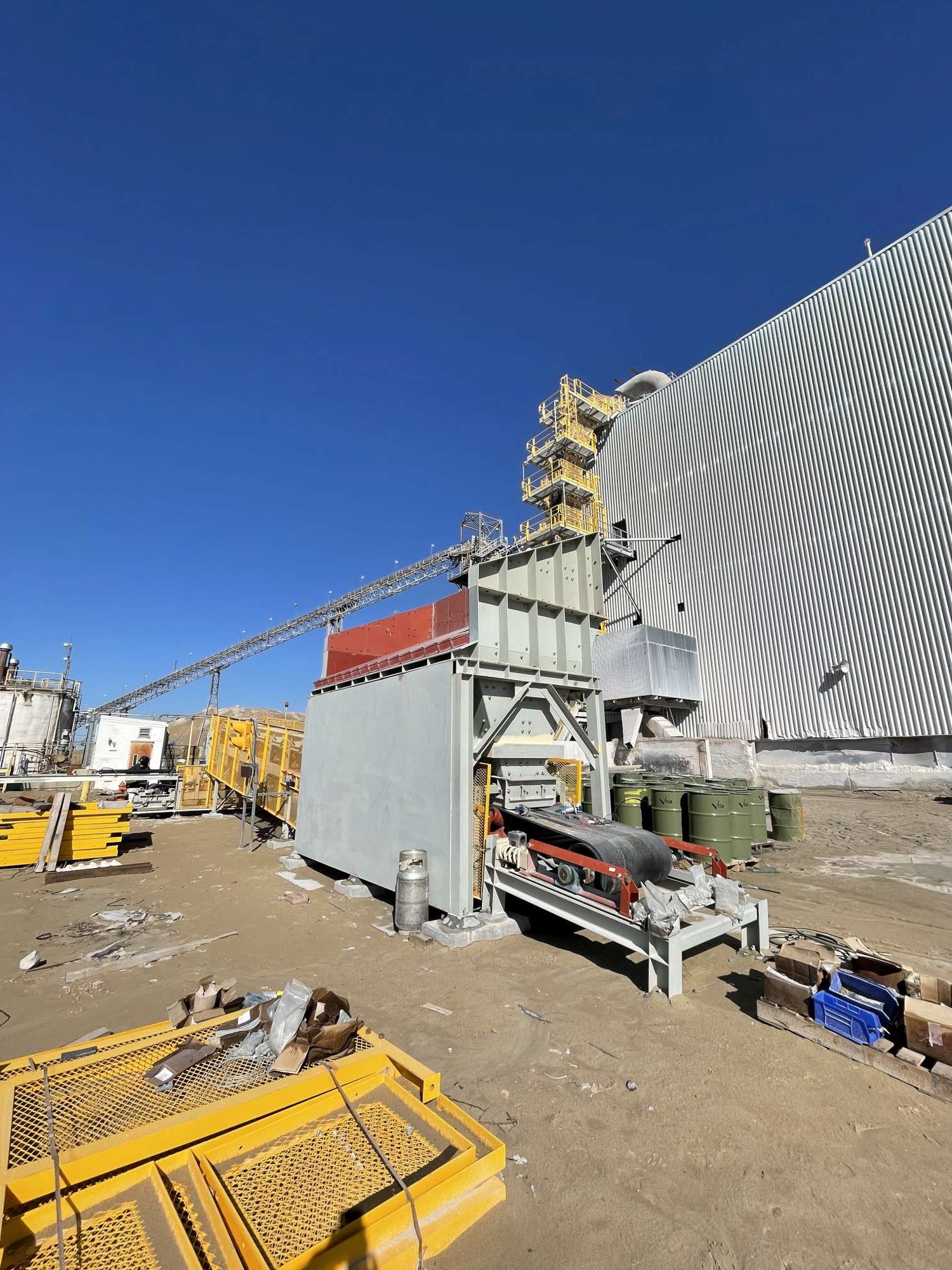

DS114 – Lafarge Holcim for Sparrow’s Point

DS114 - Lafarge Holcim for Sparrow's Point - Image 3

DS114 - Lafarge Holcim for Sparrow's Point - Image 4

DS114 - Lafarge Holcim for Sparrow's Point - Image 5

DS114 - Lafarge Holcim for Sparrow's Point - Image 6

DS114 - Lafarge Holcim for Sparrow's Point - Image 7

DS114 - Lafarge Holcim for Sparrow's Point - Image 8

DS114 - Lafarge Holcim for Sparrow's Point - Image 9

DS114 - Lafarge Holcim for Sparrow's Point - Image 10

DS114 - Lafarge Holcim for Sparrow's Point - Image 11

DS114 - Lafarge Holcim for Sparrow's Point - Image 12

DS114 - Lafarge Holcim for Sparrow's Point - Image 13

DS114 - Lafarge Holcim for Sparrow's Point - Image 14

DS114 - Lafarge Holcim for Sparrow's Point - Image 15

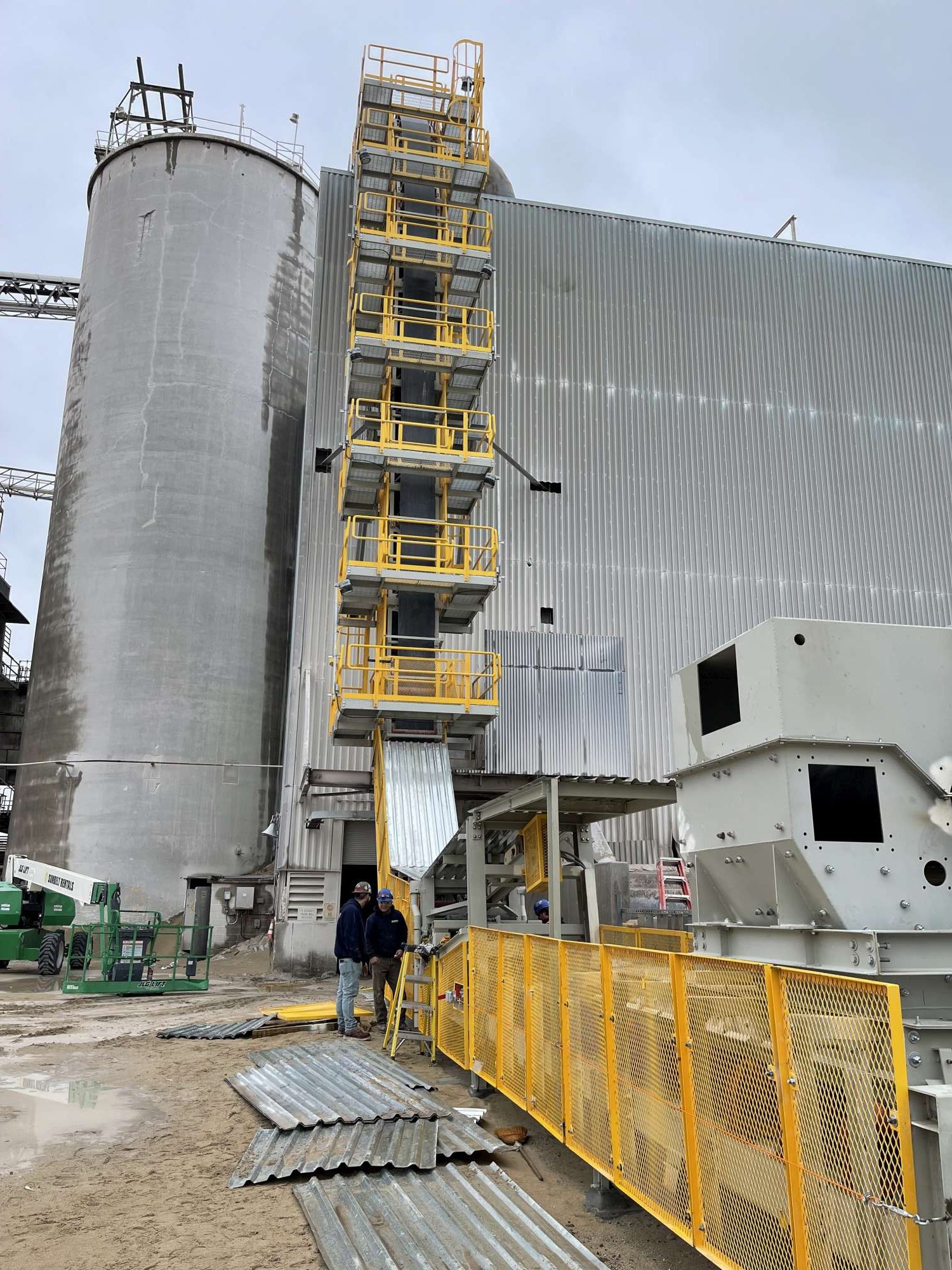

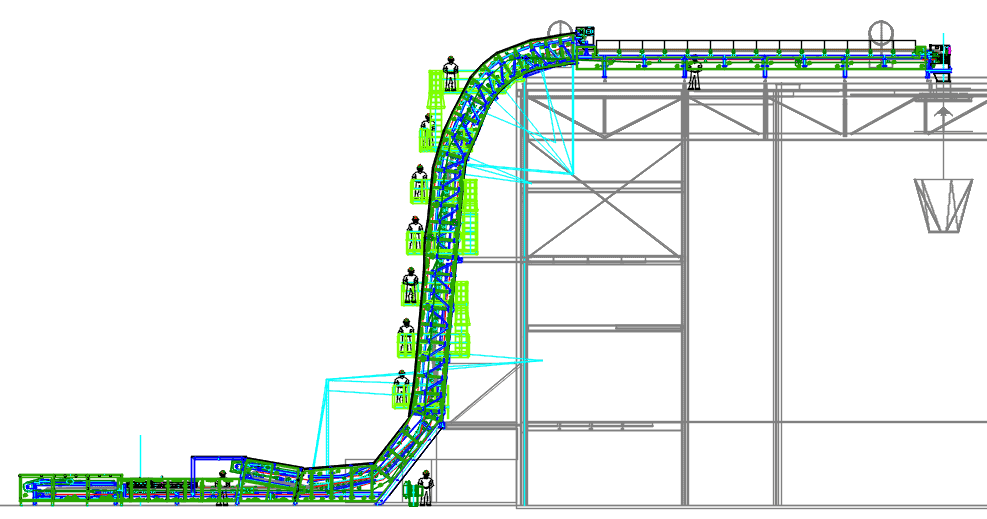

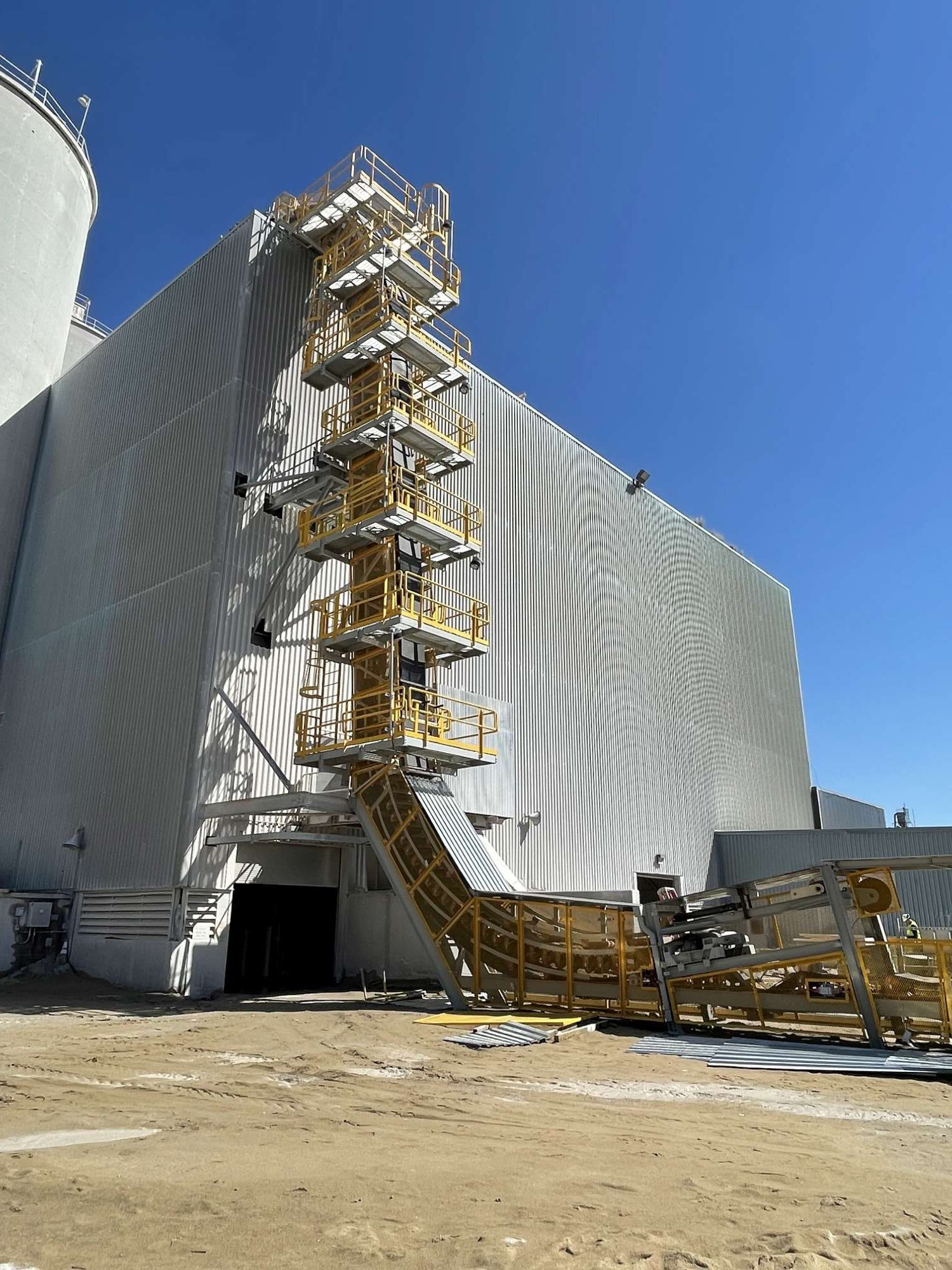

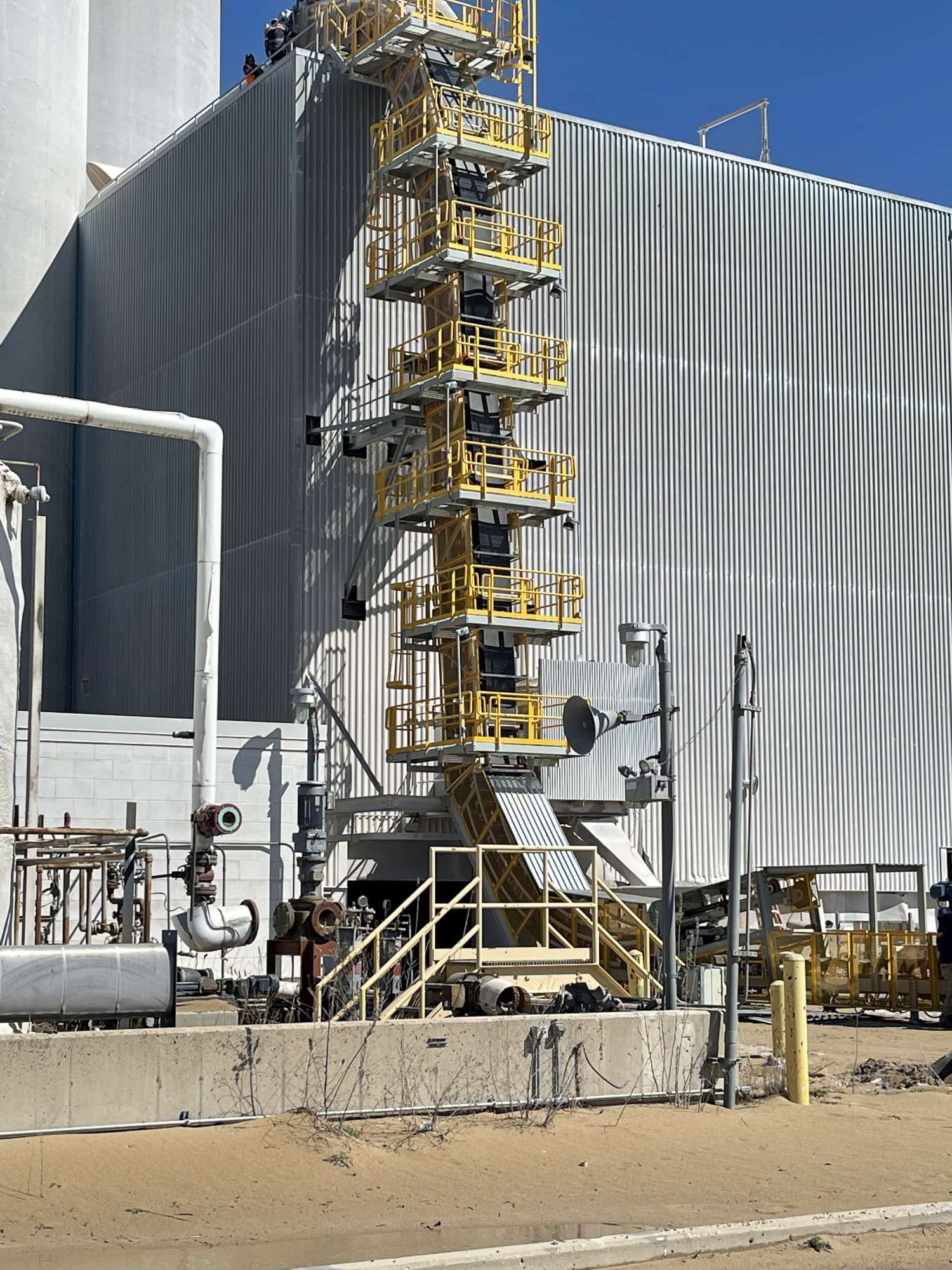

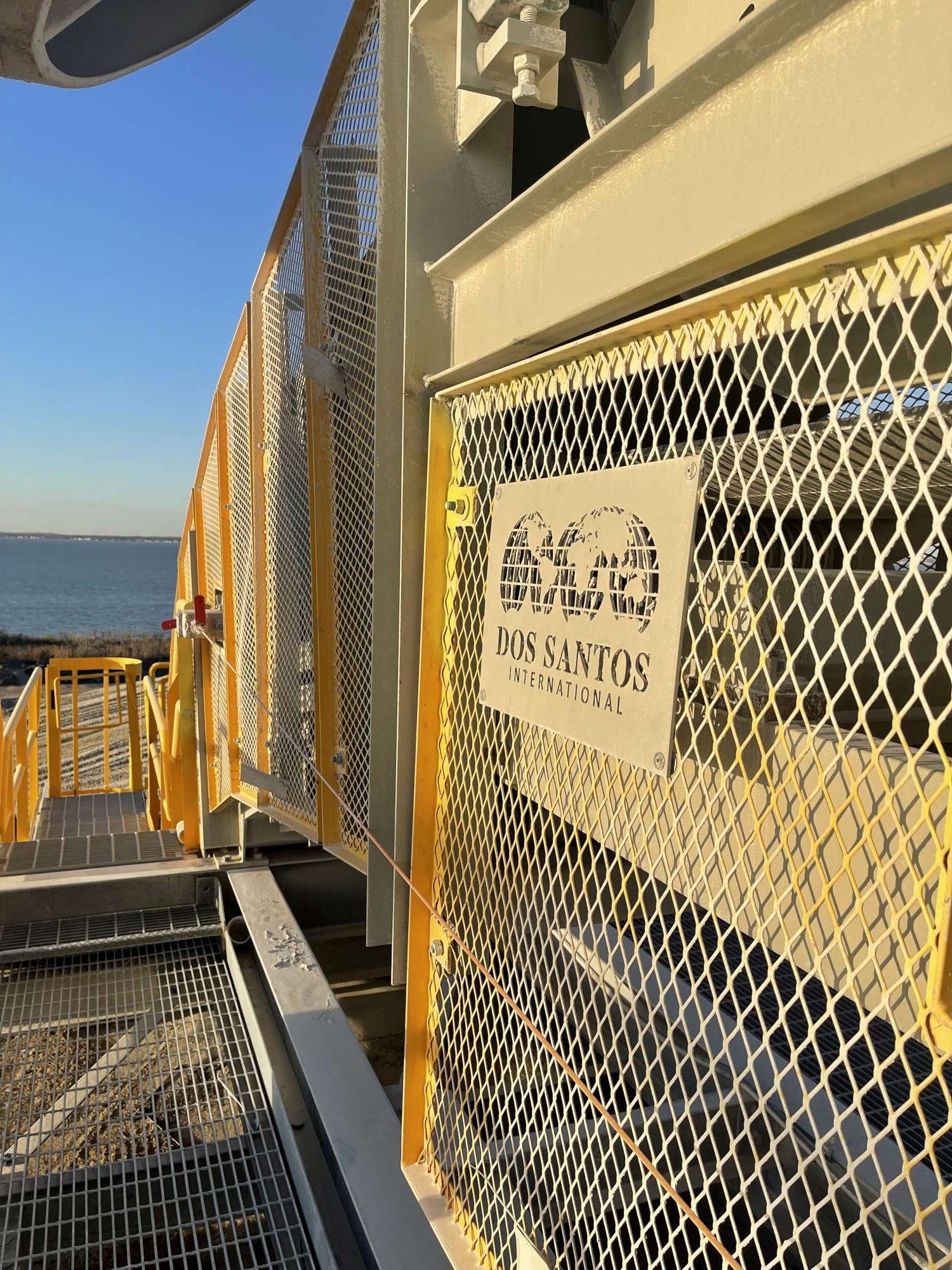

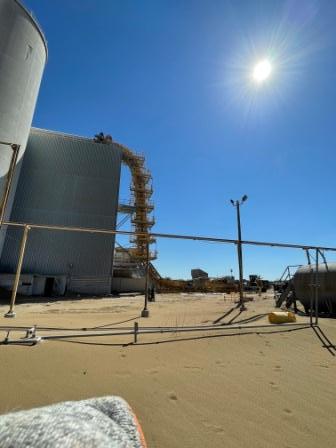

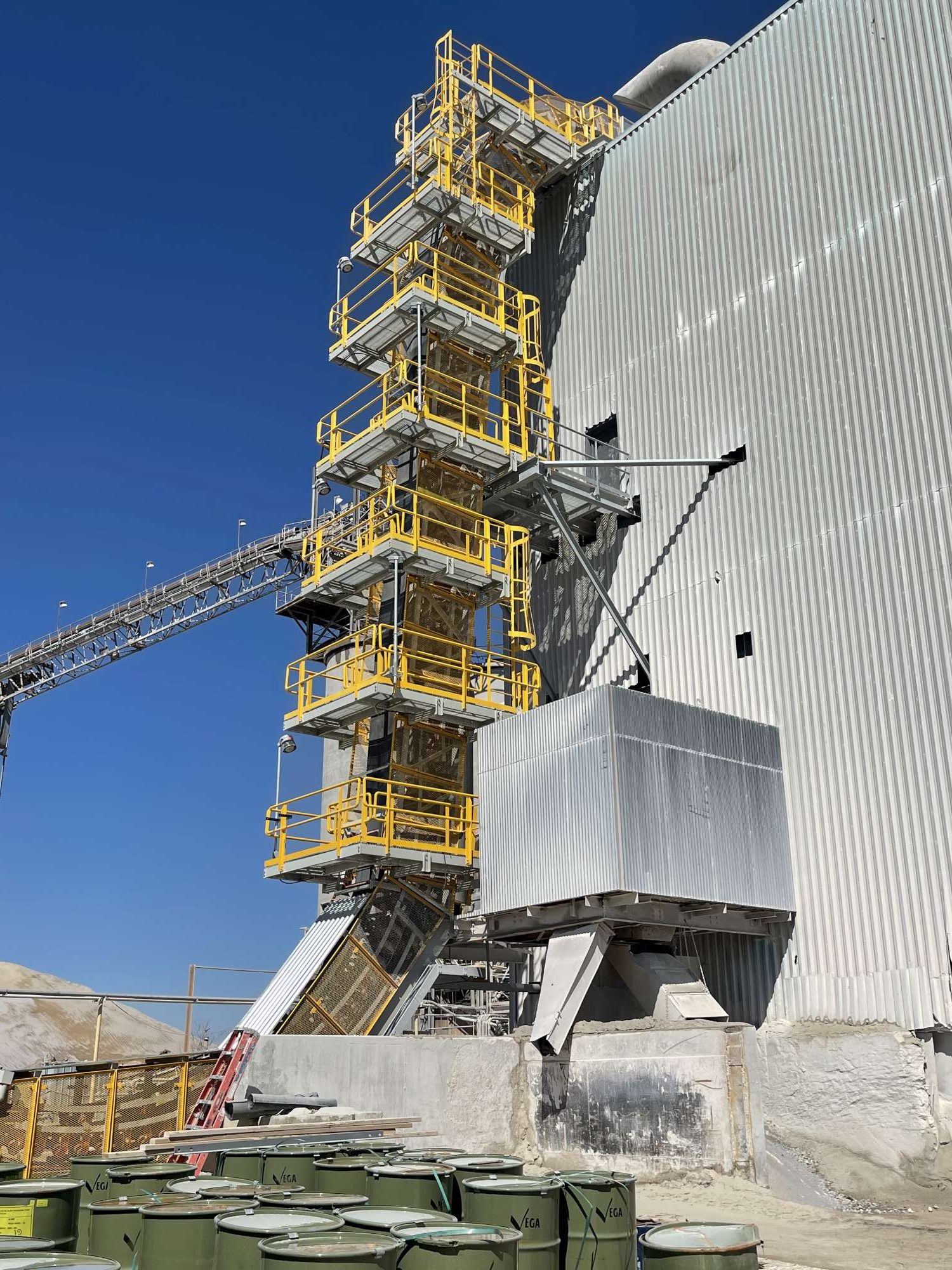

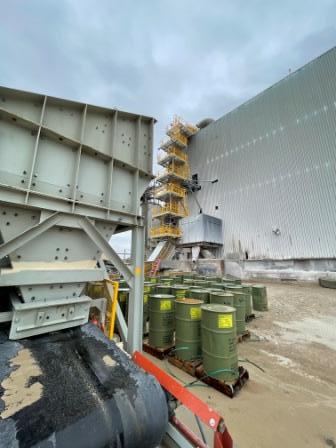

DS114 – Lafarge Holcim for Sparrow’s Point

Material:

Natural gypsum

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

76 mm |

3 in

Conveying rate:

122 t/h |

135 STPH

Conveying angle:

85 deg

Belt width:

762 mm |

30 in

Belt speed:

2.03 m/s |

400 FPM

Lift:

23300 mm |

76 ft

Length:

61500 mm |

202 ft

Bottom drive power:

19 kW |

25 HP

Top drive power:

19 kW |

25 HP

DSCo001 – DSI Temporary Reclaim TC-1 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

12 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

7620 mm |

25 ft

Length:

53340 mm |

175 ft

Bottom drive power:

74.6 kW |

100 HP

Top drive power:

N/A kW |

N/A HP

DSCo009 – DSI Horizontally Curving Downhill Regenerative Overland Conveyor TB-28 for Los Filos, Goldcorp – 300m radius

Material:

Gold Ore

Bulk density:

1.44 t/cu-m |

90 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

1043 t/h |

1150 STPH

Conveying angle:

‘-5.8 deg

Belt width:

914 mm |

36 in

Belt speed:

2.3 m/s |

445 FPM

Lift:

‘-24600 mm |

‘-81.5 ft

Length:

243000 mm |

802.8 ft

Bottom drive power:

‘-74.6 kW |

‘-100 HP

Top drive power:

N/A kW |

N/A HP

DS104 – Zanella Maquinas at Brennand Cimentos Project

Material:

Cement feed

Bulk density:

1.4 t/cu-m |

87 PCF

Material size:

100 mm |

4 in

Conveying rate:

720 t/h |

794 STPH

Conveying angle:

60 deg

Belt width:

1219 mm |

48 in

Belt speed:

3.1 m/s |

610 FPM

Lift:

20290 mm |

66.7 ft

Length:

61470 mm |

202.7 ft

Bottom drive power:

56 kW |

75 HP

Top drive power:

56 kW |

75 HP

DS108 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

24647 mm |

80.9 ft

Length:

33521 mm |

110 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP

DS093 – Continental Canada for DOFASCO Steel Project Alloys

Material:

Various

Bulk density:

4.2 t/cu-m |

260 PCF

Material size:

75 mm |

3 in

Conveying rate:

188 t/h |

200 STPH

Conveying angle:

70 deg

Belt width:

914 mm |

36 in

Belt speed:

1.02 m/s |

207 FPM

Lift:

35235 mm |

115.6 ft

Length:

48768 mm |

160 ft

Bottom drive power:

18.6 kW |

25 HP

Top drive power:

18.6 kW |

25 HP
