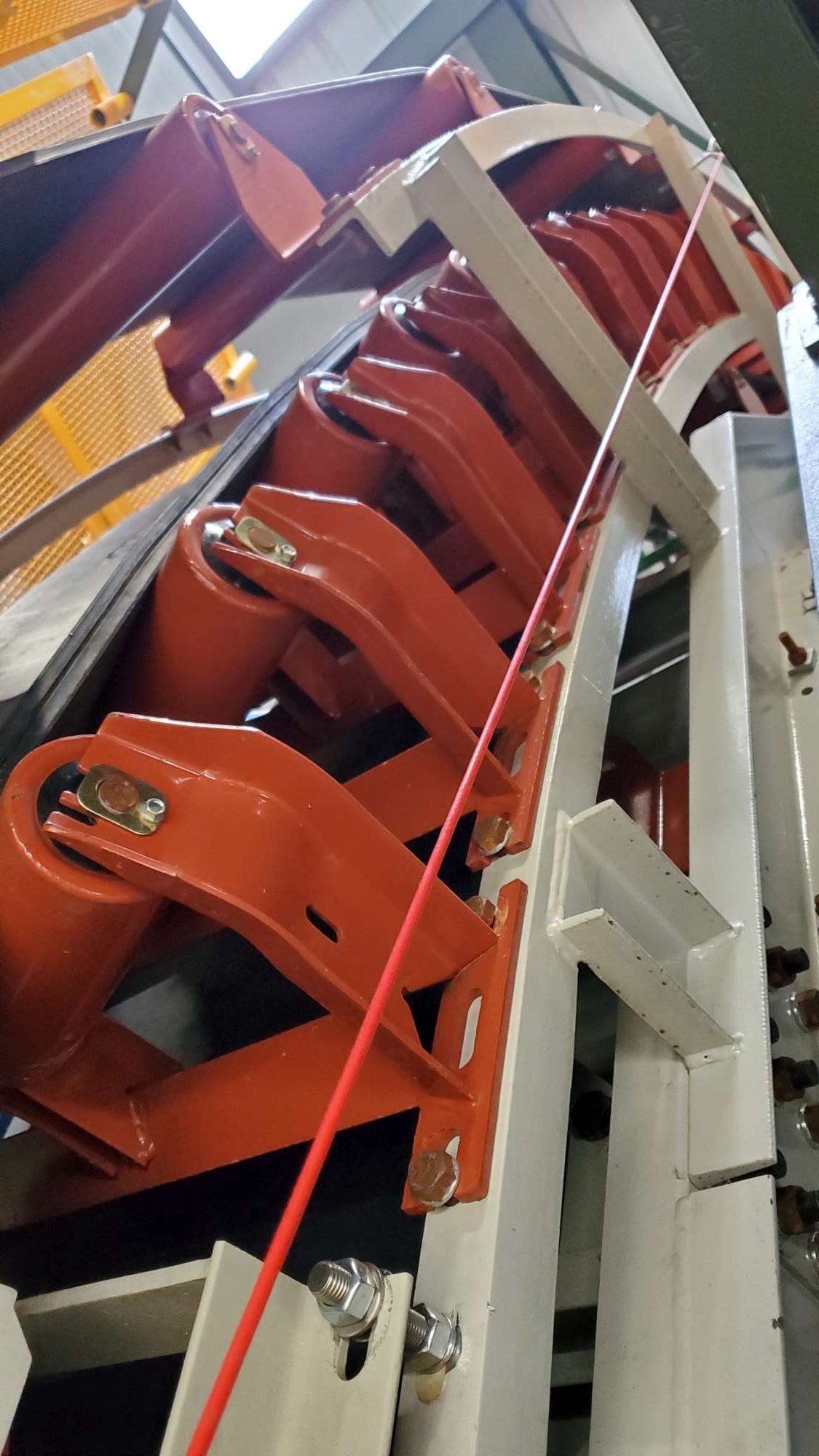

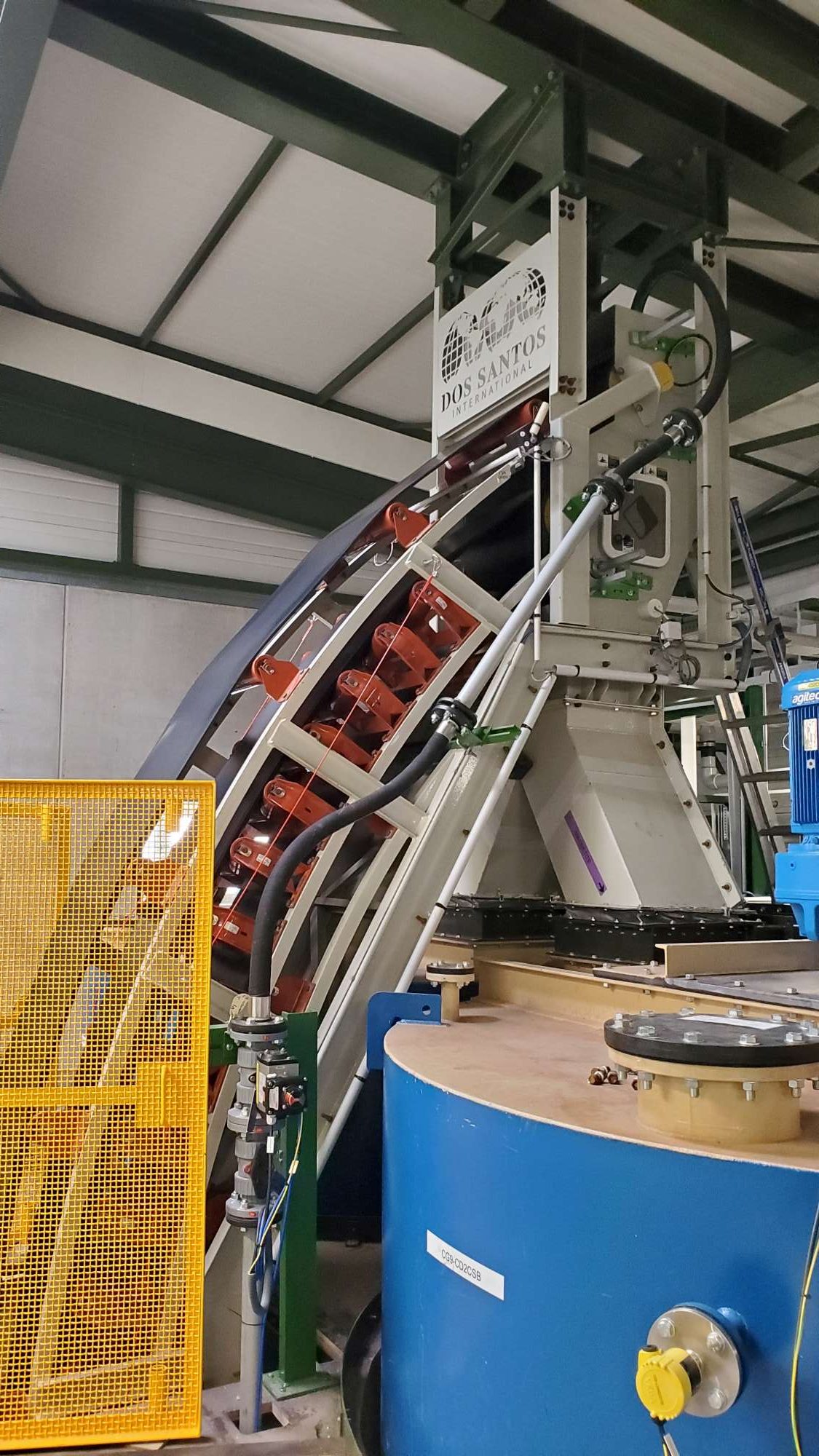

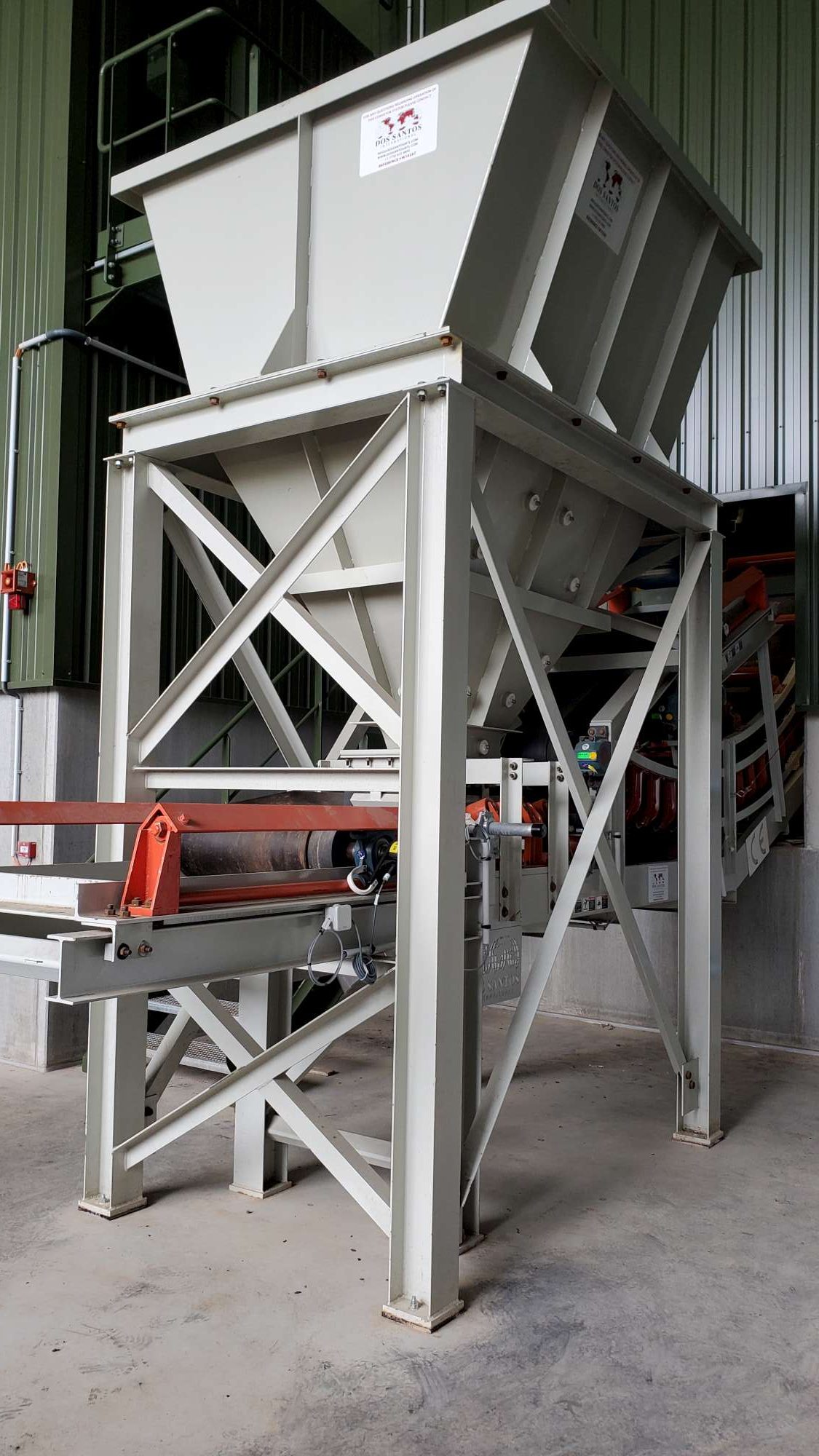

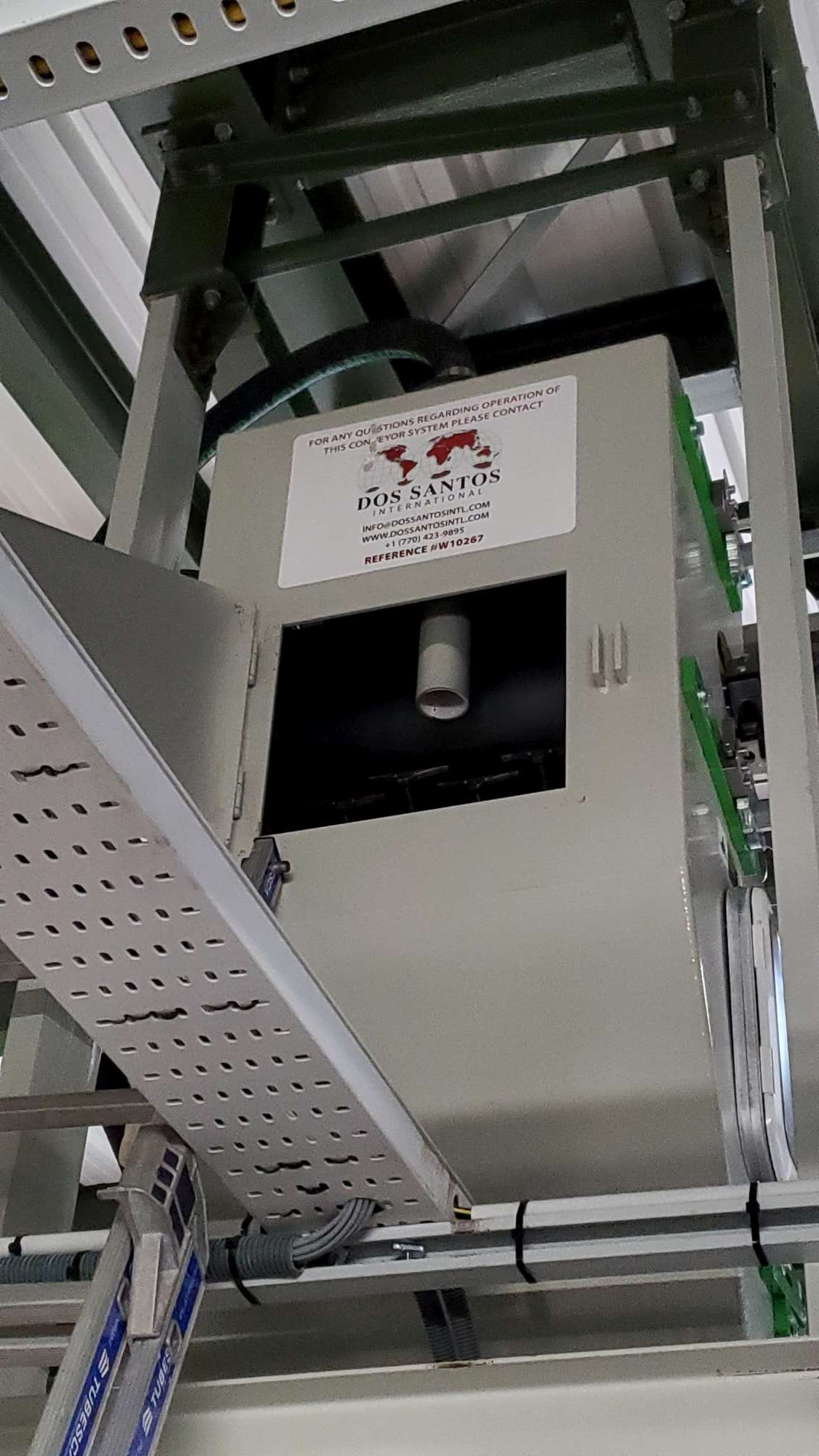

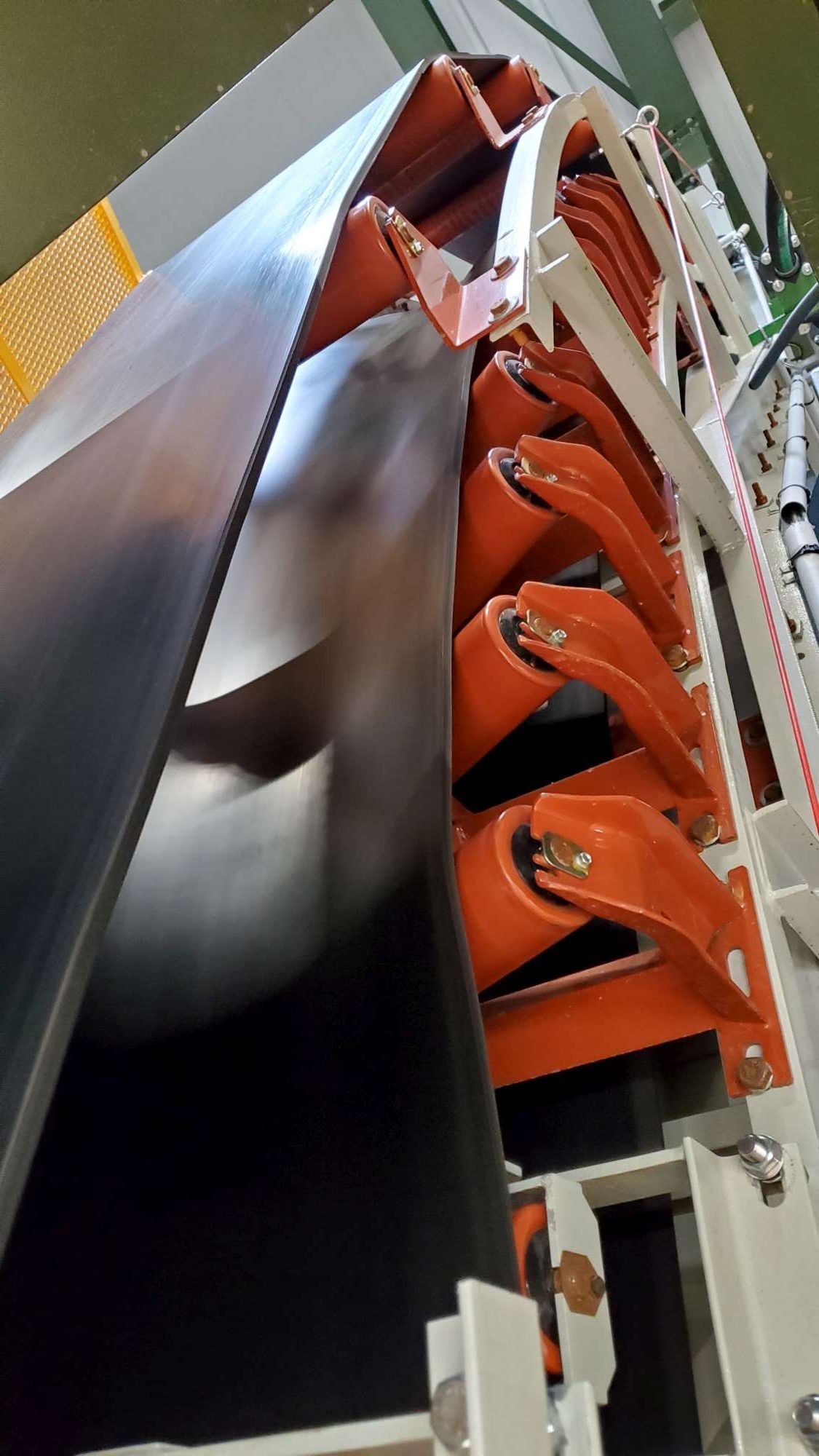

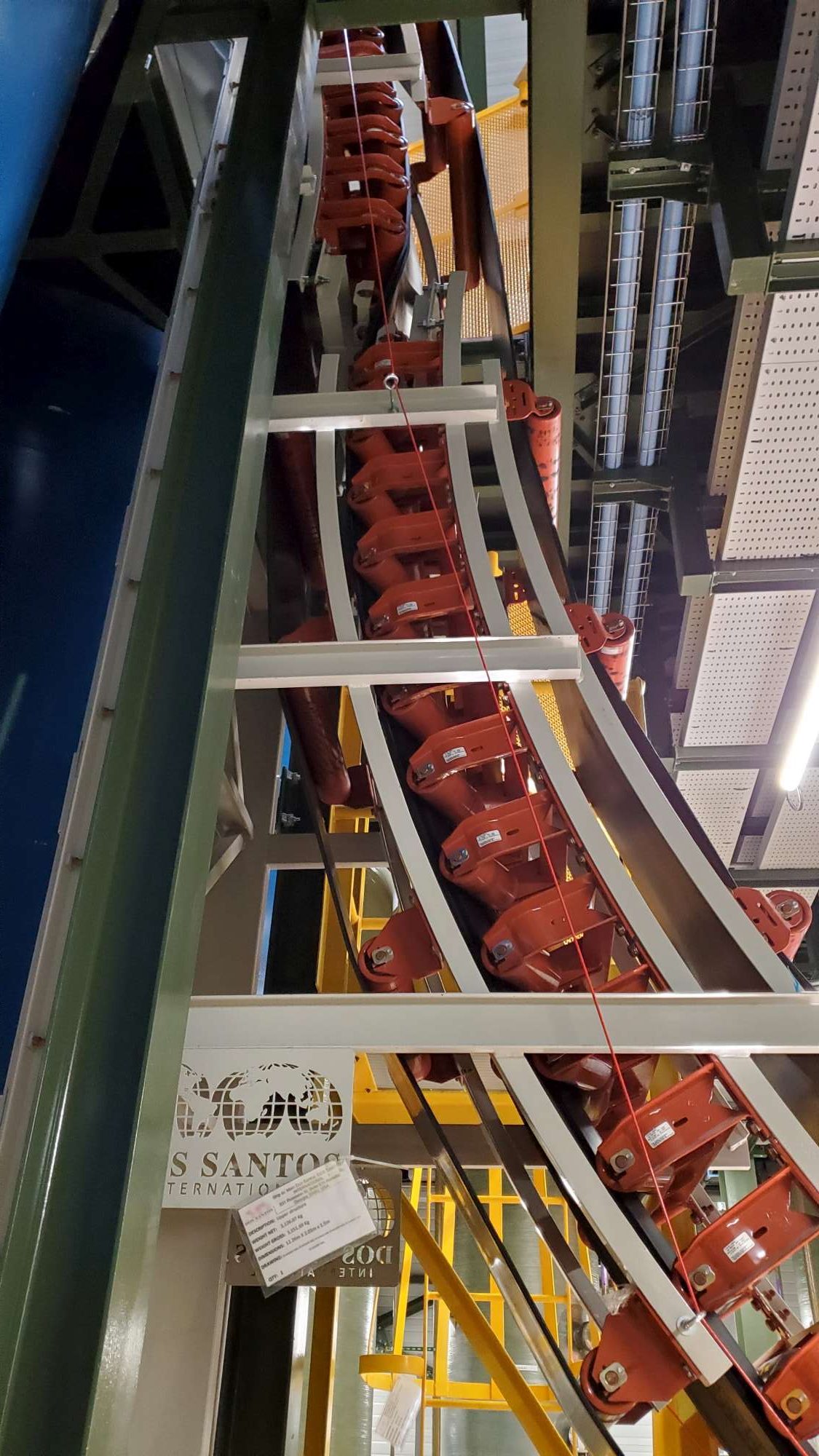

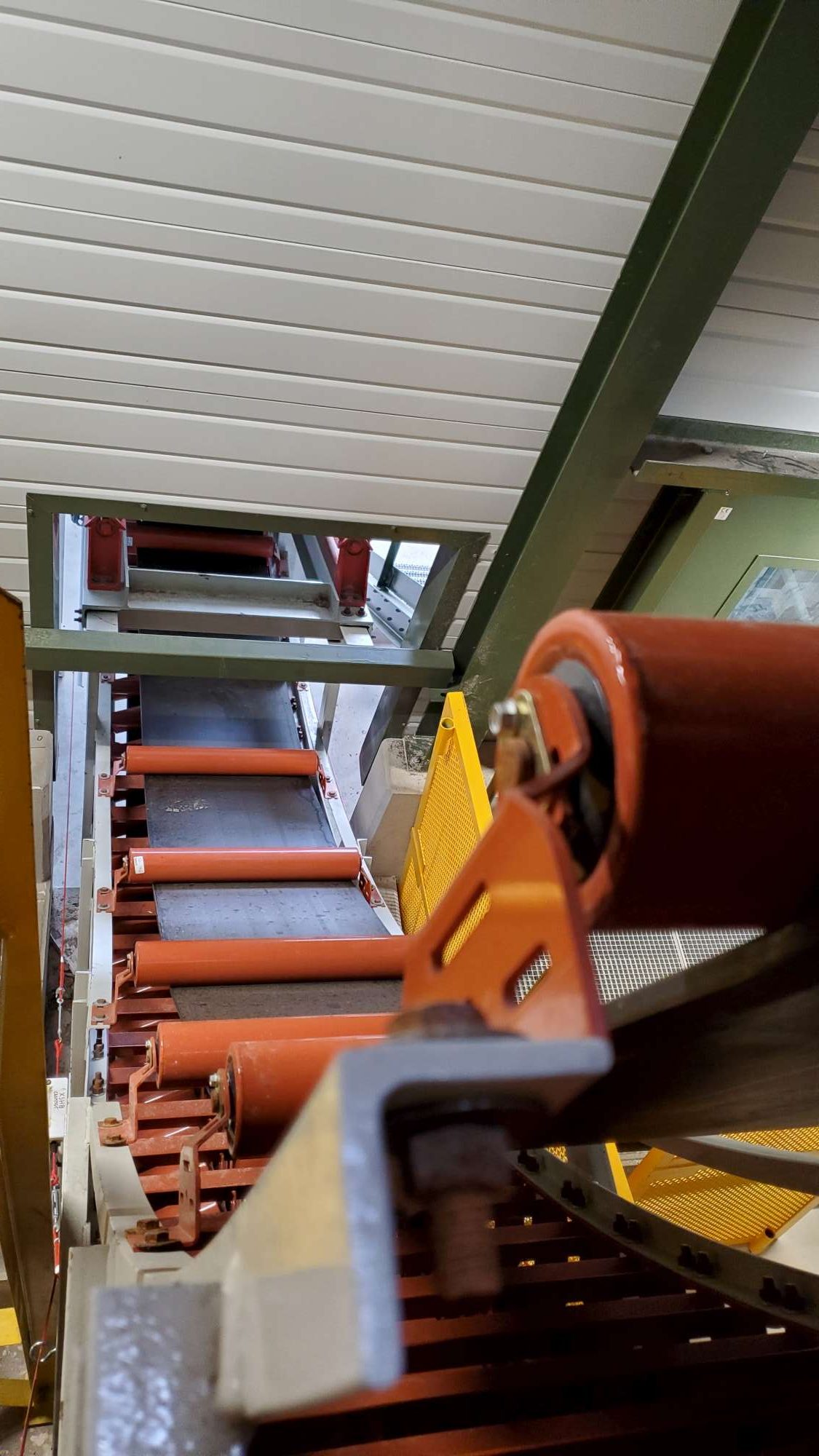

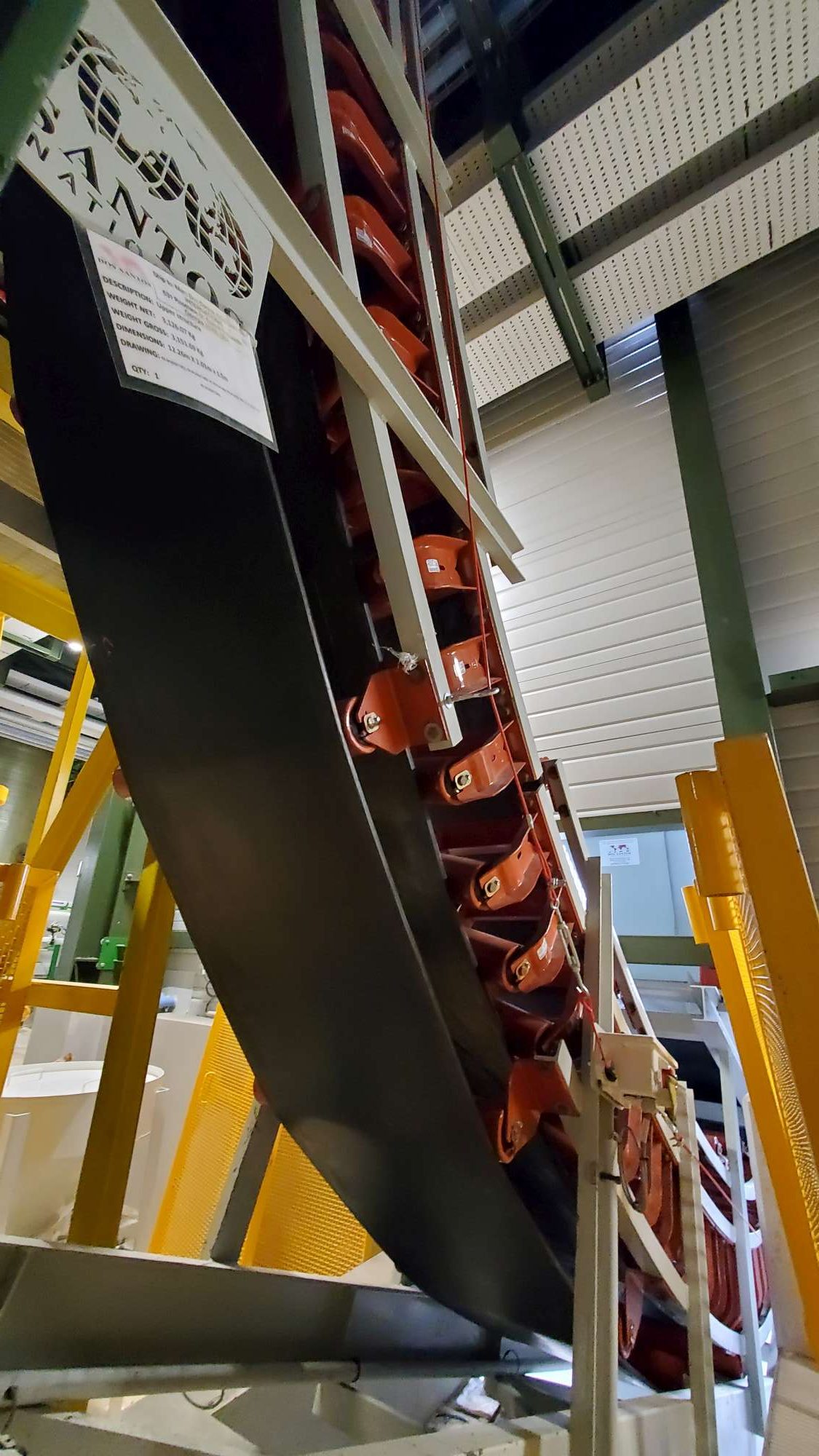

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS092 – Continental Canada for Snap Lake Diamond Mine Project 2

Material:

Kimberlite

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

50 mm |

2 in

Conveying rate:

600 t/h |

552 STPH

Conveying angle:

50 deg

Belt width:

914 mm |

36 in

Belt speed:

2.2 m/s |

433 FPM

Lift:

18310 mm |

60.1 ft

Length:

70562 mm |

231.5 ft

Bottom drive power:

44.8 kW |

60 HP

Top drive power:

44.8 kW |

60 HP

DS085 – Foxwood Casino for WWTP Project

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

3350 mm |

11 ft

Length:

14800 mm |

48.5 ft

Bottom drive power:

1.5 kW |

2 HP

Top drive power:

1.5 kW |

2 HP

DS107 – DSI Adder Snake at Fertilizer Project

Material:

Fertilizer prills

Bulk density:

0.8 t/cu-m |

47 PCF

Material size:

4 mm |

0.14 in

Conveying rate:

600 t/h |

661 STPH

Conveying angle:

40 deg

Belt width:

1600 mm |

63 in

Belt speed:

2 m/s |

394 FPM

Lift:

10476 mm |

34 ft

Length:

32713 mm |

107 ft

Bottom drive power:

37 kW |

50 HP

Top drive power:

37 kW |

50 HP

DS108 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

24647 mm |

80.9 ft

Length:

33521 mm |

110 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS112 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

67056 mm |

220 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP

DS119 – EleVeyor EL, Blue Plains for WWTP Project 1

Material:

Municipal sludge

Bulk density:

1 t/cu-m |

65 PCF

Material size:

Conveying rate:

14 t/h |

15 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.38 m/s |

75 FPM

Lift:

5000 mm |

16.3 ft

Length:

11250 mm |

36.9 ft

Bottom drive power:

1.9 kW |

2.5 HP

Top drive power:

1.9 kW |

2.5 HP
