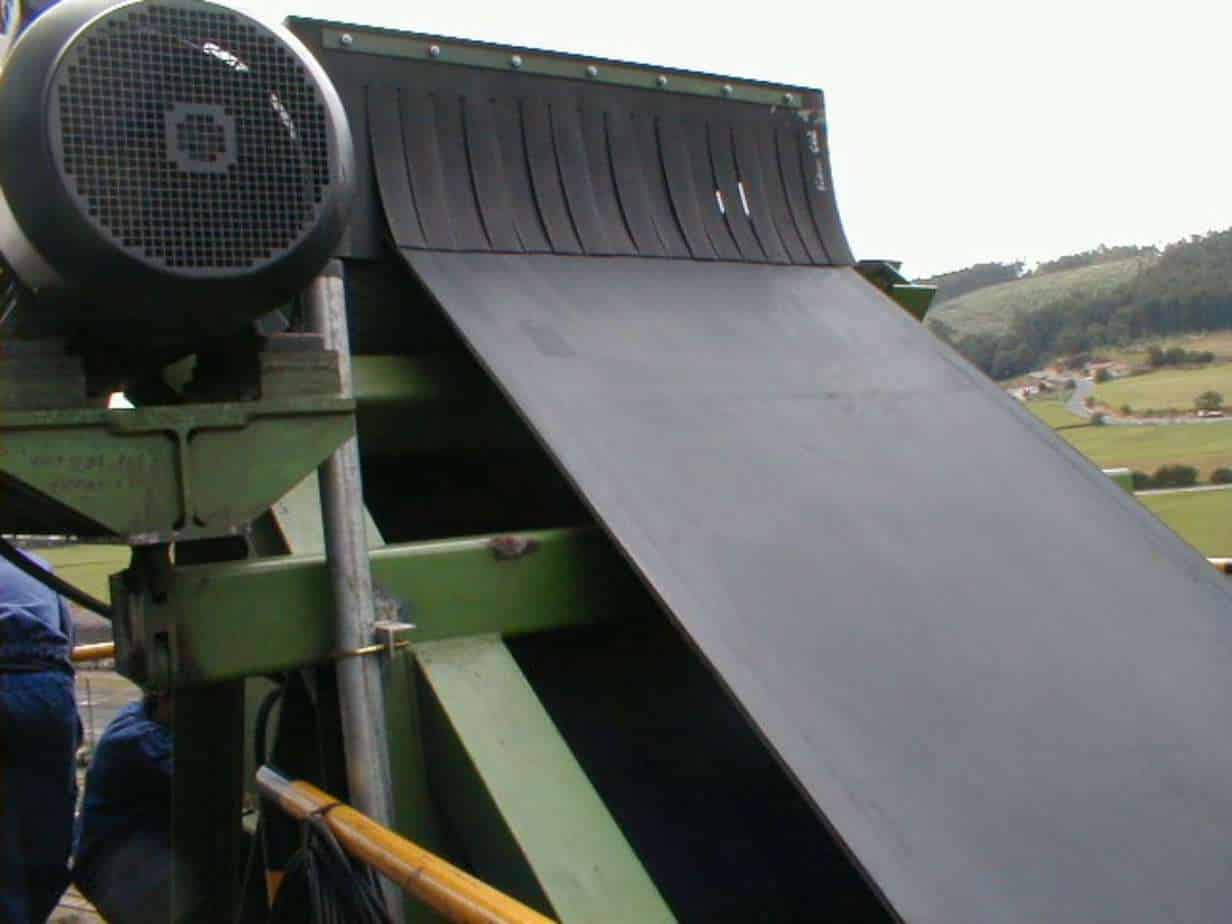

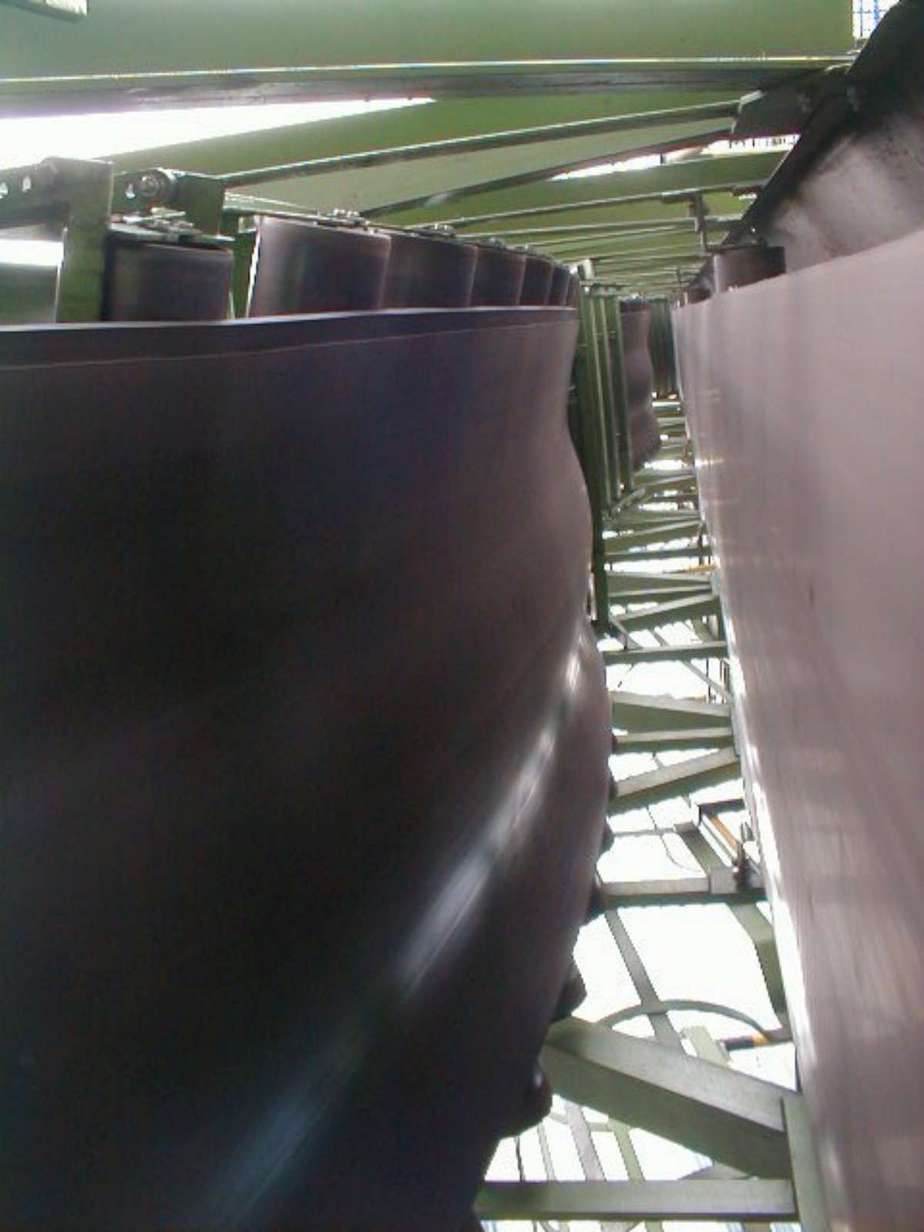

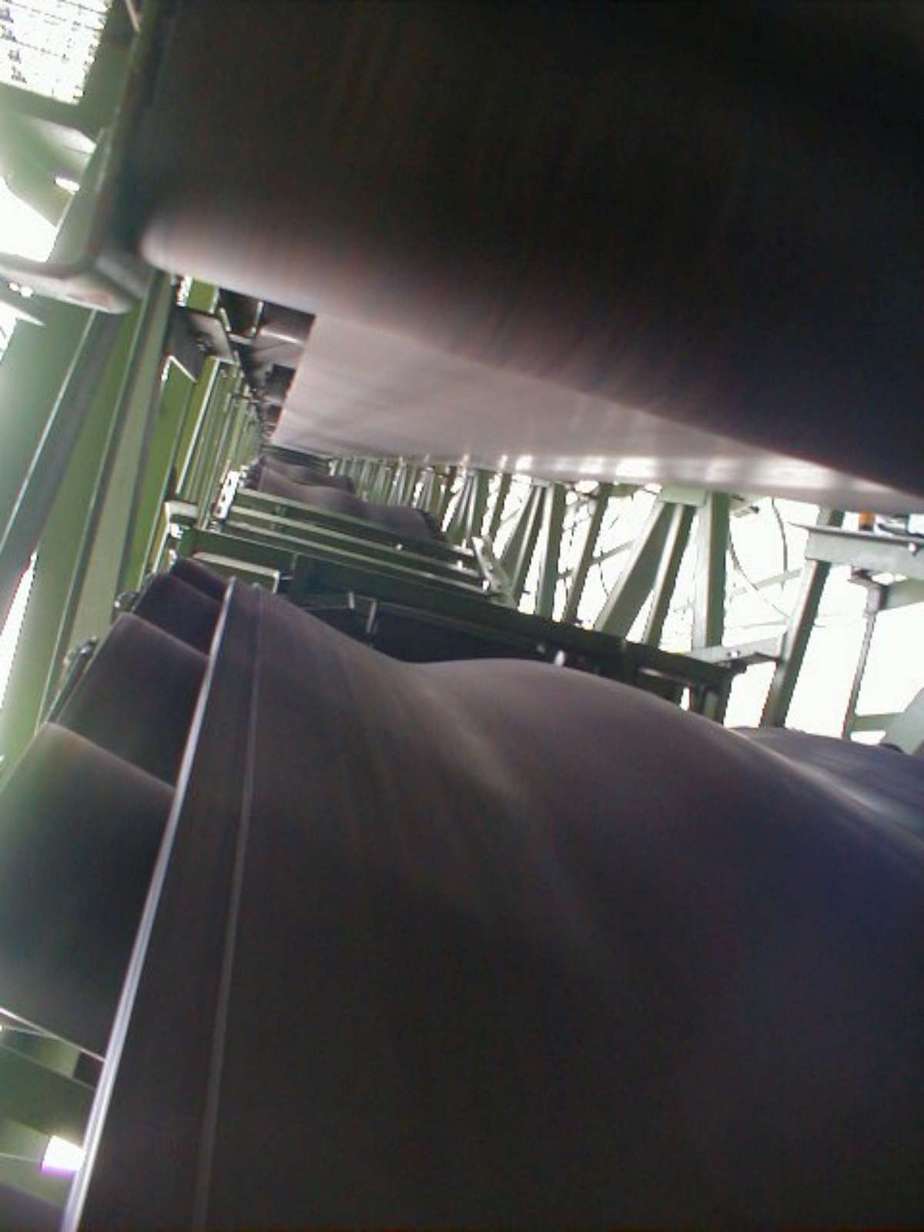

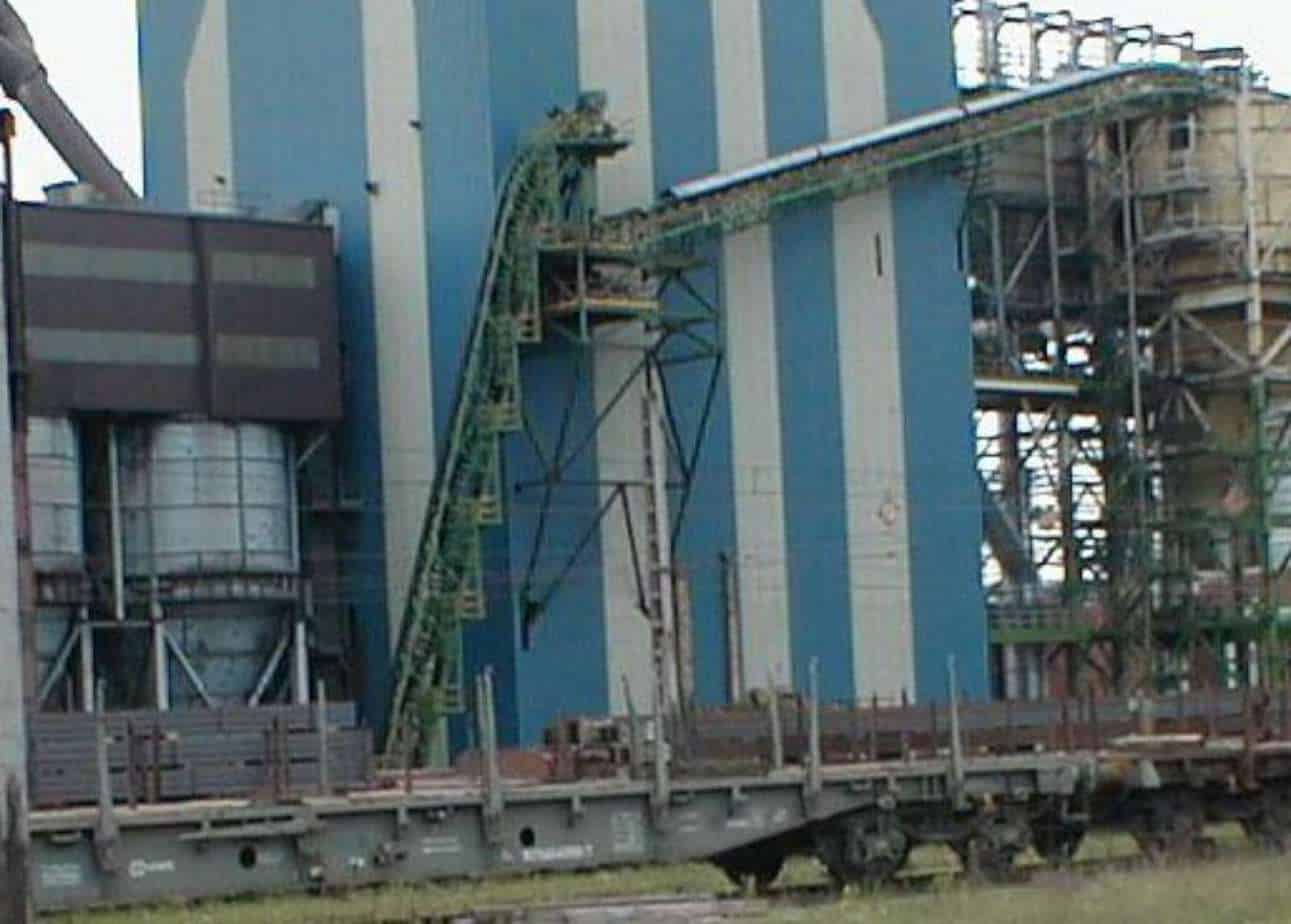

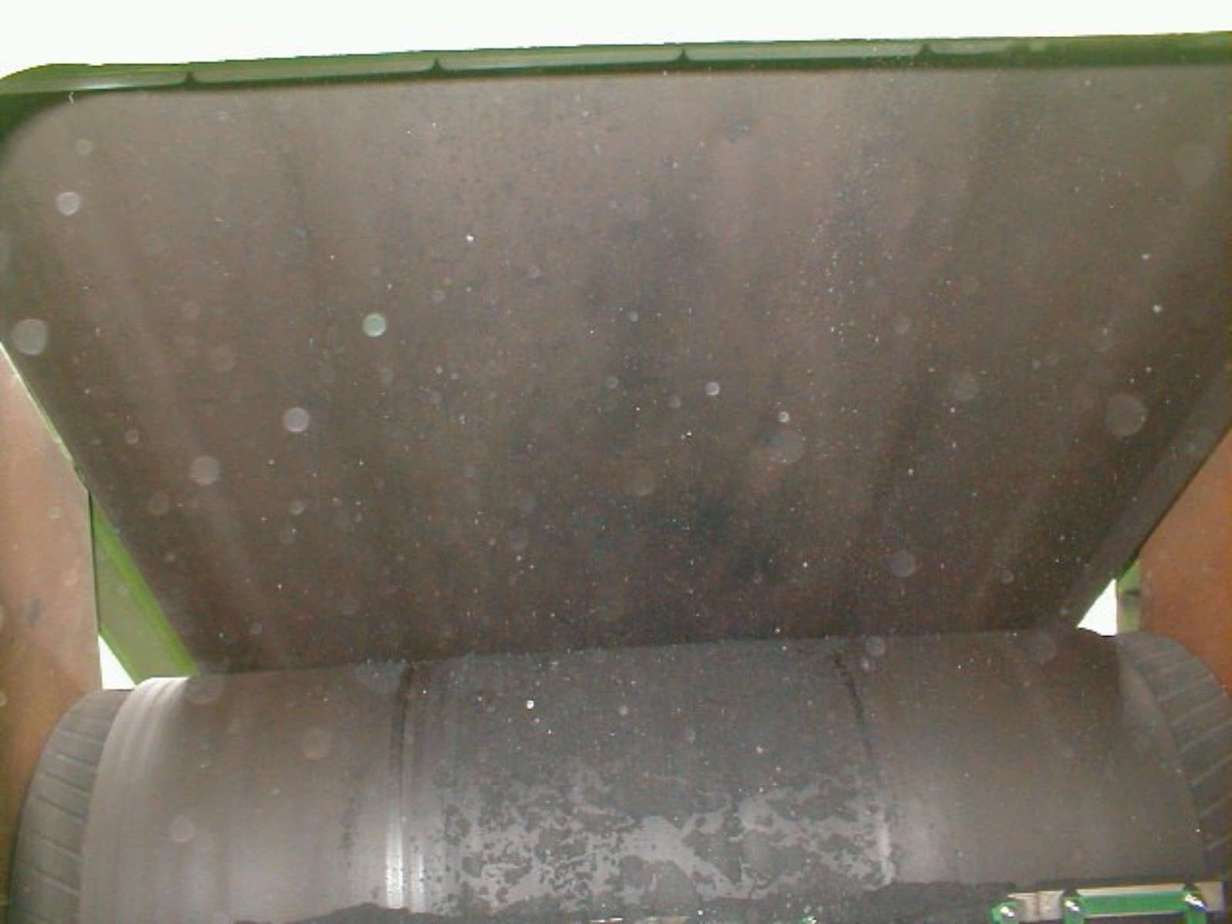

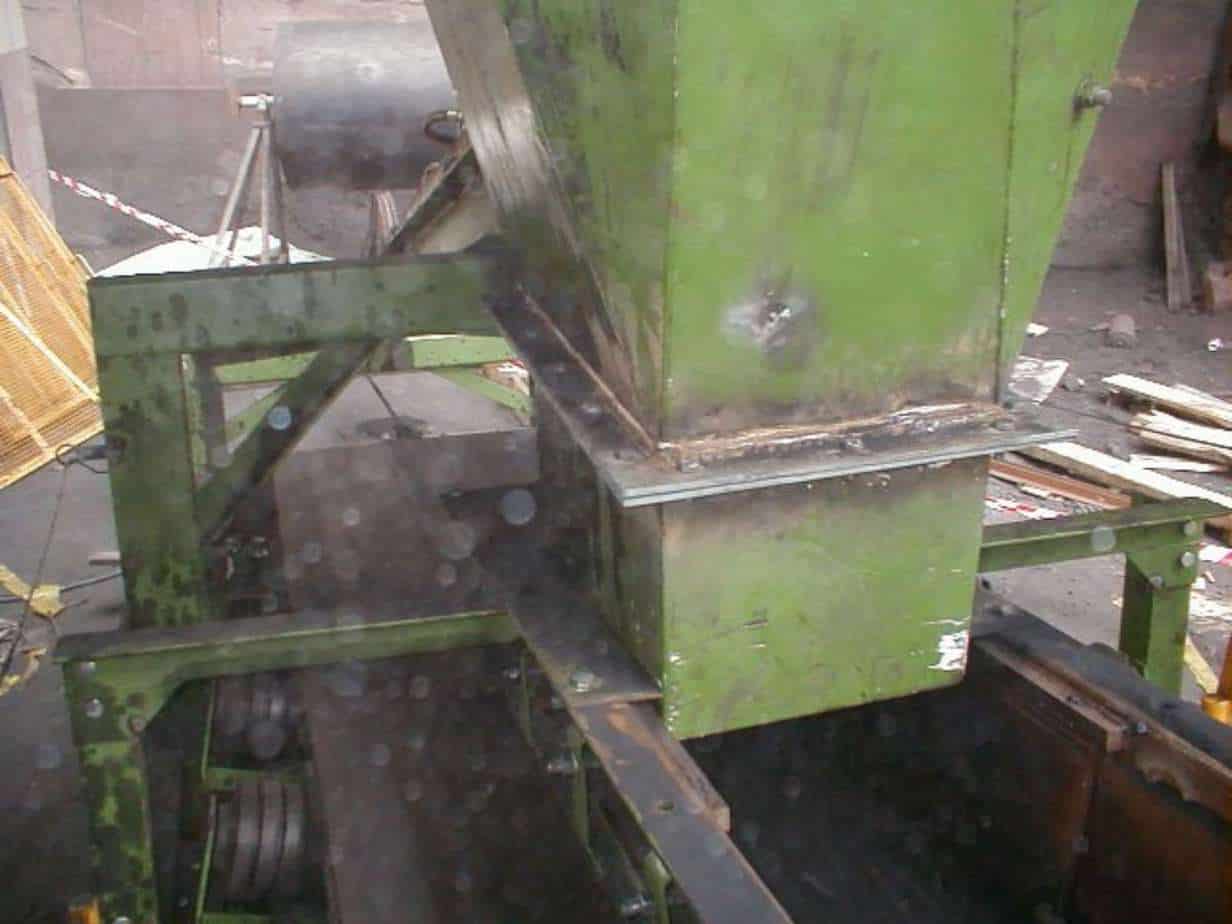

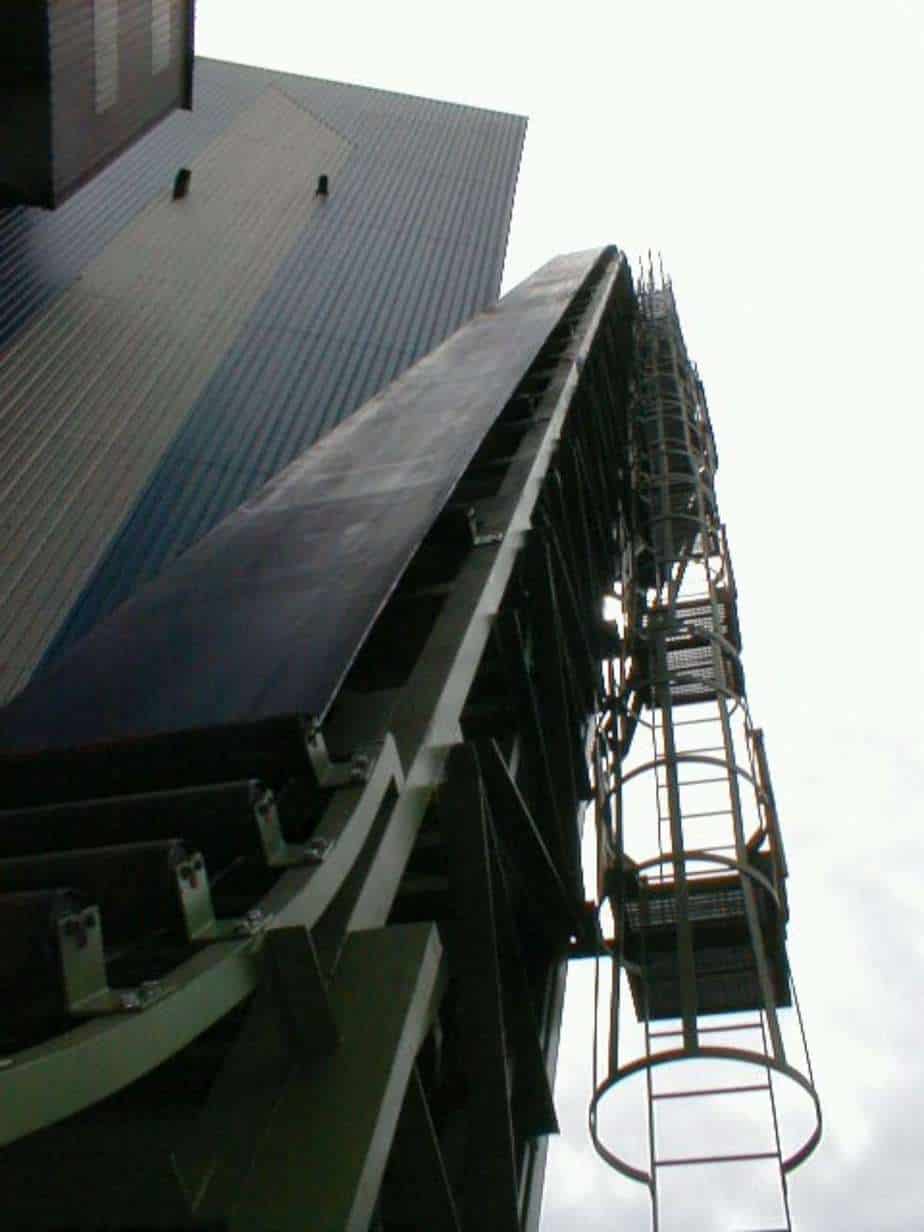

DS087 – PHB Weserhutte S.A. Project

DS087 - PHB Weserhutte S.A. Project - Image 3

DS087 - PHB Weserhutte S.A. Project - Image 4

DS087 - PHB Weserhutte S.A. Project - Image 5

DS087 - PHB Weserhutte S.A. Project - Image 6

DS087 – PHB Weserhutte S.A. Project

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

50 mm |

2 in

Conveying rate:

250 t/h |

276 STPH

Conveying angle:

75 deg

Belt width:

1200 mm |

47 in

Belt speed:

2.29 m/s |

450 FPM

Lift:

35100 mm |

115 ft

Length:

45065 mm |

148 ft

Bottom drive power:

30 kW |

40.2 HP

Top drive power:

30 kW |

40.2 HP
