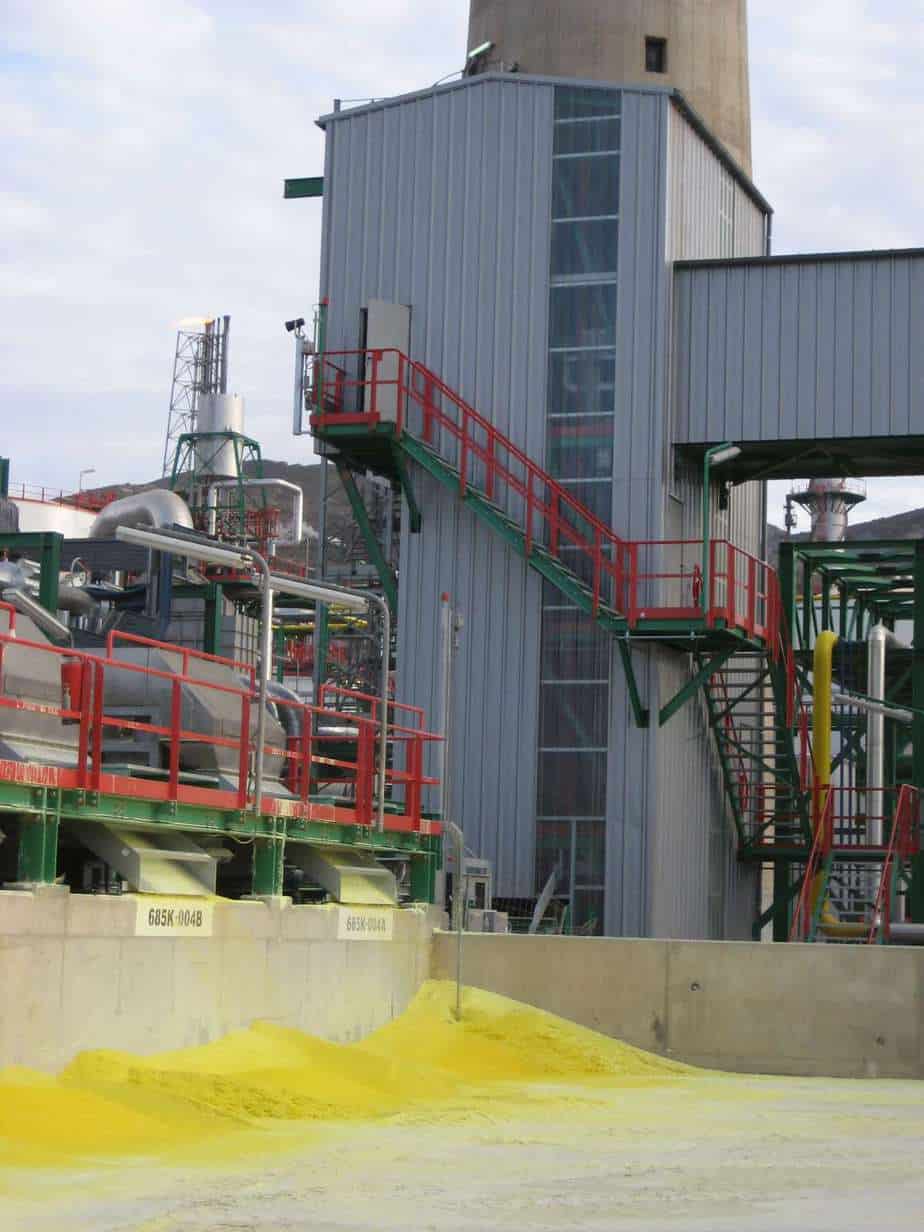

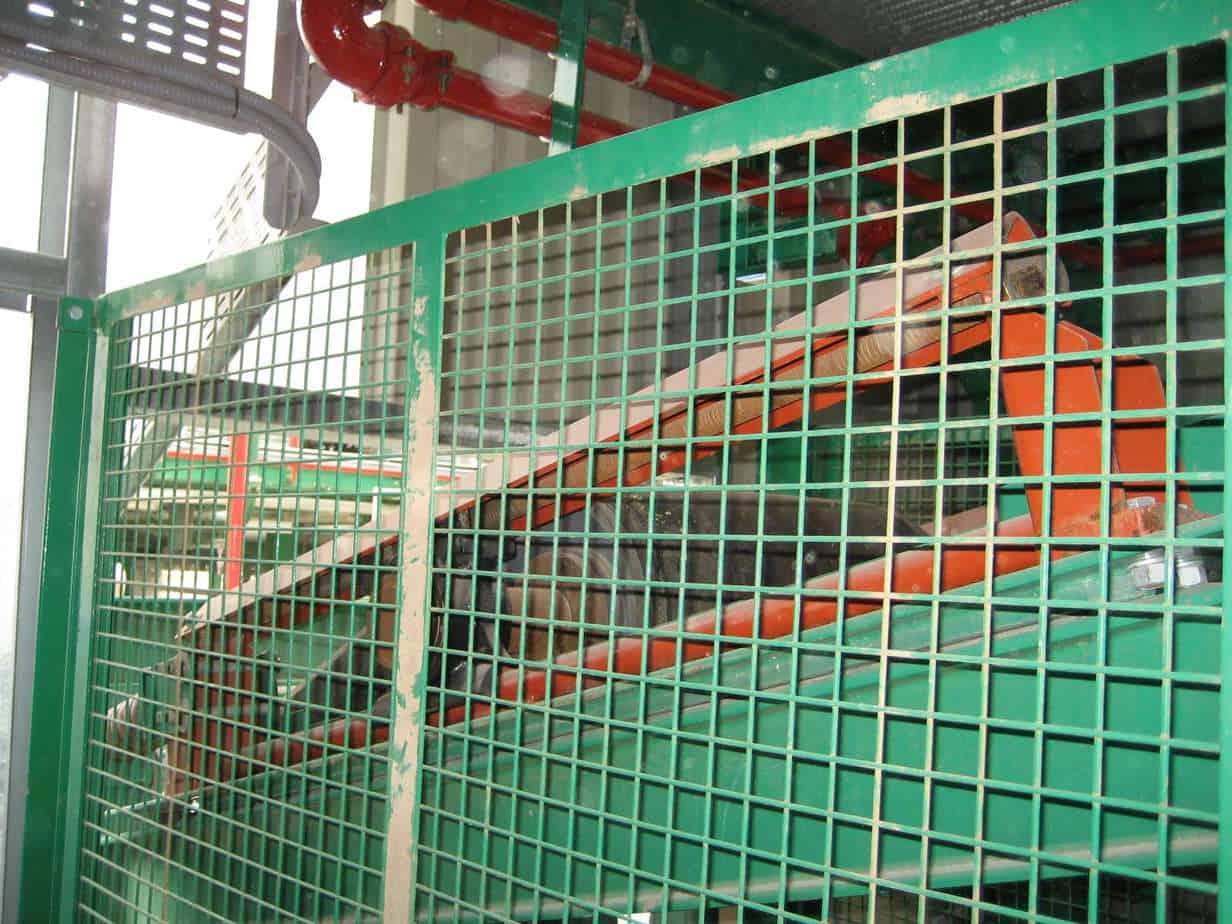

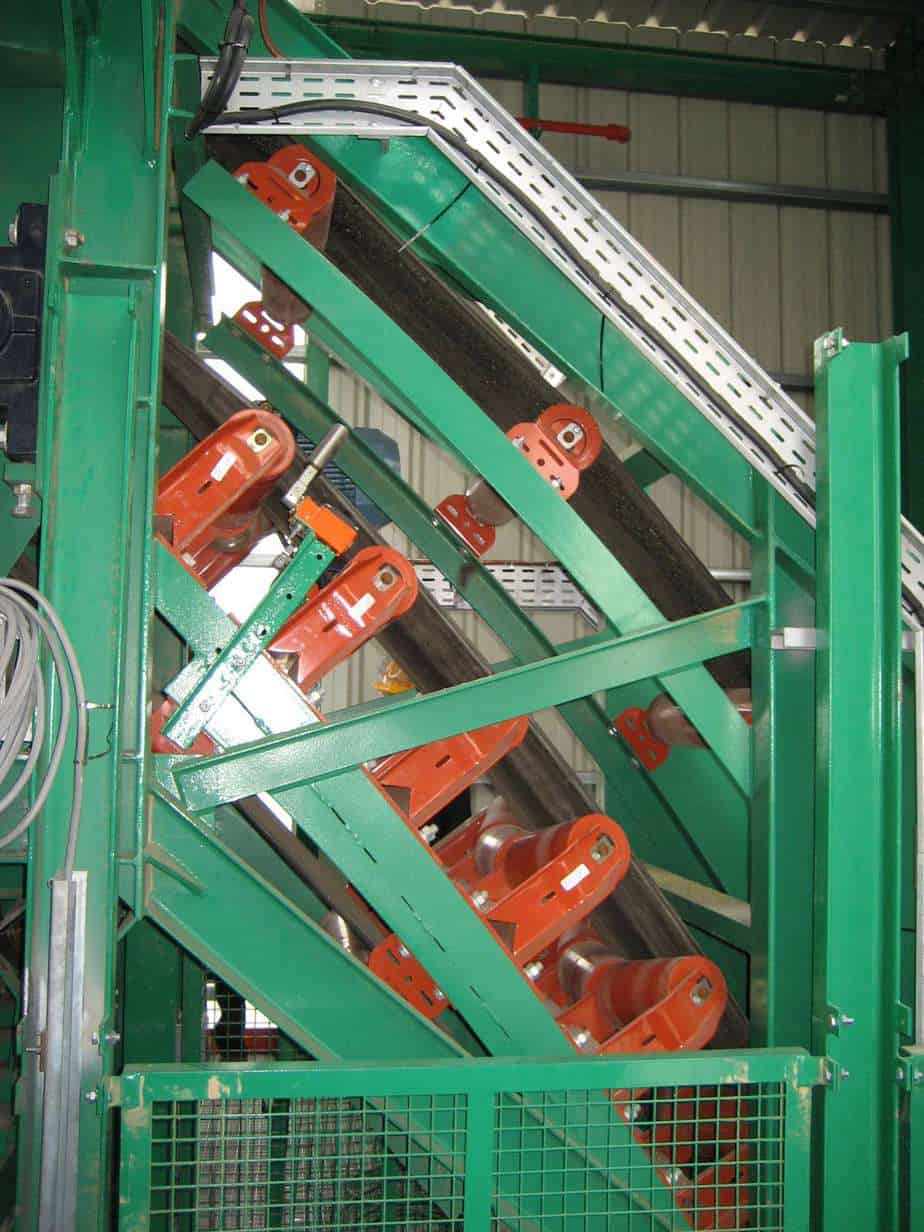

DS099 – TAIM WESER for Repsol Refinery Project

DS099 - TAIM WESER for Repsol Refinery Project - Image 3

DS099 - TAIM WESER for Repsol Refinery Project - Image 4

DS099 - TAIM WESER for Repsol Refinery Project - Image 5

DS099 - TAIM WESER for Repsol Refinery Project - Image 6

DS099 - TAIM WESER for Repsol Refinery Project - Image 7

DS099 - TAIM WESER for Repsol Refinery Project - Image 8

DS099 - TAIM WESER for Repsol Refinery Project - Image 9

DS099 - TAIM WESER for Repsol Refinery Project - Image 10

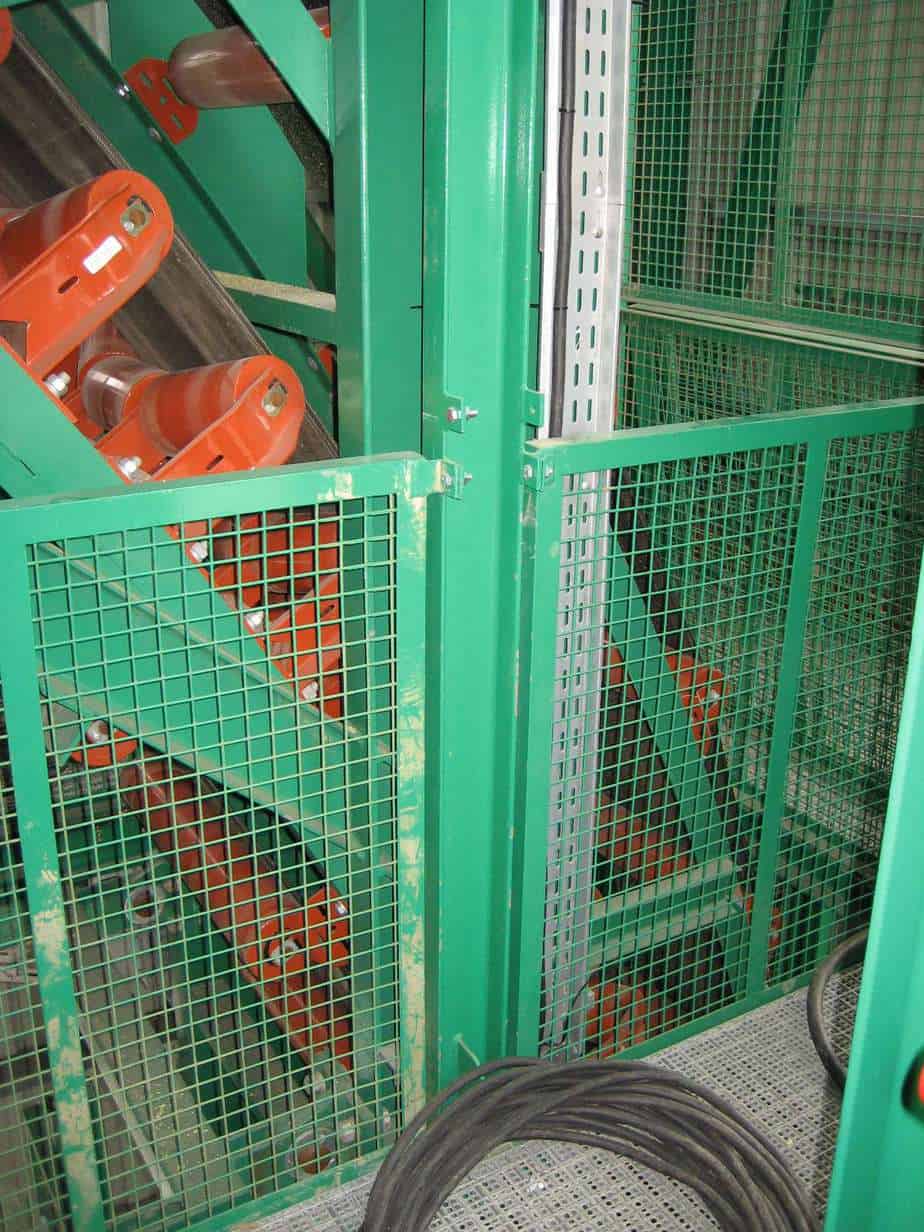

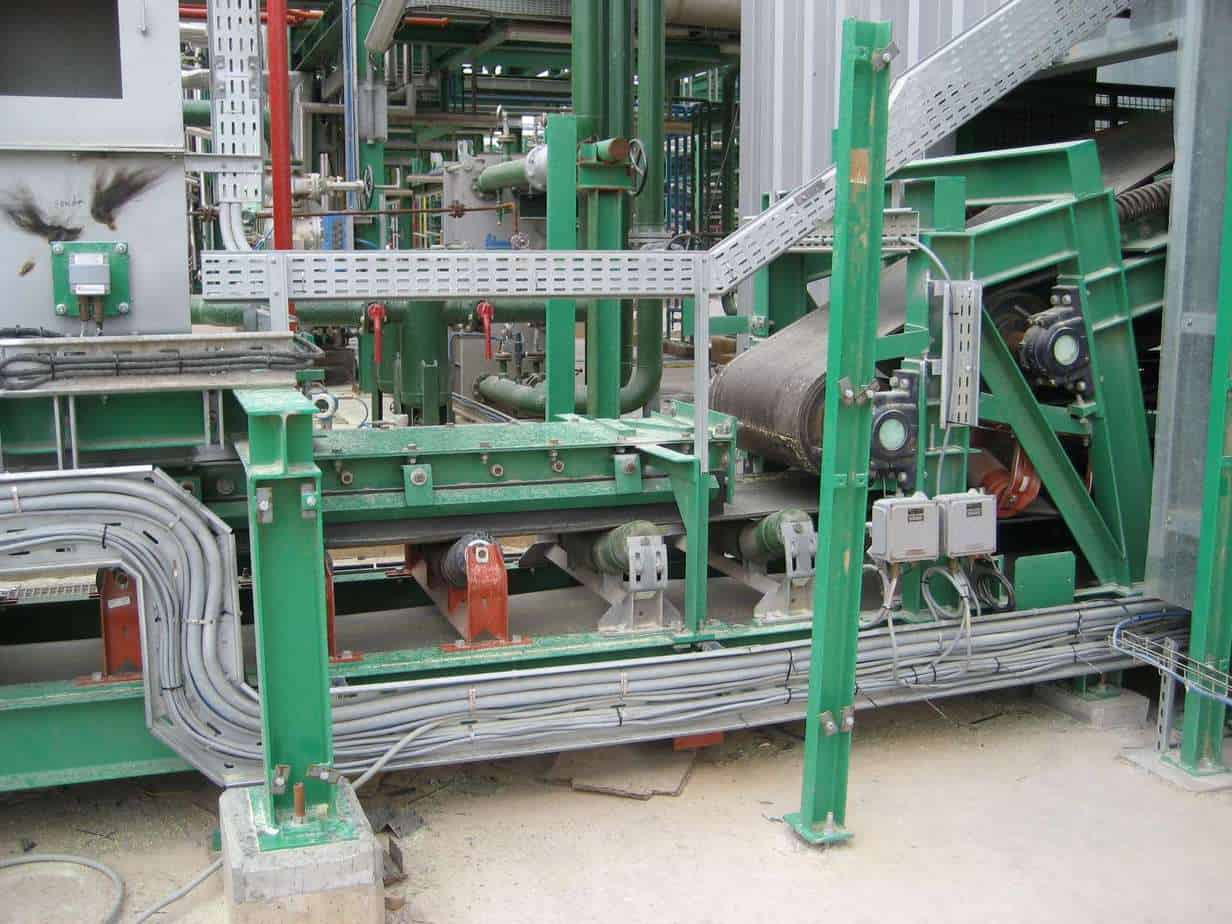

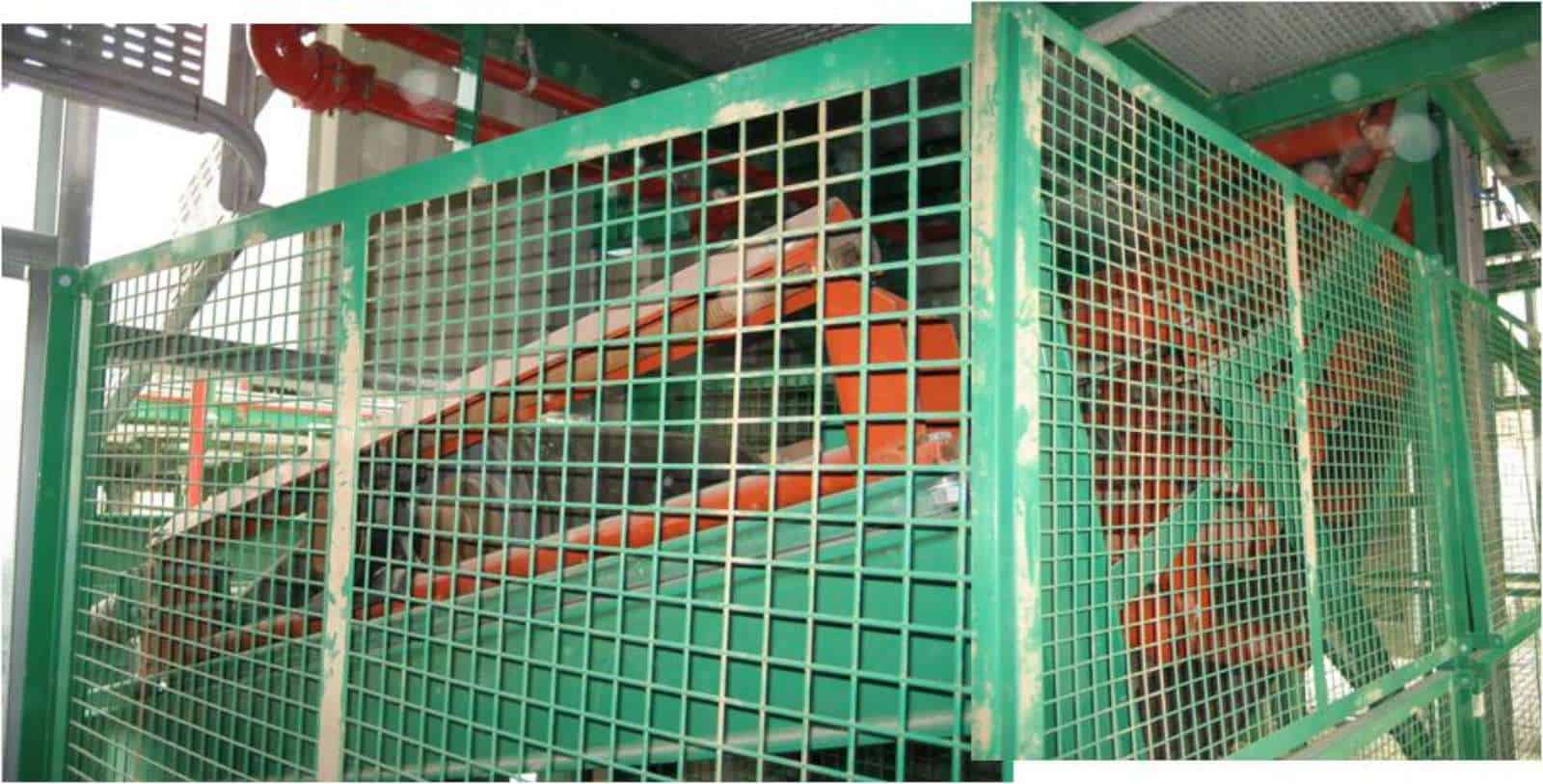

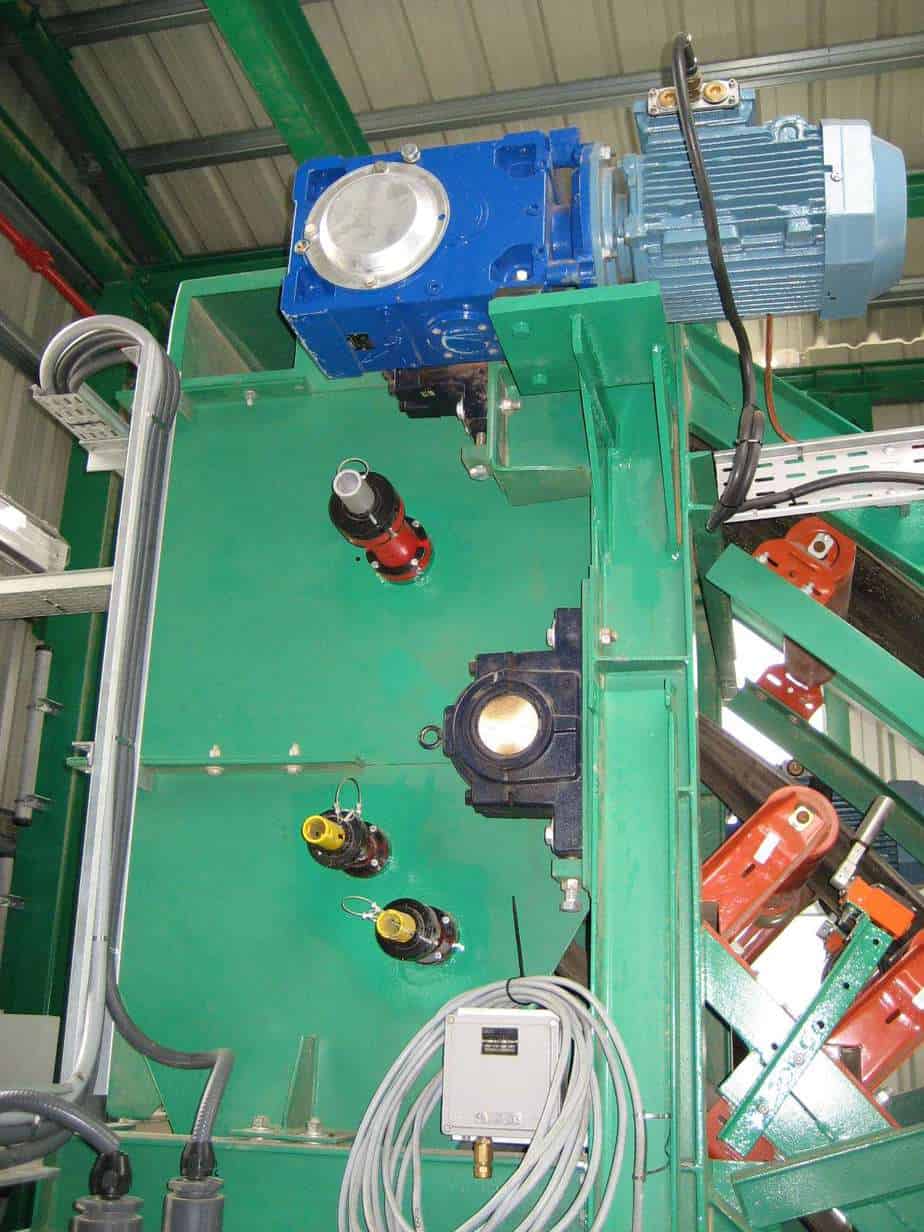

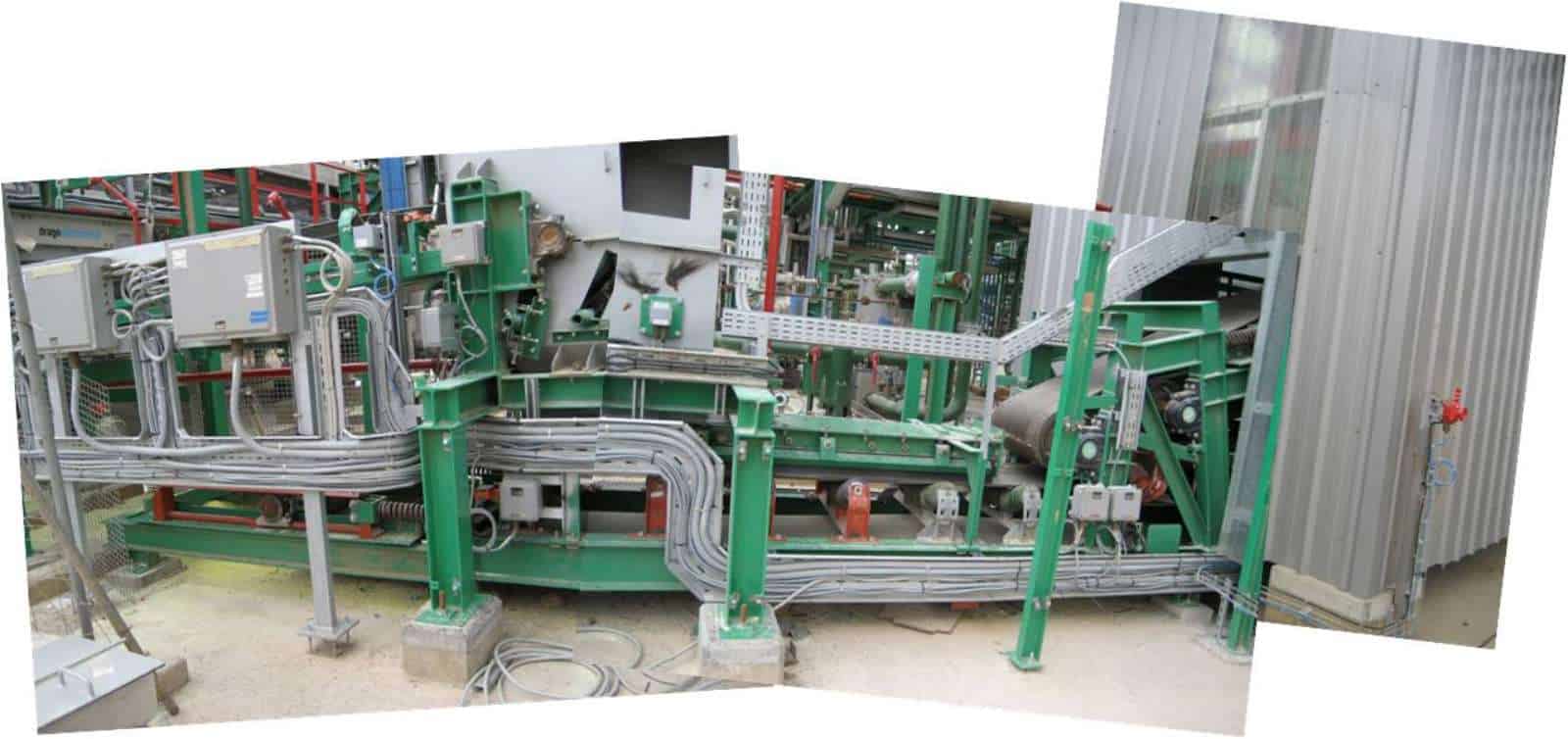

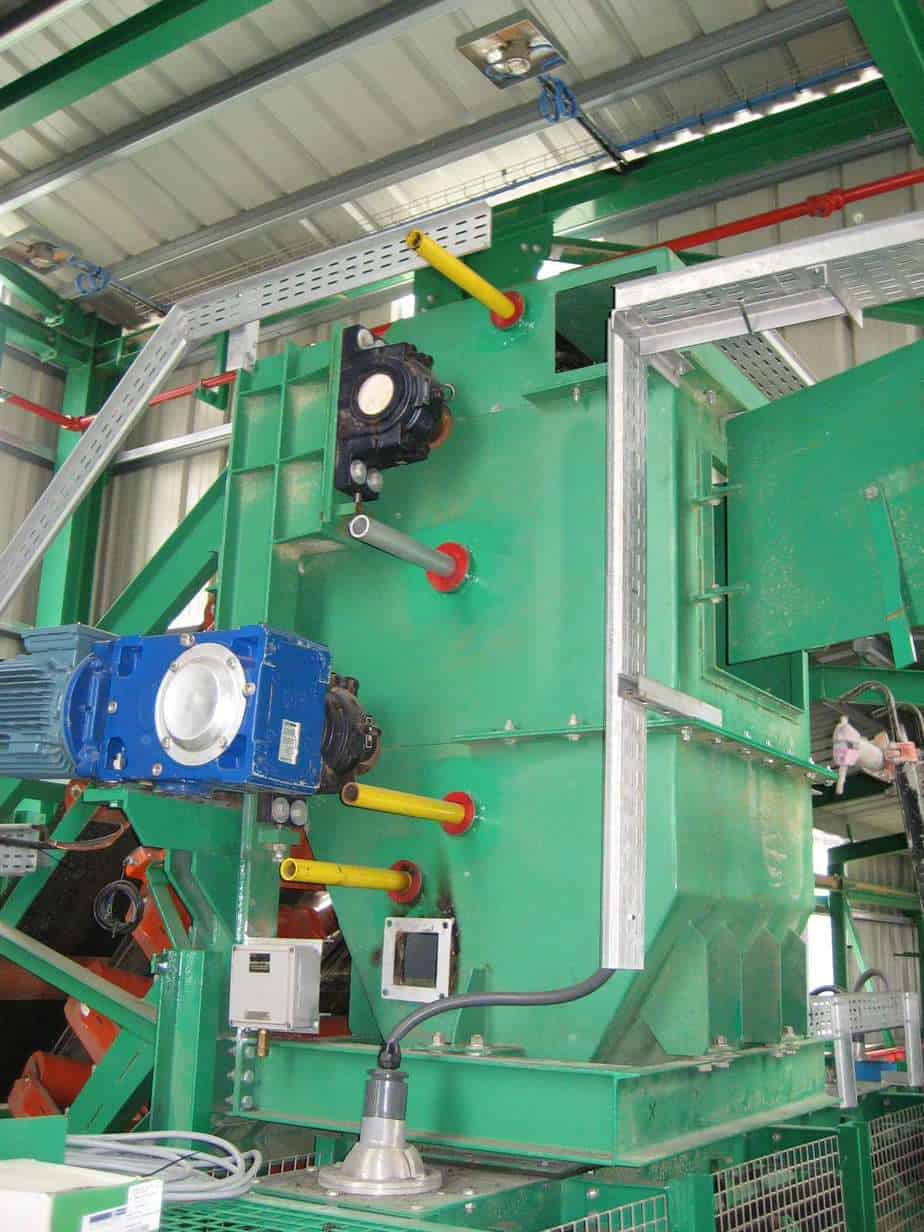

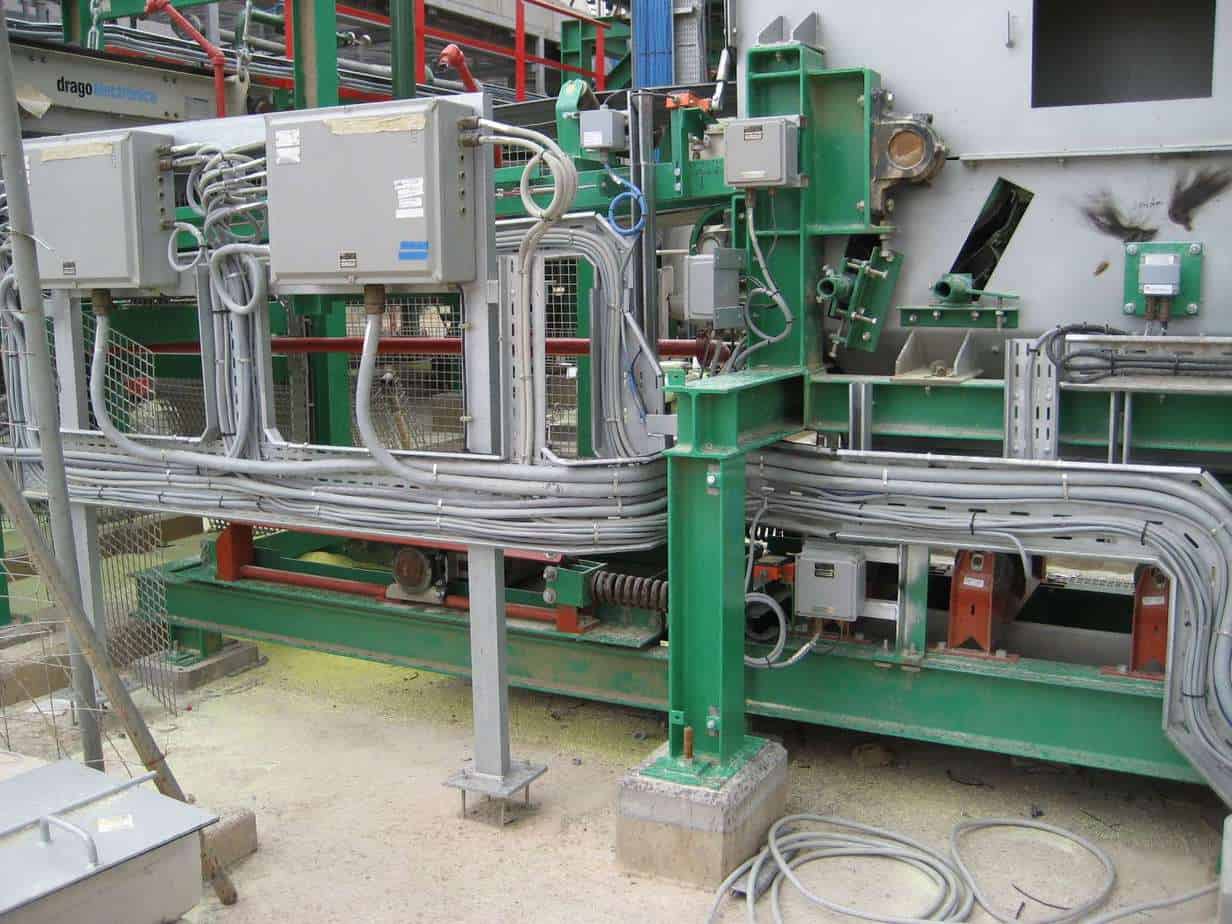

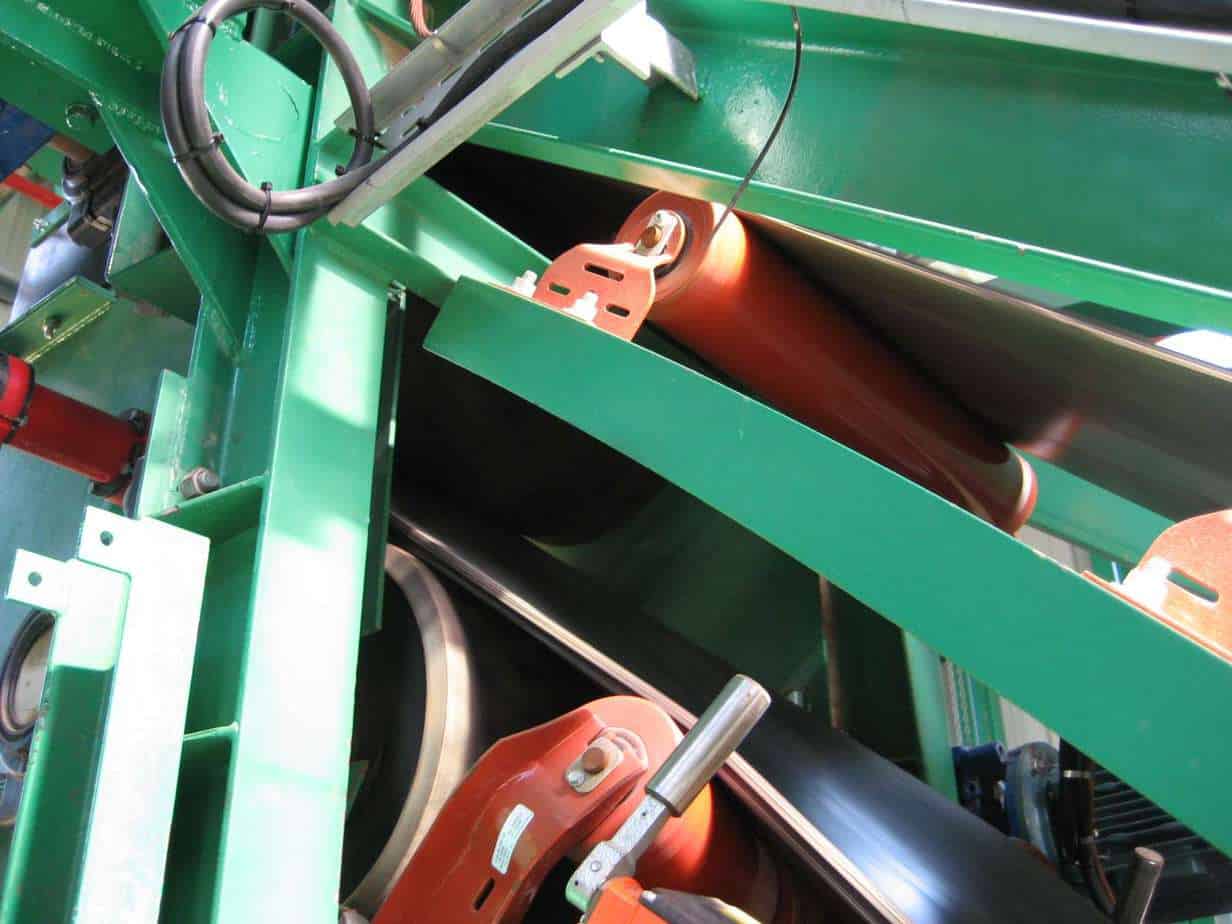

DS099 – TAIM WESER for Repsol Refinery Project

Material:

Sulfur

Bulk density:

1 t/cu-m |

63 PCF

Material size:

3 mm |

0.12 in

Conveying rate:

40 t/h |

44 STPH

Conveying angle:

90 deg

Belt width:

600 mm |

24 in

Belt speed:

2 m/s |

394 FPM

Lift:

10509 mm |

34.5 ft

Length:

20648 mm |

67.7 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DS104 – Zanella Maquinas at Brennand Cimentos Project

Material:

Cement feed

Bulk density:

1.4 t/cu-m |

87 PCF

Material size:

100 mm |

4 in

Conveying rate:

720 t/h |

794 STPH

Conveying angle:

60 deg

Belt width:

1219 mm |

48 in

Belt speed:

3.1 m/s |

610 FPM

Lift:

20290 mm |

66.7 ft

Length:

61470 mm |

202.7 ft

Bottom drive power:

56 kW |

75 HP

Top drive power:

56 kW |

75 HP

DS108 – Paris Metro Tunneling Project

Material:

Tunnel muck

Bulk density:

1.6 t/cu-m |

100 PCF

Material size:

150 mm |

5.9 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

90 deg

Belt width:

1400 mm |

55 in

Belt speed:

3 m/s |

591 FPM

Lift:

24647 mm |

80.9 ft

Length:

33521 mm |

110 ft

Bottom drive power:

75 kW |

101 HP

Top drive power:

75 kW |

101 HP

DS116 – Singapore Airport Tunneling Project

Material:

Tunnel muck

Bulk density:

1.8 t/cu-m |

114 PCF

Material size:

150 mm |

6 in

Conveying rate:

800 t/h |

882 STPH

Conveying angle:

45 deg

Belt width:

1200 mm |

47 in

Belt speed:

2 m/s |

394 FPM

Lift:

32783 mm |

108 ft

Length:

90142 mm |

296 ft

Bottom drive power:

75 kW |

100 HP

Top drive power:

75 kW |

100 HP

DS088 – Western Canada Pulp Mill Project

Material:

Wood chips

Bulk density:

0.2 t/cu-m |

15 PCF

Material size:

50.8 mm |

2 in

Conveying rate:

203 t/h |

224 STPH

Conveying angle:

45 deg

Belt width:

1372 mm |

54 in

Belt speed:

2.61 m/s |

513 FPM

Lift:

20422 mm |

67 ft

Length:

57303 mm |

188 ft

Bottom drive power:

22.4 kW |

30 HP

Top drive power:

22.4 kW |

30 HP

DS115 – SNF Coagulants at St Avold France

Material:

Magnetite

Bulk density:

3 t/cu-m |

188 PCF

Material size:

1 mm |

0.04 in

Conveying rate:

30 t/h |

33 STPH

Conveying angle:

90 deg

Belt width:

610 mm |

24 in

Belt speed:

0.39 m/s |

76 FPM

Lift:

8790 mm |

29 ft

Length:

14400 mm |

47 ft

Bottom drive power:

4 kW |

6 HP

Top drive power:

4 kW |

6 HP

DS113 – Ash Grove Cement

Material:

Tire chips

Bulk density:

0.4 t/cu-m |

25 PCF

Material size:

51 mm |

2 in

Conveying rate:

9 t/h |

10 STPH

Conveying angle:

90 deg

Belt width:

762 mm |

30 in

Belt speed:

0.5 m/s |

100 FPM

Lift:

40538 mm |

133 ft

Length:

62500 mm |

205 ft

Bottom drive power:

5.6 kW |

7.5 HP

Top drive power:

5.6 kW |

7.5 HP
