DS103 – Oxbow Project – Dos Santos Universal, LLC

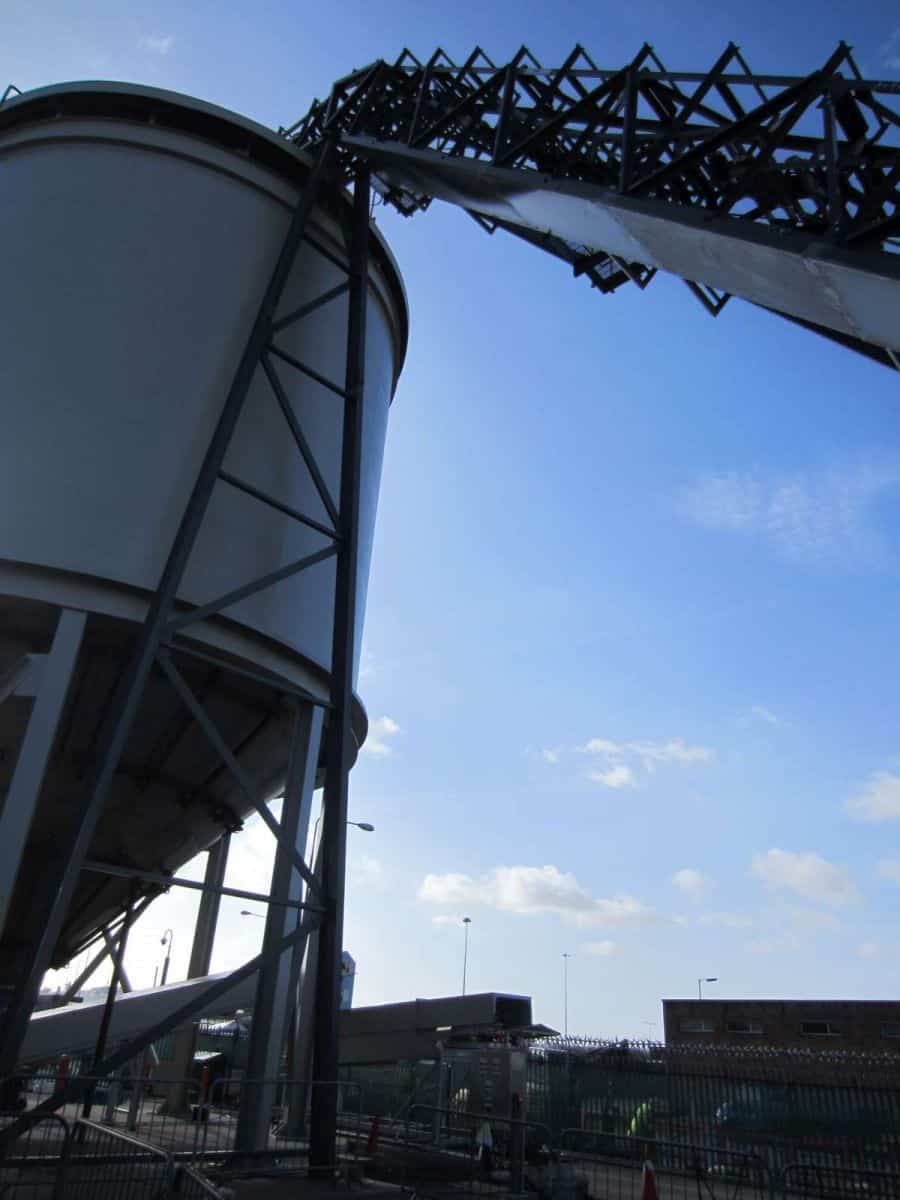

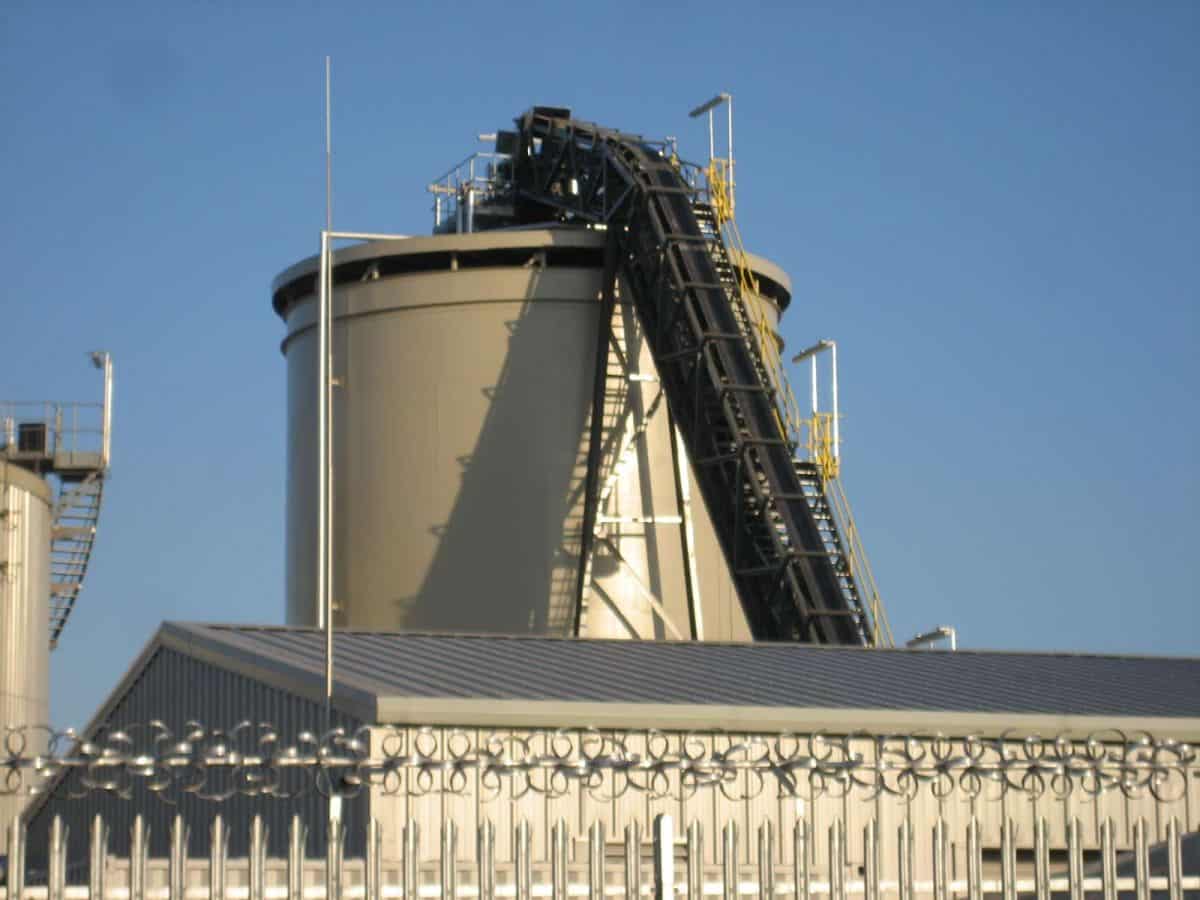

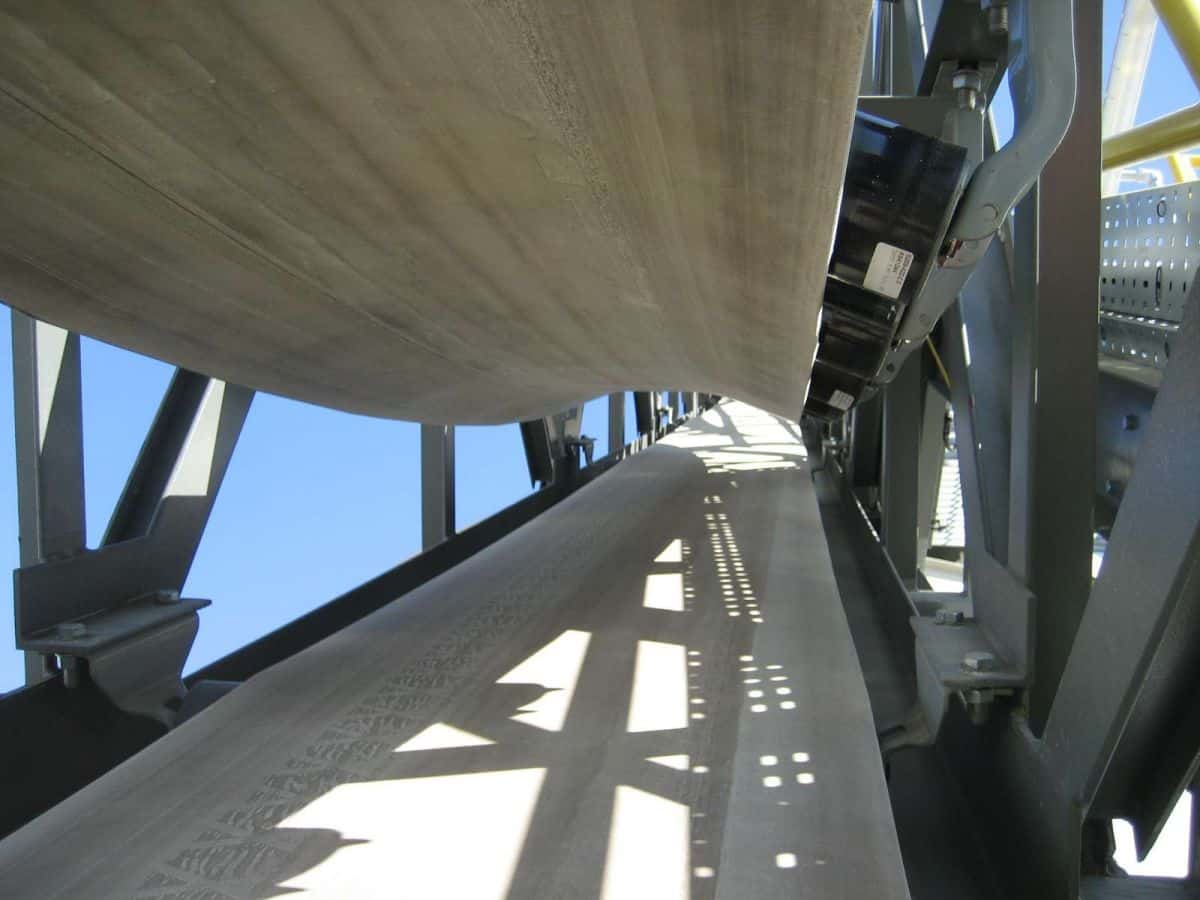

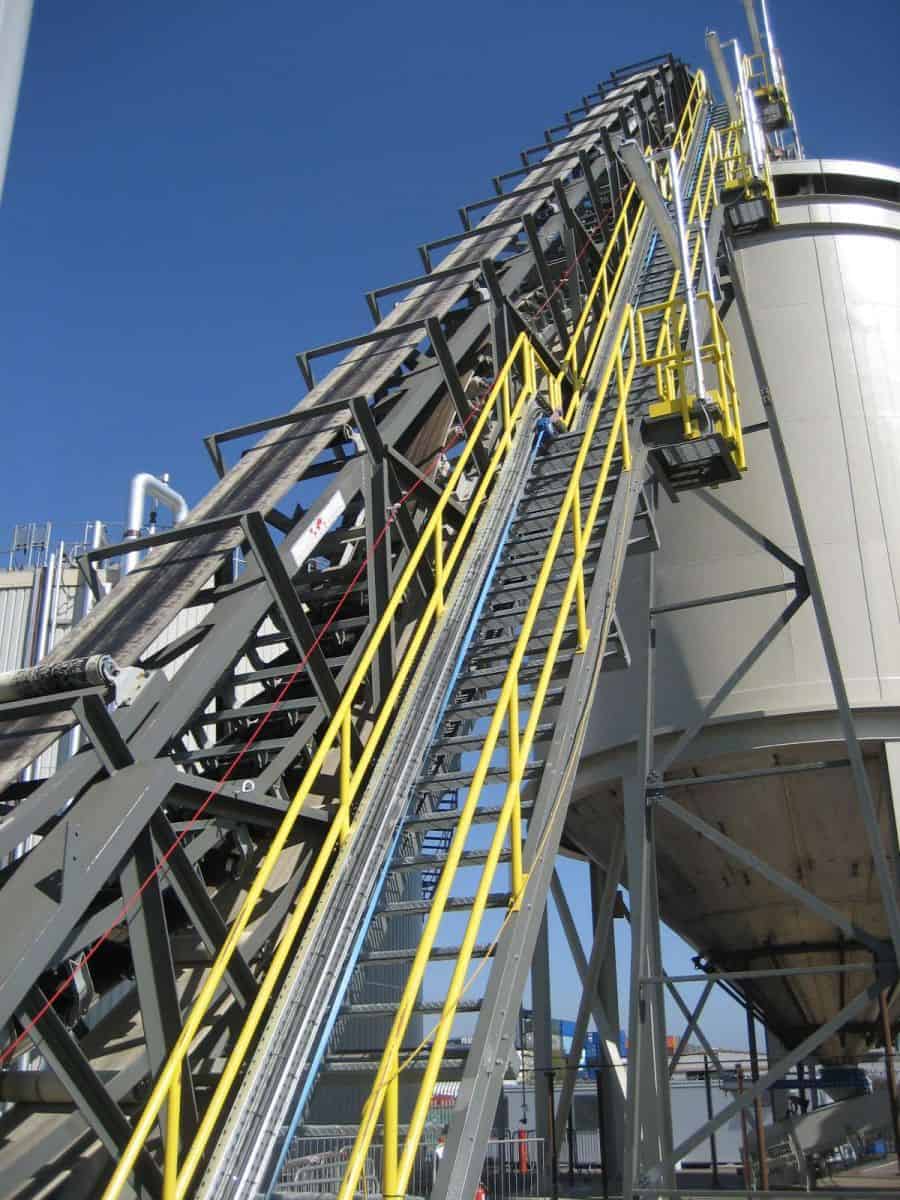

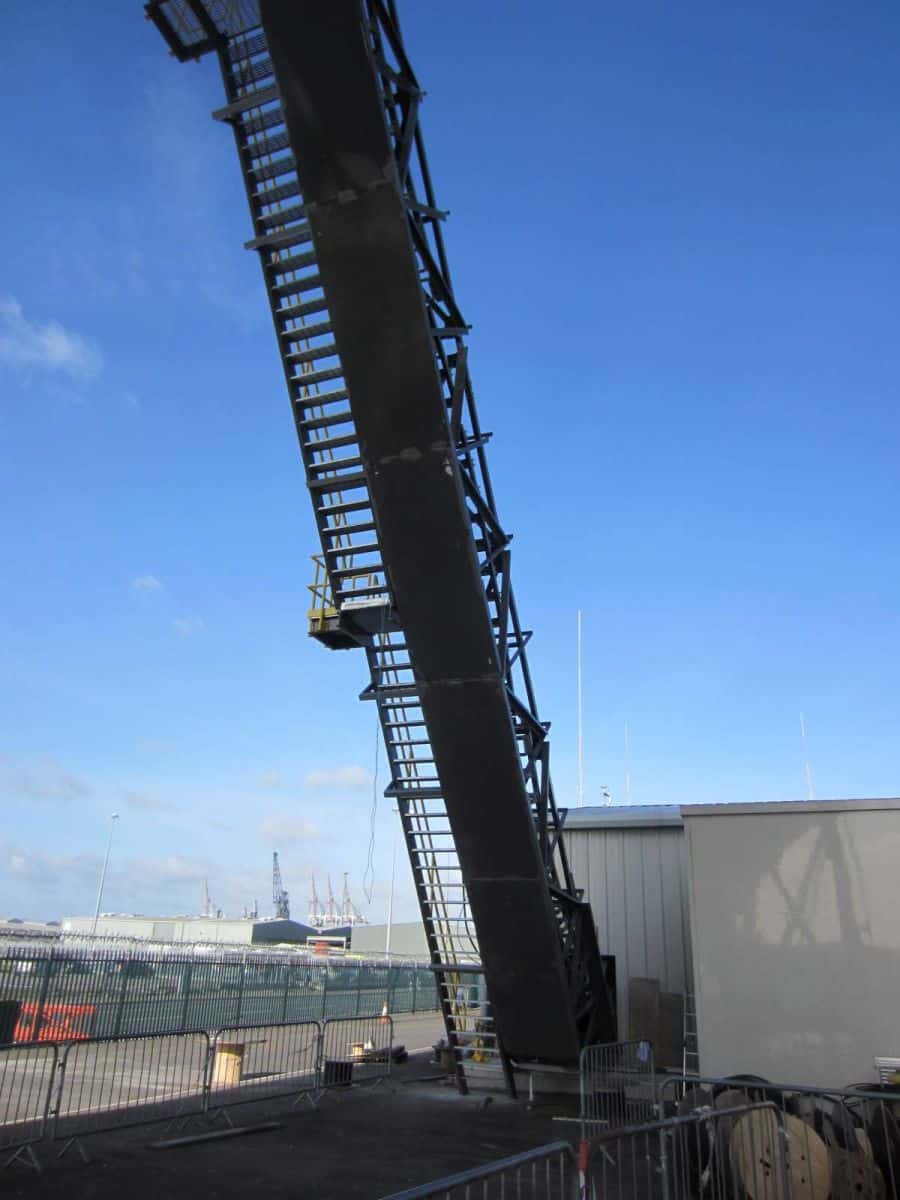

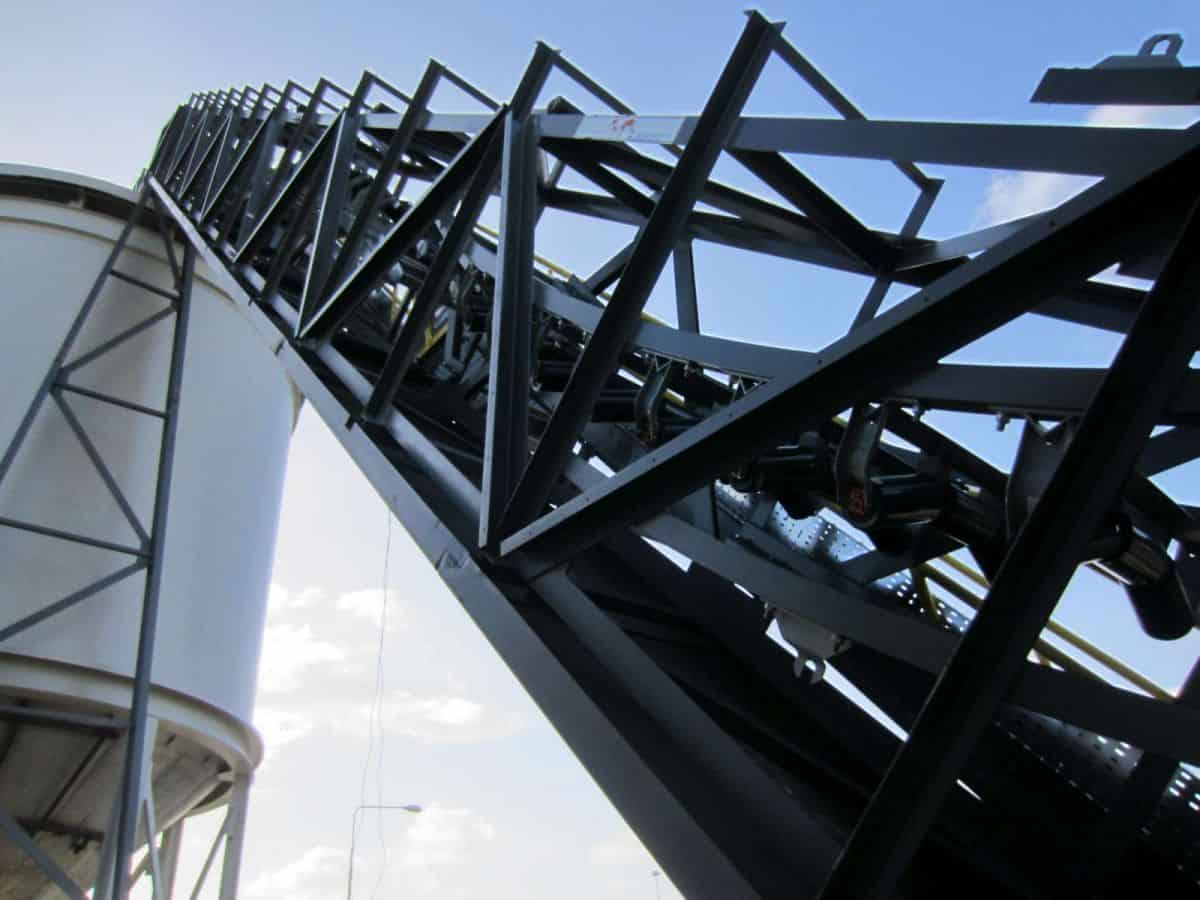

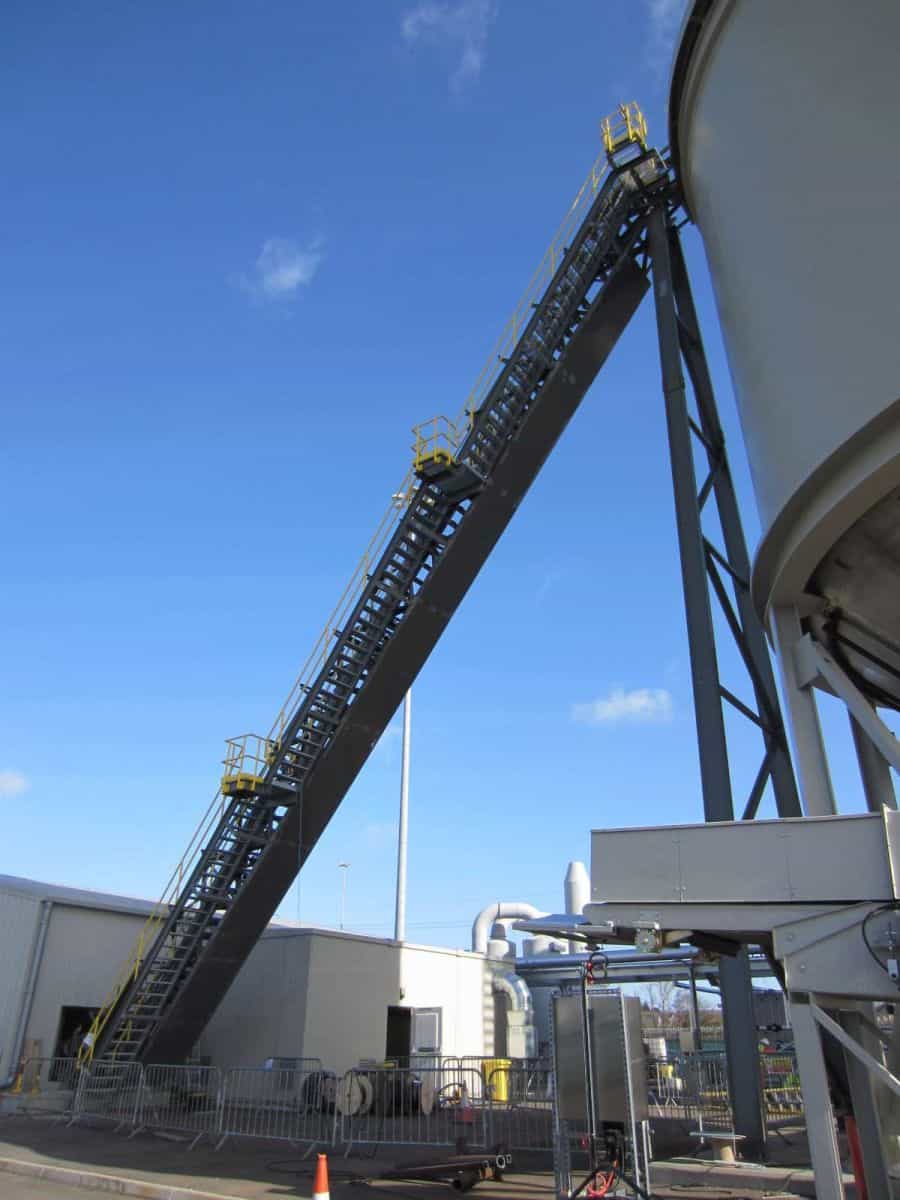

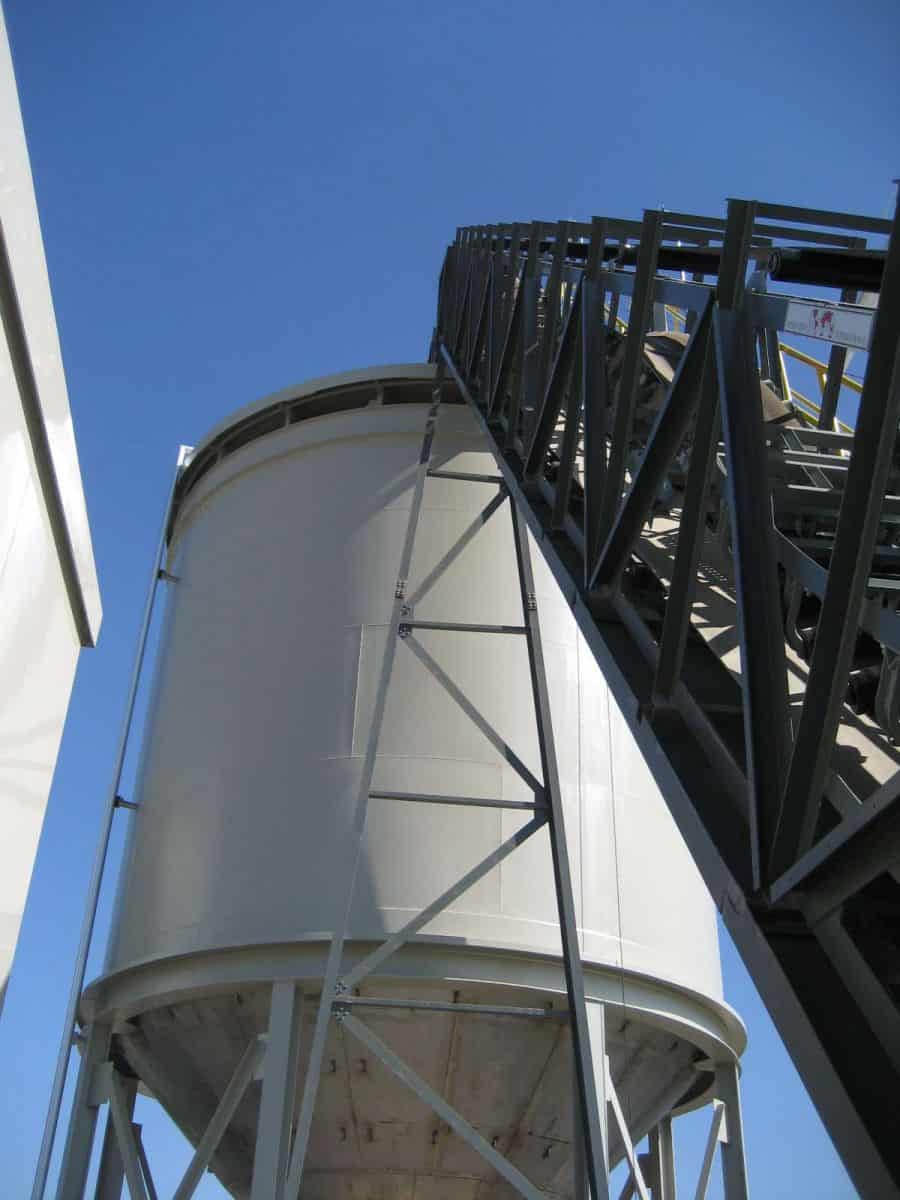

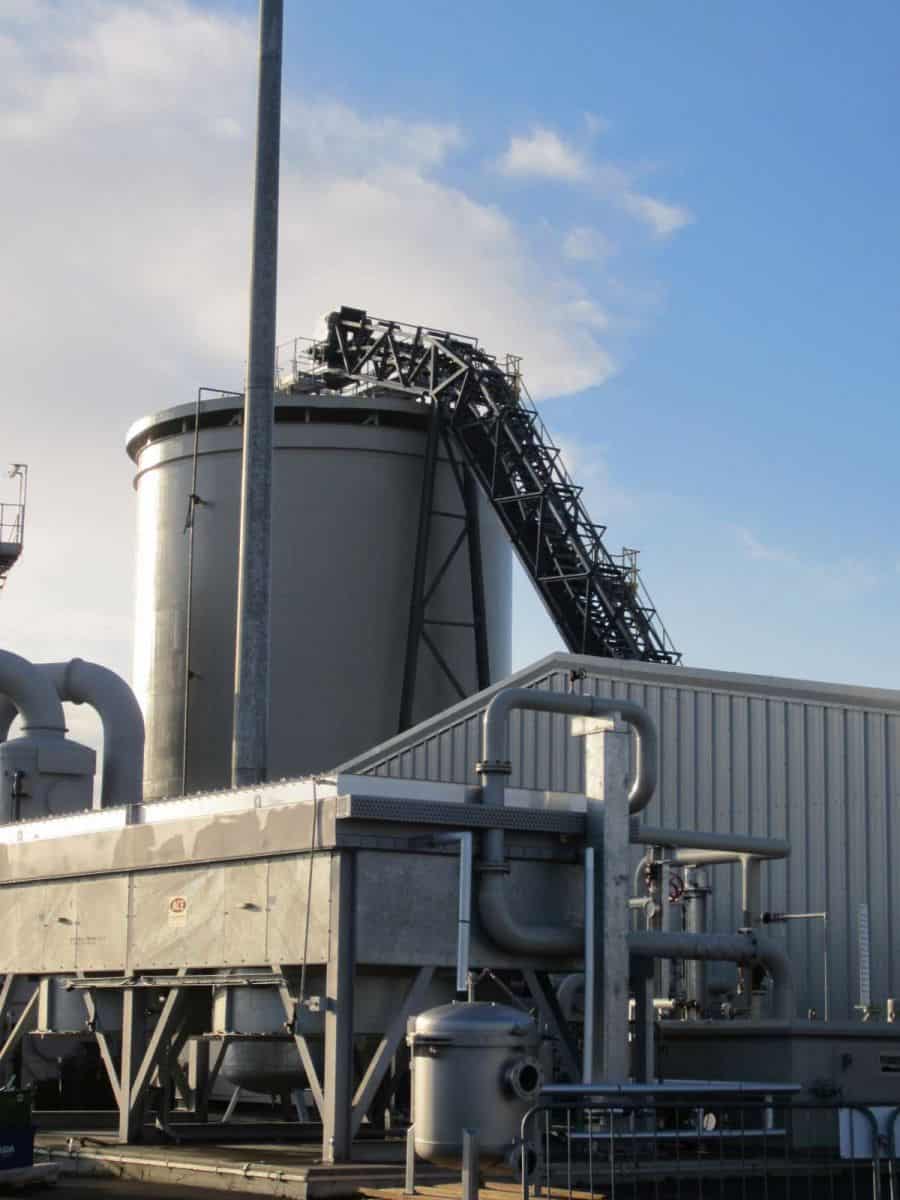

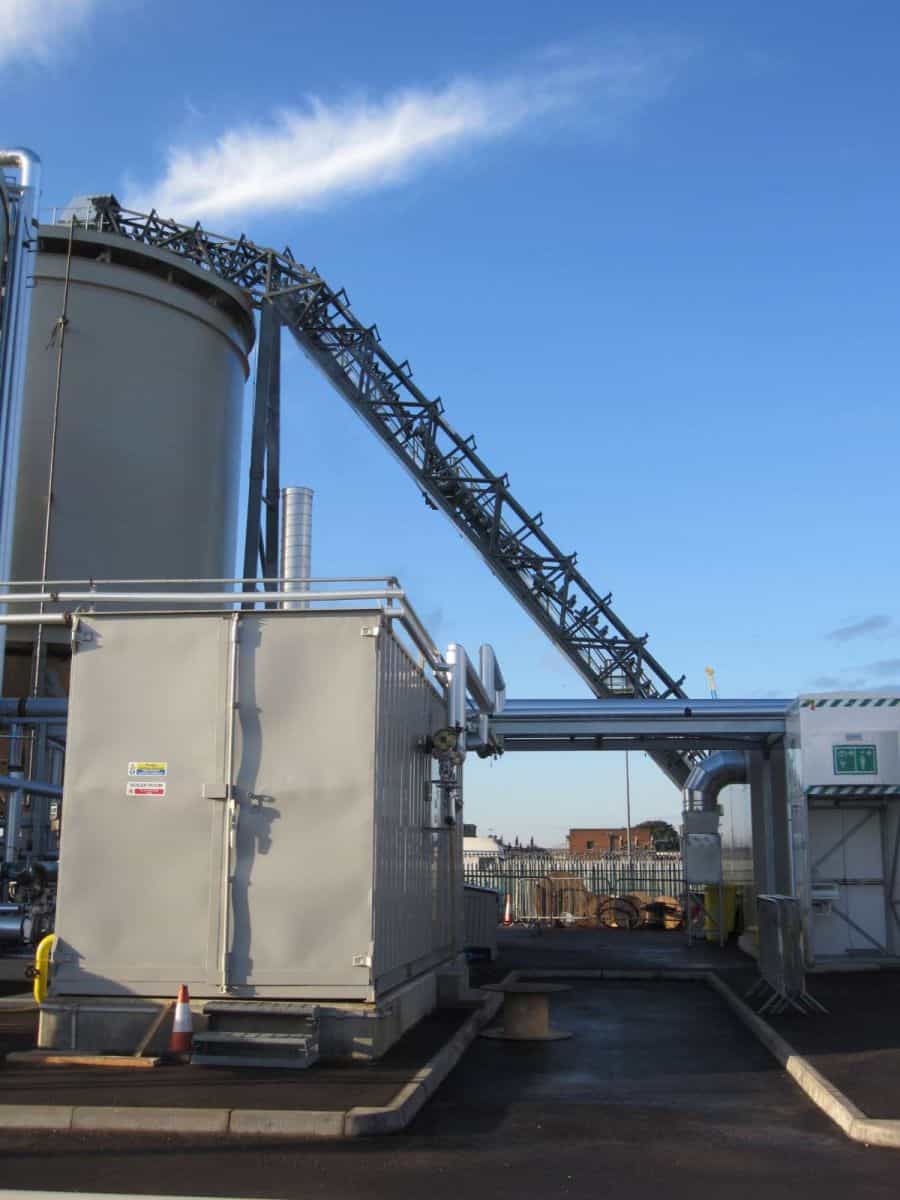

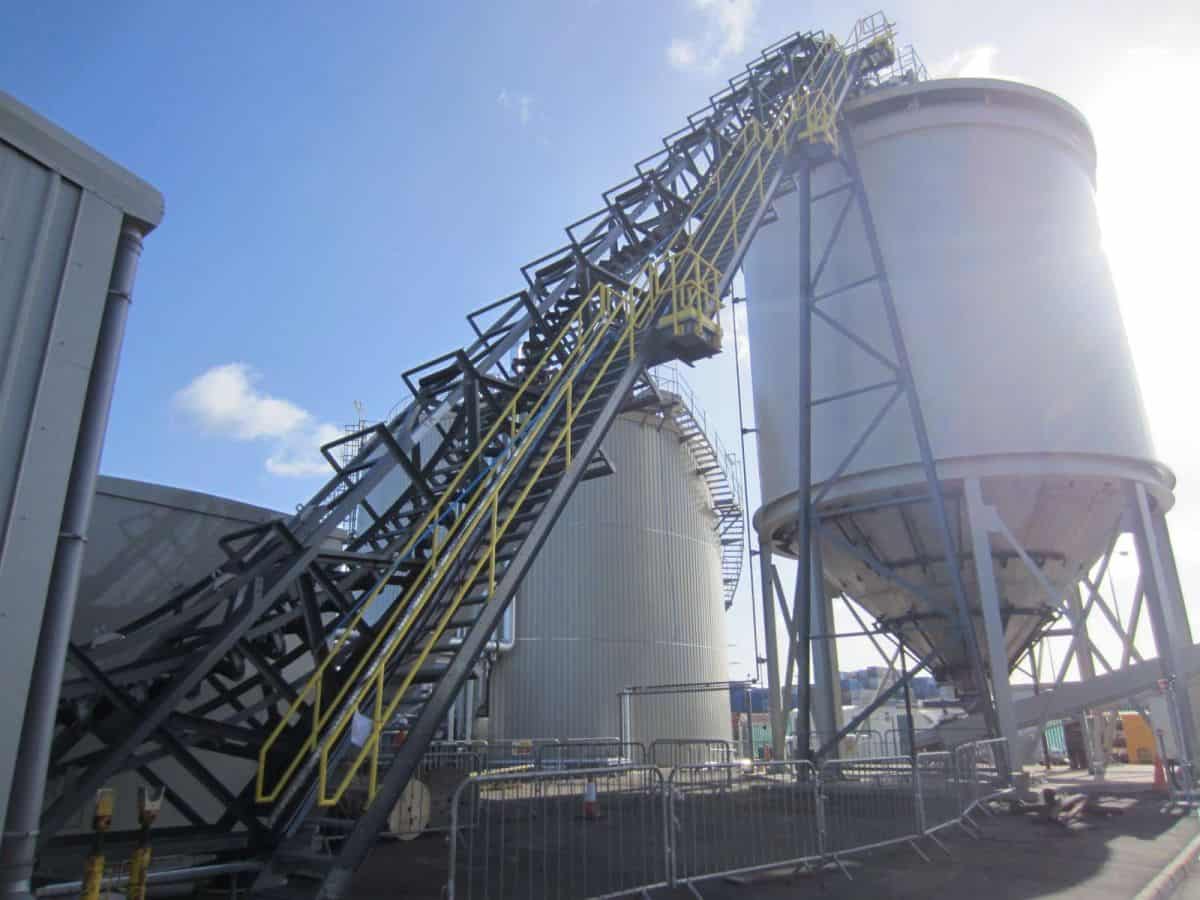

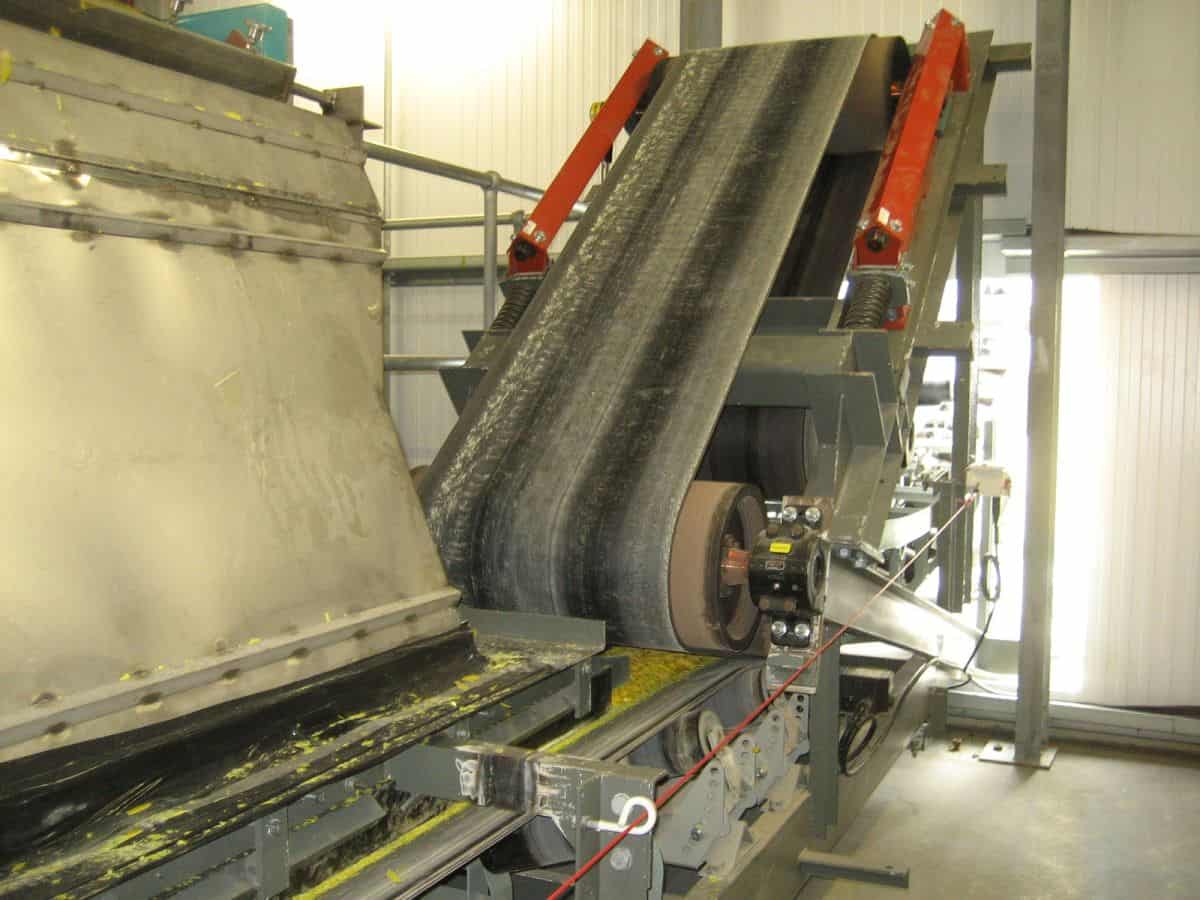

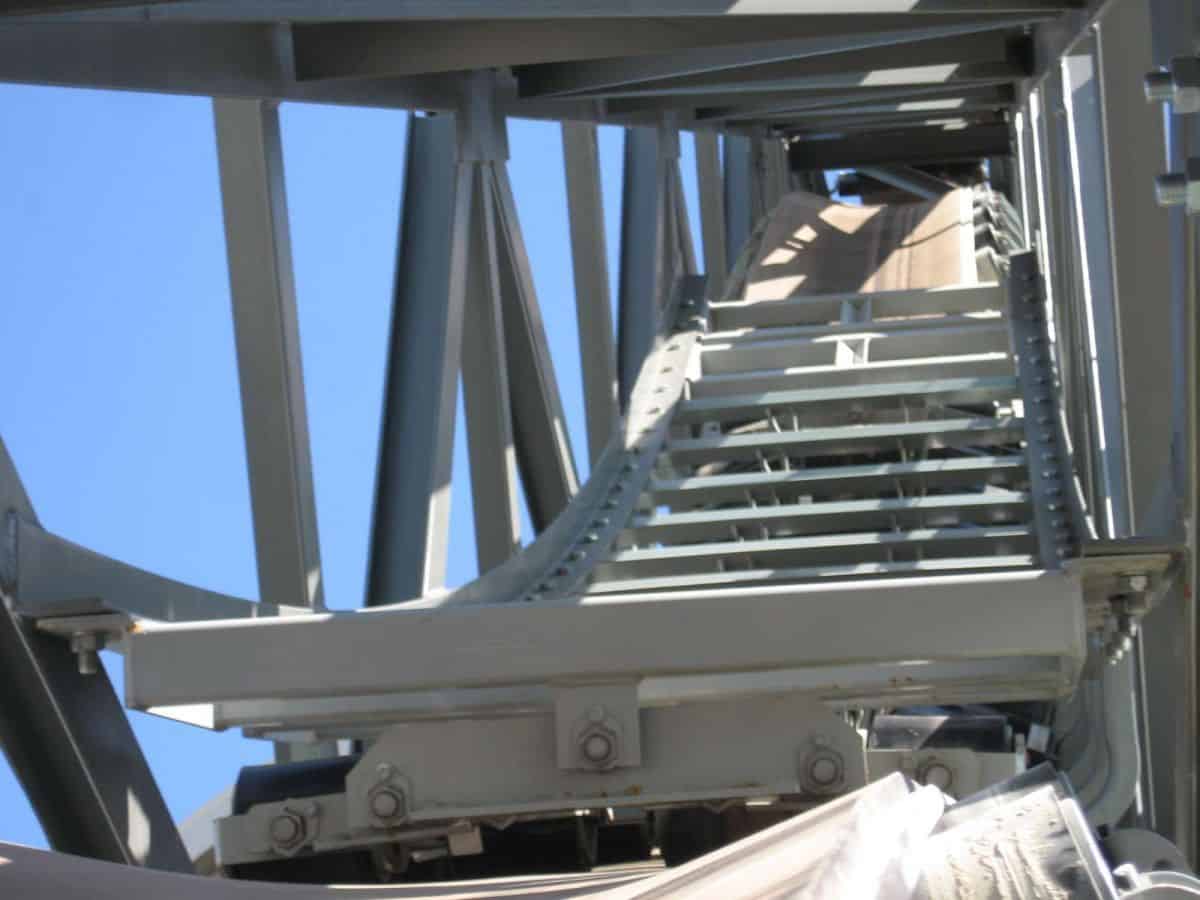

DS103 – Oxbow Project

DS103 – Oxbow Project

Material:

Sulfur

Bulk density:

1.2 t/cu-m |

75 PCF

Material size:

2 mm |

0.13 in

Conveying rate:

20 t/h |

22 STPH

Conveying angle:

51 deg

Belt width:

600 mm |

24 in

Belt speed:

0.4 m/s |

79 FPM

Lift:

19266 mm |

63.2 ft

Length:

55800 mm |

183.1 ft

Bottom drive power:

3.7 kW |

5 HP

Top drive power:

3.7 kW |

5 HP

DS099 – TAIM WESER for Repsol Refinery Project

Material:

Sulfur

Bulk density:

1 t/cu-m |

63 PCF

Material size:

3 mm |

0.12 in

Conveying rate:

40 t/h |

44 STPH

Conveying angle:

90 deg

Belt width:

600 mm |

24 in

Belt speed:

2 m/s |

394 FPM

Lift:

10509 mm |

34.5 ft

Length:

20648 mm |

67.7 ft

Bottom drive power:

7.5 kW |

10 HP

Top drive power:

7.5 kW |

10 HP

DSCo005 – DSI Silo Transfer Conveyor for Ameren Energy at Duck Creek Power Station

Material:

Limestone

Bulk density:

1.4 t/cu-m |

90 PCF

Material size:

75 mm |

3 in

Conveying rate:

1814 t/h |

2000 STPH

Conveying angle:

Belt width:

1524 mm |

60 in

Belt speed:

1.78 m/s |

350 FPM

Lift:

Length:

9327 mm |

30.6 ft

Bottom drive power:

22.4 kW |

30 HP

Top drive power:

N/A kW |

N/A HP

DSCo002 – DSI Temporary Reclaim TC-2 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

12 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

7620 mm |

25 ft

Length:

53340 mm |

175 ft

Bottom drive power:

74.6 kW |

100 HP

Top drive power:

N/A kW |

N/A HP

DSCo003 – DSI Temporary Reclaim TC-3 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

5 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

914 mm |

3 ft

Length:

6614 mm |

21.7 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

N/A kW |

N/A HP

DSCo004 – DSI Temporary Reclaim TC-4 for AEP Amos Plant

Material:

Coal

Bulk density:

0.8 t/cu-m |

50 PCF

Material size:

89 mm |

3.5 in

Conveying rate:

1089 t/h |

1200 STPH

Conveying angle:

5 deg

Belt width:

1219 mm |

48 in

Belt speed:

2.79 m/s |

550 FPM

Lift:

1753 mm |

5.75 ft

Length:

12619 mm |

41.4 ft

Bottom drive power:

29.8 kW |

40 HP

Top drive power:

N/A kW |

N/A HP

DS117 – LMO Cooper Consolidated

Material:

Grain

Bulk density:

0.77 t/cu-m |

48 PCF

Material size:

101.6 mm |

4 in

Conveying rate:

2268 t/h |

2500 STPH

Conveying angle:

50 deg

Belt width:

2133 mm |

84 in

Belt speed:

4.57 m/s |

900 FPM

Lift:

18474 mm |

60.6 ft

Length:

36538 mm |

119.9 ft

Bottom drive power:

112 kW |

150 HP

Top drive power:

149 kW |

200 HP
